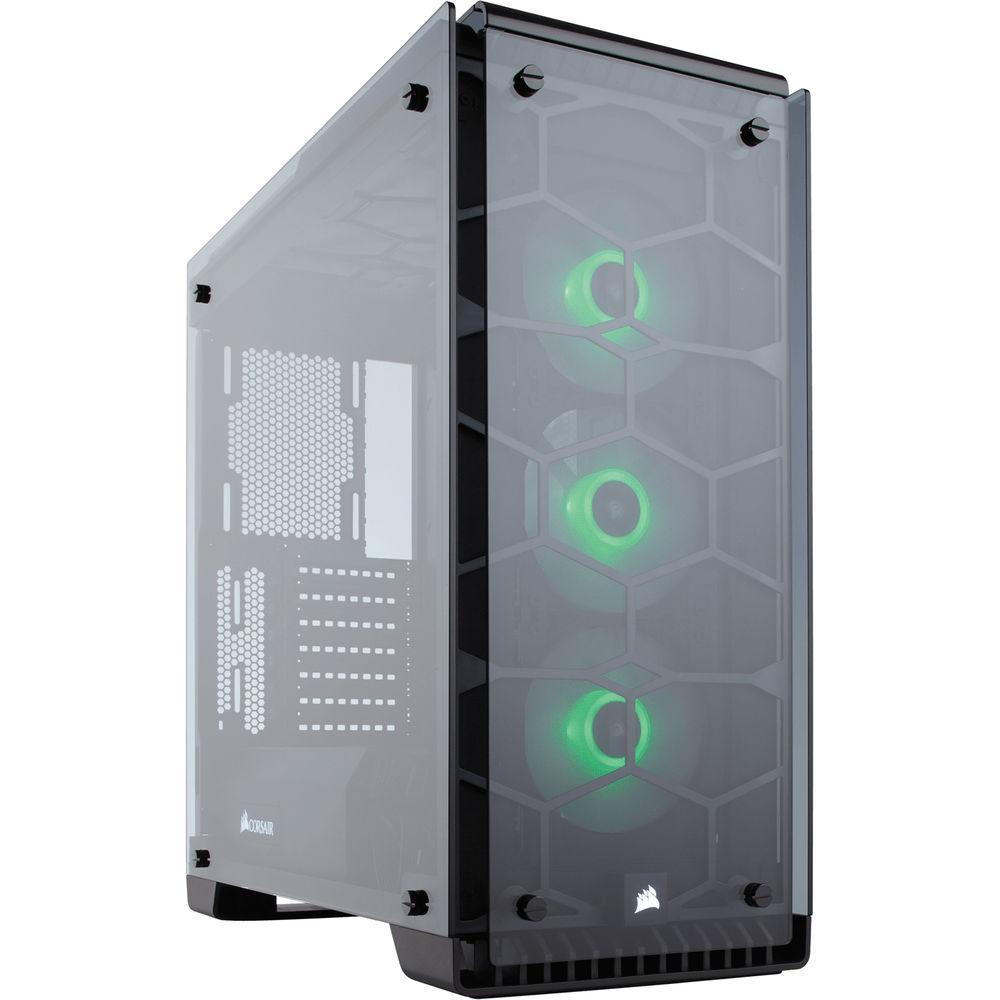

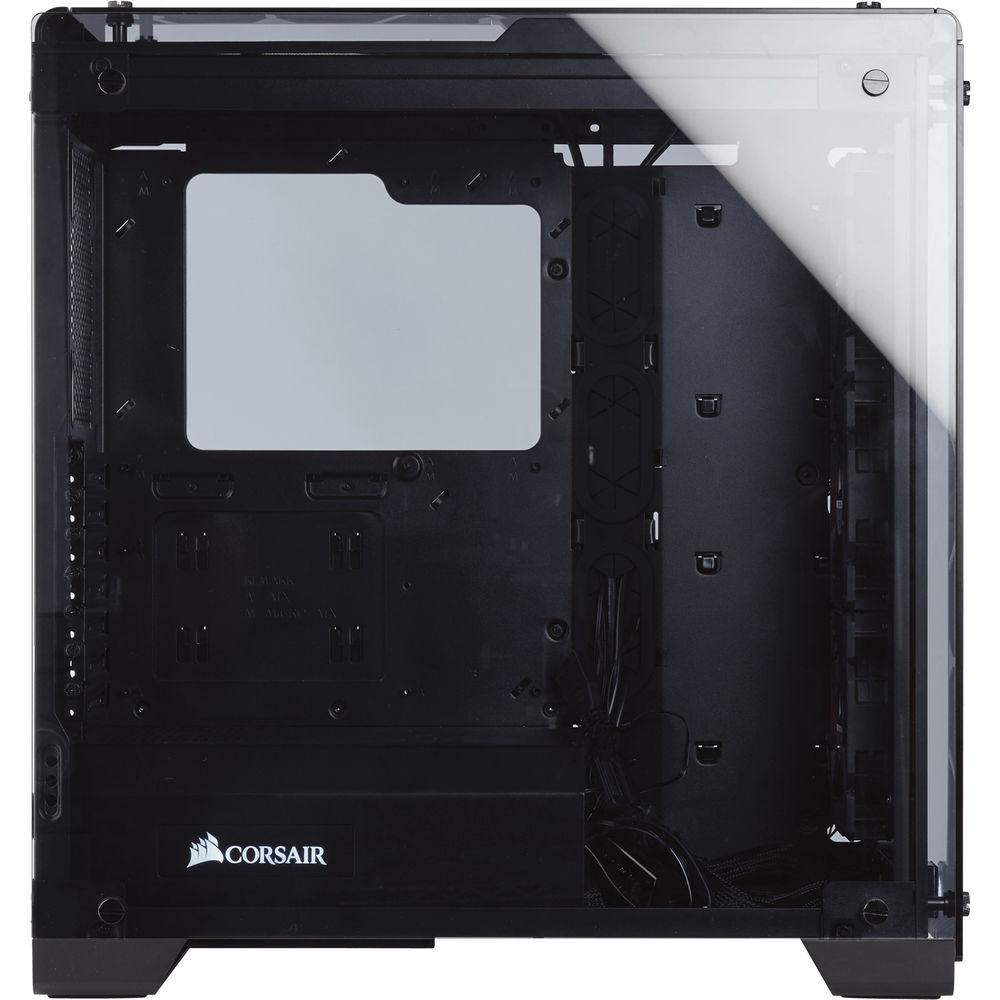

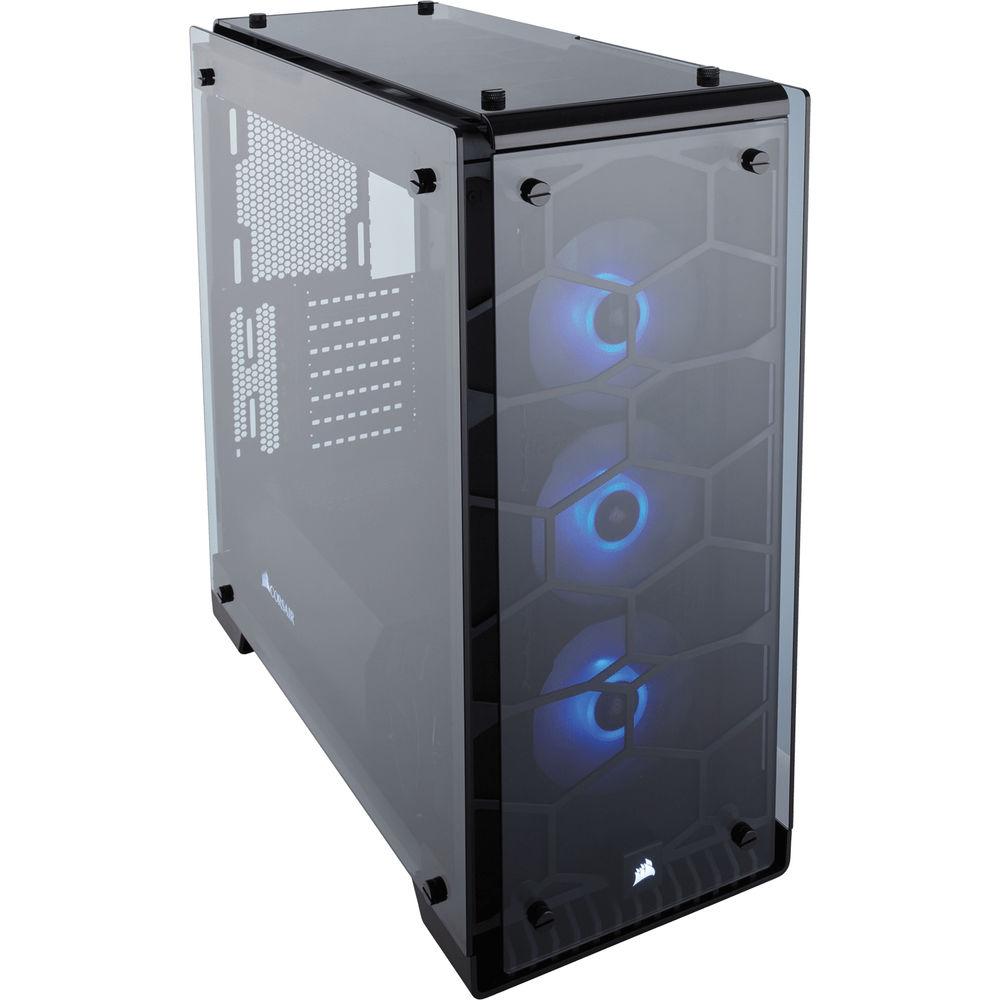

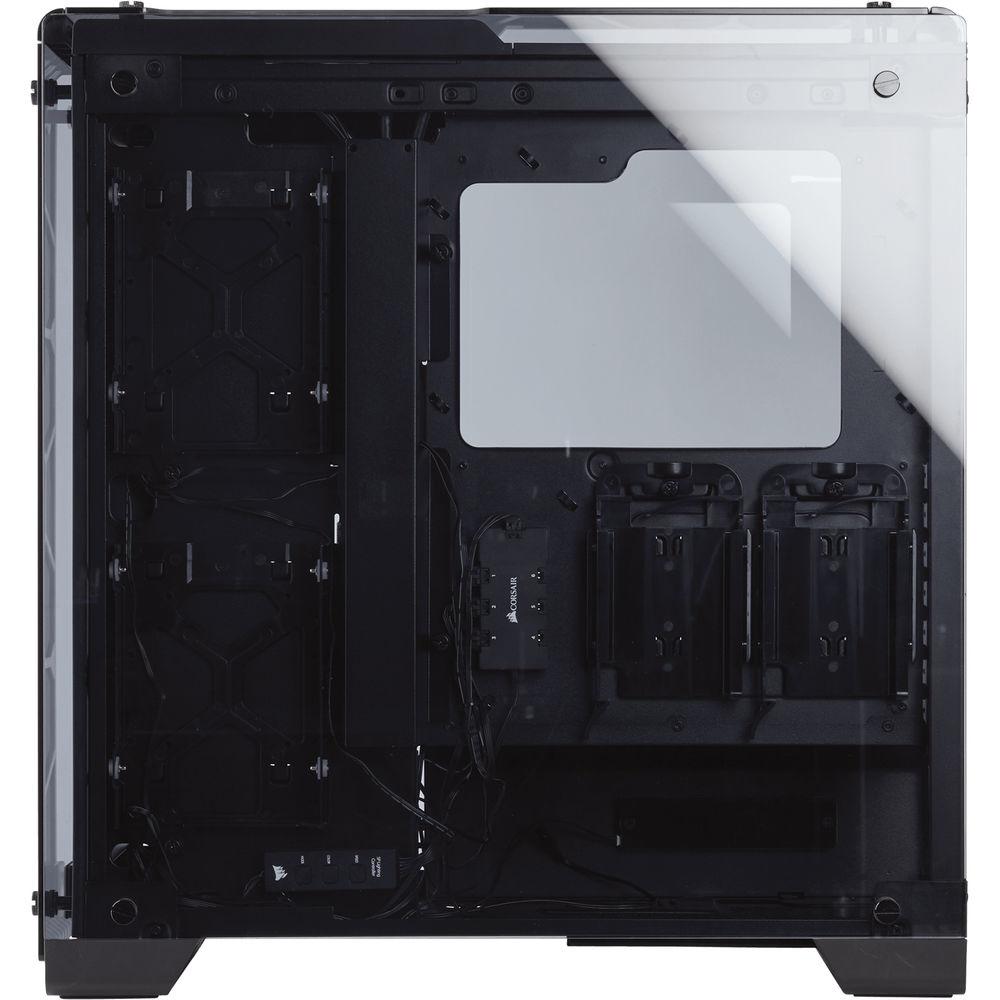

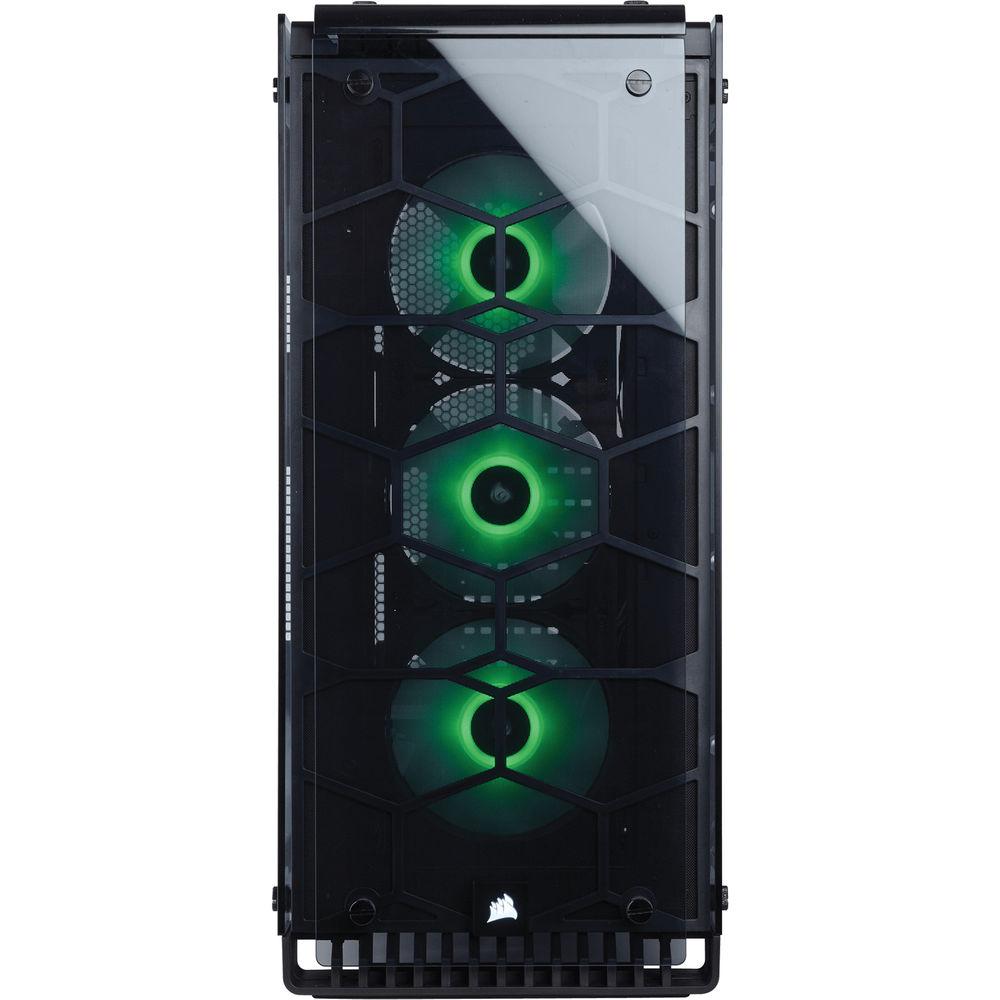

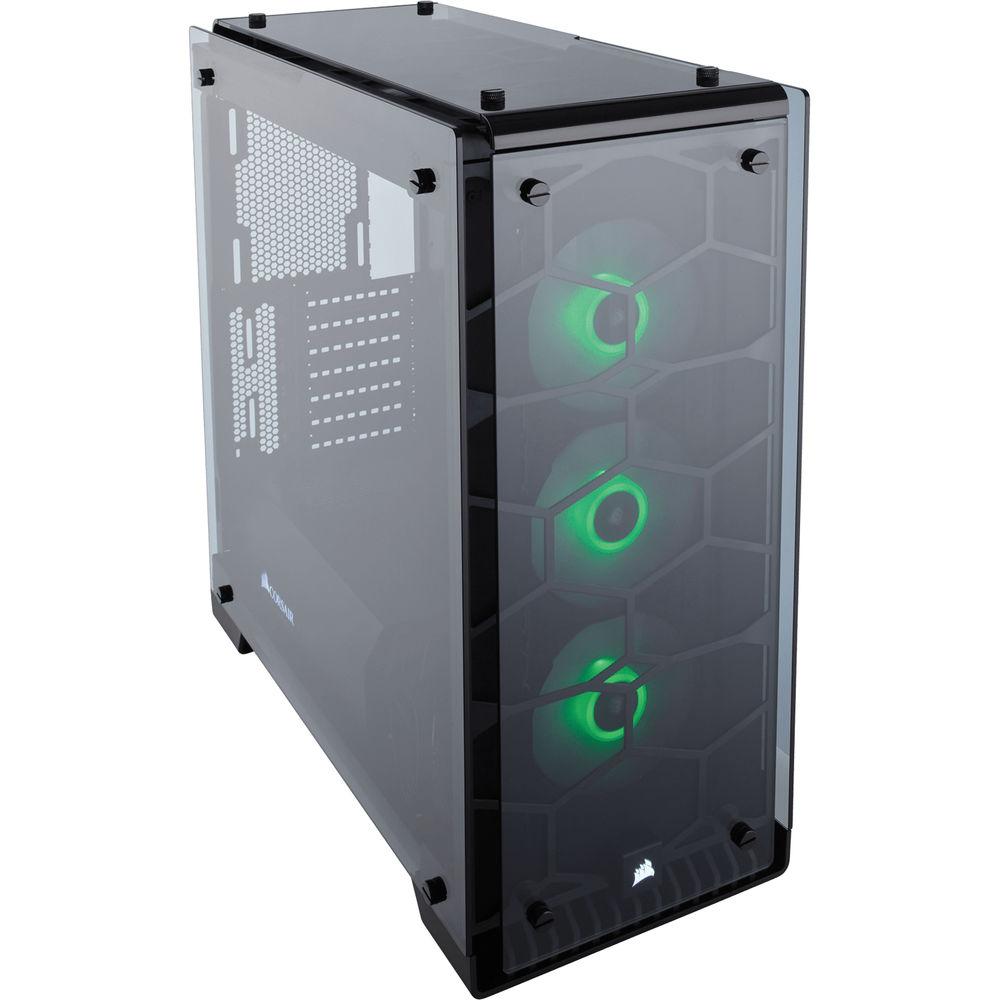

Product description The Corsair Crystal Series 570X RGB Mid-Tower Case features four-panel tempered glass for users who want a sleek and stylish case to show off their build. It supports up to an ATX motherboard, two 3.5" and two 2.5" drive bays, as well as seven expansion slots with enough room left over for liquid cooling systems. Without front drive cages blocking airflow, the Crystal 570X can efficiently move cool air throughout the chassis to reduce heat. Moreover, it supports multiple radiators and fans for additional cooling capabilities, and even comes with three 120mm RGB LED fans as well as a LED controller. At the bottom of the chassis is a PSU bay cover that's used to hide the power supply, drive cage, and cables for a clean and refined build. - Tempered Glass
- With four-panel tempered glass enclosing the entire case, every component of your build is on display for all to see, including three vivid SP120 RGB LED fans and a built-in LED controller.
- RGB LED Lights
- Included with the Crystal 570X are three SP120 RGB LED fans and a built-in LED controller that light up your build and cool your components without making much noise.
- Cooling
- The 570X has room for up to 6 case fans, and is fully compatible with 360mm, 280mm, and 120mm radiators. The removable fan trays in the front and top of the case allow for additional space or mounting cooling externally.
- Direct Airflow Path
- The drive cages are moved up and out of the path of cool air from the front intake fans and high-temperature components.
- Cable Management
- There are cable routing channels with included hook and loop fasteners for clean cable management.
- Minimal Setup
- With tool-free drive installation and three-point dust filter access, the Corsair Crystal 570X is easy to build - and even easier to keep clean. You'll spend less time on setup and maintenance, and more time enjoying your PC.
UPC: 843591091657 In the Box Corsair Crystal Series 570X RGB Mid-Tower Case Accessory Kit Limited 2-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Corsair Crystal Series 570X RGB Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCorsair CC-9011098-WW Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | Internal Drive Bays | 2 x 3.5"
2 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 14.6" / 37.1 cm | | CPU Cooler Height | 6.7" / 16.9 cm | | Supported PSU Size | ATX | | Maximum PSU Length | 8.9" / 22.5 cm | | | | Fan Mounting (Rear) | 1 x 120 mm
| | Fan Mounting (Top) | 2 x 140 mm
| | Fans Included (Front) | 3 x 120 mm LED | | Maximum Radiator Size (Front) | 360 mm | | Maximum Radiator Size (Rear) | 120 mm | | Maximum Radiator Size (Top) | 240 mm | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Steel, Tempered Glass | | Cable Management Space | None | | Dimensions (W x H x D) | 9.2 x 20.2 x 18.9" / 23.4 x 51.2 x 48.0 cm | | Weight | 24.0 lb / 10.9 kg | | | | Package Weight | 31.5 lb | | Box Dimensions (LxWxH) | 24.5 x 23.5 x 13.0" |
