User Manual for Corsair Gaming K70 RGB RAPIDFIRE Backlit Mechanical Keyboard Click to enlarge the picture
Contents of the user manual for the Corsair Gaming K70 RGB RAPIDFIRE Backlit
- Product category: Keyboards Corsair
- Brand: Corsair
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Corsair Keyboards
 |
User manual for the Corsair Gaming K70 RGB RAPIDFIRE Backlit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Corsair product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Corsair user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Corsair product will considerably shorten its lifespan!
|

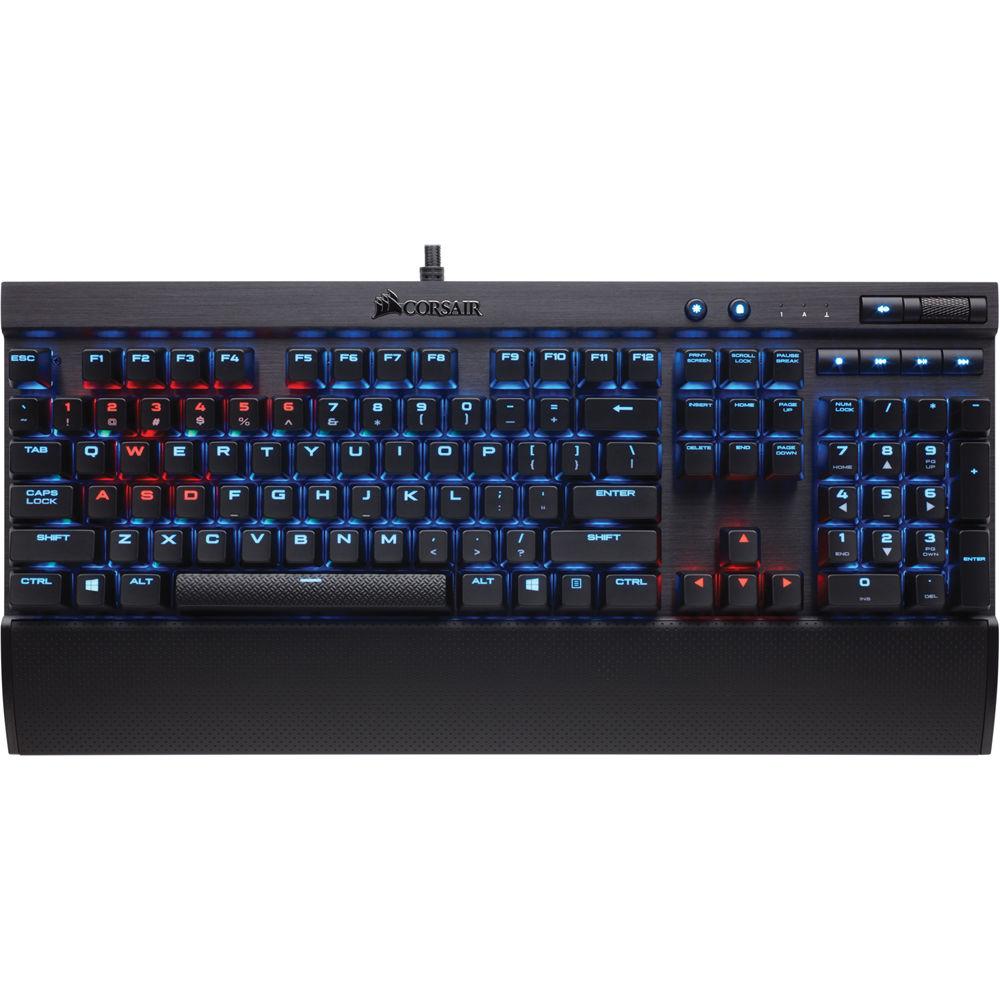

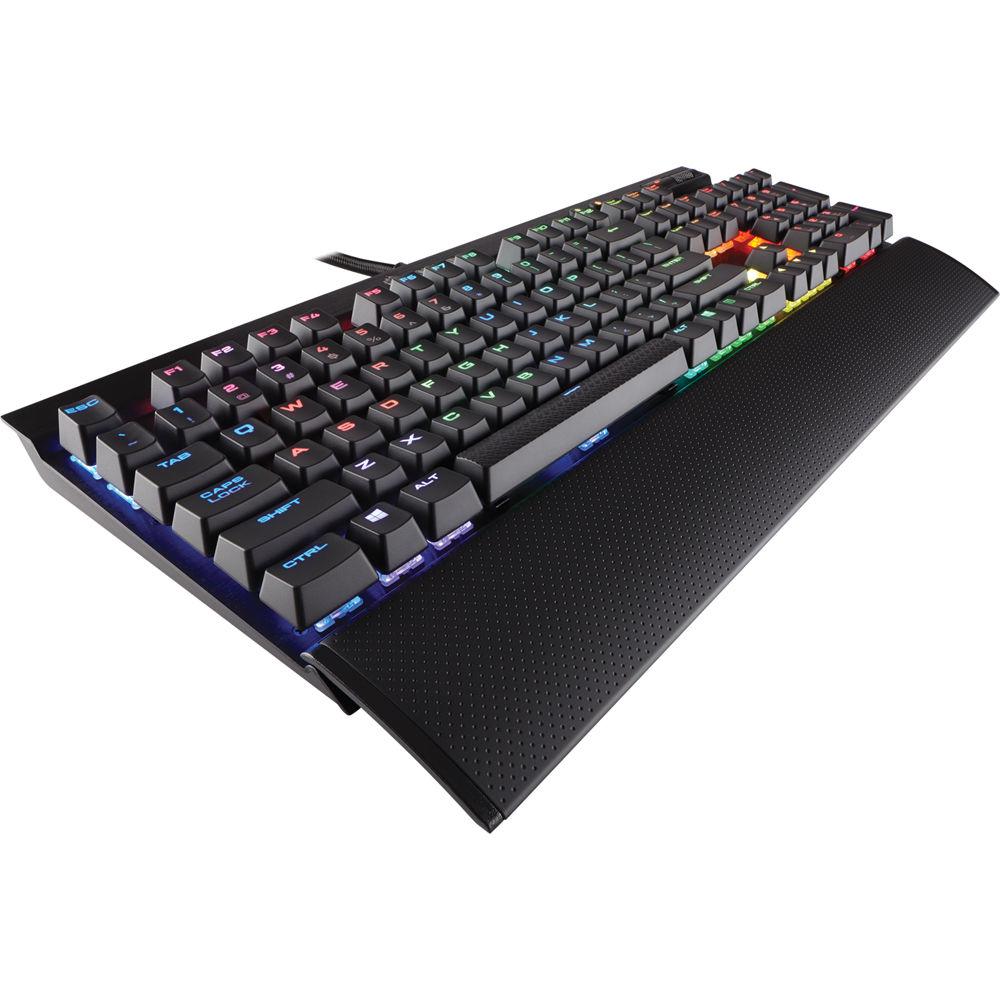

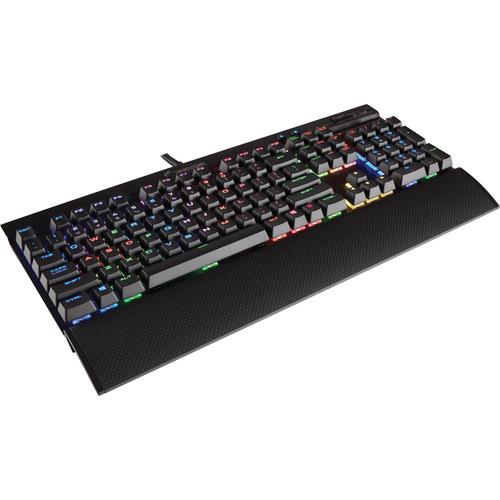

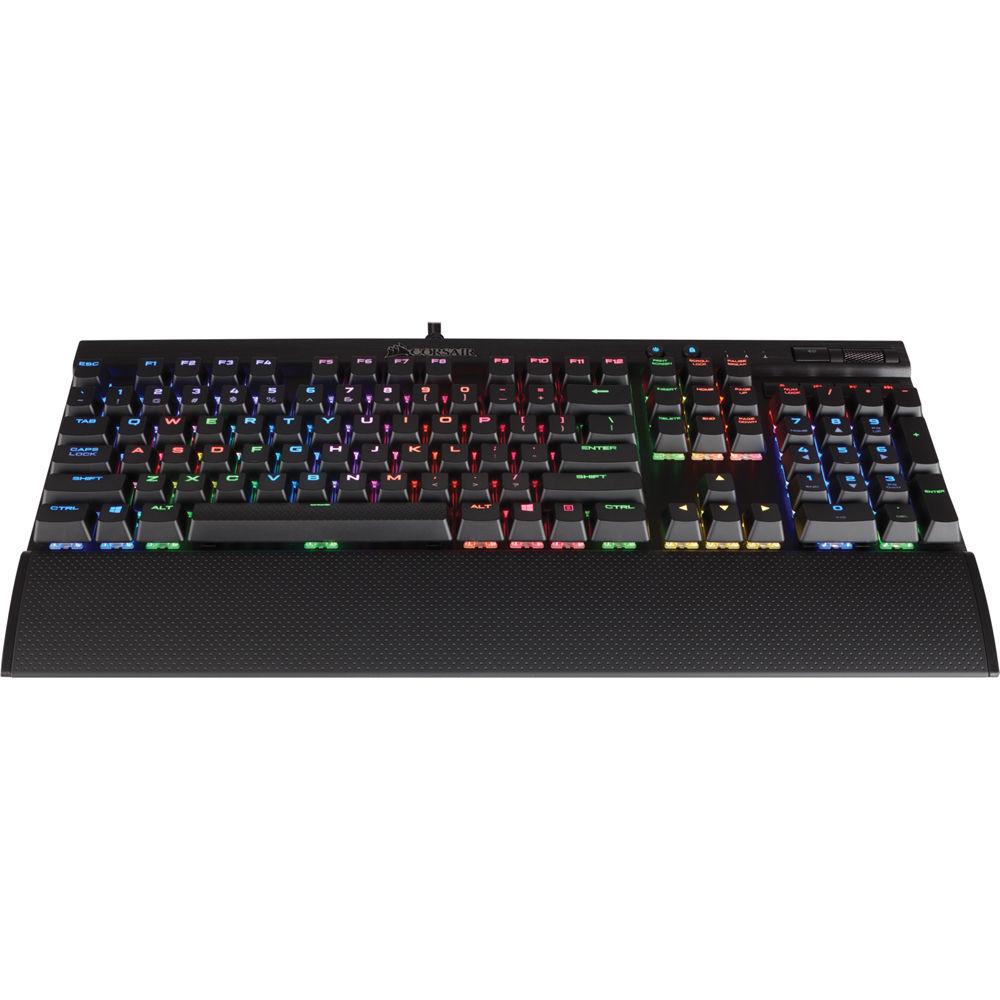

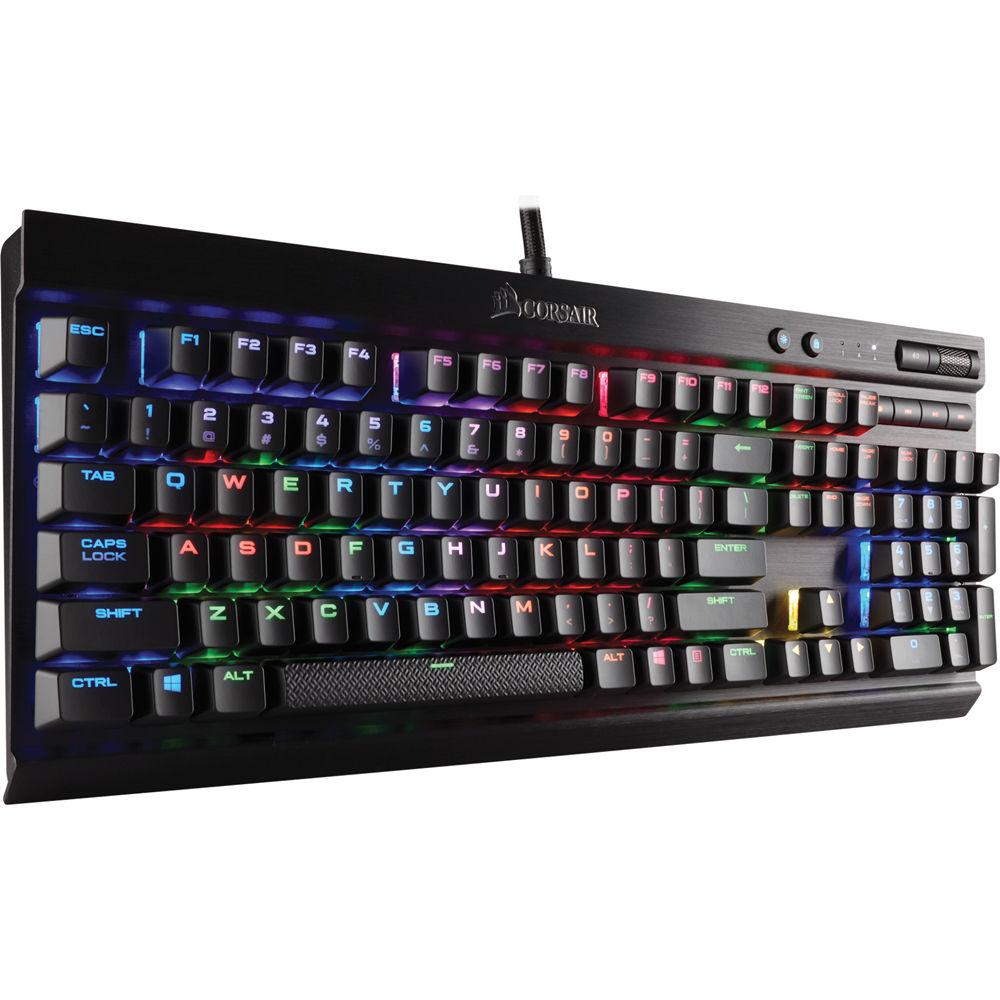

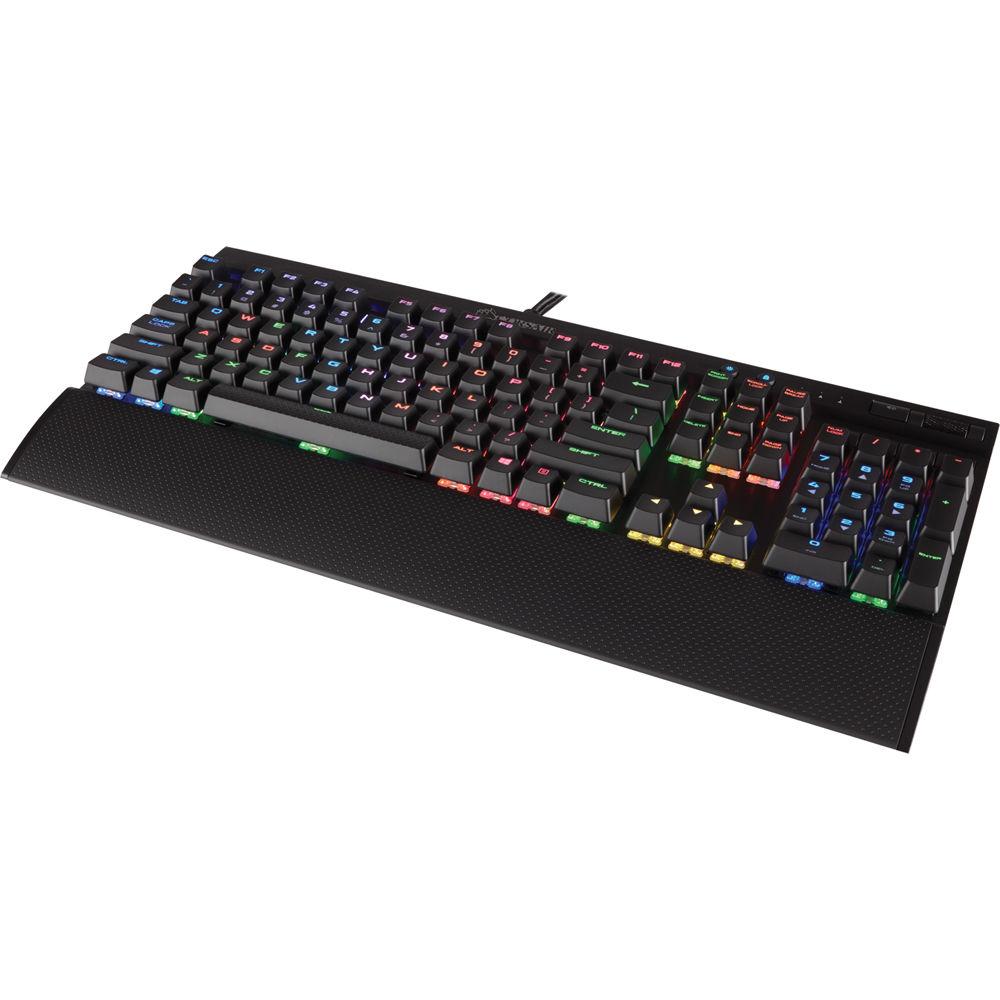

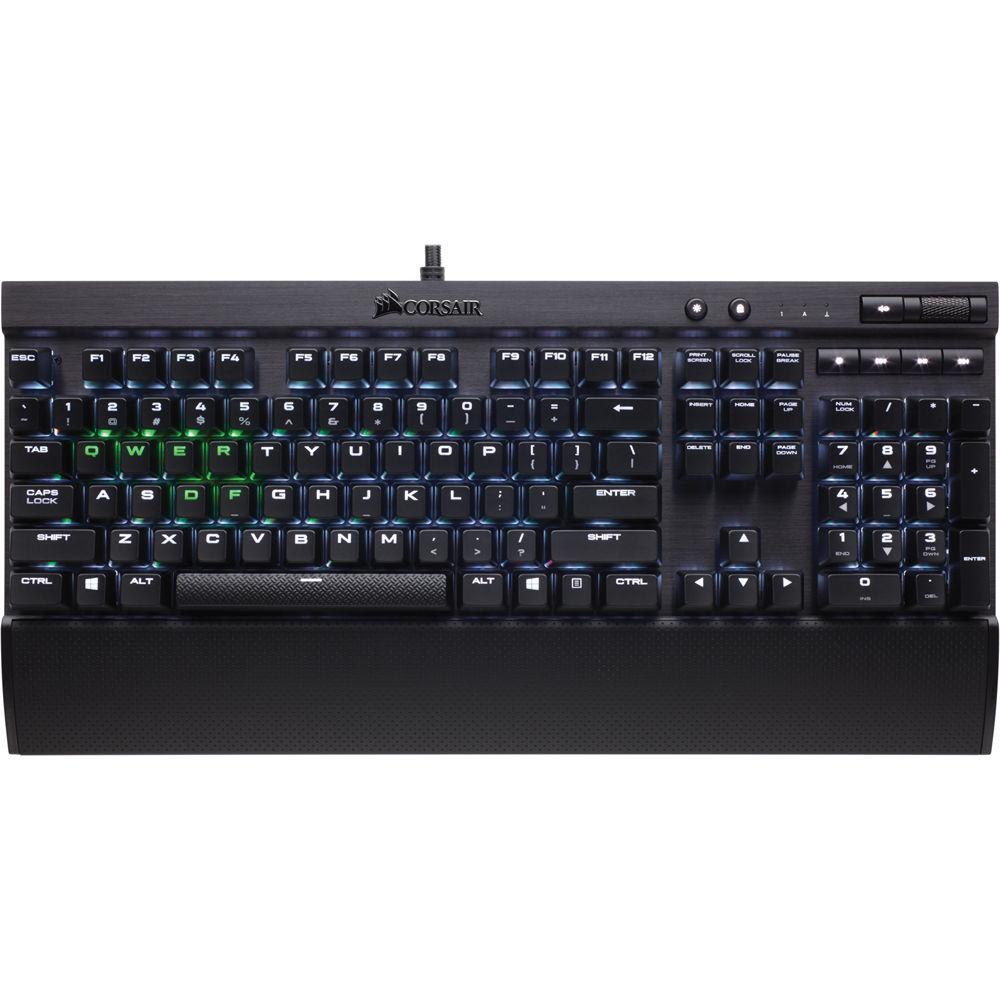

Product description Equipped with Cherry MX Speed switches, a 1.2mm actuation distance, a 45g actuation force, RGB LED backlighting, and rated for 50 million operations, the Gaming K70 RGB RAPIDFIRE Backlit Mechanical Keyboard from Corsair connects to your system using a wired USB 2.0 Type-A connection. To make gaming accessories such as a mouse or wireless headset adapter easier to connect, this keyboard has an integrated USB 2.0 Type-A pass-through port. Also featured are macro and lighting programming, 100% anti-ghosting with full N-key rollover on USB, six dedicated multimedia controls with volume adjustment, on-board memory, a Windows lock key, and a selectable report rate of 8, 4, 2, and 1ms, as well as BIOS mode. Using the Corsair Utility Engine (CUE), users will be able to design their own lighting patterns and animations. Included with this keyboard is a full-length wrist rest, and protection is provided by a limited 2-year warranty. General Features - 100% anti-ghosting and full N-key rollover on USB
- 100% Cherry MX Speed gaming key switches with a 1.2mm actuation and a 45g force
- Aircraft-grade anodized brushed aluminum frame for improved durability
- Advanced lighting controls and large font keycaps deliver dynamic and vibrant backlighting
- CUE support enables advanced macro and lighting programming for virtually unlimited game customization of lighting patterns and animations, including:
- Static Lighting: Change any key on the keyboard to a color and brightness setting of your choice. You can create, save, and load custom patterns for your favorite games
- Color Cycling: Cycle through multiple colors with your choice of speed and color palettes. You can set either the whole keyboard to scroll or just the keys you want
- Waves and Ripples: Customize the color palette, direction, duration, and velocity, and have the wave flow across the entire keyboard or just the keys you want
- Reactive Typing: Set up single-key reactive typing or create a multi-key ripple effect. You can choose single-layer lighting, where keys light up as you type, or multi-layer, and have the keys change color
- Detachable soft-touch wrist rest and dedicated multimedia controls

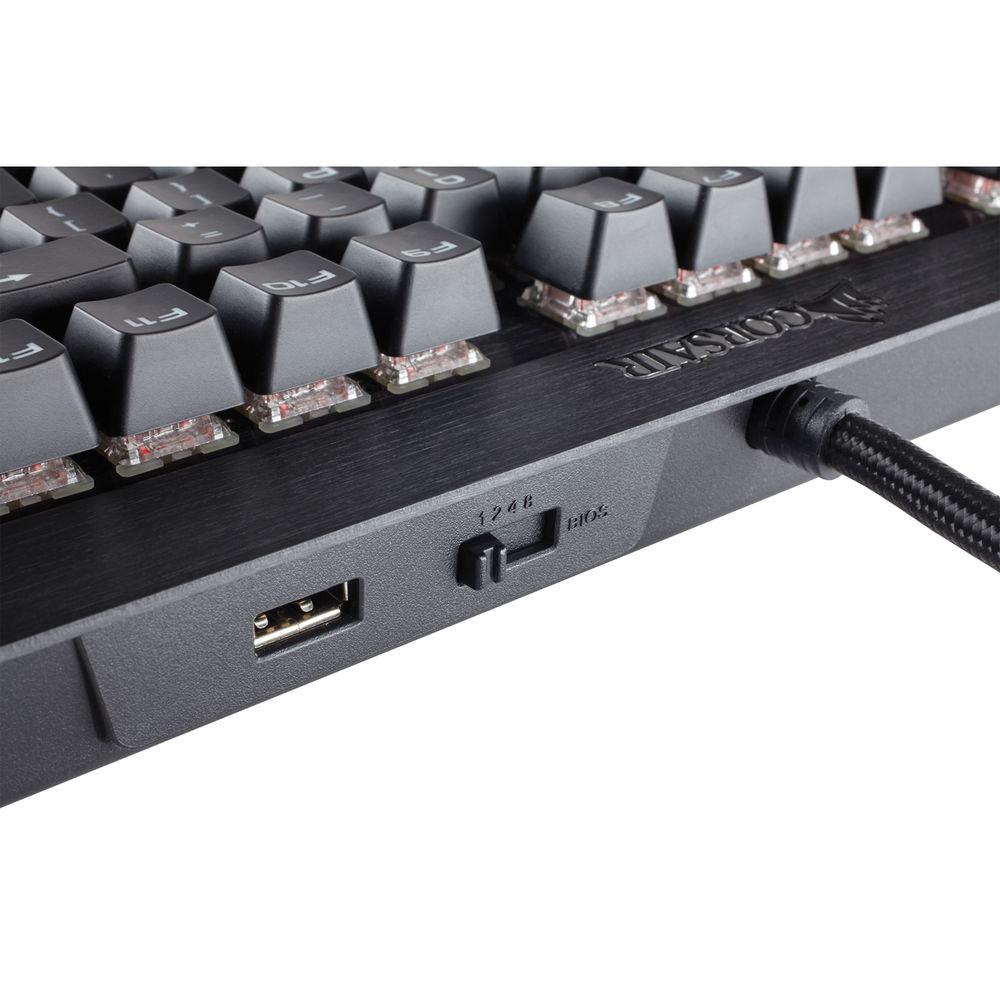

- USB pass-through port for easy connections
- Textured and contoured FPS/MOBA keycap sets
UPC: 843591078047 In the Box Corsair Gaming K70 RGB RAPIDFIRE Backlit Mechanical Keyboard Full-Length Wrist Rest Limited 2-Year Warranty More from Manufacturer bcfyywqqxqvsfaurzucduzwzzv Table of Contents
|
Upload User Manual
Have you got an user manual for the Corsair Gaming K70 RGB RAPIDFIRE Backlit Mechanical Keyboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCorsair K70 Specs | | | Number of Keys | 104 | | Switch Type | Mechanical | | Mechanical Switch Type | Cherry MX Speed | | Key Rollover | N-Key | | Actuation Force | 45 g | | Travel Distance | 0.05" / 1.2 mm | | Dedicated Multimedia Keys | Yes | | Windows Lock Key | Yes | | Keystroke Life Span | 50 Million | | Polling Rate | 1000 Hz | | | | Connection Type | Wired | | System Connection | USB Type-A | | USB Ports | 1 x USB Type-A (USB 2.0) | | Audio | None | | Full-Functionality OS Support | Windows | | | | Backlight | Yes, Individually Lit | | LED Colors | RGB | | Built-In Control Device | None | | Wrist Rest | Detachable | | | | Cable Type | Braided | | Dimensions (L x W x H) | 17.2 x 6.5 x 1.5" / 436.9 x 165.1 x 38.1 mm | | Weight | 2.7 lb / 1.2 kg | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 20.1 x 14.0 x 1.2" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
