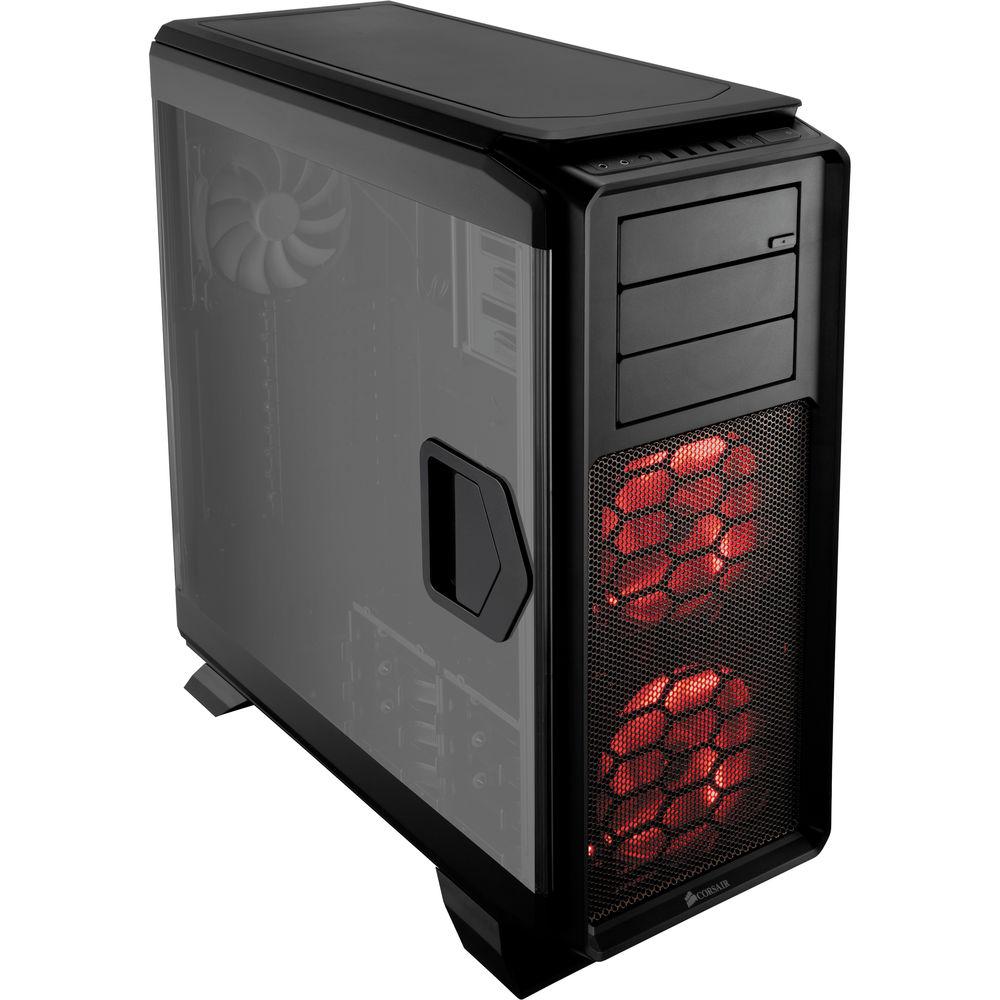

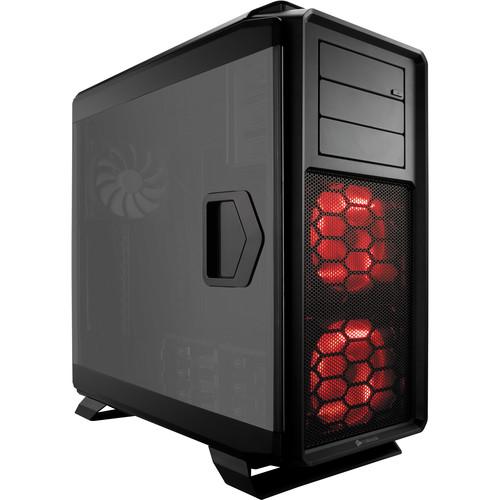

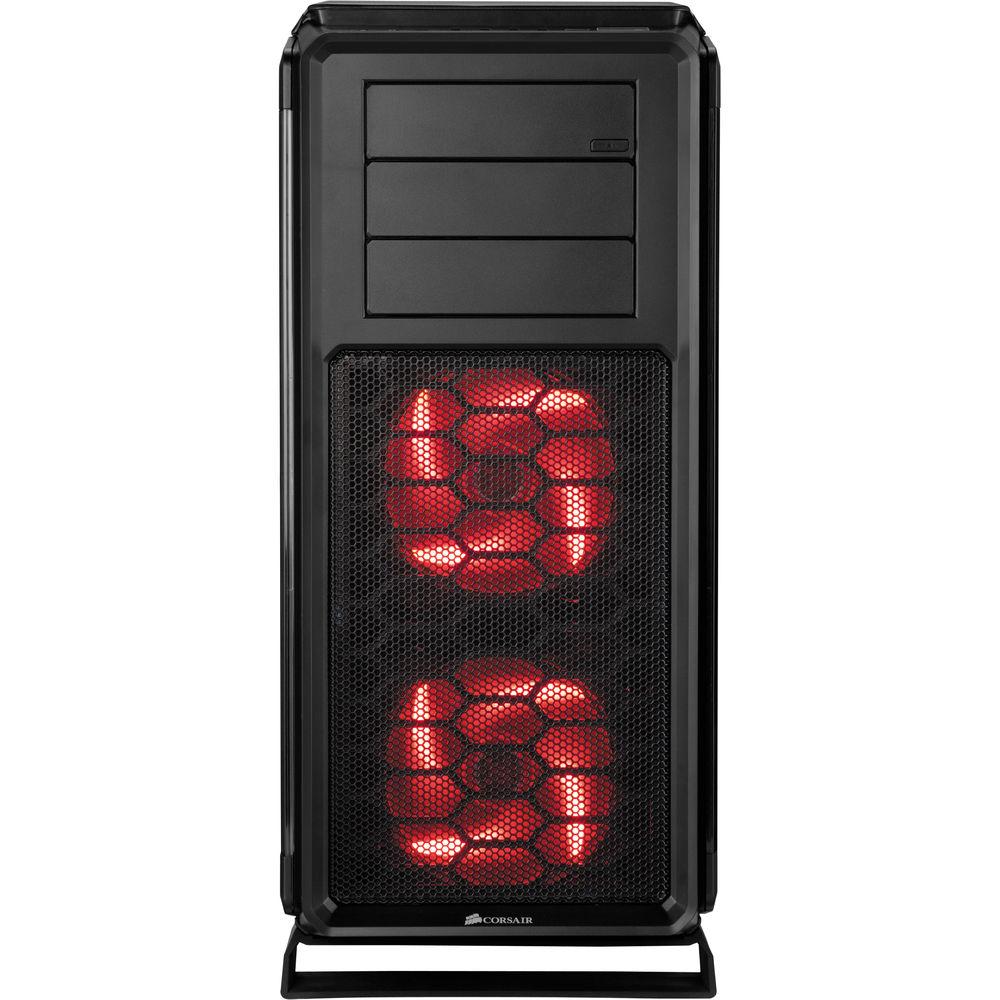

Product description The black Graphite Series 760T Full-Tower Windowed Case from Corsair has a full windowed, hinged side panel with flush-mount latches. The front panel has two 5.5" intake fans with red LEDs, and a dual-speed fan selector for performance or silence. It offers ample cooling potential inside, with eight fan mounting locations and room for multiple radiators for self-contained liquid CPU coolers, or even custom liquid cooling. Modular drive cages and laterally mounted SSD bays maximize the interior volume. - Swing-Out Side Panels
- The side panels are hinged with flush-mount latches, making 760T easy to open. They can also be removed entirely by simply lifting them off of the hinges.
- Performance
- The 760T is designed for high performance system builds, and high performance systems require optimal cooling. There are eight total fan mounts, with room for top, front, bottom and rear-mounted radiators.
- Optimal Drive Bay Design
- The four SSD bays are mounted laterally to make an efficient use of the interior space. The combo 3.5"/2.5" drive bays employ a modular bay system, so you can remove the bays you do not need. The end result is an open interior optimized for long GPUs and free airflow.
- USB 3.0 and USB 2.0 Connectors

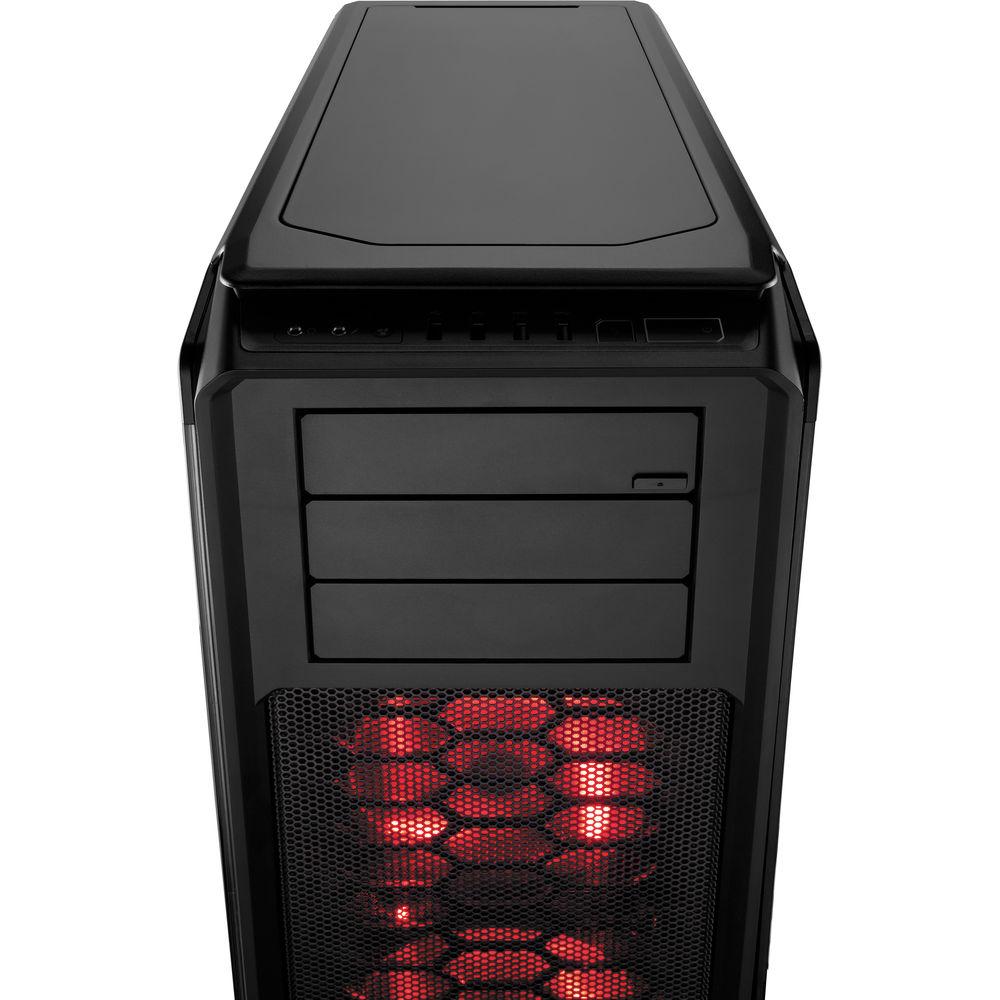

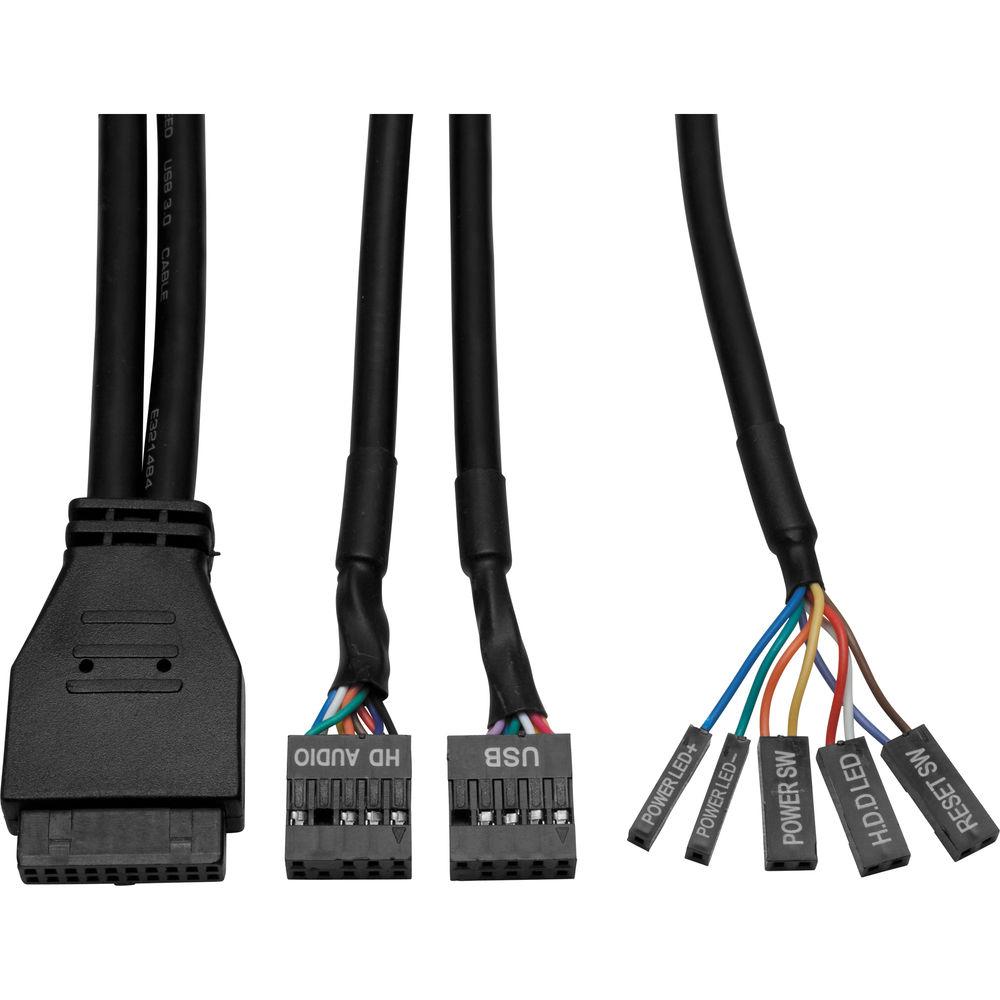

- Its front panel has two high-speed USB 3.0 connectors, two USB 2.0 connectors, headphone, and microphone connectors for your headset.
- Cooling
- The AF140L fans are custom-engineered by Corsair to deliver high-volume airflow with less noise and turbulence. The large diameter allows them to run at low RPM, and they are positioned to deliver cool air directly to your GPUs. A front panel switch allows you to toggle between silent and performance modes.
- Special Features

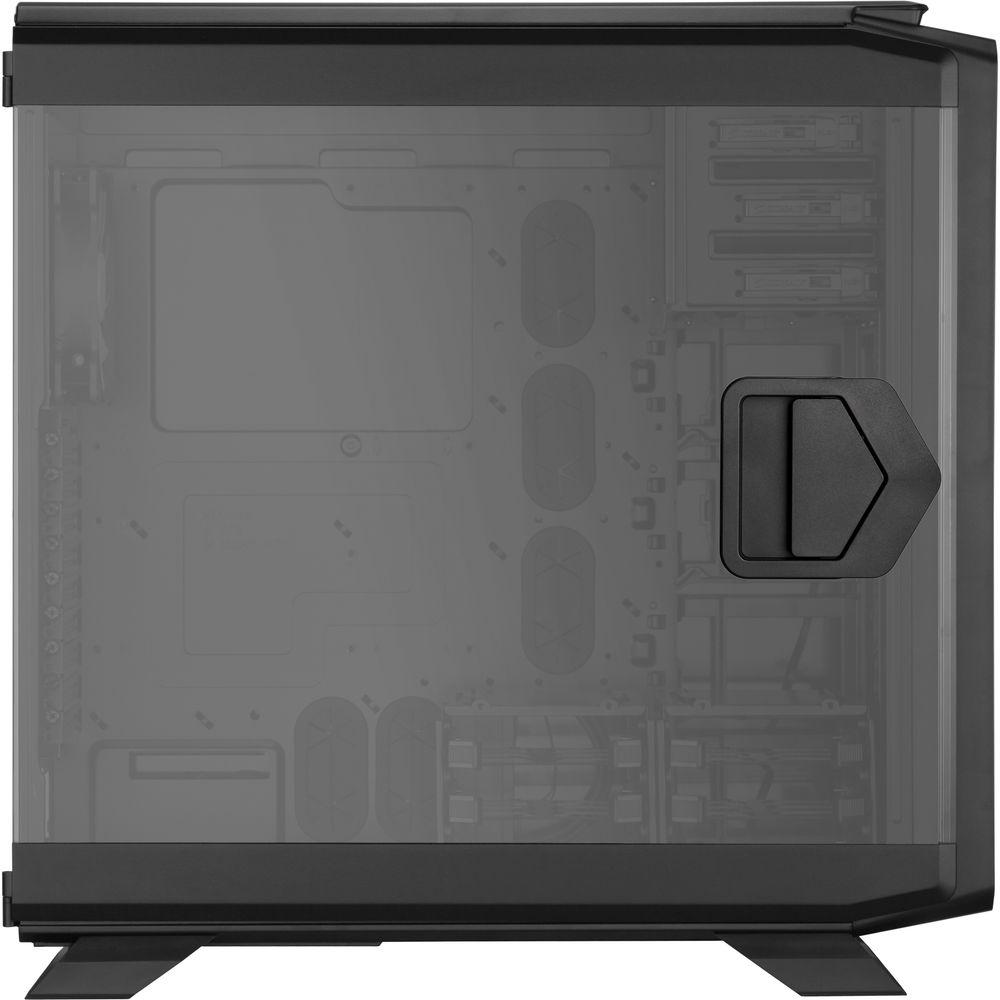

- Full panel window for maximum visibility of your internal components
Hinged side panels with quick release latches for easy access
Expansion room for building high-performance systems
Tool-free SSD, hard drive, and optical drive installation
Includes three AF140L fans, (front fans with red LEDs) with room for up to eight fans
Modular drive cage system for highly customizable layouts
Two modular drive cages house three 3.5" or 2.5" drives each
Four tool-free dedicated SSD cages, sideways mounted
Designed for fast and straightforward builds

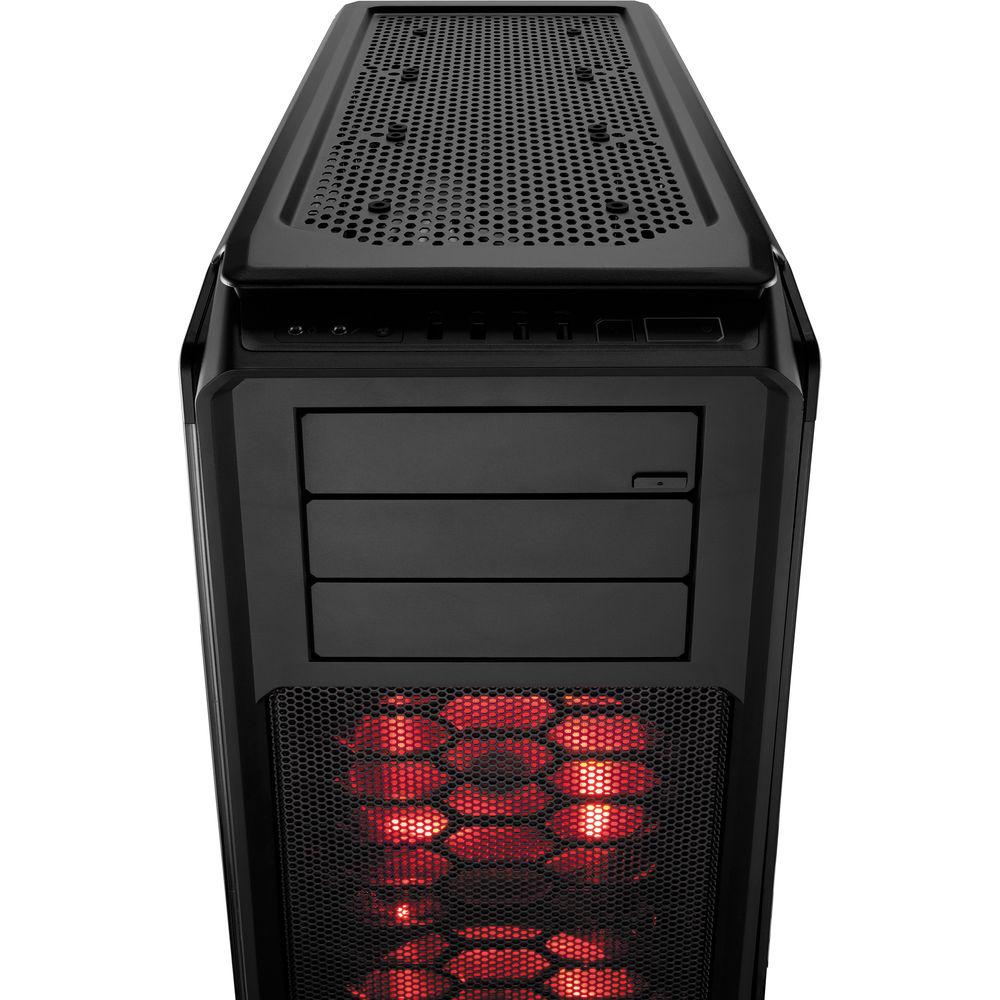

Easily accessed dust filters

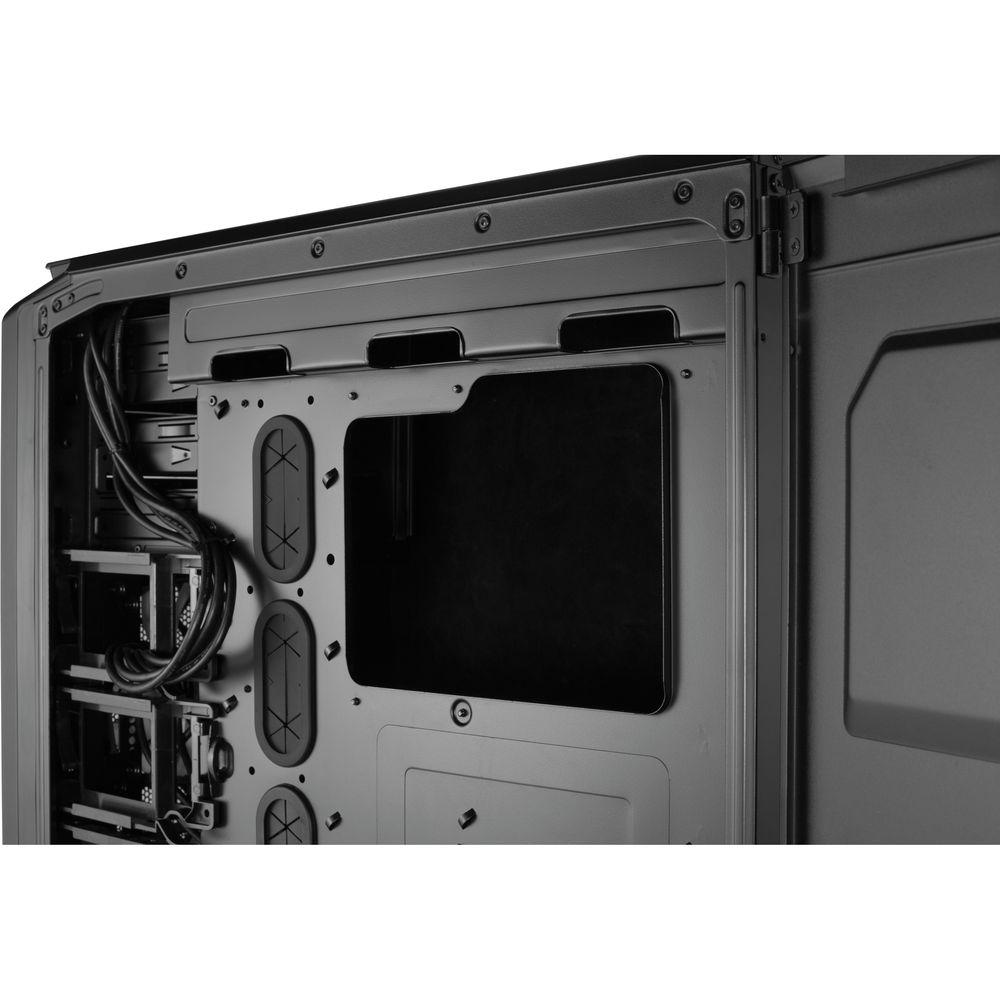

Excellent cable routing with rubber grommets for clean builds
Nine expansion slots for multiple PCIe devices or large motherboards UPC: 843591055697 In the Box Corsair Graphite Series 760T Full-Tower Windowed Case (Black) Limited 2-Year Warranty More from Manufacturer wafzefyesyrsrrdtufdwuf Table of Contents
|
Upload User Manual
Have you got an user manual for the Corsair Graphite Series 760T Full-Tower Windowed Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCorsair 760T Specs | | | Motherboard Support | E-ATX, XL-ATX, ATX, Micro-ATX, Mini-ITX | | External Drive Bays | 3 x 5.25" | | Internal Drive Bays | 6 x 2.5"
4 x 2.5" | | Expansion Slots | 9 x Full Height | | Maximum GPU Length | 17.7" / 45 cm | | CPU Cooler Height | 6.7" / 16.9 cm | | Supported PSU Size | ATX | | Maximum PSU Length | 9.4" / 24 cm | | | | Fan Mounting (Top) | 3 x 120 mm
Or
3 x 140 mm
| | Fan Mounting (Bottom) | 1 x 120 mm
| | Fans Included (Front) | 2 x 140 mm | | Fans Included (Rear) | 1 x 140 mm | | Maximum Radiator Size (Front) | 280 mm | | Maximum Radiator Size (Rear) | 140 mm | | Maximum Radiator Size (Top) | 360 mm | | Maximum Radiator Size (Bottom) | 120 mm | | Fan Controller Included | Yes | | | | Connections | 1 x USB Type-A (USB 3.0)
2 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Steel | | Cable Management Space | None | | Dimensions (W x H x D) | 22.2 x 9.7 x 22.4" / 564.0 x 246.0 x 568.0 mm | | Weight | 24.7 lb / 11.2 kg | | | | Package Weight | 28.2 lb | | Box Dimensions (LxWxH) | 26.0 x 25.0 x 13.0" |
