User Manual for Corsair Graphite Series 780T Full-Tower Case Click to enlarge the picture
Contents of the user manual for the Corsair Graphite Series 780T Full-Tower Case
- Product category: Desktop Computer Cases Corsair
- Brand: Corsair
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Corsair Desktop Computer Cases
 |
User manual for the Corsair Graphite Series 780T Full-Tower Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Corsair product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Corsair user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Corsair product will considerably shorten its lifespan!
|

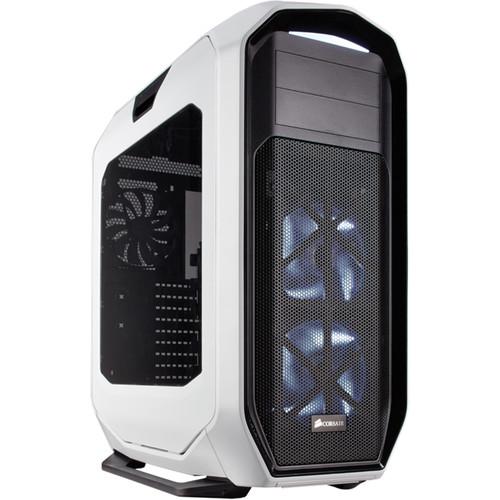

Product description The Graphite Series 780T Full-Tower Case from Corsair can accommodate Mini-ITX, Micro-ATX, ATX, E-ATX, and XL-ATX motherboards. This case is engineered to satisfy gamers and overclockers with ample room for nine drives, multiple graphics cards, and up to a dozen fans. The 780T offers two 5.25" drive bays, three 2.5", and six drive bays for either 2.5" or 3.5" drives, all of which can be removed to improve airflow within the case. Please note that, in order to install some water cooling components, you may have to sacrifice some storage space.

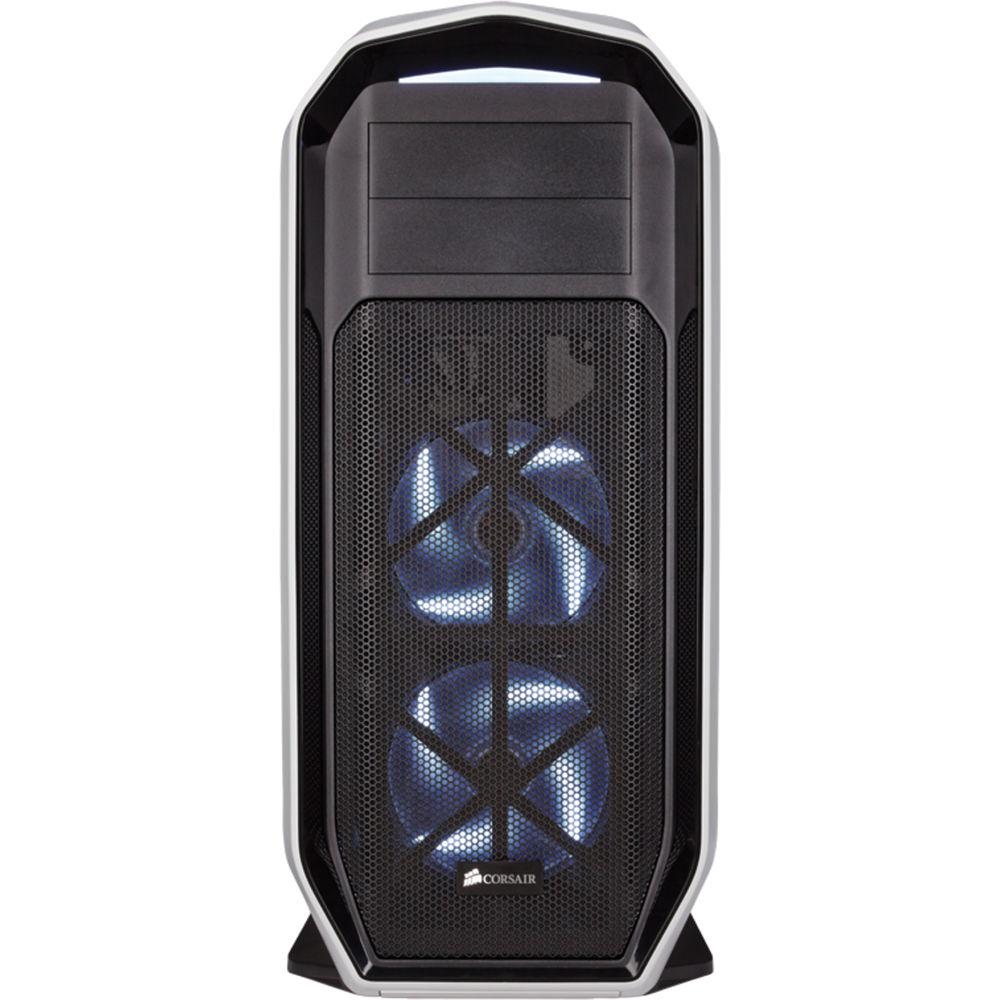

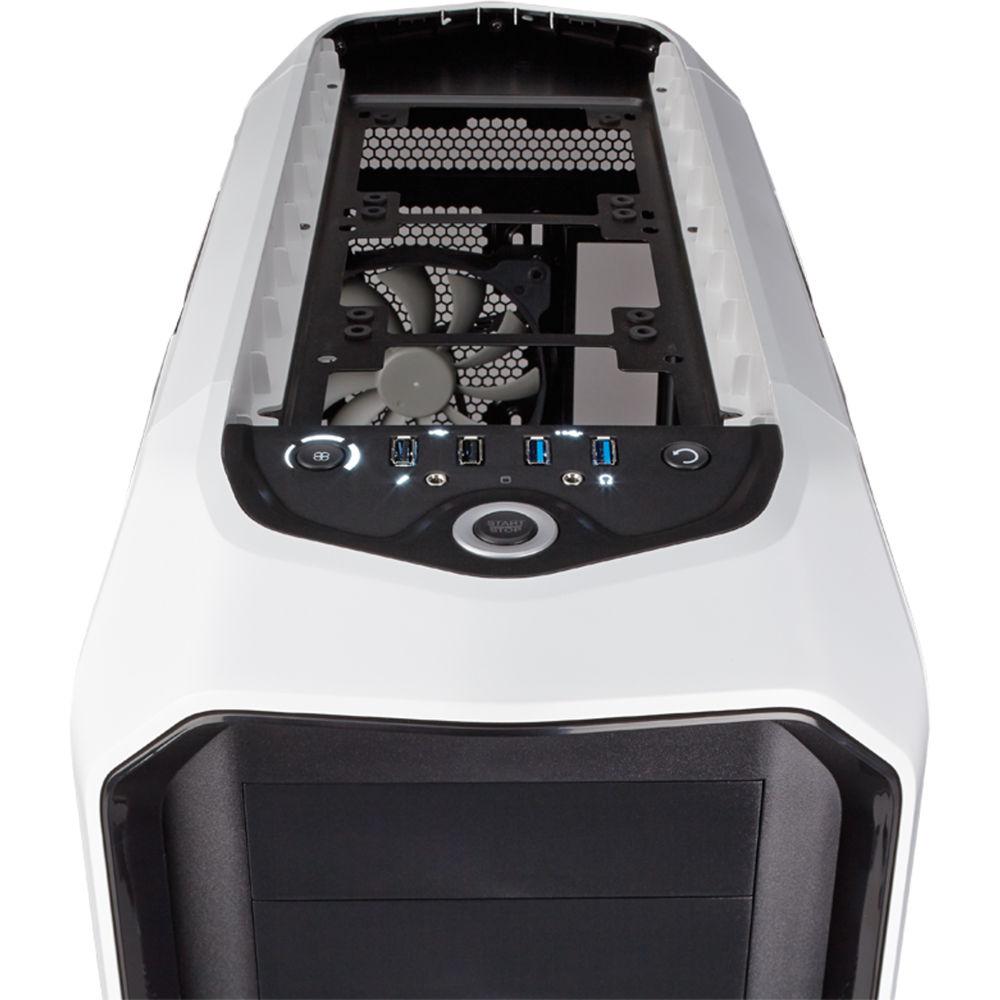

Supporting up to nine extra fans, it comes already equipped with two 140mm front fans and a 140mm rear fan to provide ample cooling for the installed components. If required, the front fans can be removed to make way for up to a 360mm radiator. You can also install three 120mm fans or a radiator up to 360mm at the top, and two 120mm fans or a 240mm radiator at the bottom.

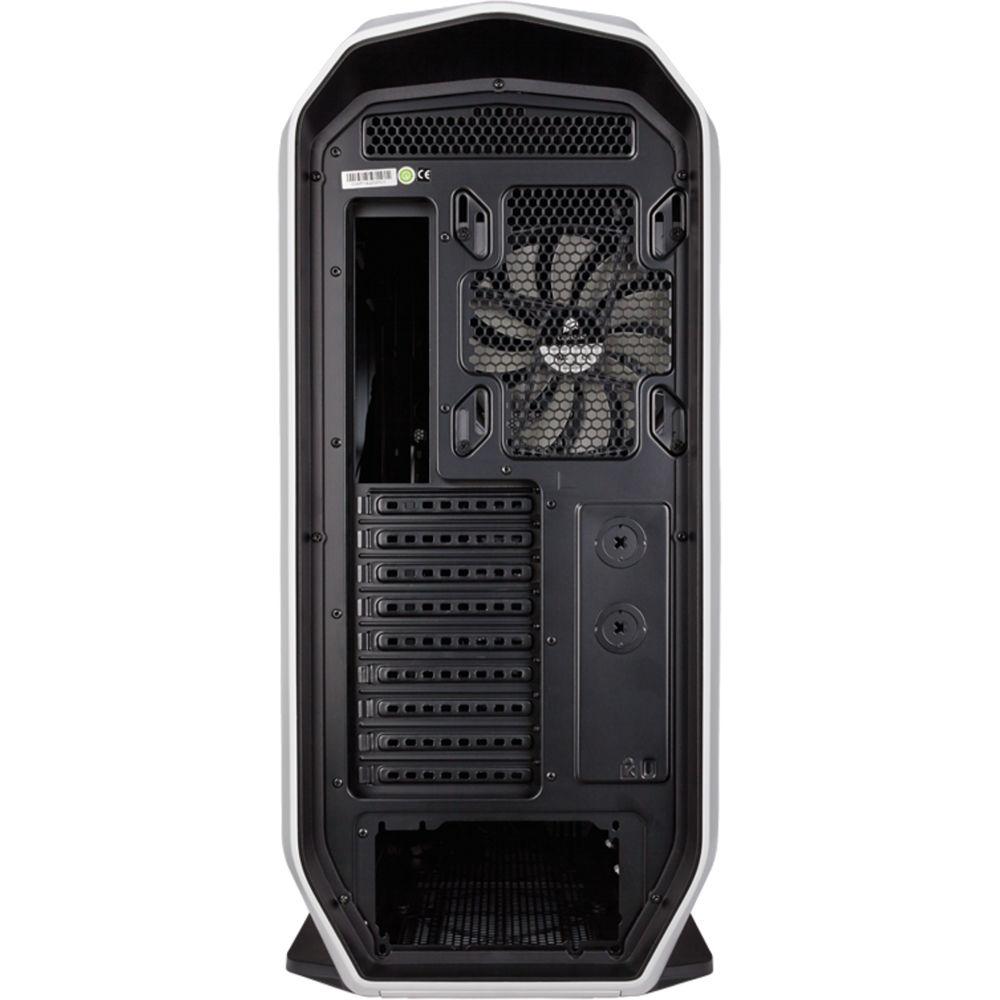

The case offers 9 expansion slots and accommodates graphics cards up to 14" long with drive cages installed. The latched side panels provide easy access to the installed components, which is useful for maintenance and upgrades. The front panel features two USB 2.0 ports, two USB 3.0 ports, headphone & microphone jacks, and a 3-mode fan controller with an LED gauge to set the level of cooling you need. - Rounded corners and a sleek, cohesive design

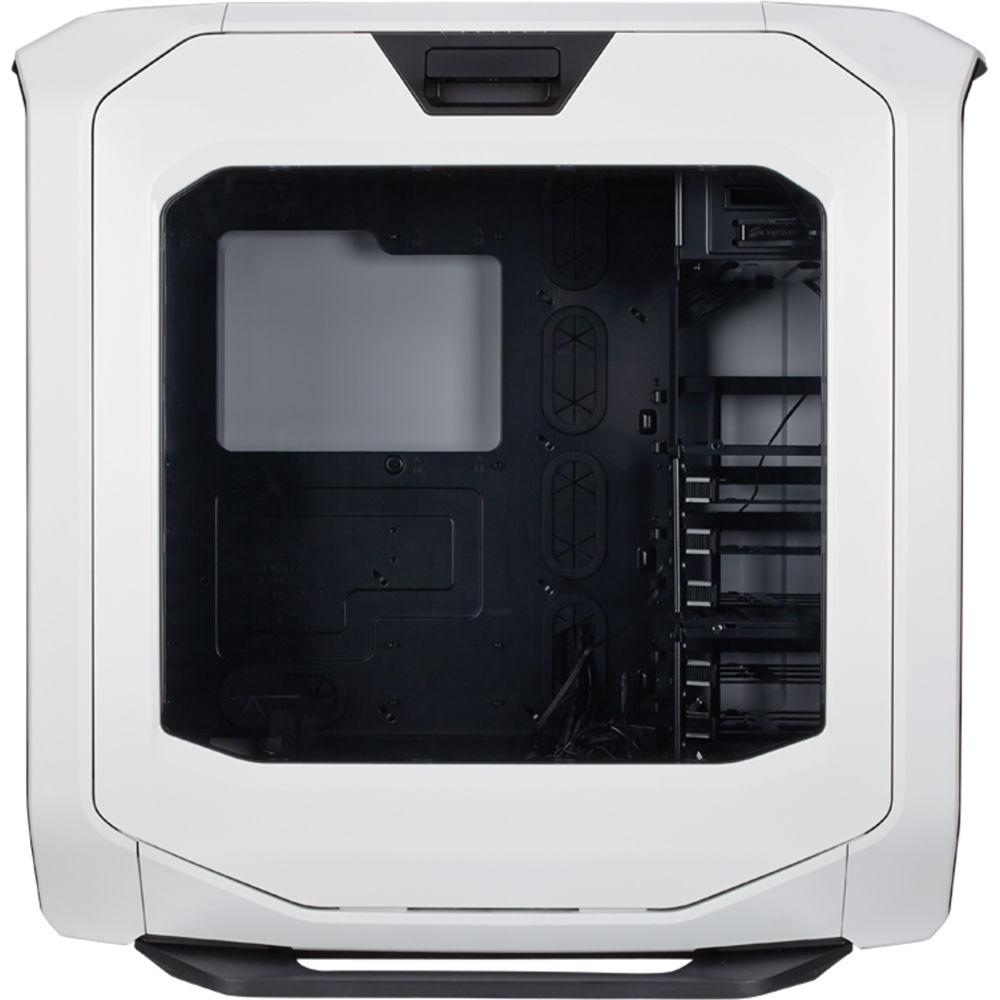

- Latched side panels for easy access to the installed components — useful for maintenance and upgrades
- Pre-installed dual 140mm front intake fans and a 140mm rear exhaust fan deliver plenty of cool air to the installed components
- Three 120mm fans or a radiator up to 360mm can be installed at the front and top

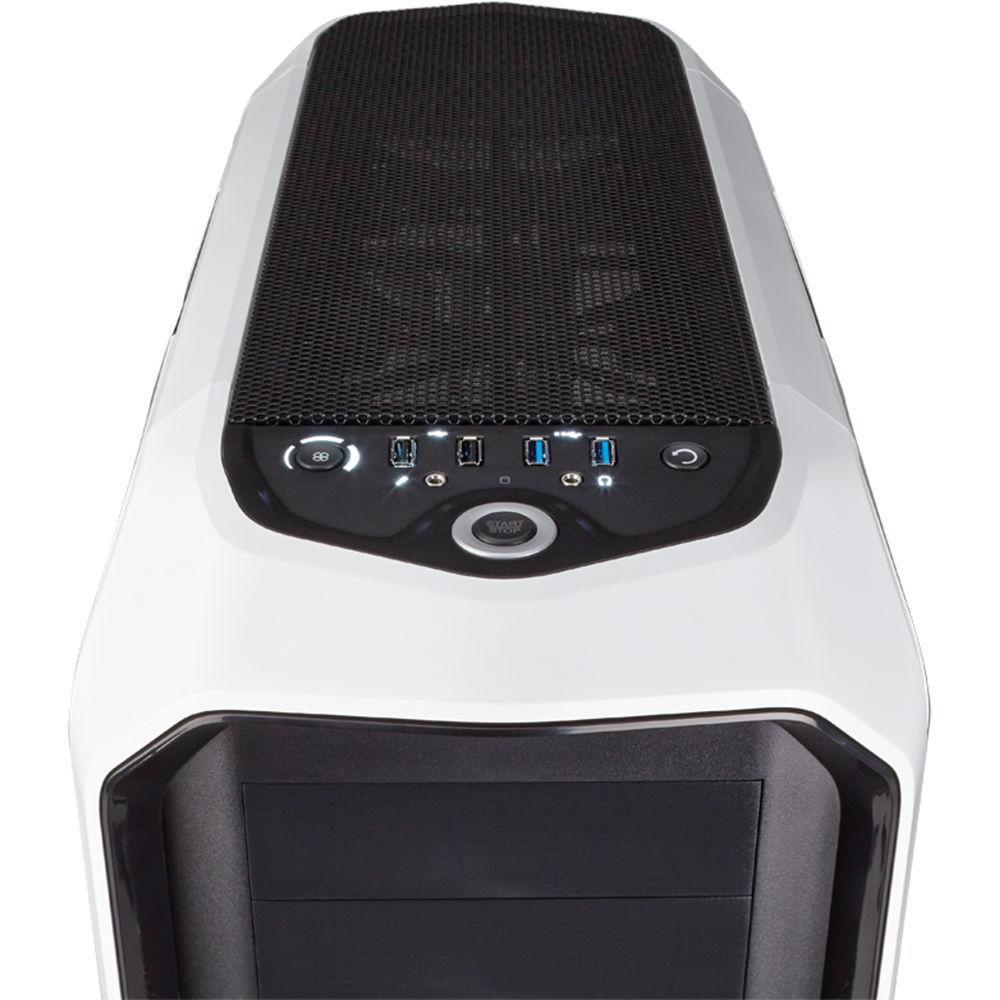

- Front panel features two USB 2.0 ports, two USB 3.0 ports, headphone & microphone jacks, and a 3-mode fan controller to set the level of cooling you need

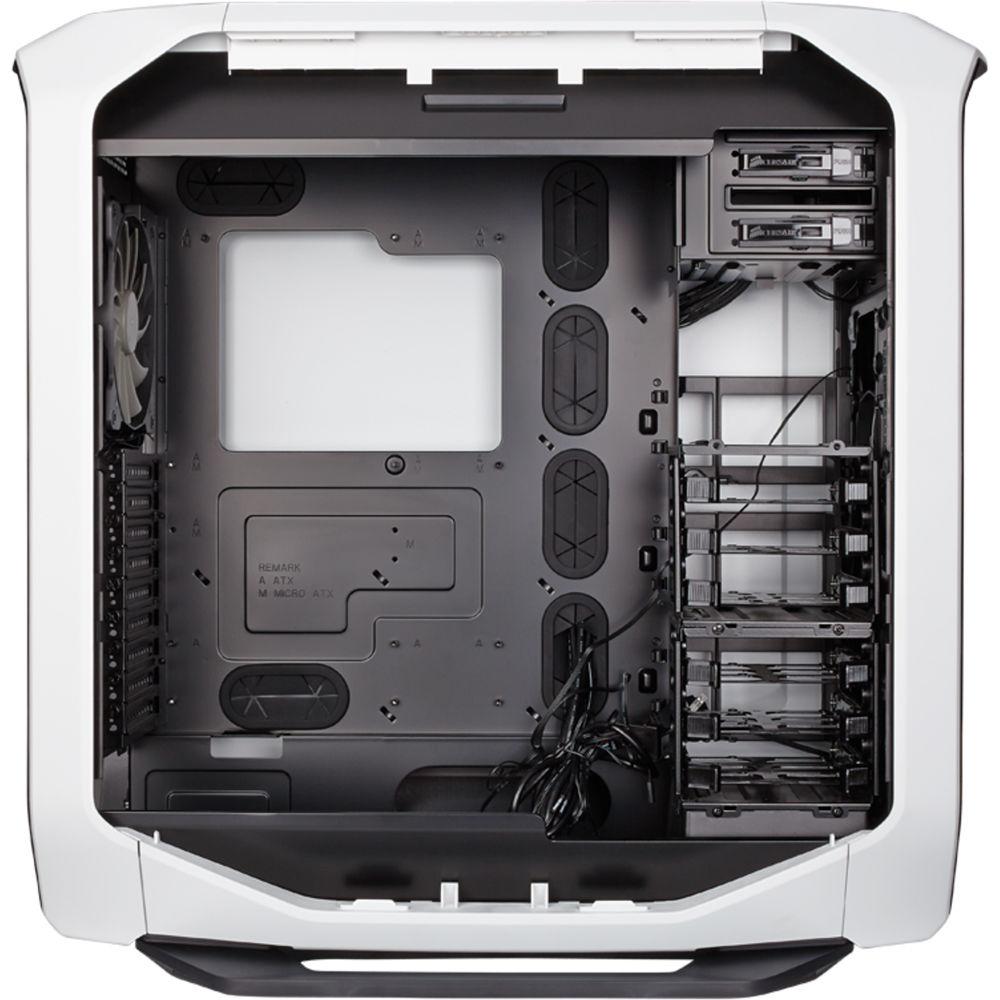

- Modular hard drive cages and space-saving, side-mounted SSD bays
- Unneeded hard drive cages can be removed
UPC: 843591049849 In the Box Corsair Graphite Series 780T Full-Tower Case (White) Accessory and Screw Kit Limited 2-Year Warranty INSTALLATION GUIDE PDF 7.2mbvcawterbzexqtdrzcx More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Corsair Graphite Series 780T Full-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCorsair CC-9011059-WW Specs | | | Motherboard Support | E-ATX, XL-ATX, ATX, Micro-ATX, Mini-ITX | | External Drive Bays | 2 x 5.25" | | Internal Drive Bays | 6 x 2.5"
3 x 2.5" | | Maximum GPU Length | 14" / 35.5 cm | | CPU Cooler Height | 8" / 20.3 cm | | Maximum PSU Length | 10" / 260 mm | | | | Fan Mounting (Front) | 3 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Rear) | 1 x 120 mm
Or
1 x 140 mm
| | Fan Mounting (Top) | 3 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Bottom) | 2 x 120 mm
| | Maximum Radiator Size (Front) | 360 mm | | Maximum Radiator Size (Rear) | 140 mm | | Maximum Radiator Size (Top) | 360 mm | | Maximum Radiator Size (Bottom) | 240 mm | | Fan Controller Included | Yes | | | | Connections | 2 x USB Type-A (USB 3.0)
2 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Steel, Plastic | | Cable Management Space | None | | Dimensions (W x H x D) | 25.1 x 11.3 x 23.7" / 63.7 x 28.8 x 60.2 cm | | Weight | 24.9 lb / 11.3 kg | | | | Package Weight | 29.4 lb | | Box Dimensions (LxWxH) | 27.0 x 27.0 x 13.0" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 24 owners. Add your rating and experience with the product.
