User Manual for Corsair HXi Series HX850i 850W 80 Plus Platinum Certified PSU ATX Power Supply Unit Click to enlarge the picture
Contents of the user manual for the Corsair HXi Series HX850i 850W 80
- Product category: Power Supplies Corsair
- Brand: Corsair
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Corsair Power Supplies
 |
User manual for the Corsair HXi Series HX850i 850W 80 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Corsair product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Corsair user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Corsair product will considerably shorten its lifespan!
|

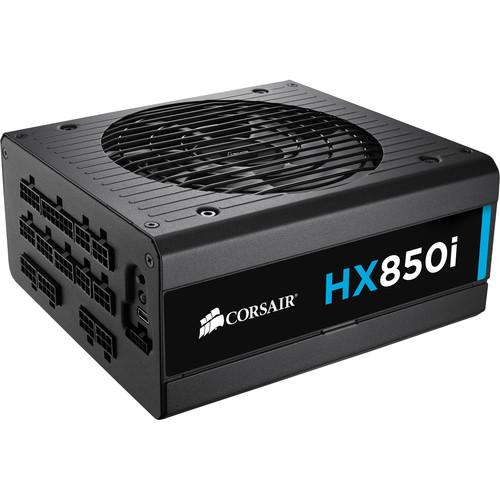

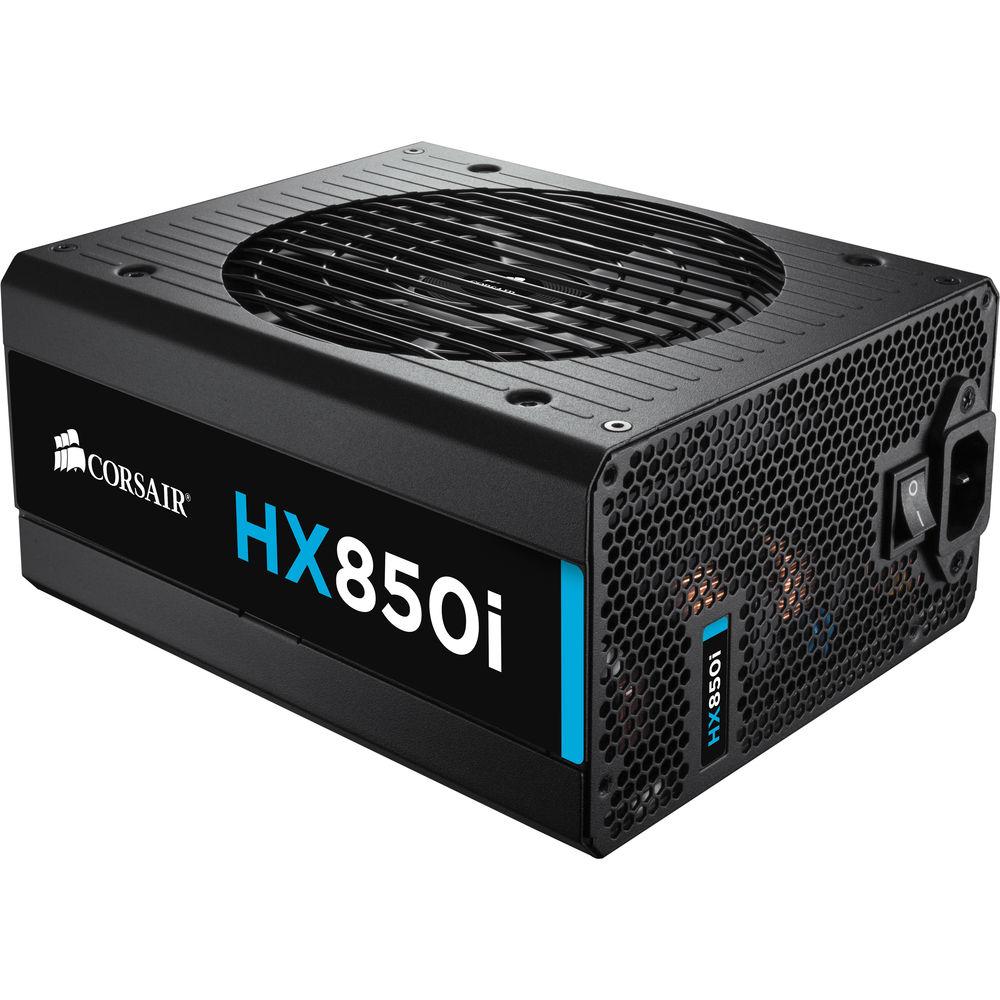

Product description The black HXi Series HX850i 850W 80 Plus Platinum Certified PSU ATX Power Supply Unit from Corsair offers tight voltage control, virtually silent operation, and a fully-modular cable set. Equipped with a 105°C capacitor, it is designed for high-performance PCs where reliability is essential. The 80 PLUS Platinum efficiency reduces excess heat, and together with Zero RPM Fan Mode technology, gives you virtually silent operation.With Corsair Link Digital support, you can monitor power supply performance, toggle between single-rail and multi-rail mode, and control fan speed directly from your desktop. The fully-modular low-profile cable set makes builds and upgrades easy with clean results. - Quiet, Efficient Operation

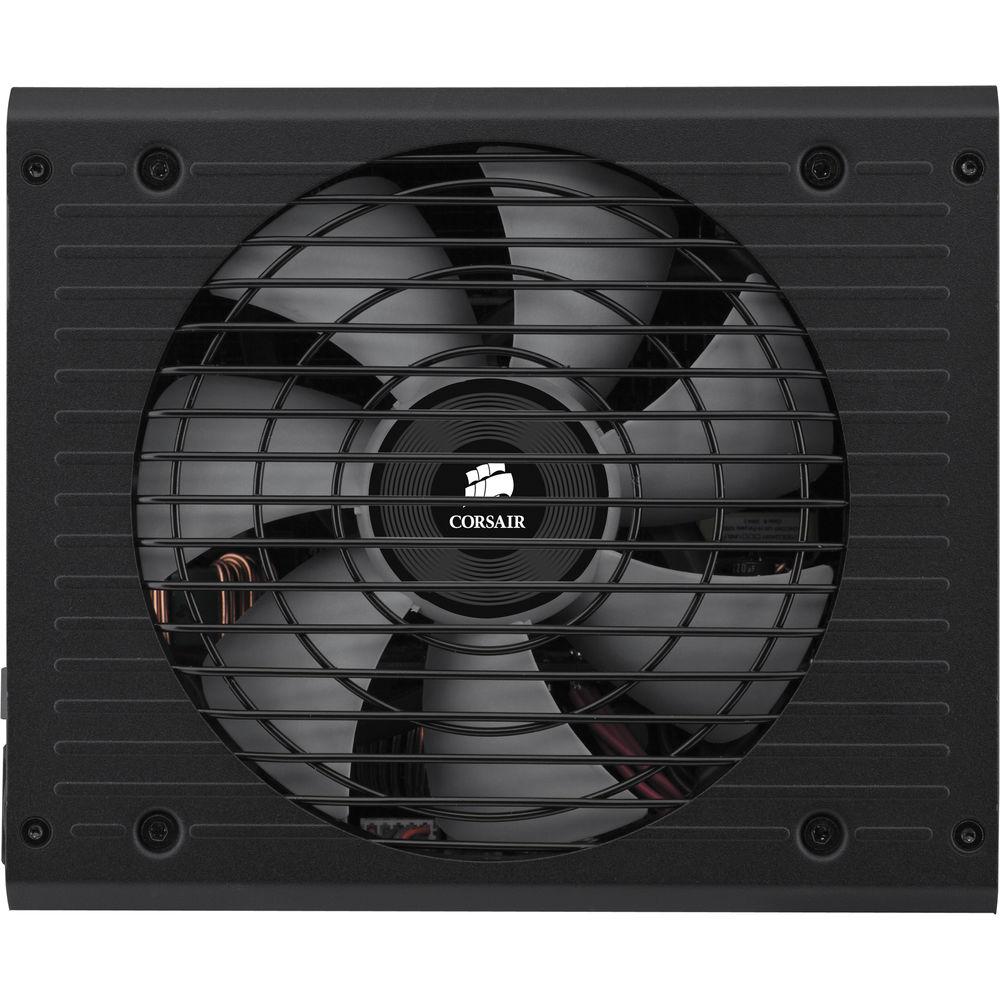

- The 80 PLUS Platinum efficiency and Zero RPM Fan Mode mean that at low-to-medium loads the fan doesn't spin at all. When it is pushed hard, the 140mm thermally-controlled fan spins only as fast as it needs to. The HX850i is built with a capacitor and other internal components specially selected to reduce coil whine and other electronic noise.
- Corsair Link Digital for Advanced Monitoring & Control
- The HX850i connects the included cable to a motherboard USB header and downloads the free Corsair Link Dashboard application for Windows, following which you can monitor performance and efficiency, toggle between single-rail and multi-rail mode, and control fan speed directly from your desktop.
- Easy Installation

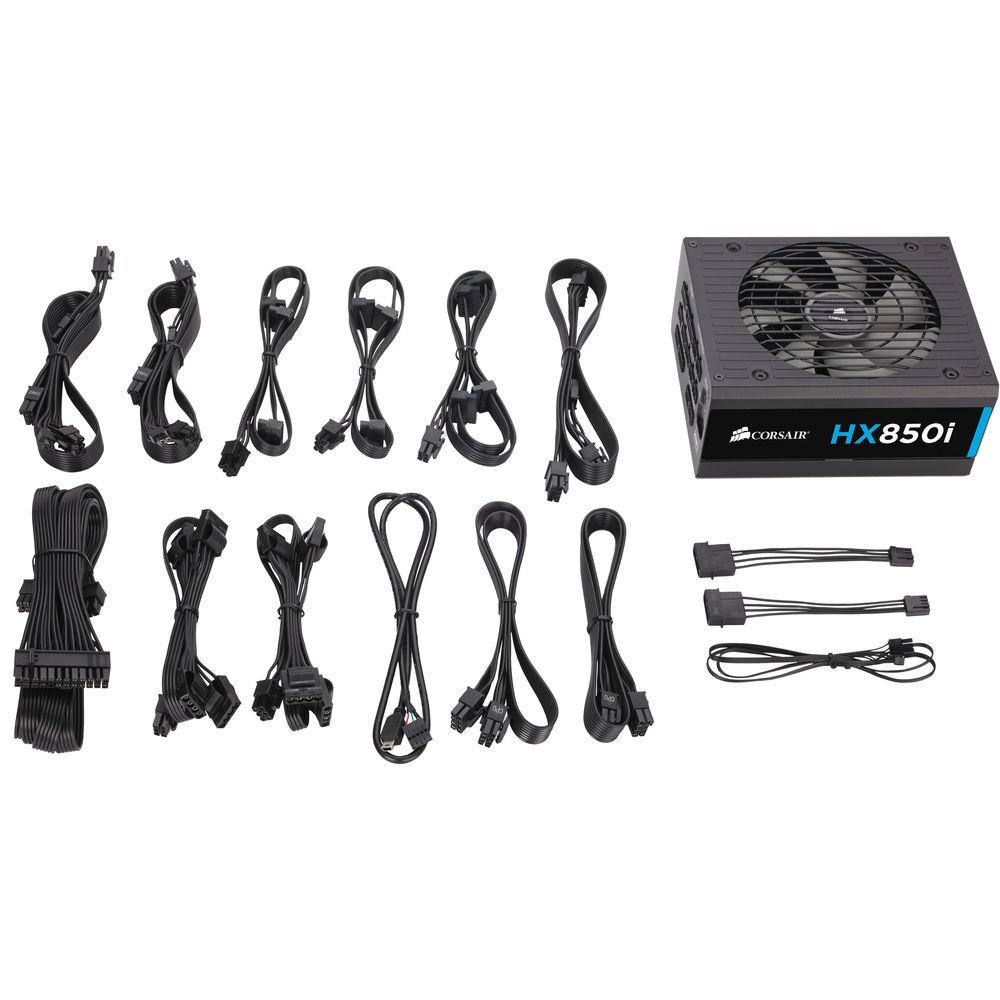

- The fully-modular low-profile cable set allows for quick and easy installation and pleasant-looking builds.
- Temperature Rating
- The HX850i is engineered to meet maximum power output at a server-grade 50°C temperature rating.
- Fan Self-Switch Function
- The HX850i features a fan self-test switch to determine fan functionality even before installation.
- Voltage Protection
- Over-voltage protection, under-voltage protection, short-circuit protection, over-power protection, and over-temperature protection provide maximum safety to your critical system components.
- Safety and Agency Approvals
- The HX850i is compliant with FCC, ICES, CE, UL / CUL, CSA, C-Tick/RCM, TUV, CB, CU, KC Mark, RoHS, WEEE, RoHS (China), and REACH.
UPC: 843591041225 In the Box Corsair HXi Series HX850i 850W 80 Plus Platinum Certified PSU ATX Power Supply Unit (Black) Cable Ties Carrying Bag AC Power Cord Mounting Screws Modular Cable Set Corsair Case Badge Corsair Link USB Cable Corsair Link Digital Interface Cable Limited 7-Year Warranty More from Manufacturer vzydbevzruzwbruuaexxxbt Table of Contents
|
Upload User Manual
Have you got an user manual for the Corsair HXi Series HX850i 850W 80 Plus Platinum Certified PSU ATX Power Supply Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

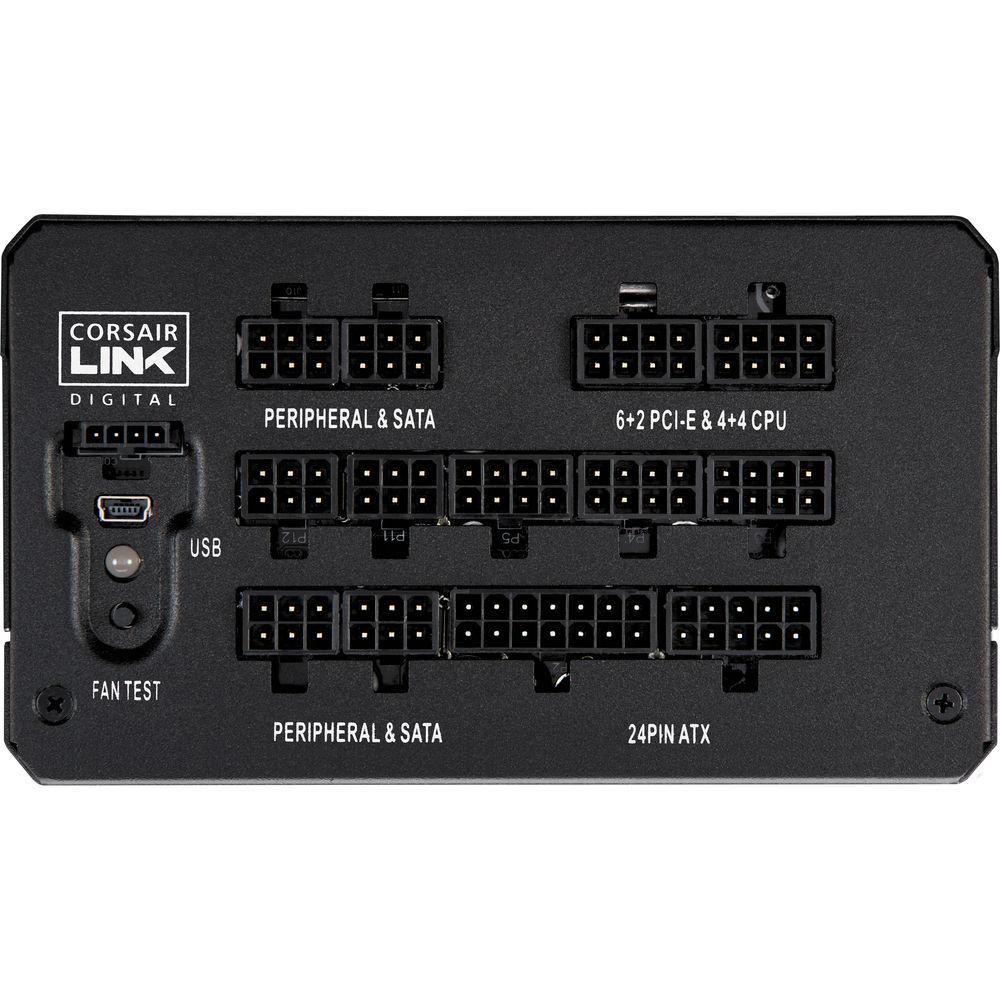

Technical parametersCorsair CP-9020073-NA Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
2 x 4+4-Pin EPS
6 x 6+2-Pin PCIe
12 x 15-Pin SATA
12 x 4-Pin Peripheral / Molex
2 x 4-Pin Floppy | | Cable Design | Modular | | | | Total Wattage | 850 W | | Combined Power for +12 V | 850 W | | Max Load for +12 V | 70 A | | Combined Power for +3.3/+5 V | 150 W | | Max Load for +3.3 V | 25 A | | Max Load for +5 V | 25 A | | Max Load for +5 Vsb | 3 A | | Max Load for -12 V | 0.8 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 6 to 10 A | | | | Efficiency Rating | 80 PLUS Platinum | | Efficiency | 82.2 to 91% at 10 to 100% Load | | | | Fan Size | 140 mm | | Bearing Type | Fluid Dynamic Bearings (FDB) | | Noise Level | 21 dBA | | | | Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Dimensions | 7.1 x 5.9 x 3.4" / 18.0 x 15.0 x 8.6 cm | | Weight | 8.6 lb / 3.9 kg | | | | Package Weight | 8.8 lb | | Box Dimensions (LxWxH) | 15.591 x 9.055 x 5.906" |
