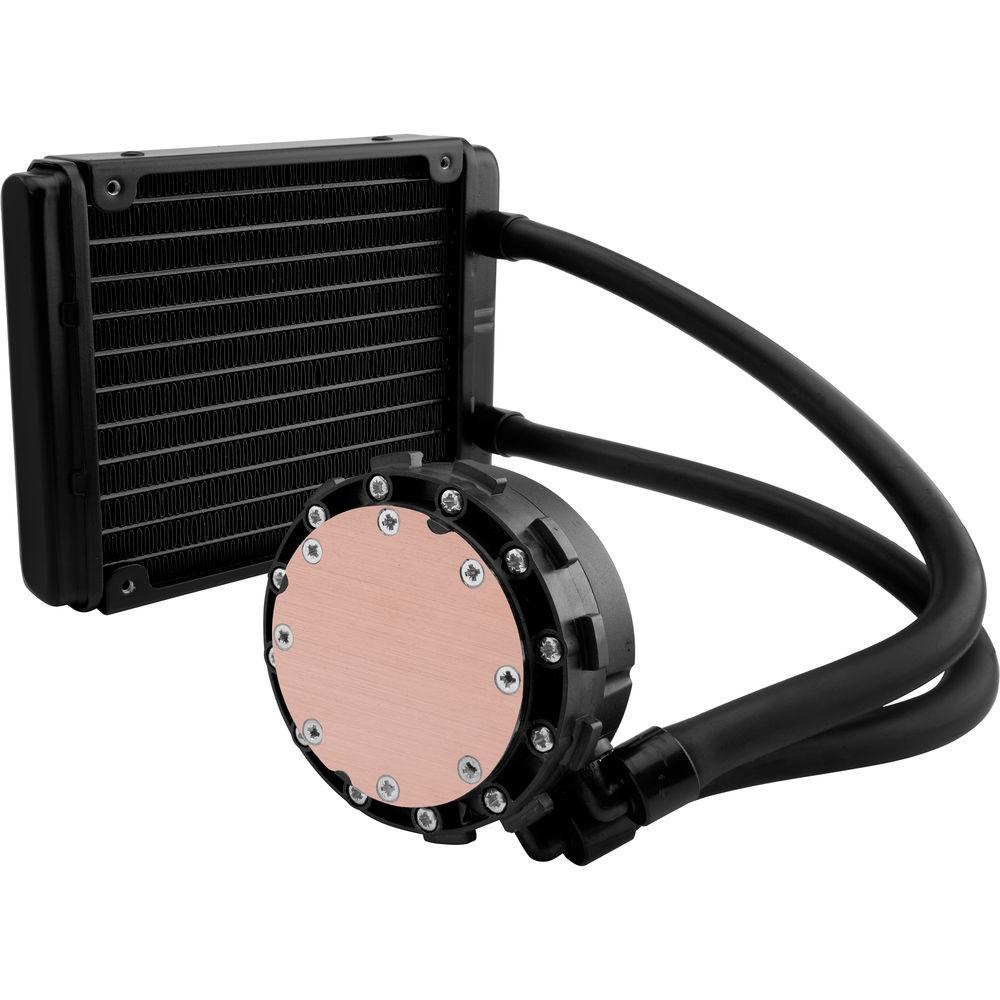

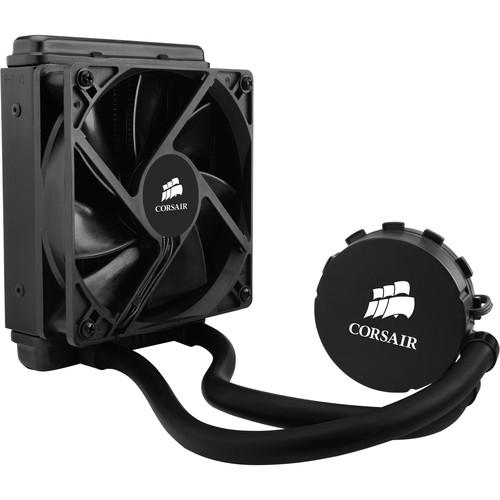

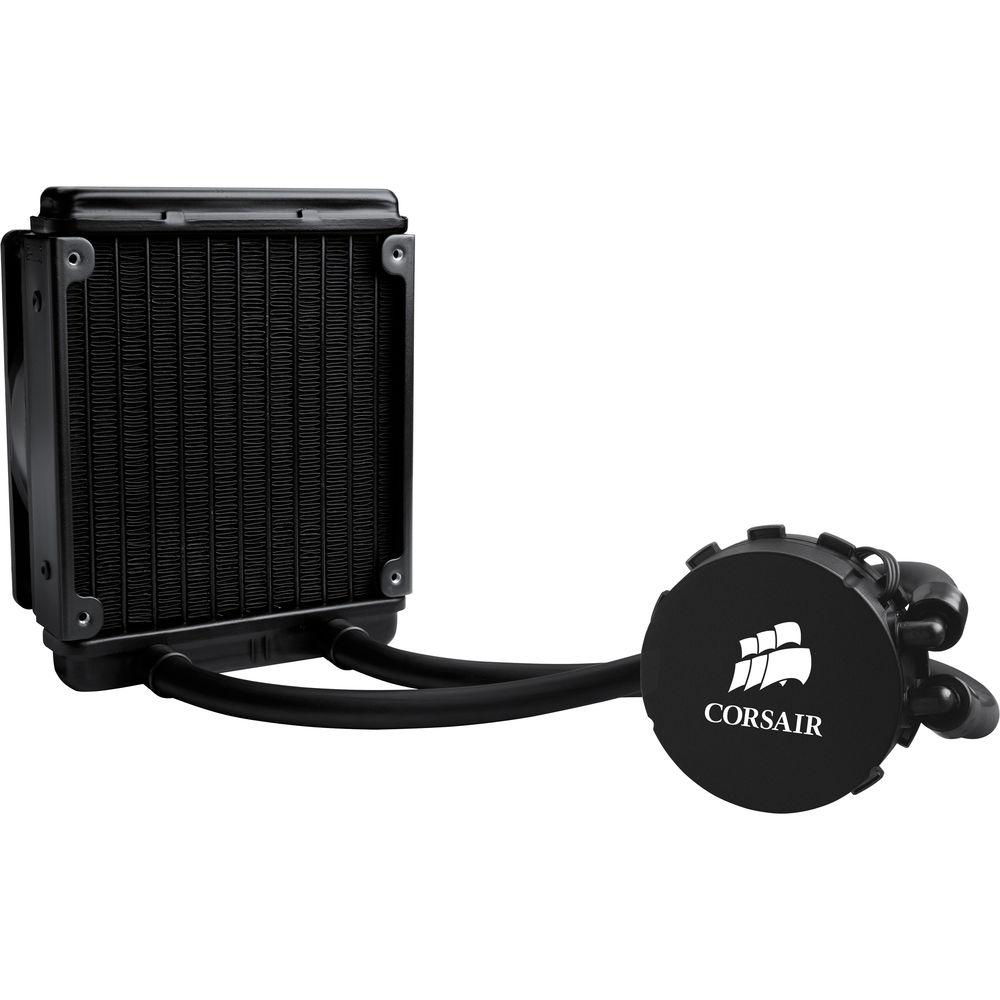

Product description The Hydro Series H55 Liquid CPU Cooler from Corsair is an all-in-one CPU cooling system that is completely self-contained and does not need filling or maintenance. This cooling system features a 120mm radiator with a fan that cools the liquid coolant coming from the CPU pump head. The 120mm fan spins at 1700 rpm and has a noise level of 30.32 dBA.

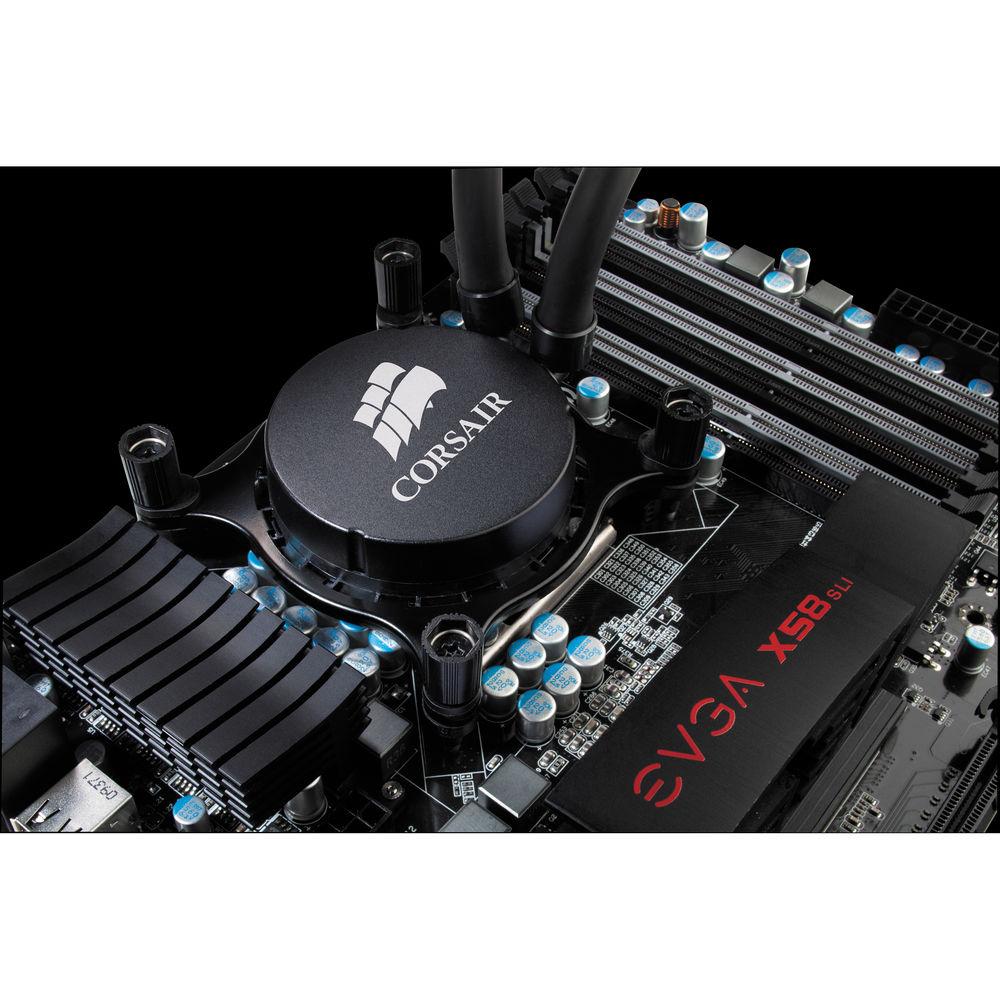

The pump head can be installed on to Intel and AMD processors without the need for tools using the included mounting kit. It is designed with a microfin copper cold plate for providing fast and efficient heat transfers from the processor to the circulating liquid. Furthermore, this pump features a low profile design that simplifies installation and helps improve the airflow inside your computer case. - Tool-free Mounting Bracket Kit
- The Hydro Series H55 works with Intel and AMD based motherboards. The included mounting bracket kit simplifies installation with a tool-free design.

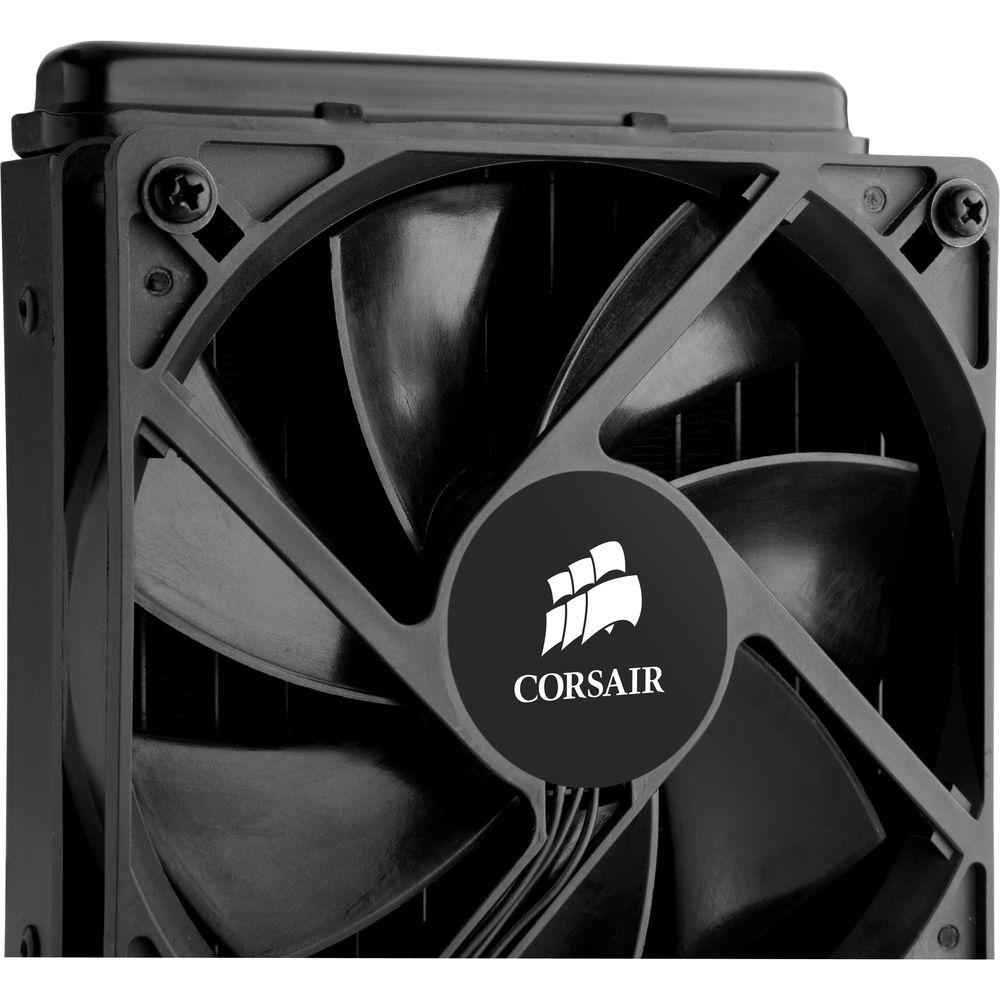

- Low-noise, Low-speed 120mm Fan
- The low speed and wide diameter reduces noise levels over the smaller, faster fans used on stock CPU coolers. The three-pin connector is compatible with fan controllers on your motherboard.
- Low Permeability Rubber Tubing
- The tubing is made from rubber that is flexible and is resilient against leaks. This material provides minimal coolant evaporation, which helps ensure long life for the H55 cooler.
- Low-profile Pump
- The pump unit provides high-speed circulation without taking a lot of space. This makes installation easier, and helps improve your case's airflow.

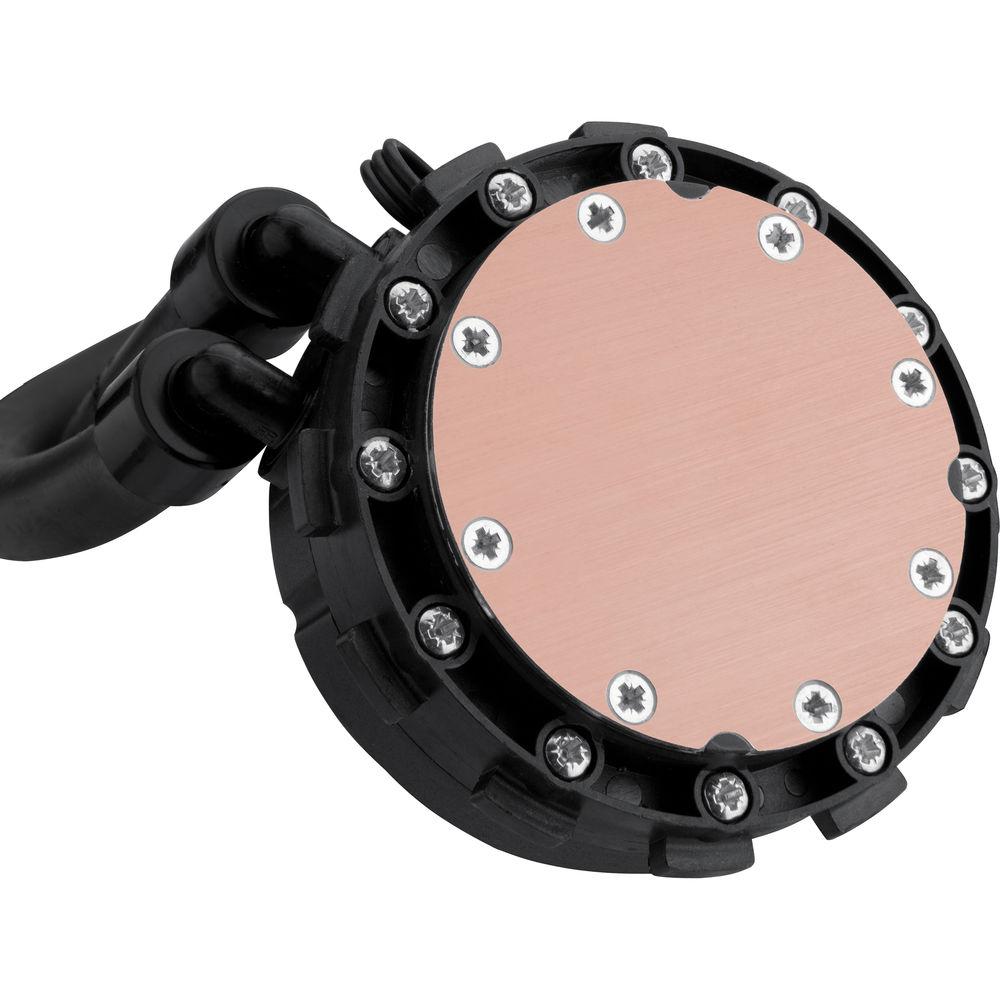

- Copper Microfin Cold Plate with Pre-applied Thermal Compound
- The cold-plate draws heat from your CPU into the circulating liquid. It features a microfin design to provide fast and efficient heat transfer and is made from copper that offers thermal conductivity. To help transfer heat and simplify installation, Corsair has already applied the thermal compound onto the cold plate.
- Low-profile Black Aluminum Heat Exchanger
- The low-profile design of the radiator reduces the airflow requirement, which helps make H55 quieter. The small size also allows for easier installation and improved compatibility.
UPC: 843591034470 In the Box Corsair Hydro Series H55 Liquid CPU Cooler Mounting Hardware Kit 120mm Fan Limited 5-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Corsair Hydro Series H55 Liquid CPU Cooler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCorsair H55 Specs | Cooler Type | CPU Liquid Cooler | | Connectors | 3-Pin | | Fan Size | 120 mm | | Fan Speed | 1700 rpm | | Noise Level | 30.3 dBA | | LED | None | | Maximum Airflow | 57 CFM | | Dimensions (W x H x D) | 4.7 x 4.7 x 1.0" / 120.0 x 120.0 x 25.0 mm | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 9.3 x 7.6 x 5.7" |
