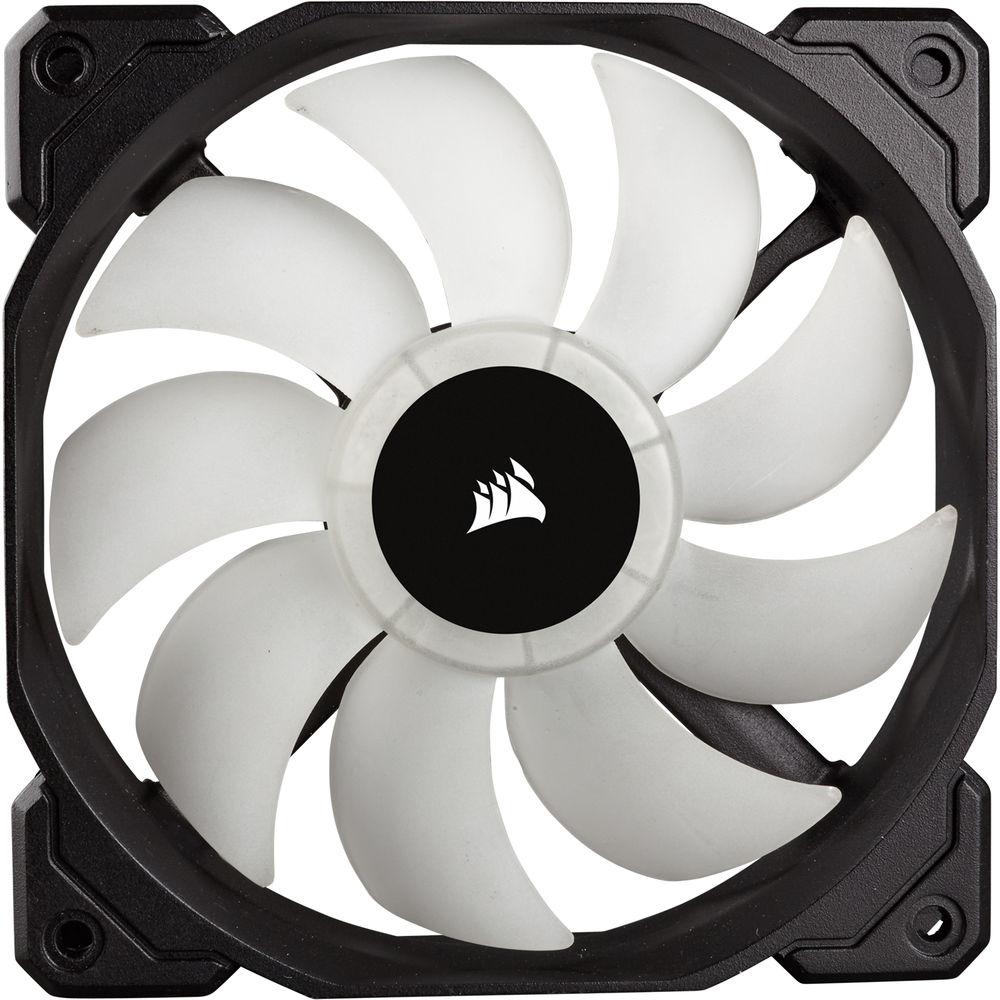

User Manual for Corsair SP120 RGB LED 120mm Fan with Controller Click to enlarge the picture
Contents of the user manual for the Corsair SP120 RGB LED 120mm Fan
- Product category: Fans & CPU Coolers Corsair
- Brand: Corsair
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Corsair Fans & CPU Coolers
 |
User manual for the Corsair SP120 RGB LED 120mm Fan contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Corsair product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Corsair user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Corsair product will considerably shorten its lifespan!
|

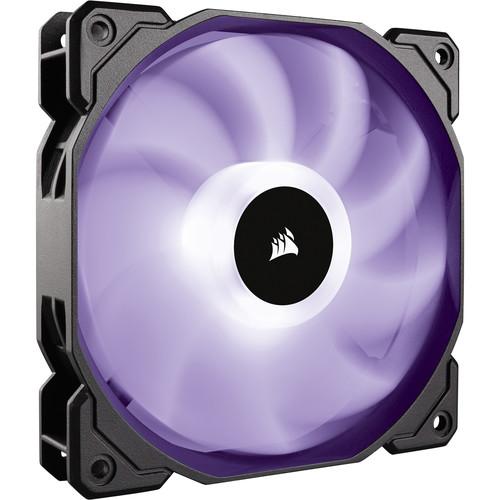

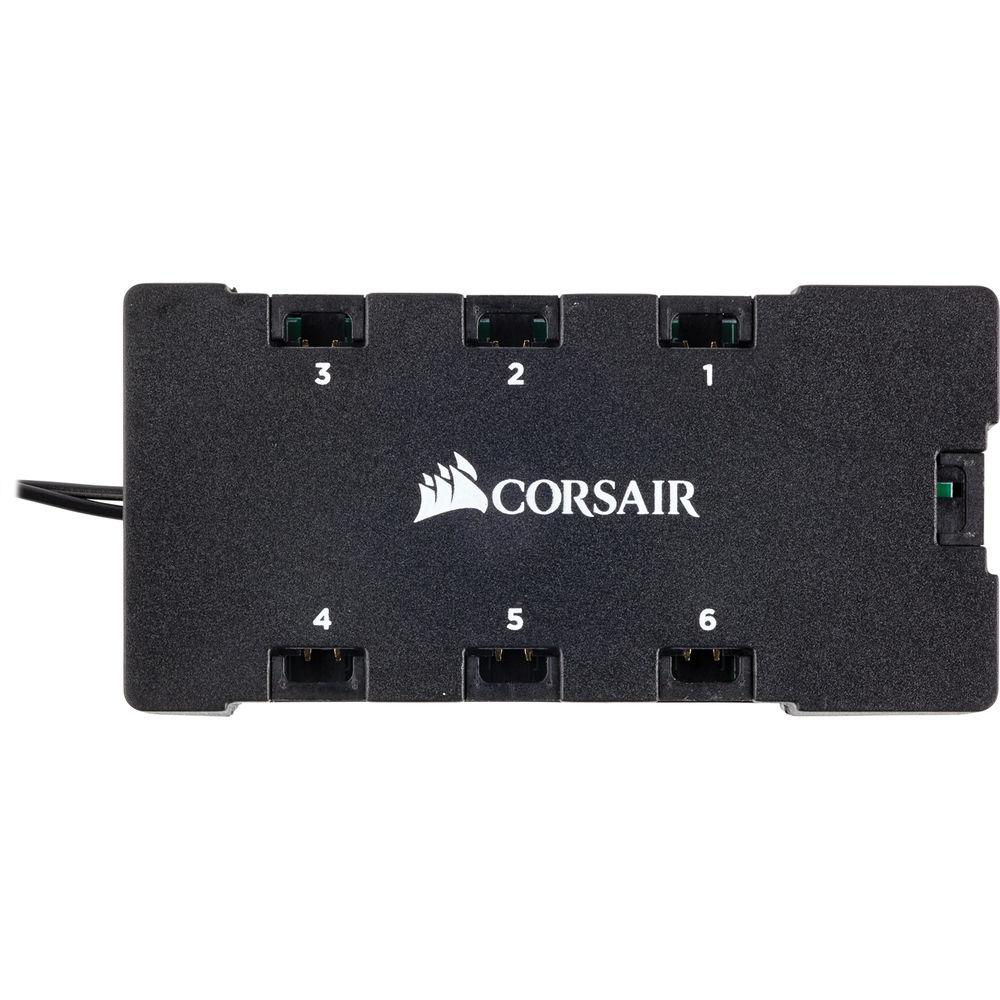

Product description The Corsair SP120 RGB LED 120mm Fan with Controller provides a single 120mm fan that delivers an air cooling solution for improving the performance of the desktop's internal components. The fan spins a steady speed of 1400 rpm, producing a static pressure of 1.45mm H20 and a noise level of 26 dBA. It connects to the included fan hub, which supports and powers up to six SP120 fans. The hub connects to the motherboard's 3-pin fan header and requires an unused SATA power connector from the power supply. To illuminate the inside of your computer chassis, four RGB LEDs are mounted onto the fan. Moreover, Corsair includes a 3-button controller so you can quickly set the fan's color, lighting effects, and effect speeds. - Four hub-mounted RGB LEDs

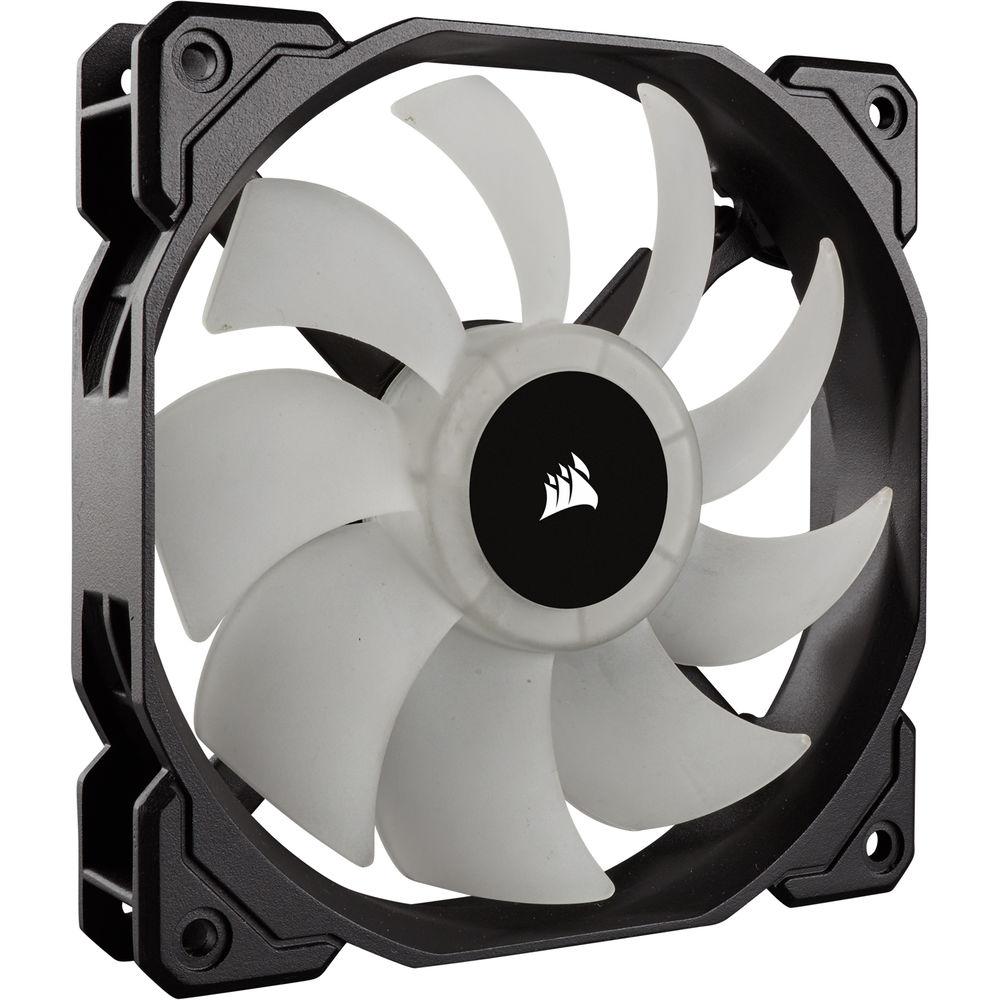

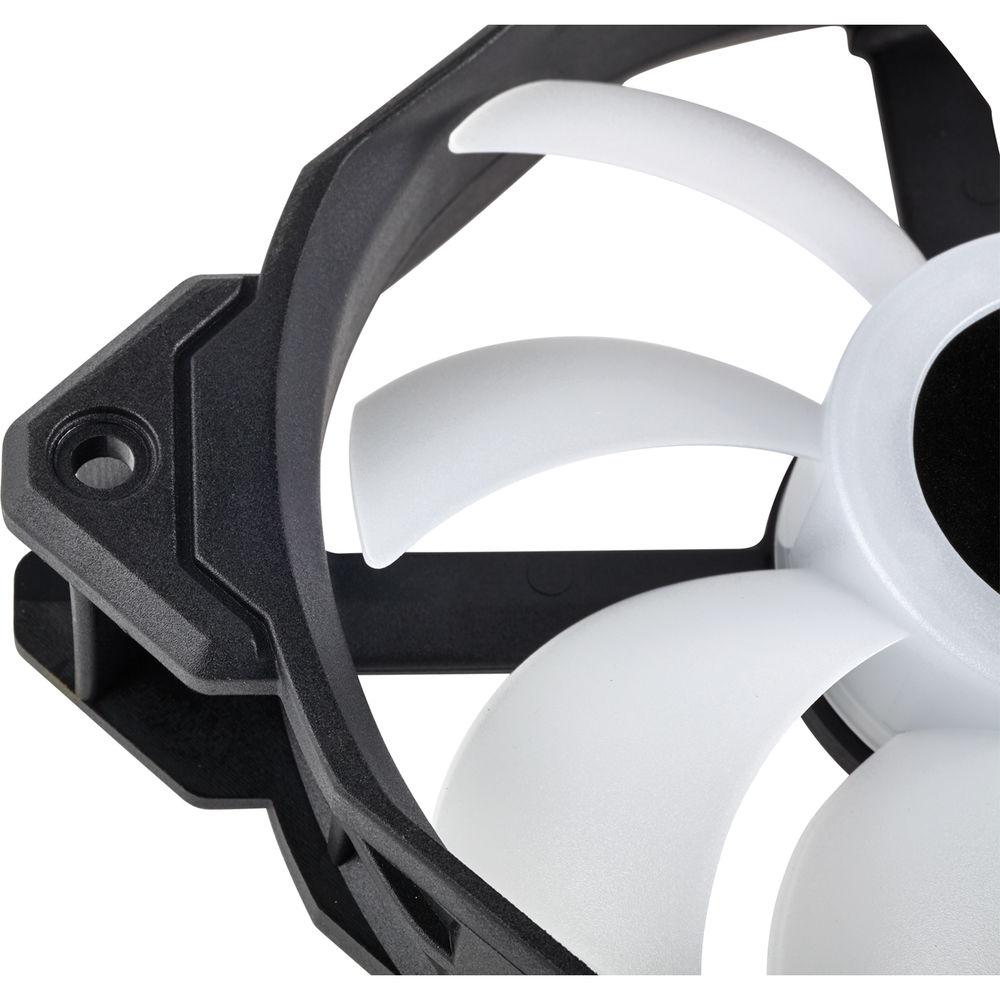

- Translucent, frosted fan blades
- Ultra-thin fan blades help ensure less vibration, noise, and turbulence

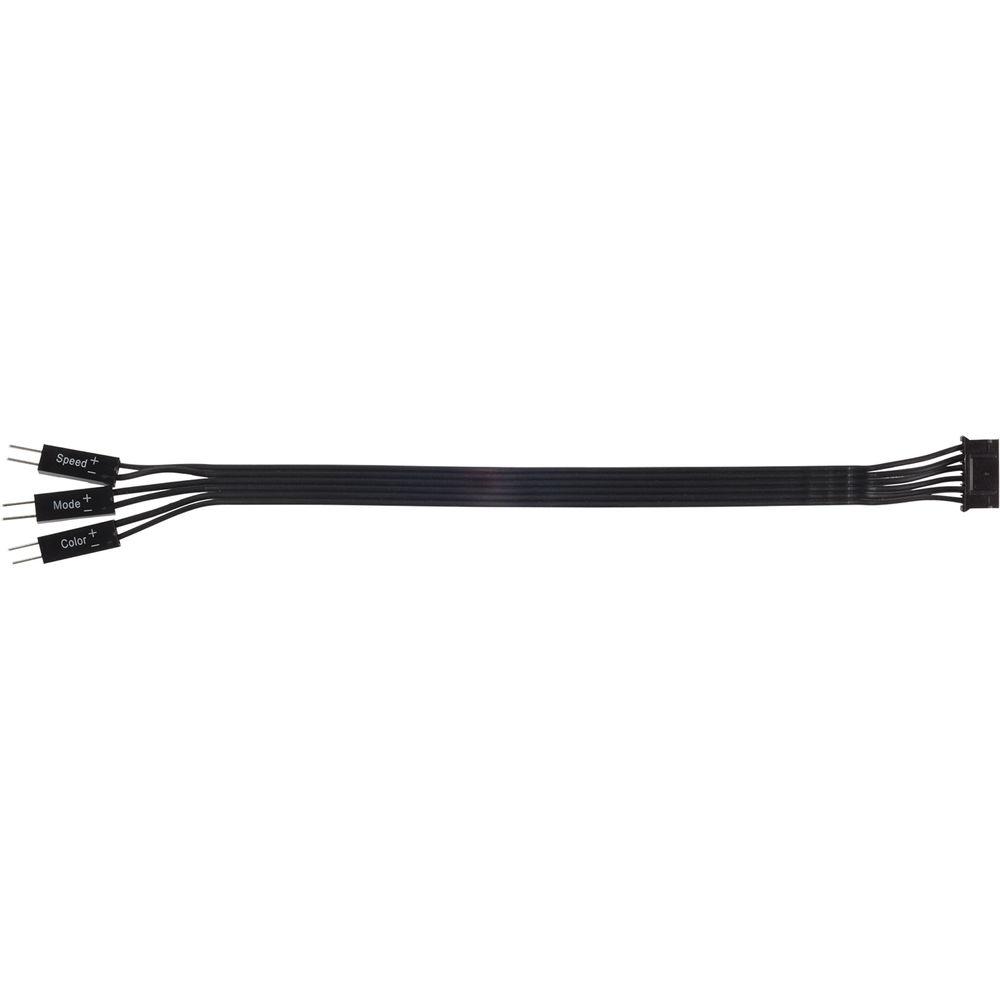

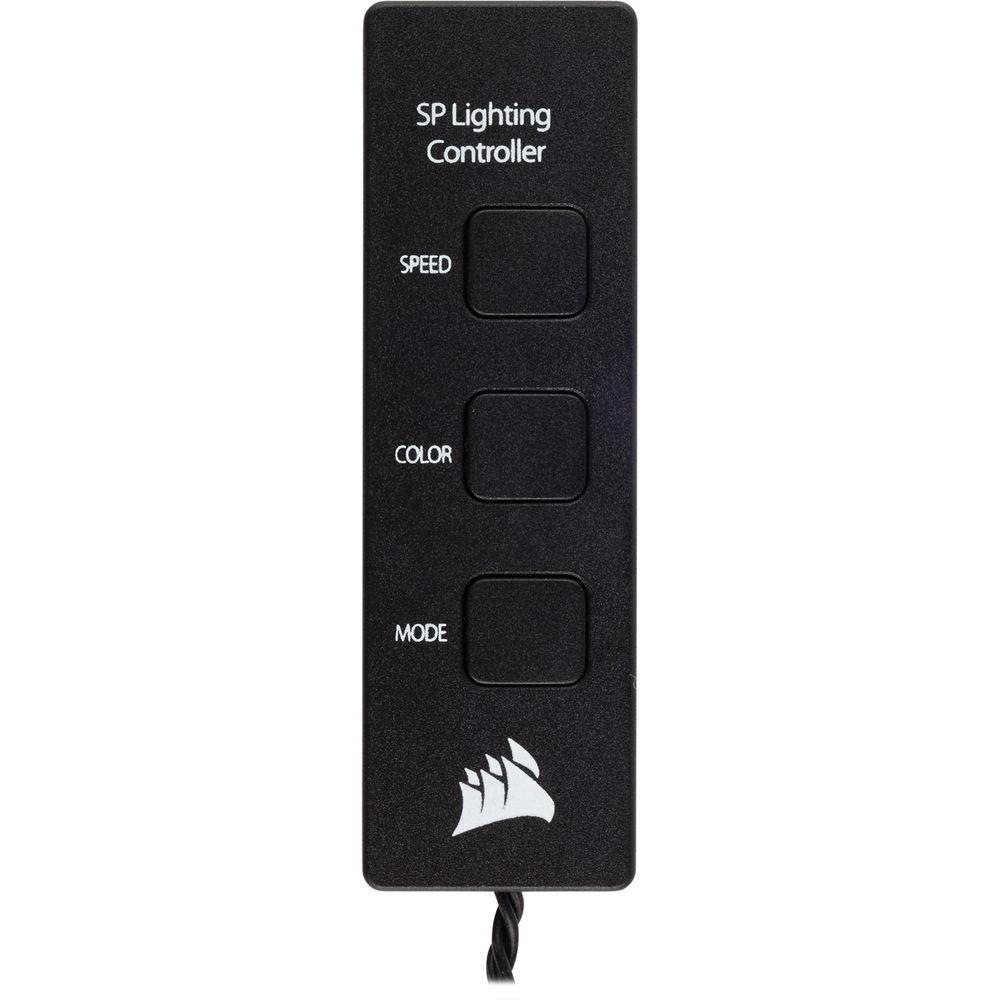

- 3-button controller for cycling through lighting effects, effect speeds, and colors

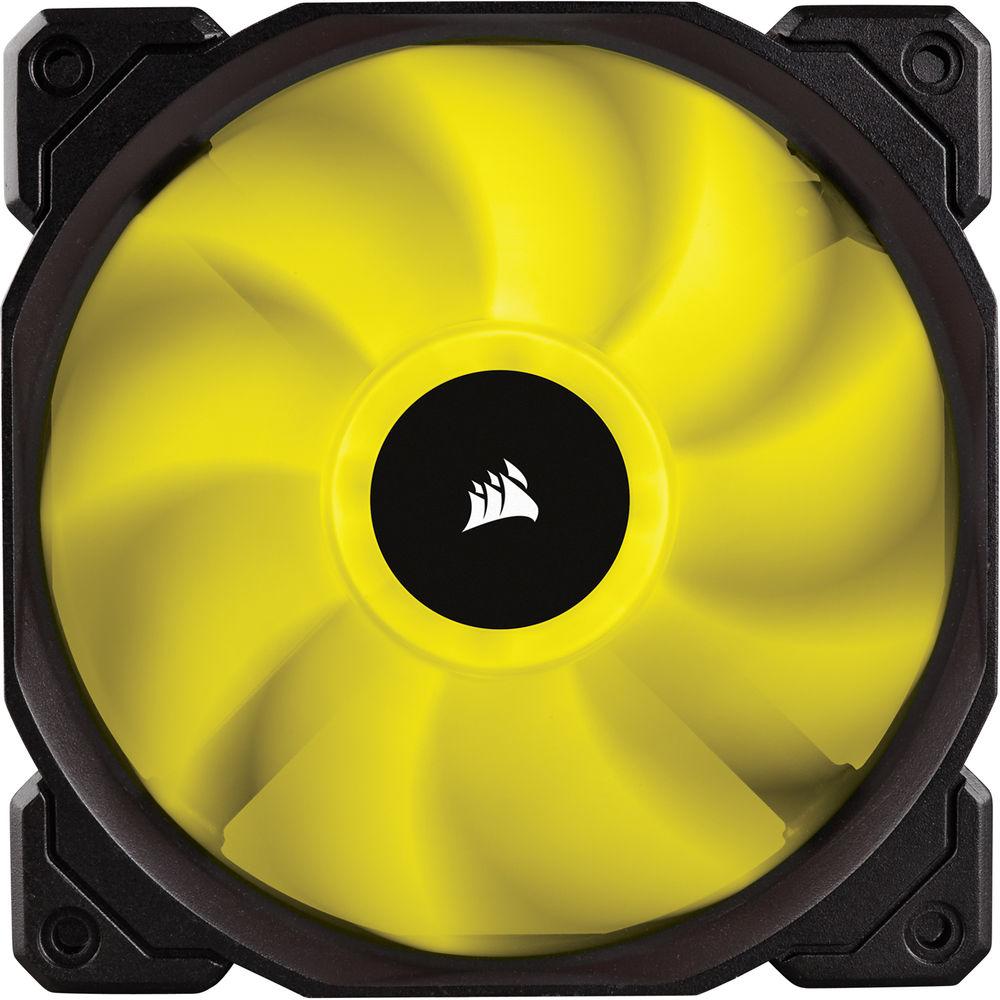

- Color Modes: White, Red, Orange, Yellow, Green, Blue, Violet, and Cycle through all colors
- Effect Modes: Breathing and Flicker, Static, Breathing, and Flicker
- Effect Speeds: High, Medium, and Slow
UPC: 843591090827 In the Box Corsair SP120 RGB LED 120mm Fan with Controller (Single Pack) Fan RGB LED Controller 6-Port RGB LED Hub Package of Screws and Mounting Strips Limited 2-Year Warranty More from Manufacturer szxdywzwcwyafzwfxbxcwbtrtcbee Table of Contents
|
Upload User Manual
Have you got an user manual for the Corsair SP120 RGB LED 120mm Fan with Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCorsair CO9050060WW Specs | Flow Type | Static pressure | | Airflow | 52 CFM | | Static Pressure | 1.45 mm H20 | | Noise Level | 26 dBA | | Spin Speed (RPM) | 1400 ± 10% | | Bearing Type | Hydraulic | | LED Color | RGB | | Operating Voltage | 7 to 13.2 V | | System Requirements | Available 3-pin fan connector | | Fan Size (DxH) | 4.7 x 1.0" / 120.0 x 25.0 mm | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 7.6 x 5.3 x 1.7" |
