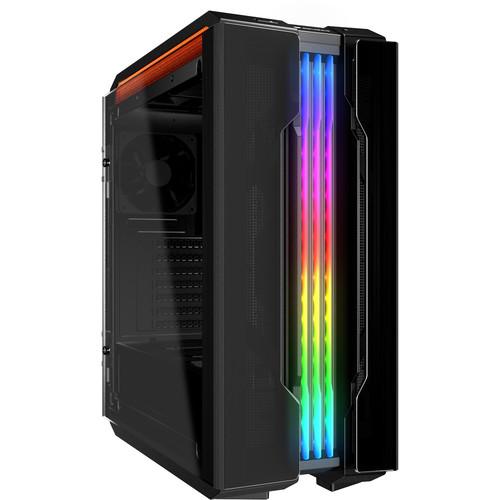

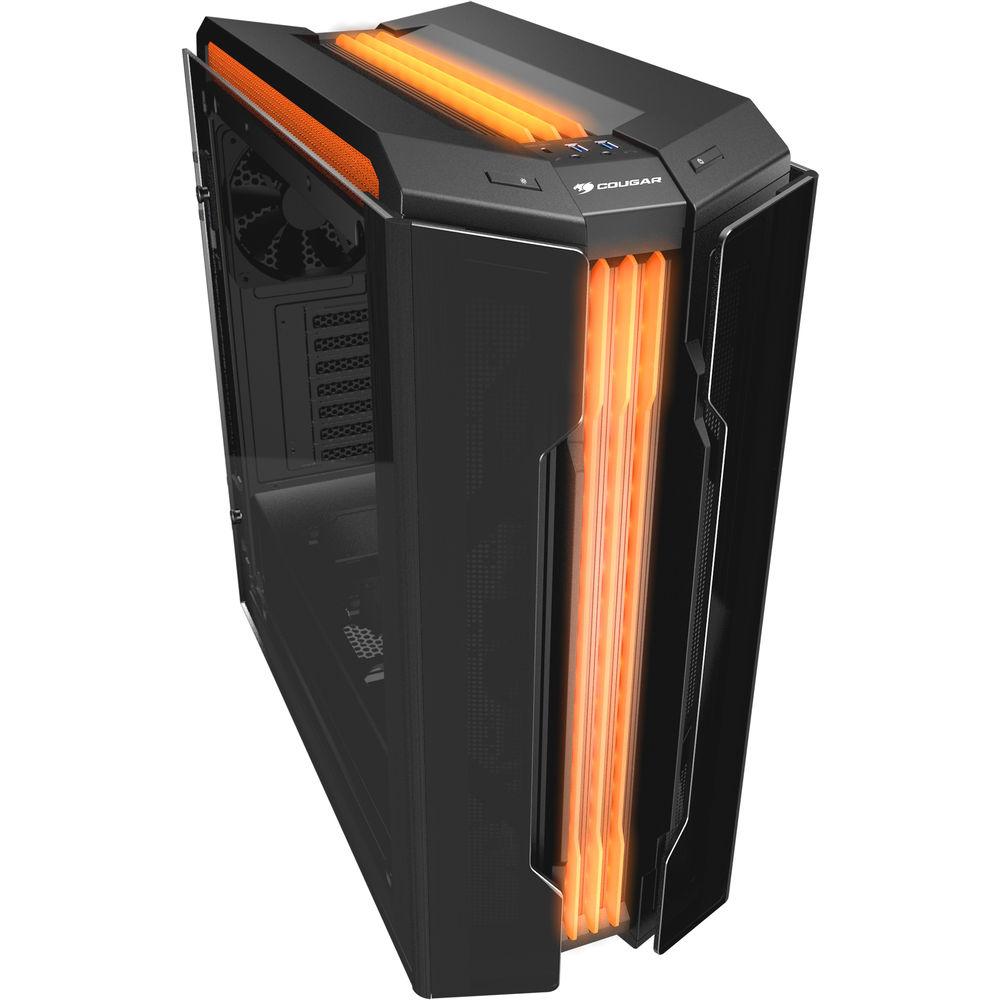

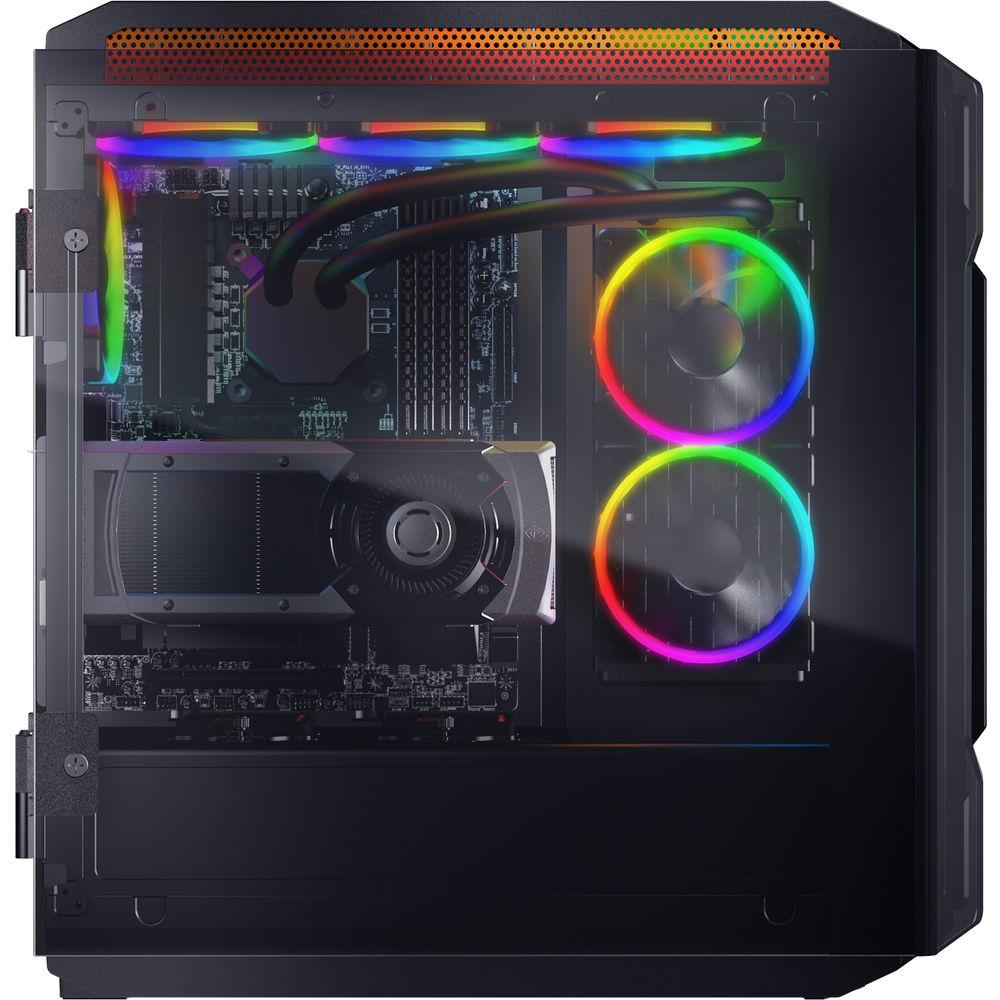

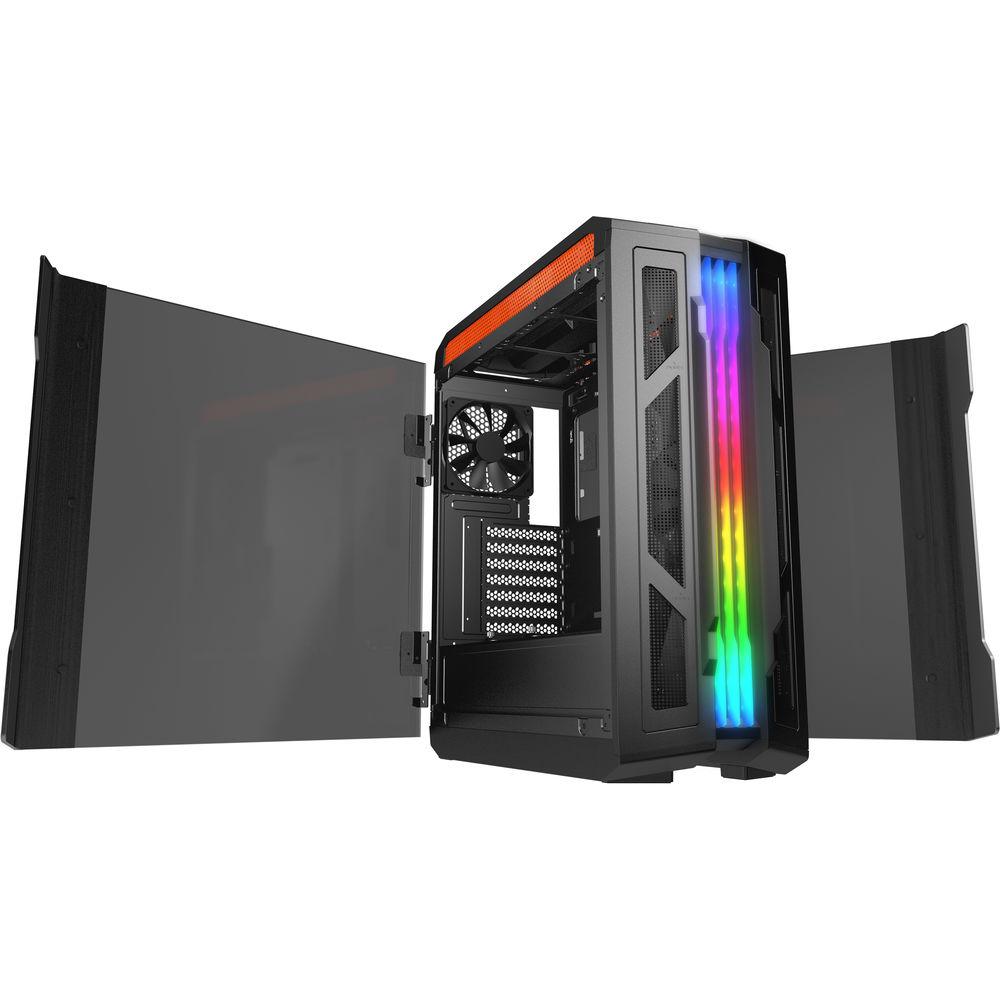

Product description The Gemini T Mid-Tower Case from Cougar is designed for users who want a flashy, eye-catching system. It can accommodate a standard ATX motherboard, or even a CEB-one, with enough room left over for multiple storage drives and PCIe expansion cards. As for cooling, there are plenty of fan mounting locations throughout the case, which can support up to a max of seven 120mm fans. With integrated RGB lighting and lighting control, the Gemini T can be adjusted to your preferred color and even synced with other compatible components for a unified setup. - Trelux RGB Lighting

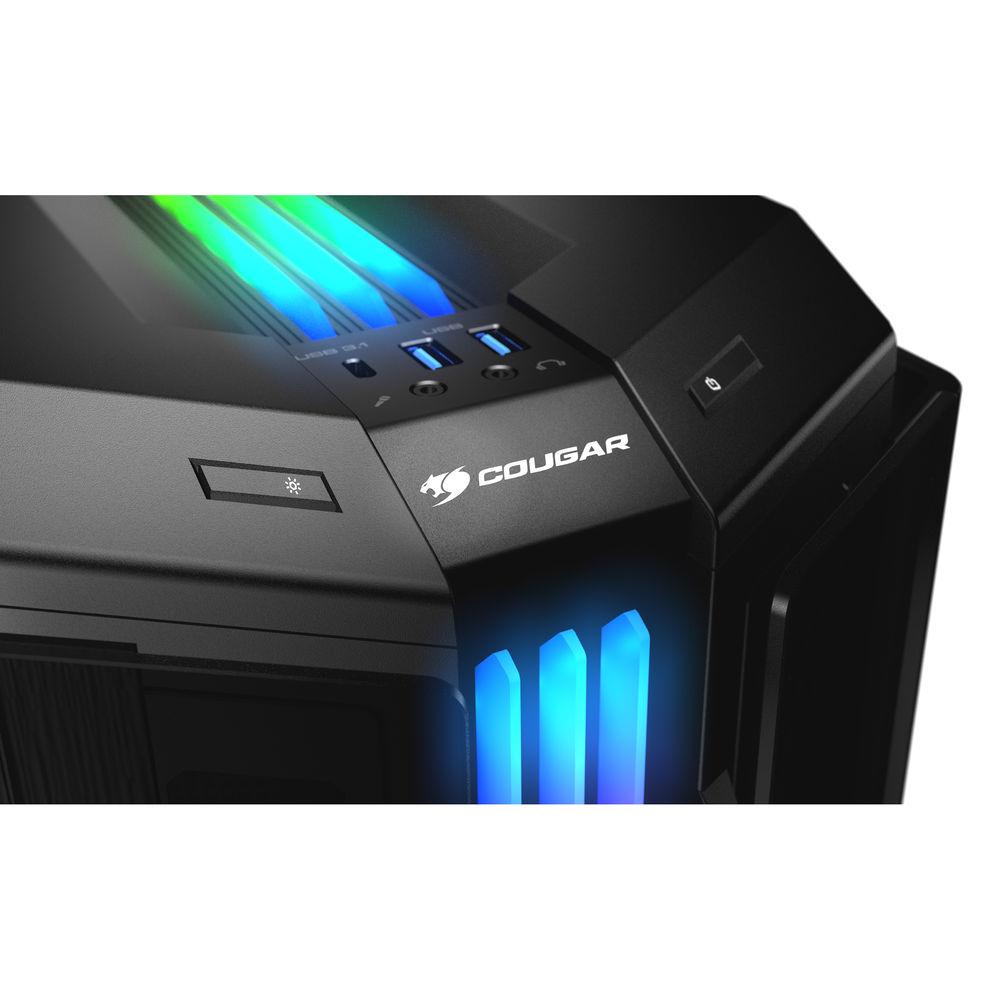

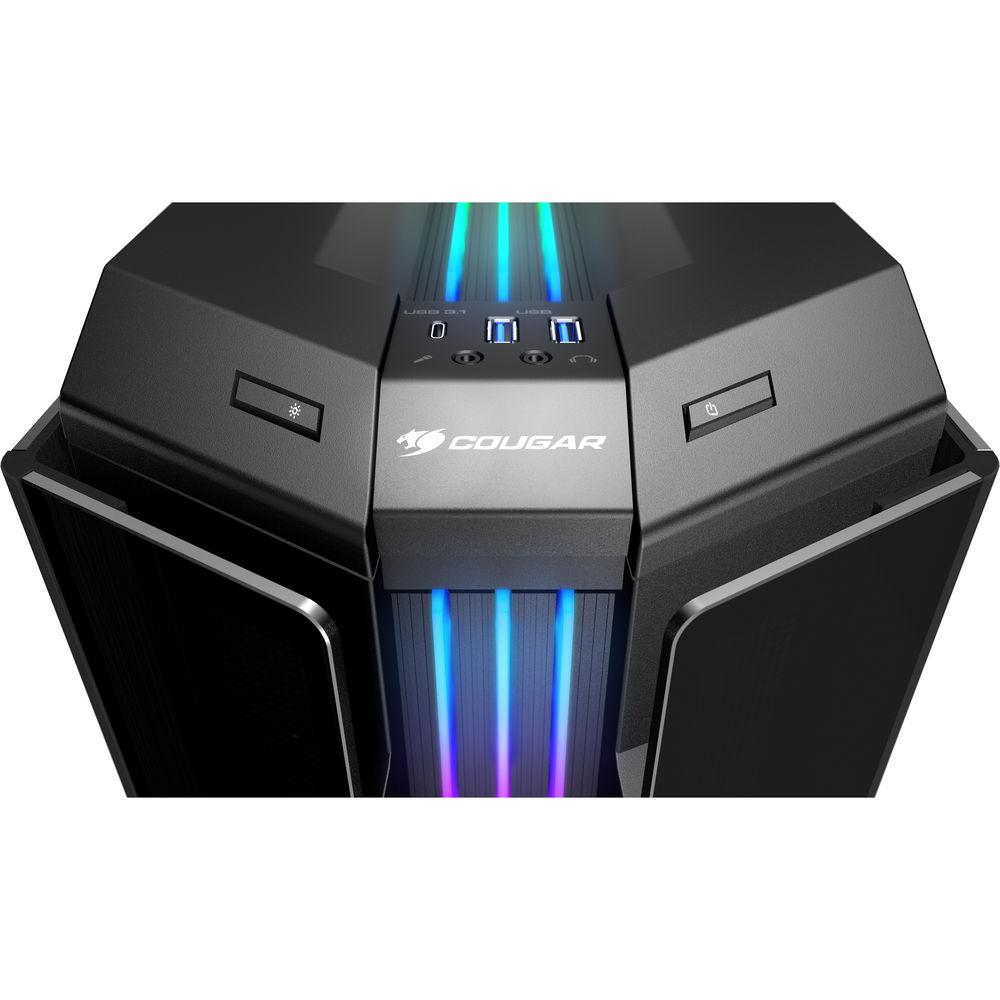

- The Trelux RGB lighting system is installed on the front and top of the case in addition to a built-in front-panel controller. It's compatible with a variety of motherboards as well as lighting solutions such as ASUS Aura Sync, Gigabyte RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome Sync.
- Glass Wings

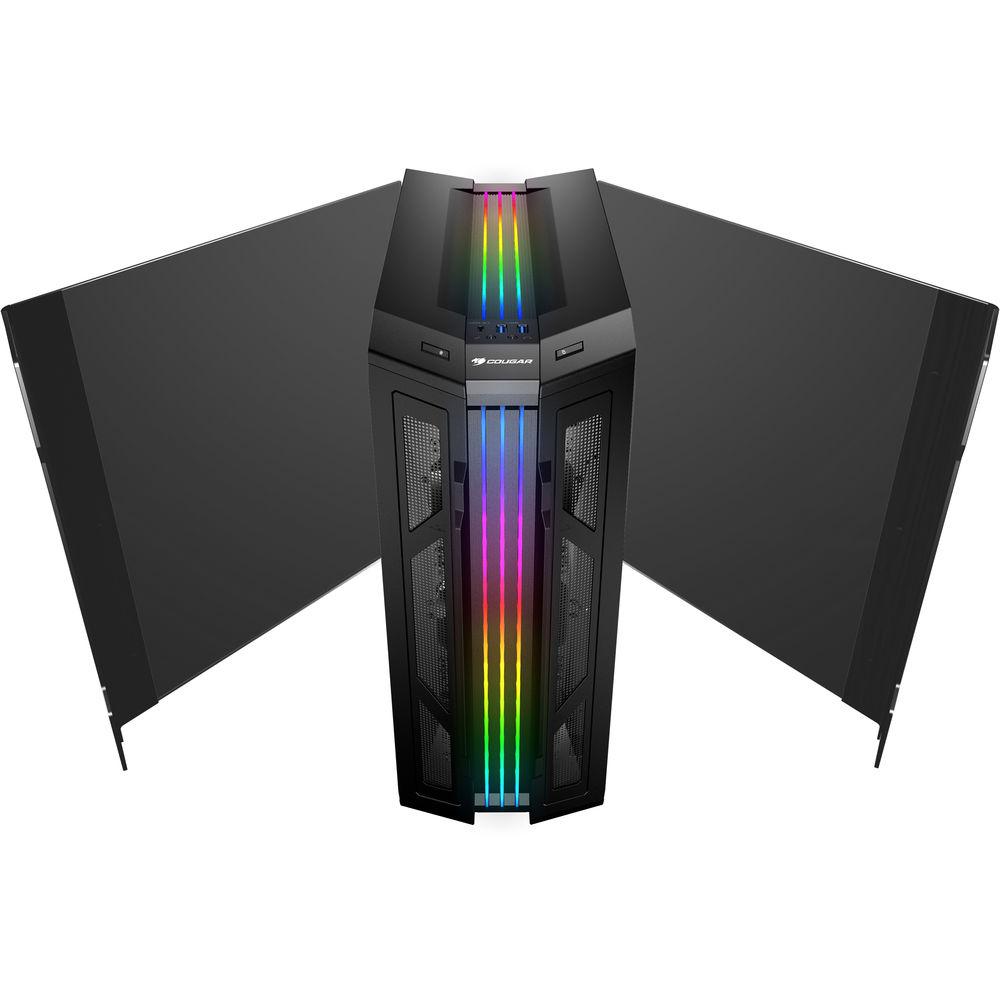

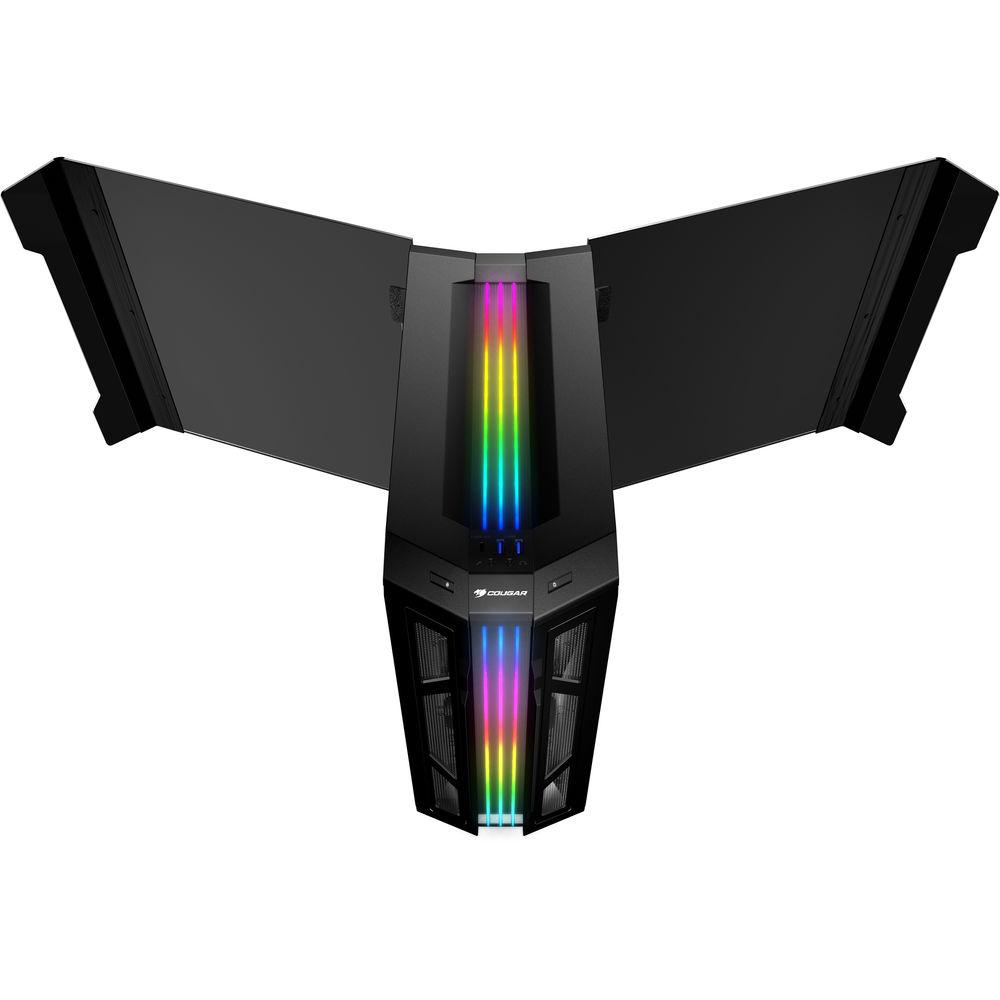

- The two side panels are made of tempered glass and open in a gull-wing fashion for easy access.
- Vertical GPU Mount
- The Gemini T has two vertical expansion slots, so you can show off your GPU rather than having it facing down towards the power supply.
UPC: 192554000626 In the Box COUGAR Gemini T Mid-Tower Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COUGAR Gemini T Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOUGAR GEMINI T Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ATX, SSI-CEB | | External Drive Bays | None | | Internal Drive Bays | 2 x 2.5/3.5"
3 x 2.5" | | Expansion Slots | 7 x Full Height + 2 | | Maximum GPU Length | 15.75" / 400 mm | | CPU Cooler Height | 6.69" / 170 mm | | Supported PSU Size | ATX | | Maximum PSU Length | 7.87" / 200 mm | | | | Fan Mounting (Front) | 2 x 140 mm
Or
3 x 120 mm
| | Fan Mounting (Rear) | 1 x 120 mm
| | Fan Mounting (Side) | 2 x 120 mm
| | Fan Mounting (Top) | 2 x 140 mm
Or
3 x 120 mm
| | Fan Mounting (Bottom) | None | | Fans Included (Front) | 1 x 120 mm | | Fans Included (Rear) | 1 x 120 mm | | Maximum Radiator Size (Front) | 360 mm | | Maximum Radiator Size (Rear) | 120 mm | | Maximum Radiator Size (Side) | 240 mm | | Maximum Radiator Size (Top) | 240 mm | | Fan Mounting (Internal) | None | | Fan Controller Included | Yes | | Filter Locations | Bottom, Front | | | | Connections | 1 x USB Type-C (USB 3.1)
2 x USB Type-A (USB 3.1) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Built-In Lighting | Yes | | Dimensions (W x H x D) | 8.9 x 21.1 x 20.7" / 227.0 x 535.0 x 527.0 mm | | | | Package Weight | 28.11 lb | | Box Dimensions (LxWxH) | 25.2 x 24.0 x 13.2" |
