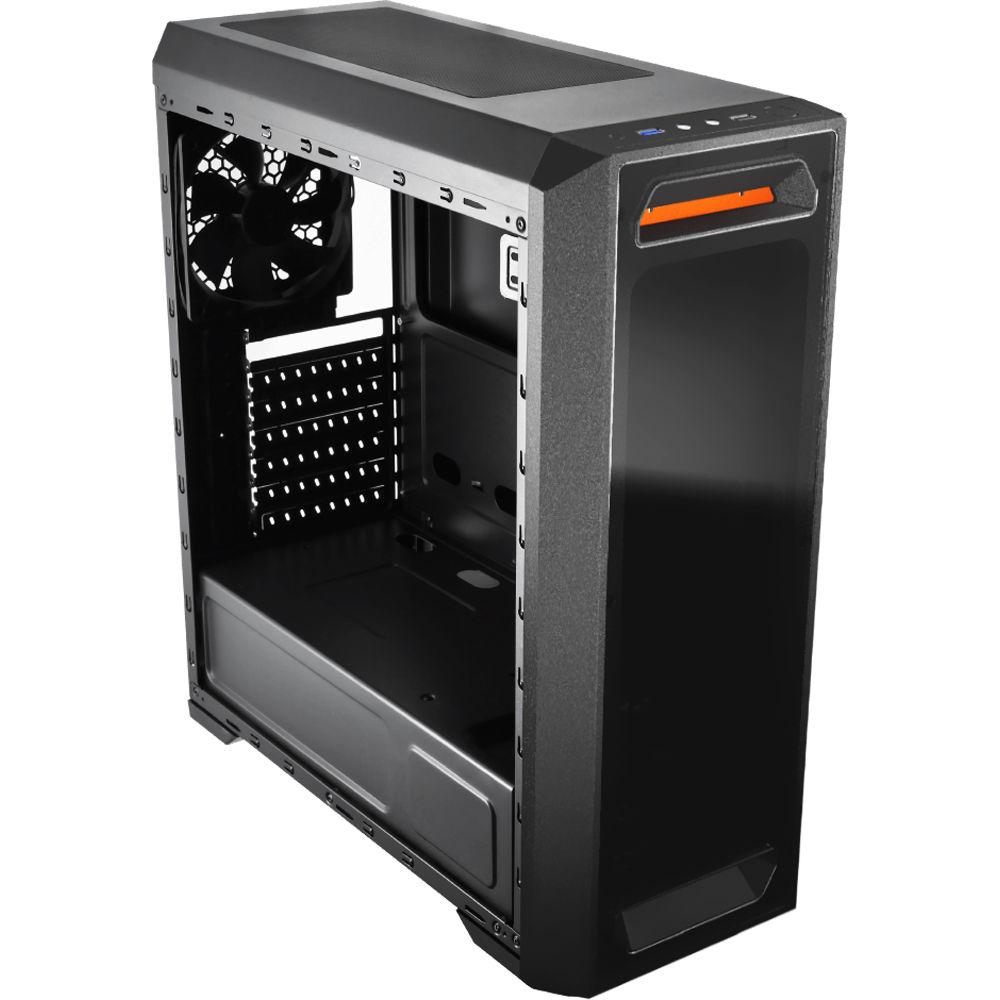

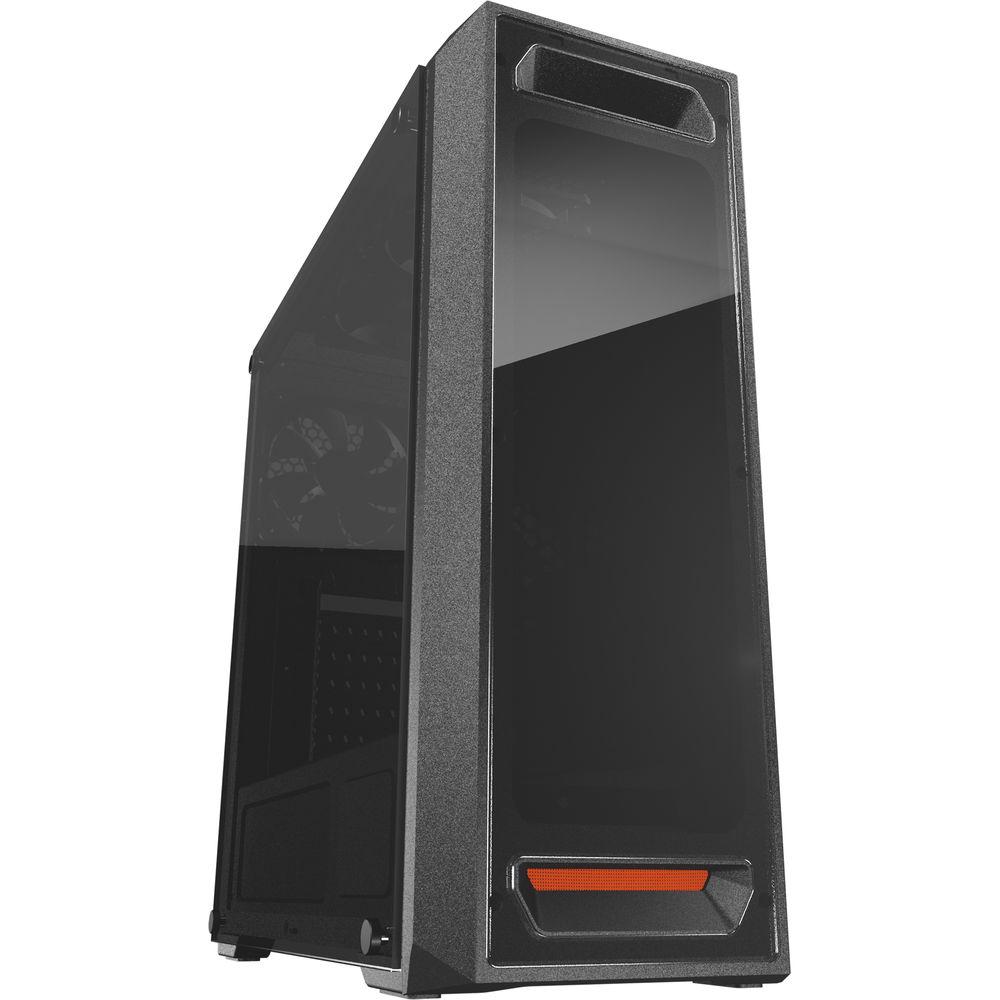

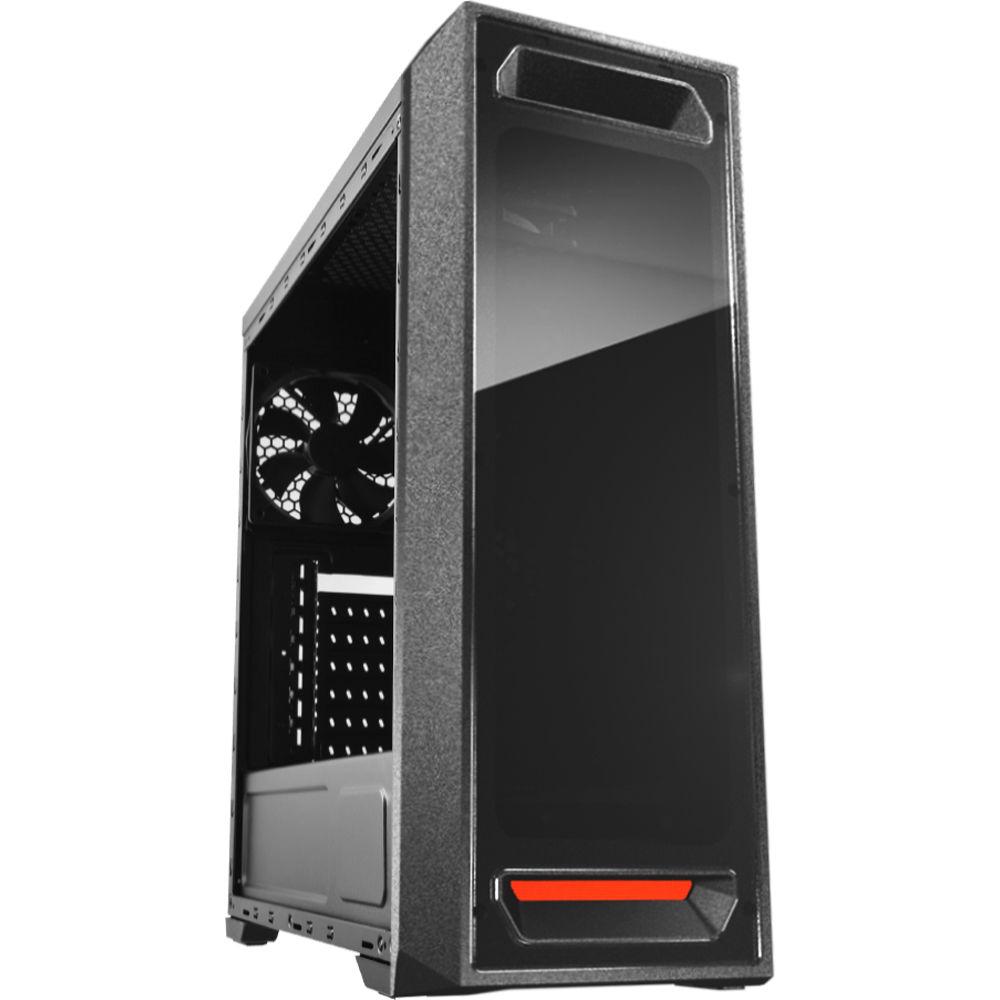

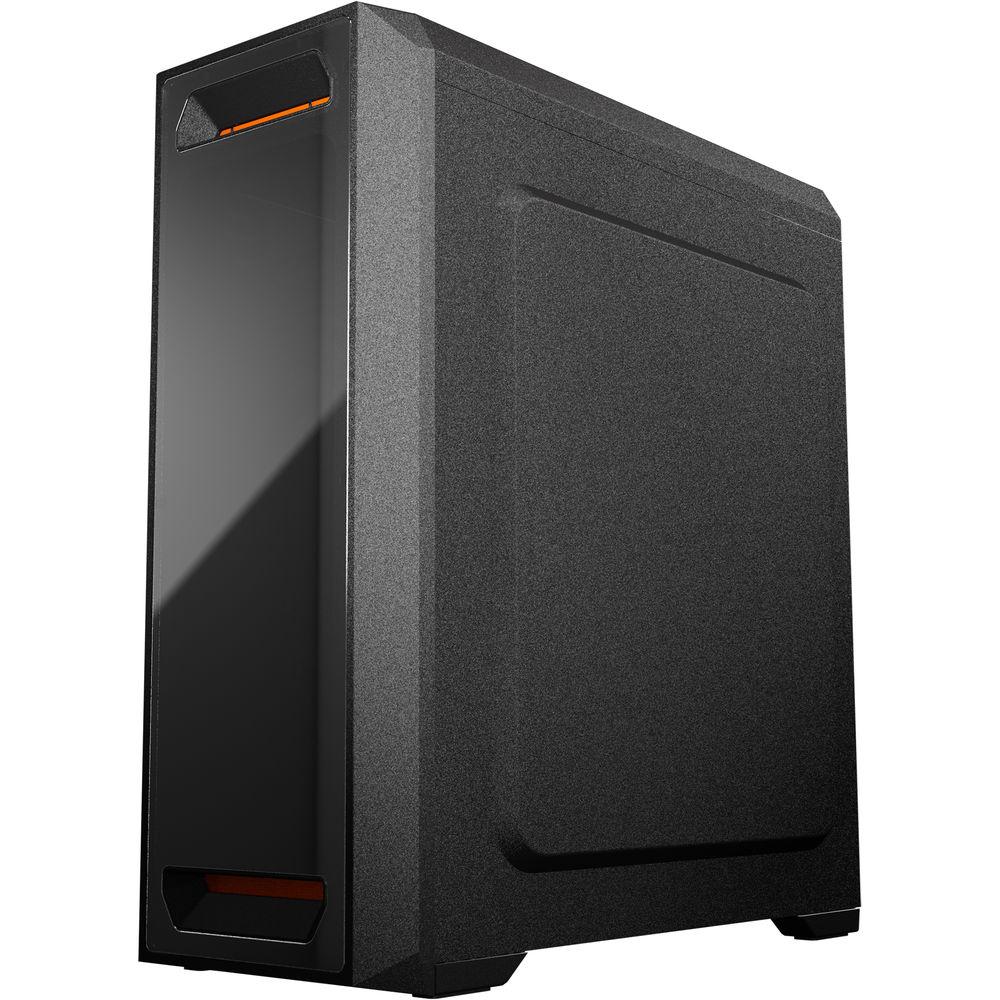

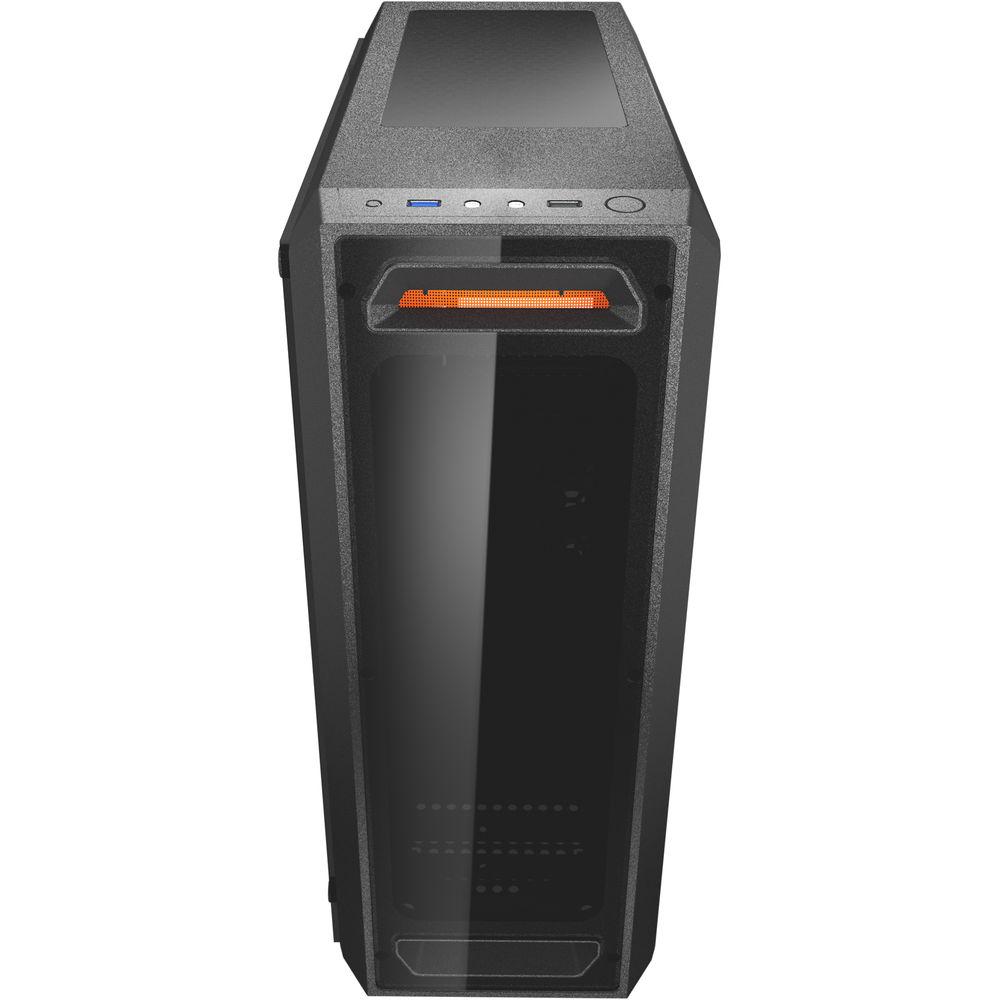

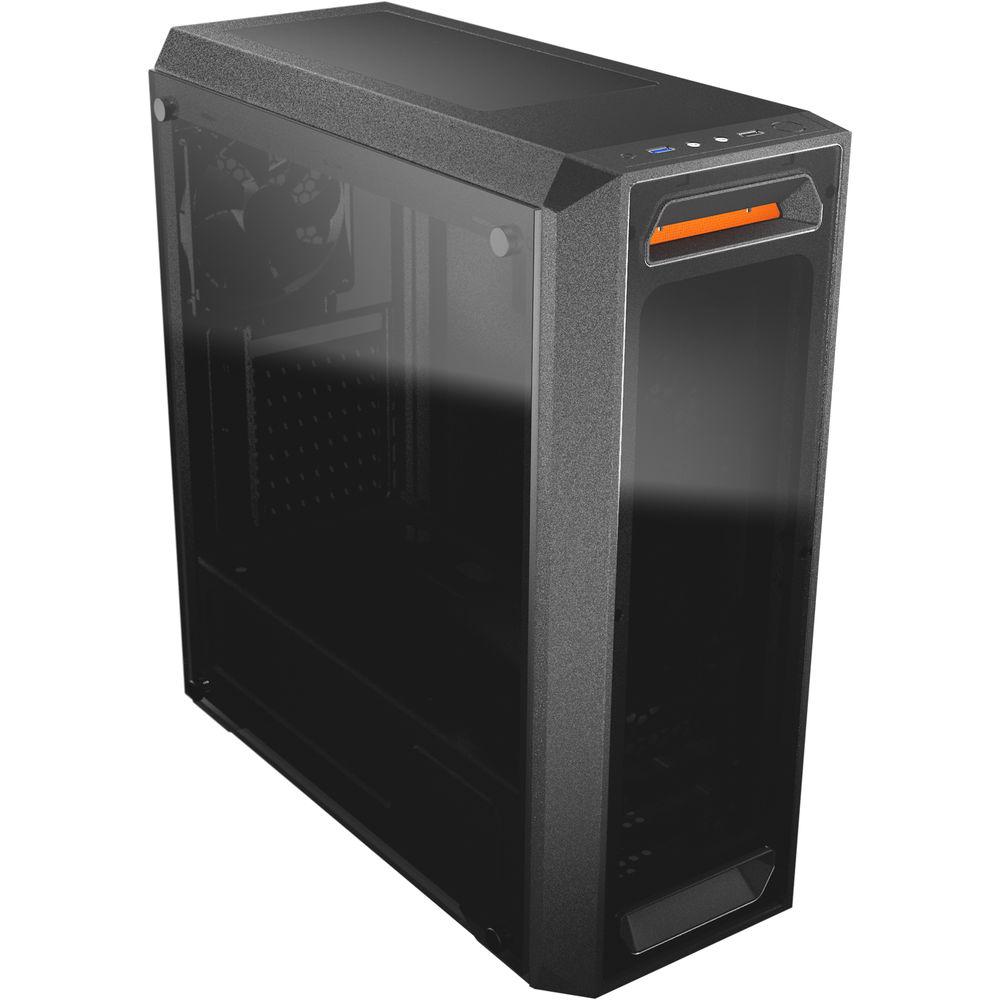

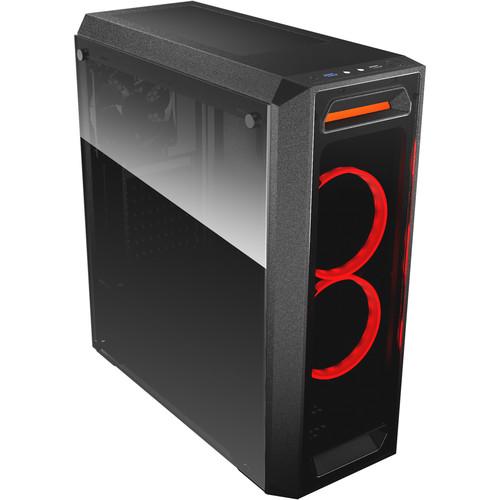

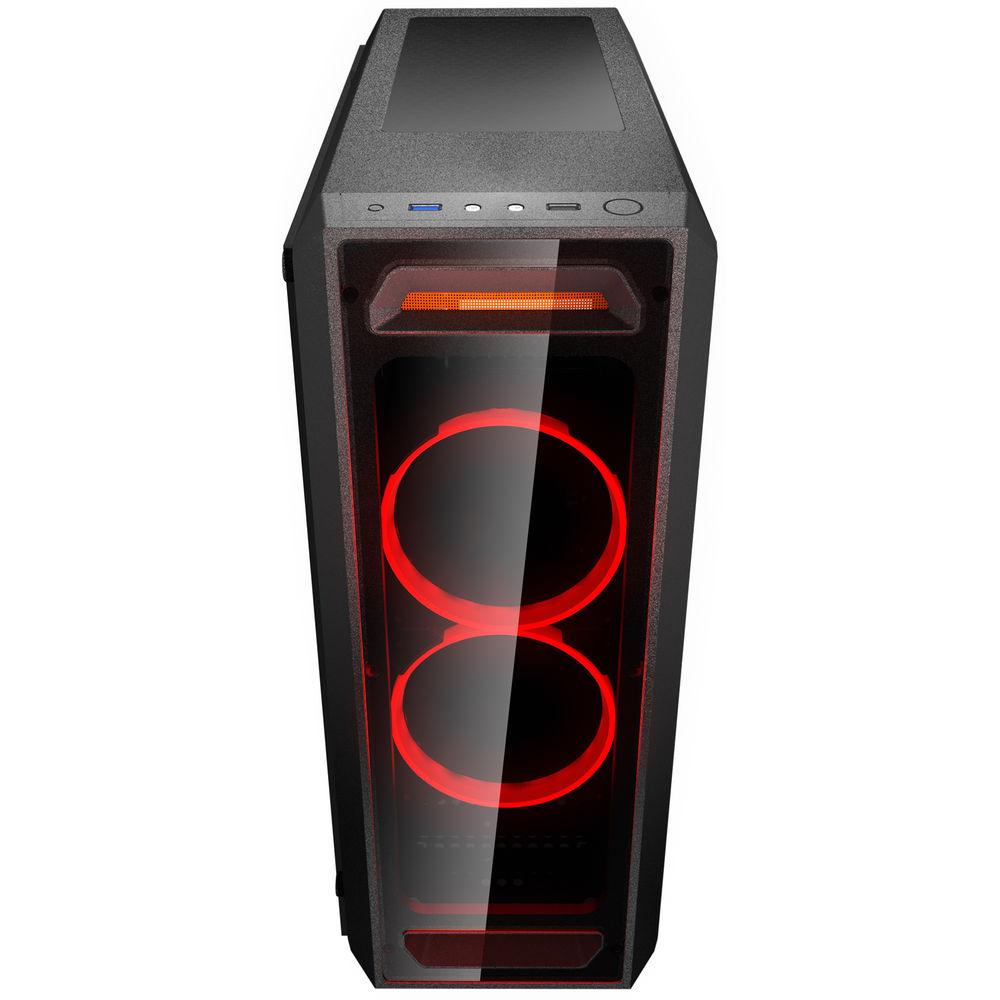

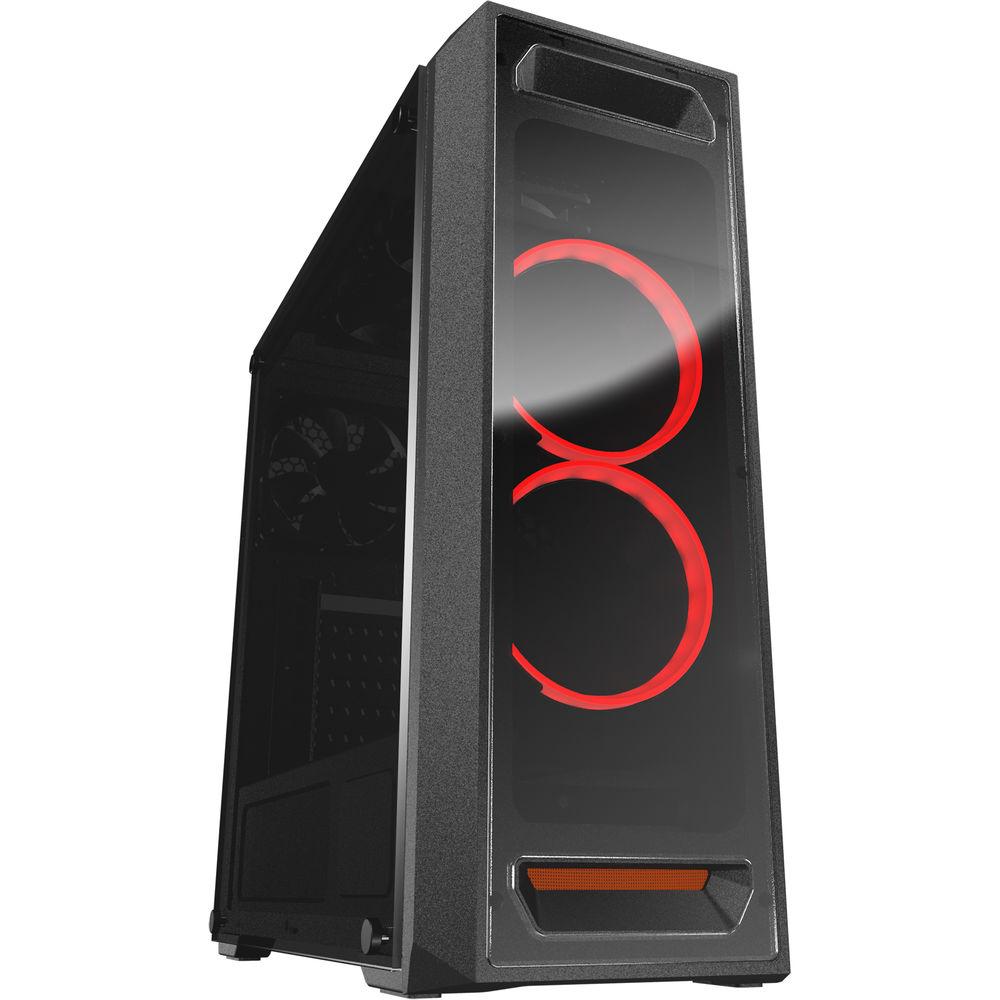

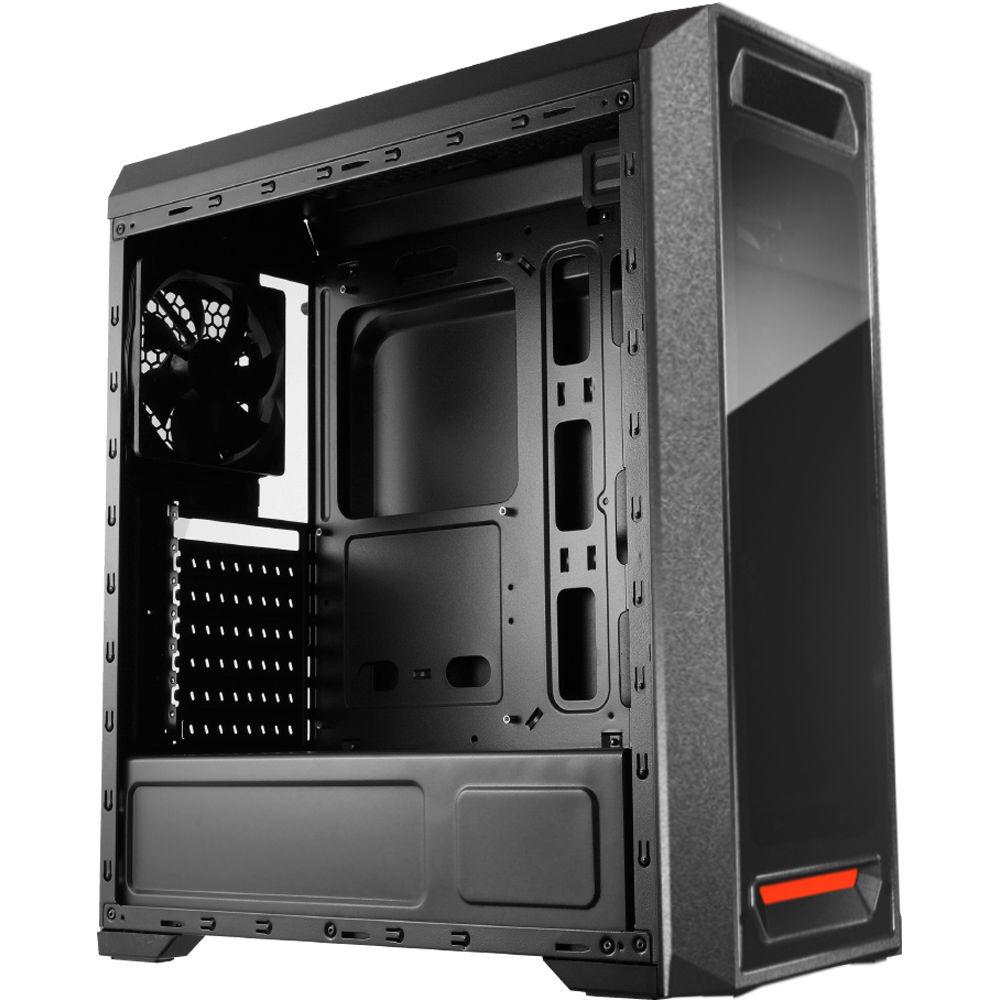

Product description The MX350 Mid-Tower Case from Cougar is designed with a tempered-glass side panel and a transparent front panel for users who want to show off their system. Inside, you'll be able to fit a standard ATX motherboard with enough room left over for multiple storage drives and PCIe expansion cards. For cooling, it can support up to a total of five fans: two at the top, two at the front, and one at the rear. Two 120mm Cougar Vortex LED fans are pre-installed at the front. Users can also opt to install liquid cooling hardware if needed. UPC: 192554000305 In the Box COUGAR MX350 Mid-Tower Case Screw Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COUGAR MX350 Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOUGAR MX350 Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | External Drive Bays | None | | Internal Drive Bays | 2 x 2.5/3.5"
2 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 13.78" / 350 mm | | CPU Cooler Height | 6.30" / 160 mm | | Supported PSU Size | ATX | | | | Fan Mounting (Front) | 2 x 120 mm
| | Fan Mounting (Rear) | 1 x 120 mm
| | Fan Mounting (Side) | None | | Fan Mounting (Top) | 2 x 120 mm
| | Fan Mounting (Bottom) | None | | Fans Included (Front) | 2 x 120 mm LED | | Maximum Radiator Size (Front) | 240 mm | | Maximum Radiator Size (Rear) | 120 mm | | Maximum Radiator Size (Top) | 120 mm | | Fan Mounting (Internal) | None | | Fan Controller Included | No | | Filter Locations | Bottom, Front, Top | | | | Connections | 1 x USB Type-A (USB 2.0)
1 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Tempered Glass | | Built-In Lighting | Yes | | Dimensions (W x H x D) | 7.7 x 18.6 x 16.8" / 195.0 x 473.0 x 427.0 mm | | | | Package Weight | 14.92 lb | | Box Dimensions (LxWxH) | 20.7 x 20.7 x 9.7" |
