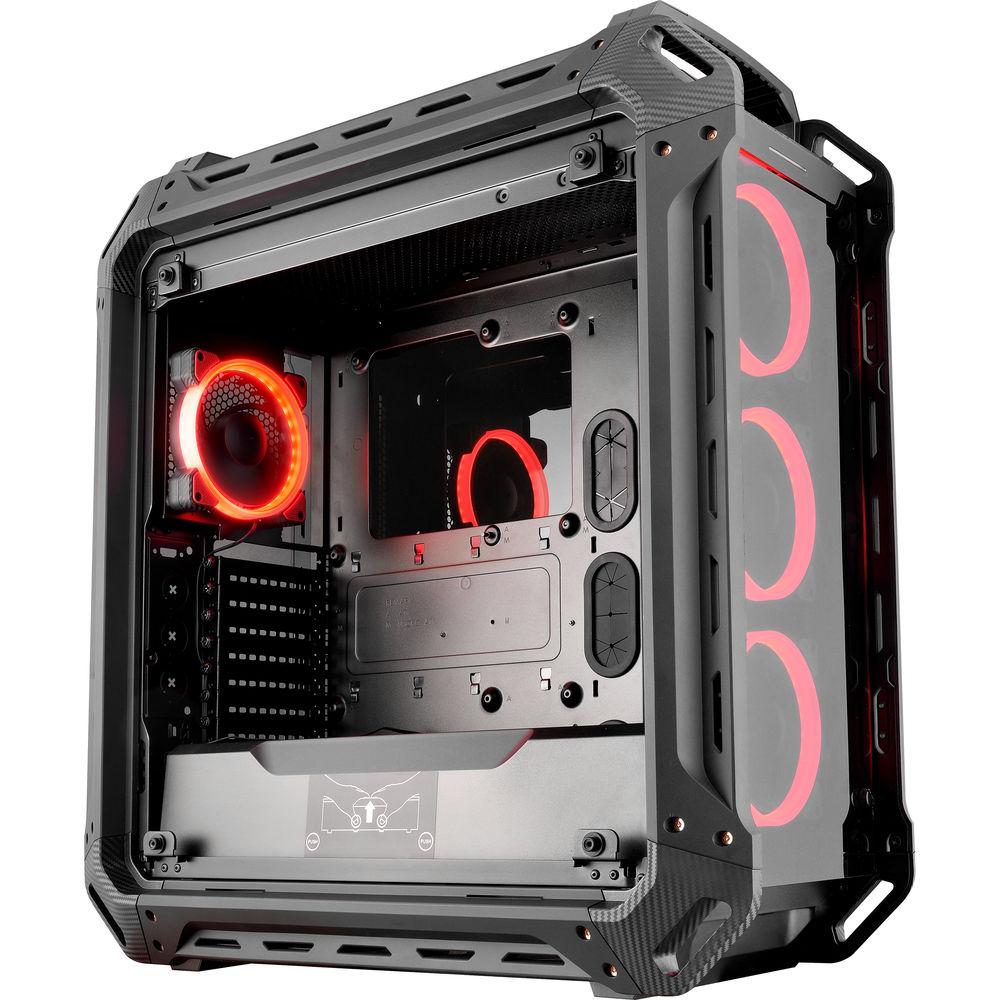

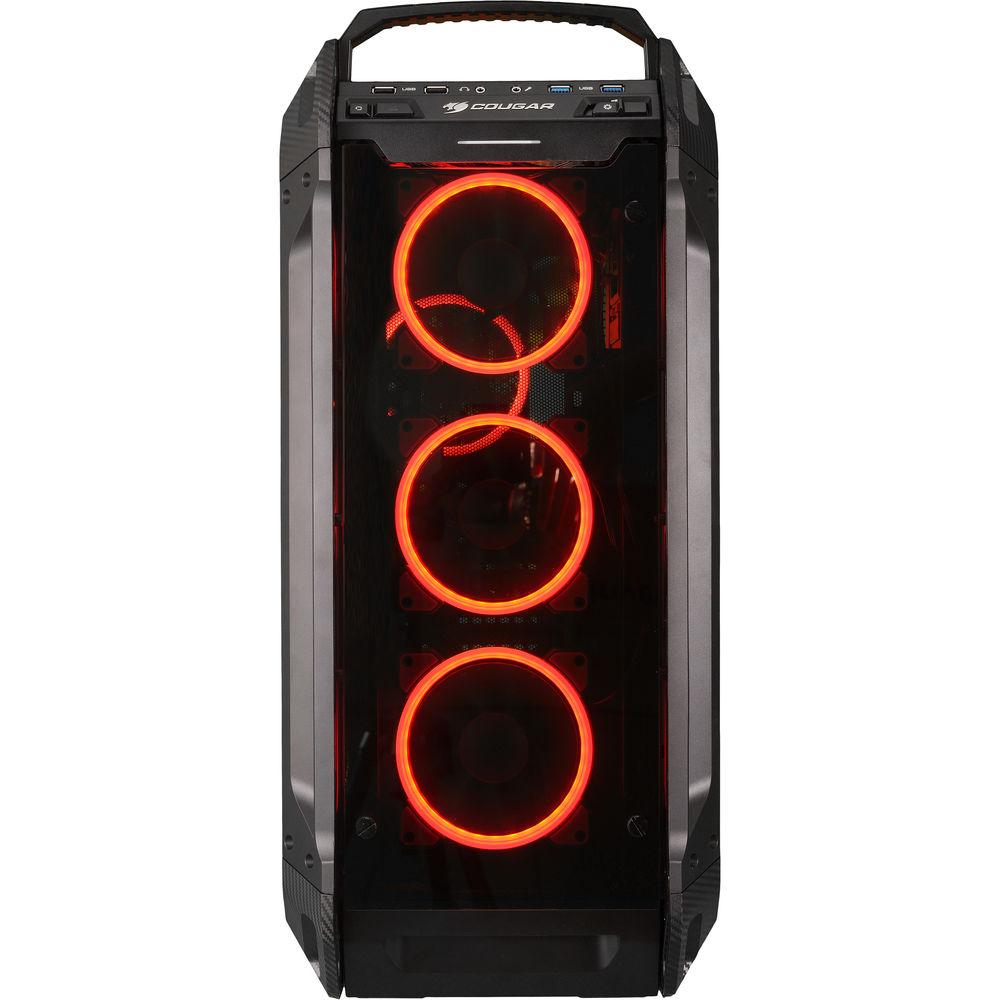

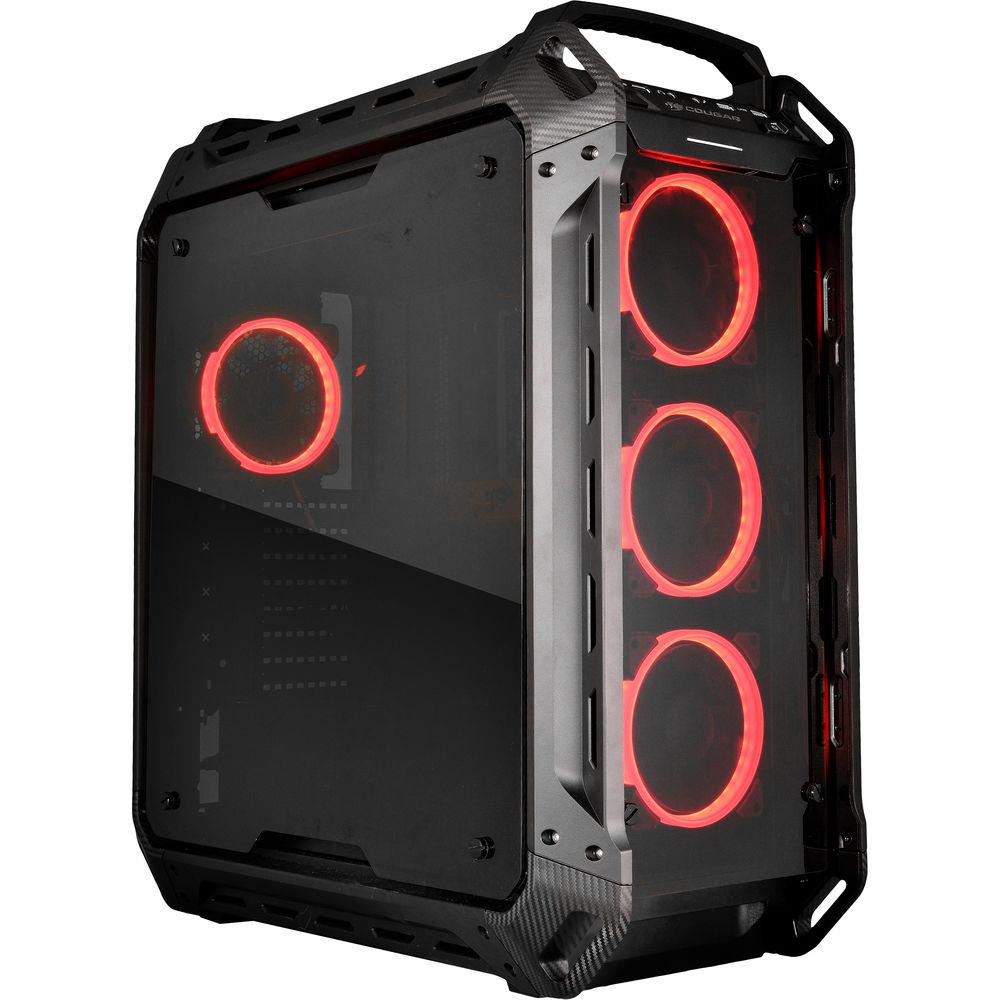

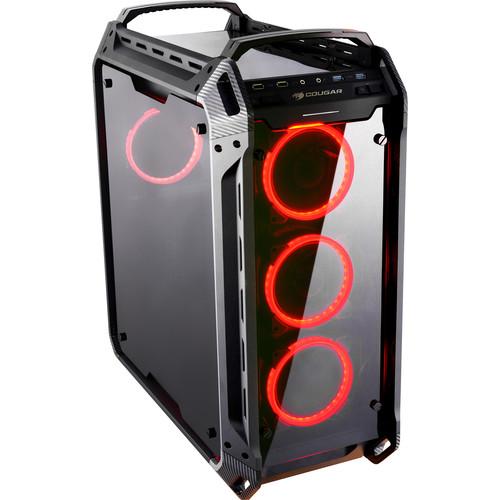

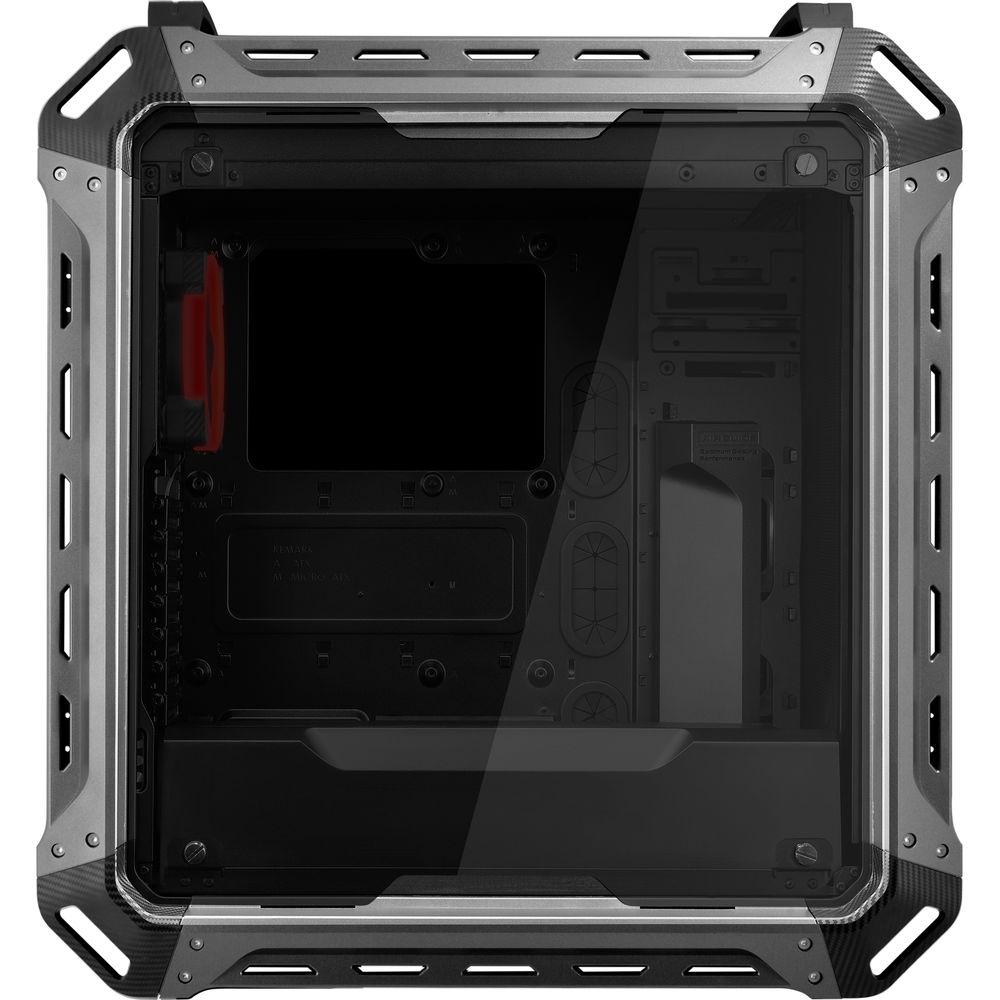

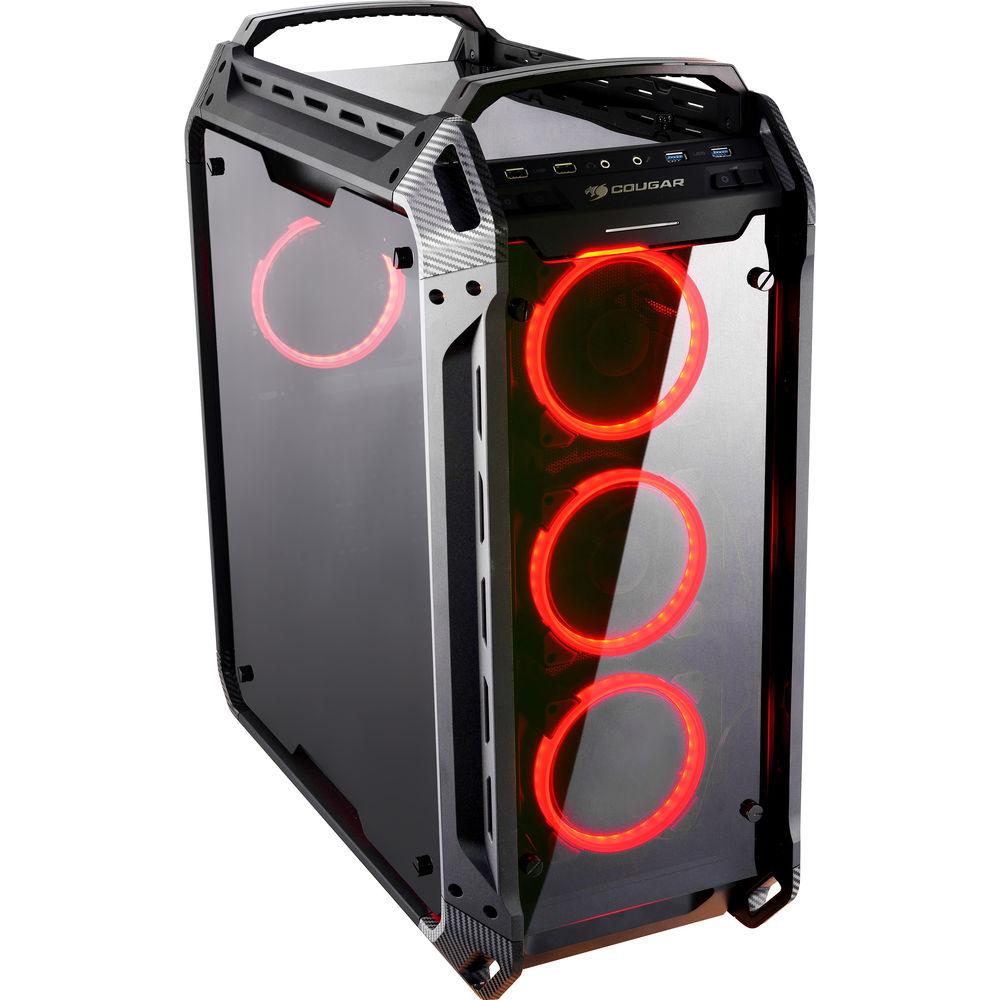

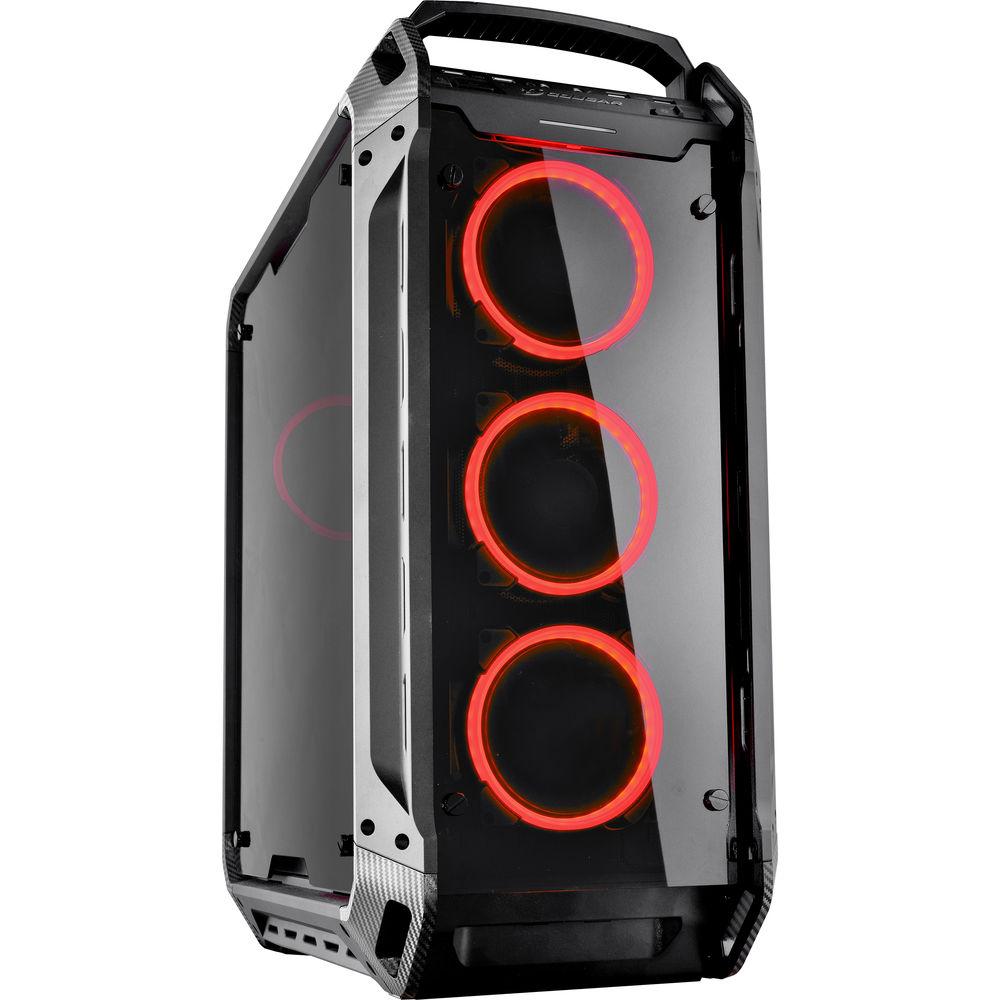

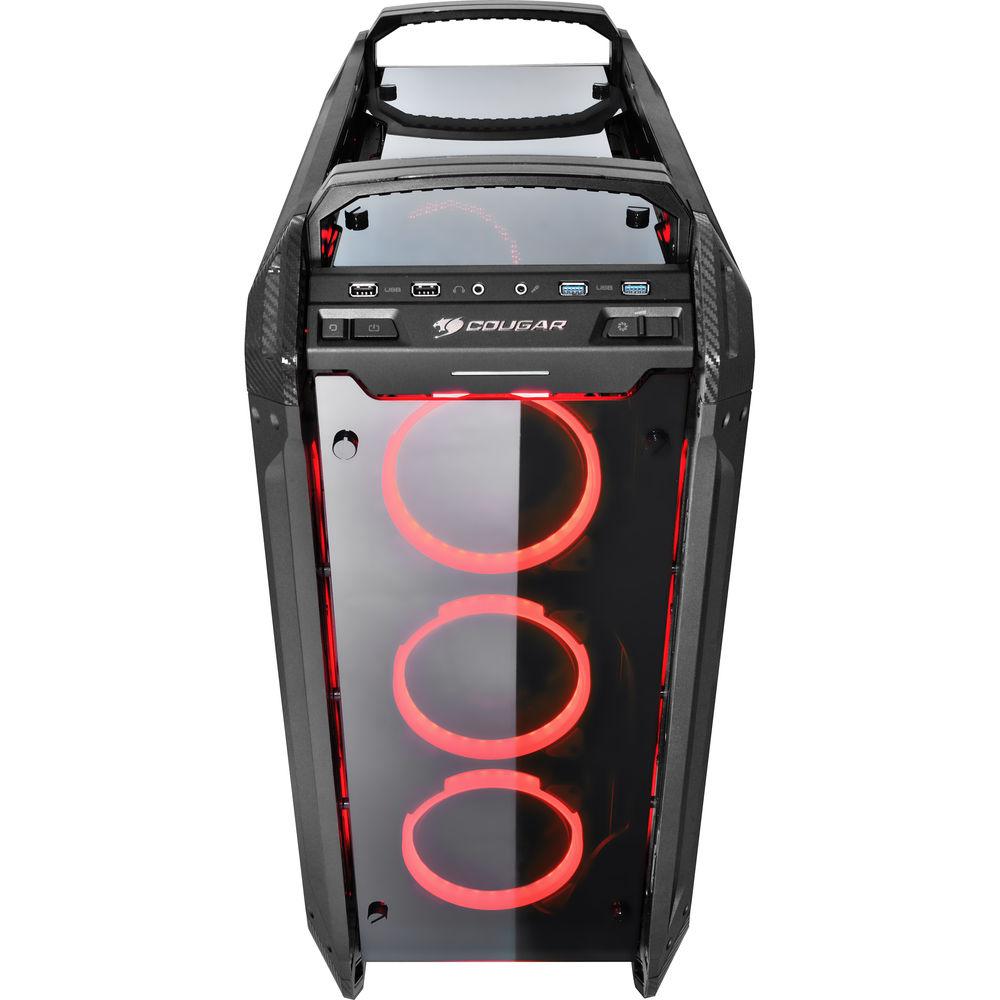

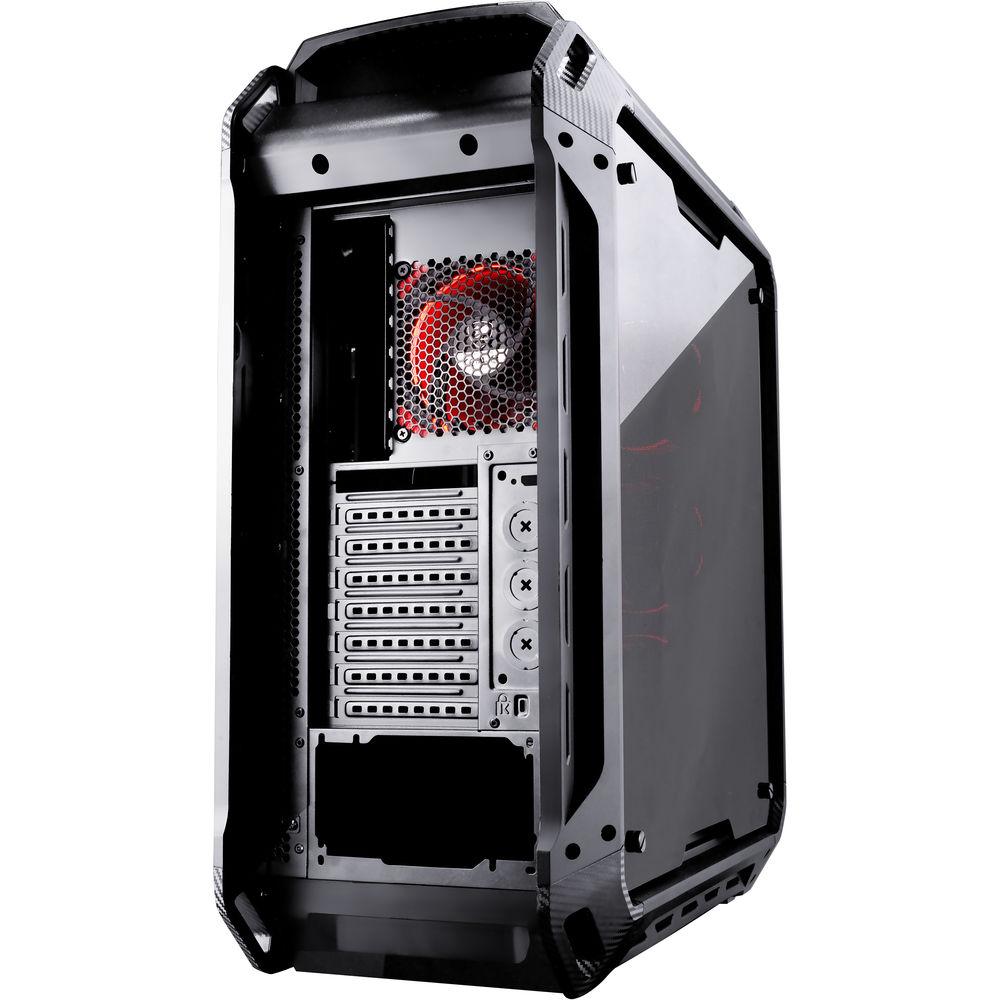

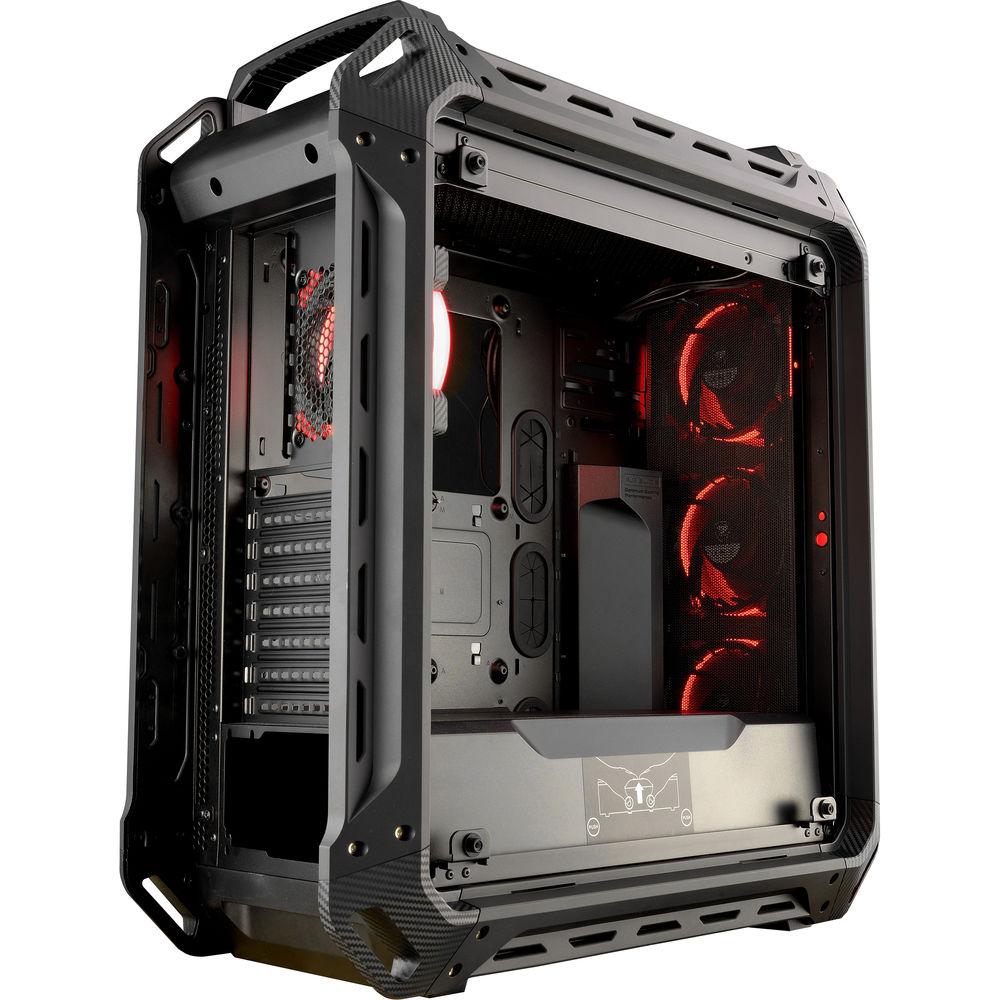

Product description The Panzer Evo Full-Tower Case from Cougar is a large case designed for users who want something future-proof. There's plenty of room inside for hardware as well as cooling components. Aesthetics-wise, it features four tempered glass panels and comes with four LED-equipped fans. It can support up to an E-ATX motherboard, four dual-slot graphics cards, six 2.5" drives, and eight 120mm fans. Moreover, it has a built-in fan controller and headphone holder located at the front. For your convenience, the Panzer Evo has built-in handles for an easier time moving your system around. - Design
- The Panzer Evo is built with four tempered glass panels, allowing you to see all your components within your build. Moreover, it comes with four 120mm LED fans for added cooling and aesthetics.
- Expansion
- There's plenty of room in the Panzer Evo for all your components. It supports up to an E-ATX motherboard, four double-slot graphics cards, and six 2.5" drives.
- Cooling
- With eight 120mm fan mounting spots and support for liquid cooling, the Panzer Evo is capable of efficiently keeping your system at optimal temperature levels. Some spots also support 140mm fans for better cooling.
- Airflow Guide
- Within the case at the front is an airflow guide, which redirects some of the front fans' airflow to the back of the motherboard tray to cool your storage drives.
- Fan Speed Control Switch
- Located at the front of the case is a fan speed control switch that you can use to quickly adjust your system's cooling to noise ratio whenever you want.
- Built-In Headphone Hook & Handles
- A built-in headphone hook provides you with convenient access and its handles makes moving your system around much easier.
UPC: 871520008865 In the Box COUGAR Panzer Evo Full-Tower Case Limited 1-Year Warranty User Manual PDF 16.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the COUGAR Panzer Evo Full-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOUGAR PANZER EVO Specs | | | Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-ATX, SSI-CEB | | External Drive Bays | None | | Internal Drive Bays | 2 x 2.5/3.5"
4 x 2.5" | | Expansion Slots | 8 x Full Height | | Maximum GPU Length | 15.35" / 390 mm | | CPU Cooler Height | 6.69" / 170 mm | | Supported PSU Size | ATX | | | | Fan Mounting (Front) | 3 x 120 mm
Or
3 x 140 mm
| | Fan Mounting (Rear) | 1 x 120 mm
| | Fan Mounting (Side) | None | | Fan Mounting (Top) | 3 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Bottom) | 1 x 120 mm
Or
1 x 140 mm
| | Fans Included (Front) | 3 x 120 mm LED | | Fans Included (Rear) | 1 x 120 mm LED | | Maximum Radiator Size (Front) | 1 x 360 mm | | Maximum Radiator Size (Rear) | 1 x 120 mm | | Maximum Radiator Size (Top) | 1 x 360 mm | | Maximum Radiator Size (Bottom) | 1 x 140 mm | | Fan Mounting (Internal) | None | | Fan Controller Included | Yes | | | | Connections | 2 x USB Type-A (USB 3.0)
2 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Tempered Glass, Steel | | Built-In Lighting | No | | Dimensions (W x H x D) | 10.5 x 24.1 x 21.9" / 266.0 x 612.0 x 556.0 mm | | | | Package Weight | 36.65 lb | | Box Dimensions (LxWxH) | 27.3 x 26.5 x 15.8" |
