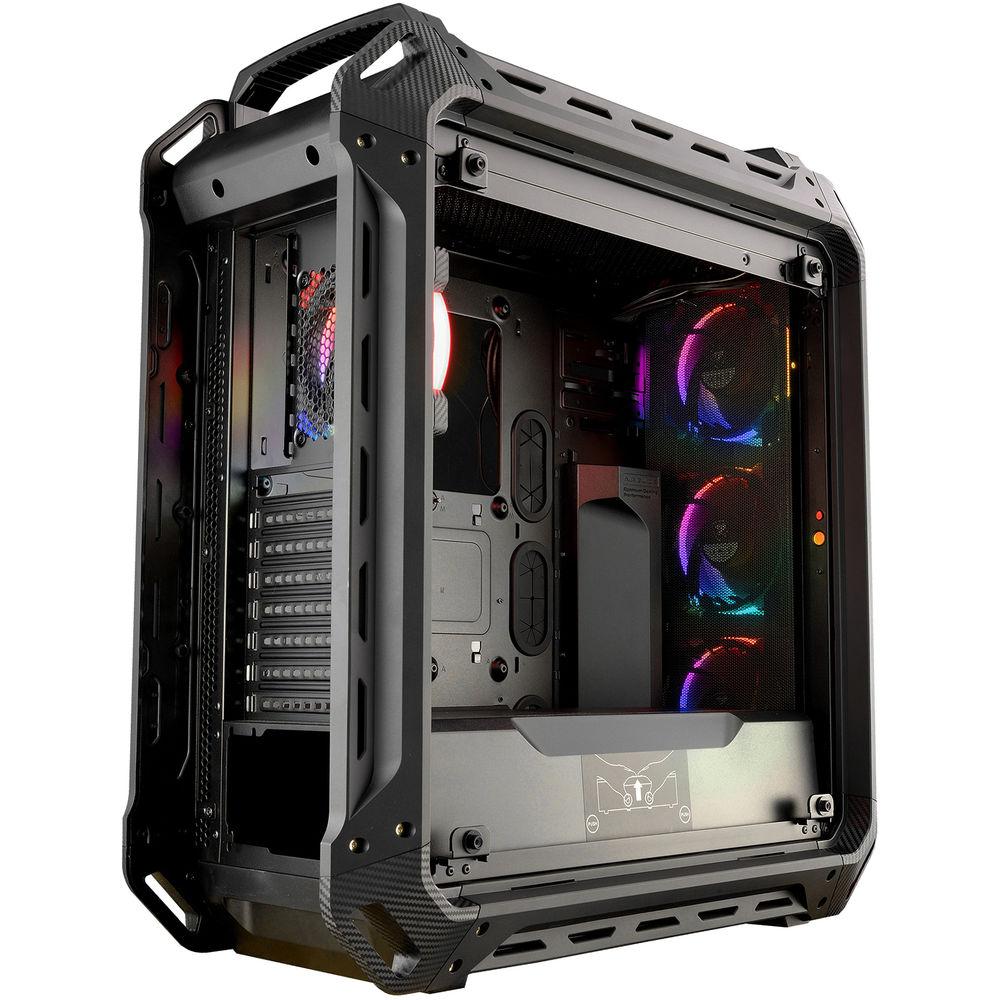

User Manual for COUGAR Panzer Evo RGB Full-Tower Case Click to enlarge the picture
Contents of the user manual for the COUGAR Panzer Evo RGB Full-Tower Case
- Product category: Desktop Computer Cases COUGAR
- Brand: COUGAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COUGAR Desktop Computer Cases
 |
User manual for the COUGAR Panzer Evo RGB Full-Tower Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COUGAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COUGAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COUGAR product will considerably shorten its lifespan!
|

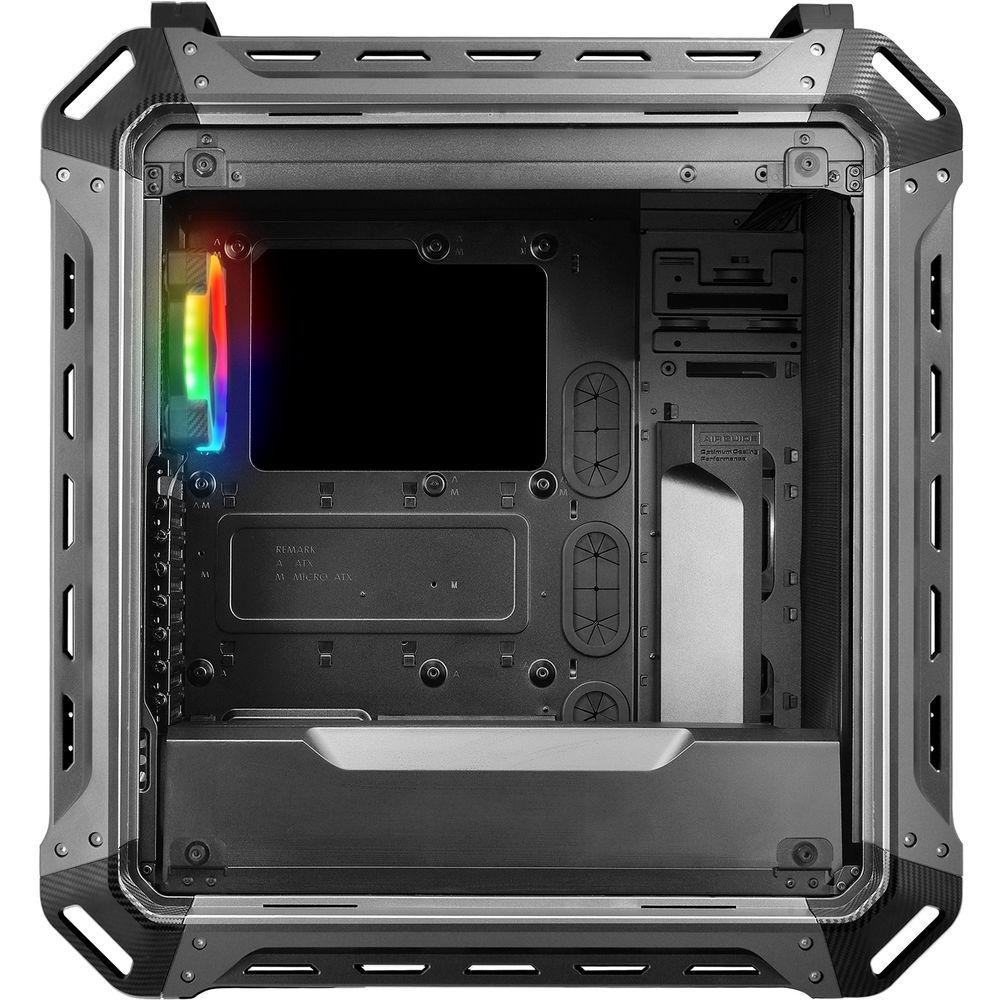

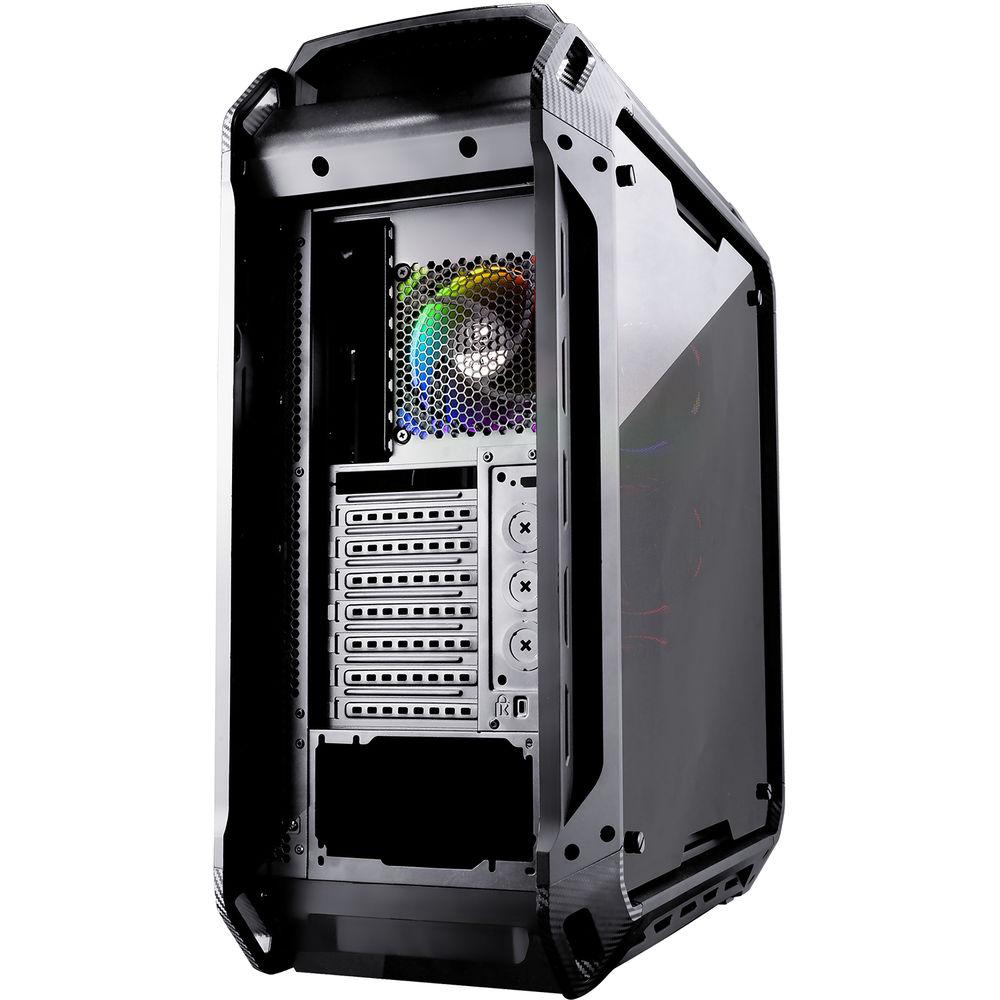

Product description The Panzer Evo RGB Full-Tower Case from Cougar is a large case designed for users who want something future-proof. There's plenty of room inside for hardware as well as cooling components. Aesthetics-wise, it features four tempered glass panels and comes with four RGB LED-equipped fans. It can support up to an E-ATX motherboard, four dual-slot graphics cards, six 2.5" drives, and eight 120mm fans. Moreover, it has a built-in fan controller and headphone holder located at the front. Included with the Evo RGB is a Cougar Core Box and a remote control that lets you customize your connected RGB fans and LEDs. For your convenience, the Panzer Evo has built-in handles for an easier time moving your system around. - Design

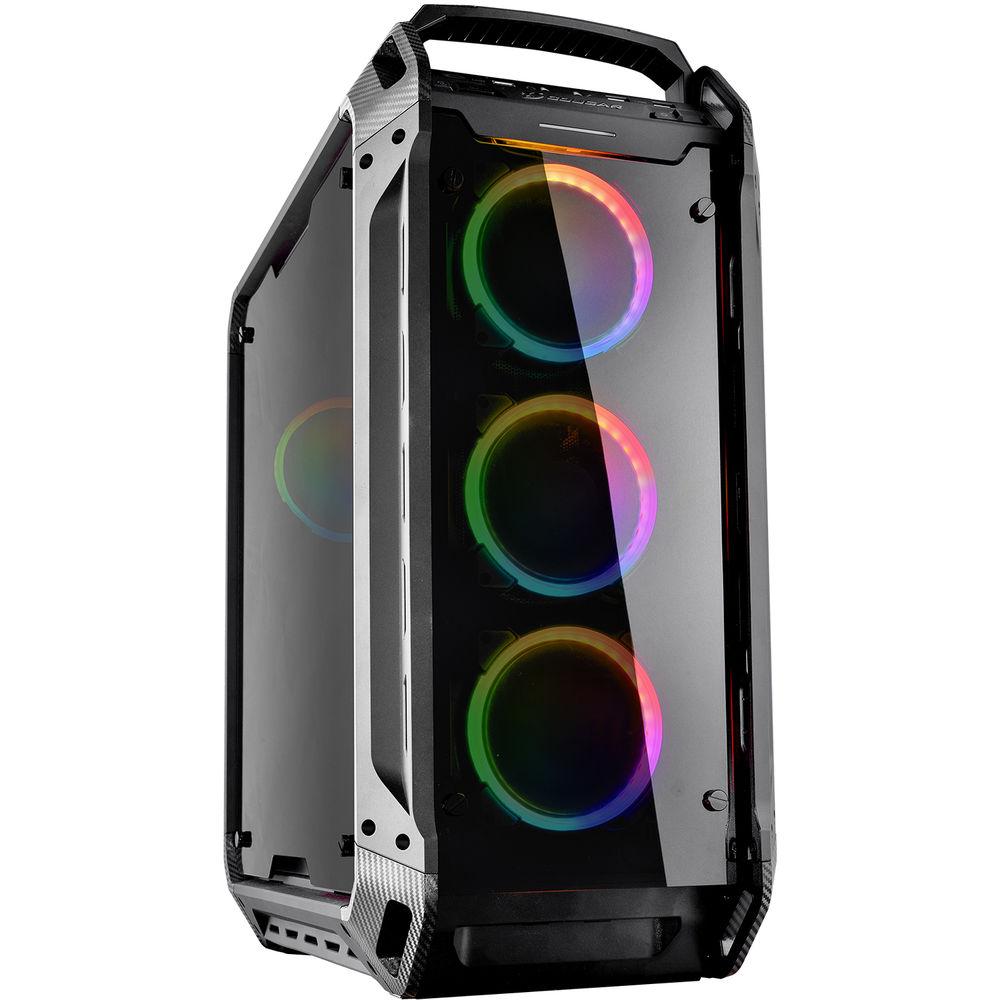

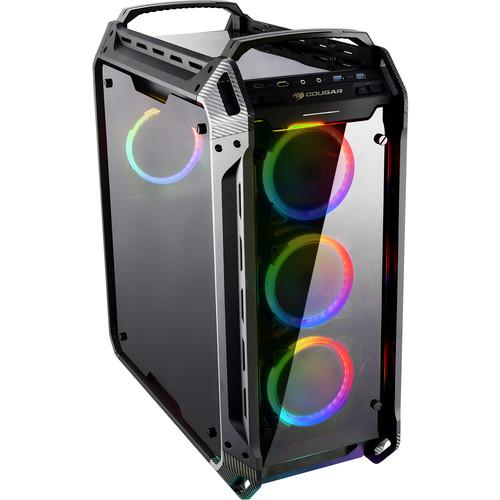

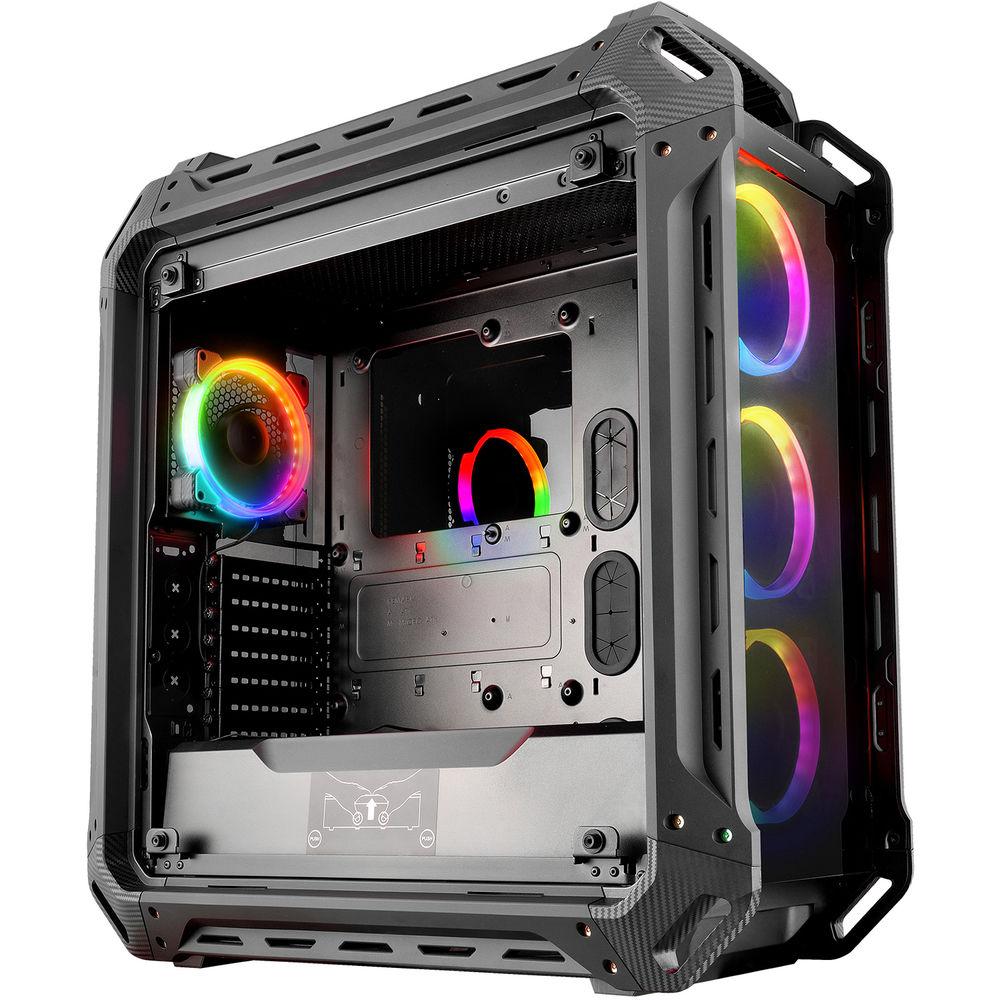

- The Panzer Evo is built with four tempered glass panels, allowing you to see all your components within your build. Moreover, it comes with four 120mm LED fans for added cooling and aesthetics.
- Expansion
- There's plenty of room in the Panzer Evo for all your components. It supports up to an E-ATX motherboard, four double-slot graphics cards, and six 2.5" drives.
- Cooling

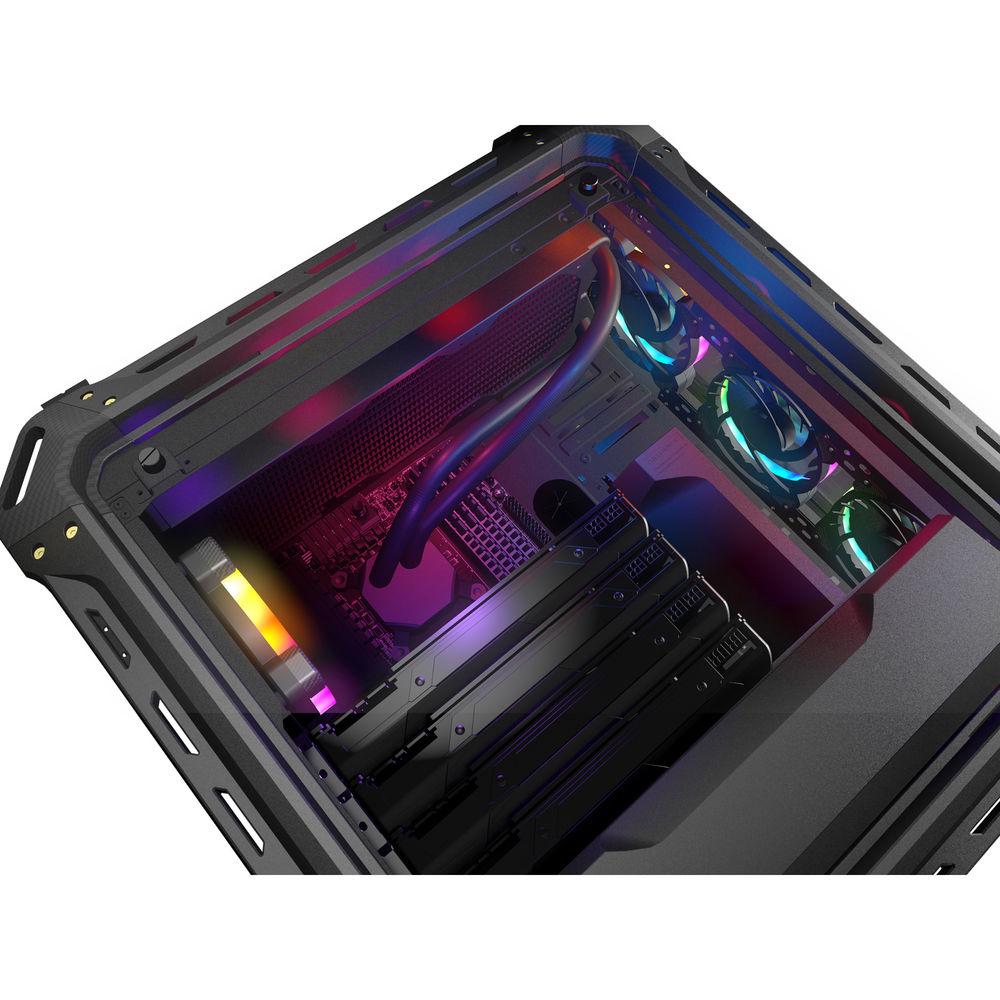

- With eight 120mm fan mounting spots and support for liquid cooling, the Panzer Evo is capable of efficiently keeping your system at optimal temperature levels. Some spots also support 140mm fans for better cooling.
- Airflow Guide
- Within the case at the front is an airflow guide, which redirects some of the front fans' airflow to the back of the motherboard tray to cool your storage drives.

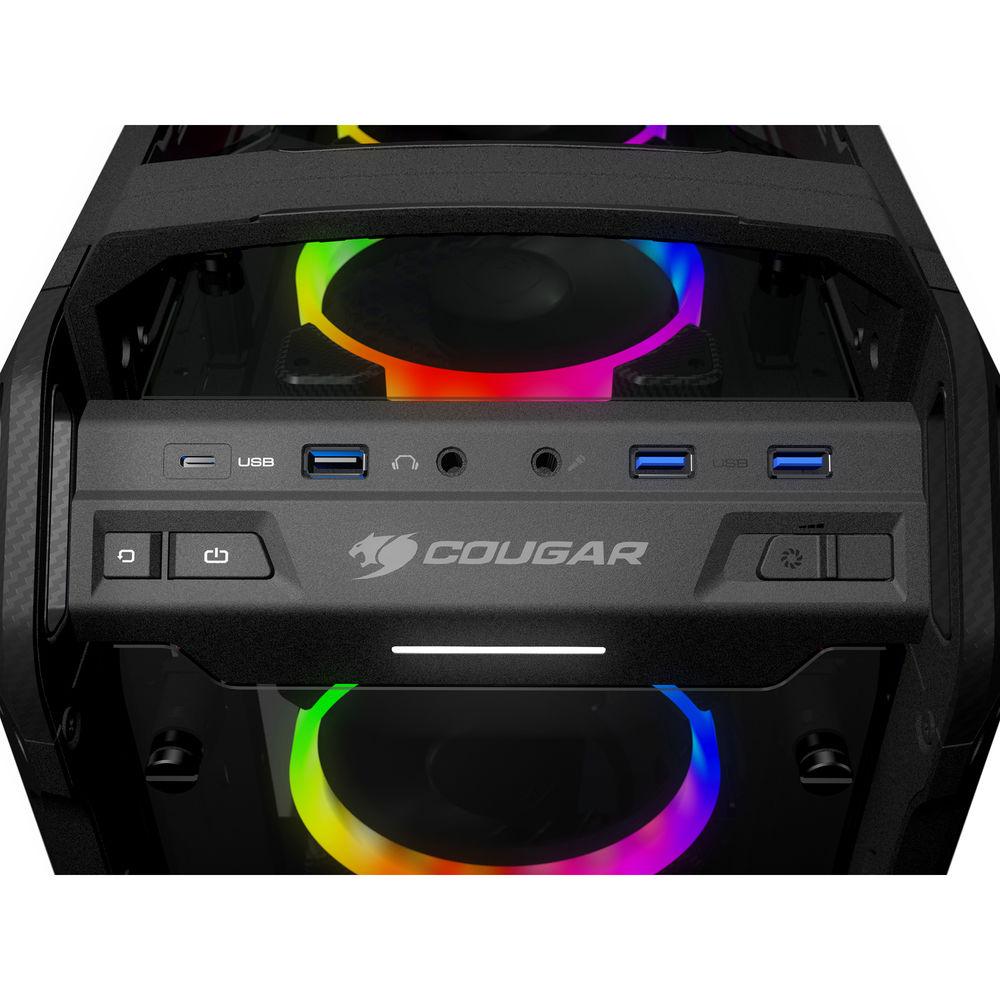

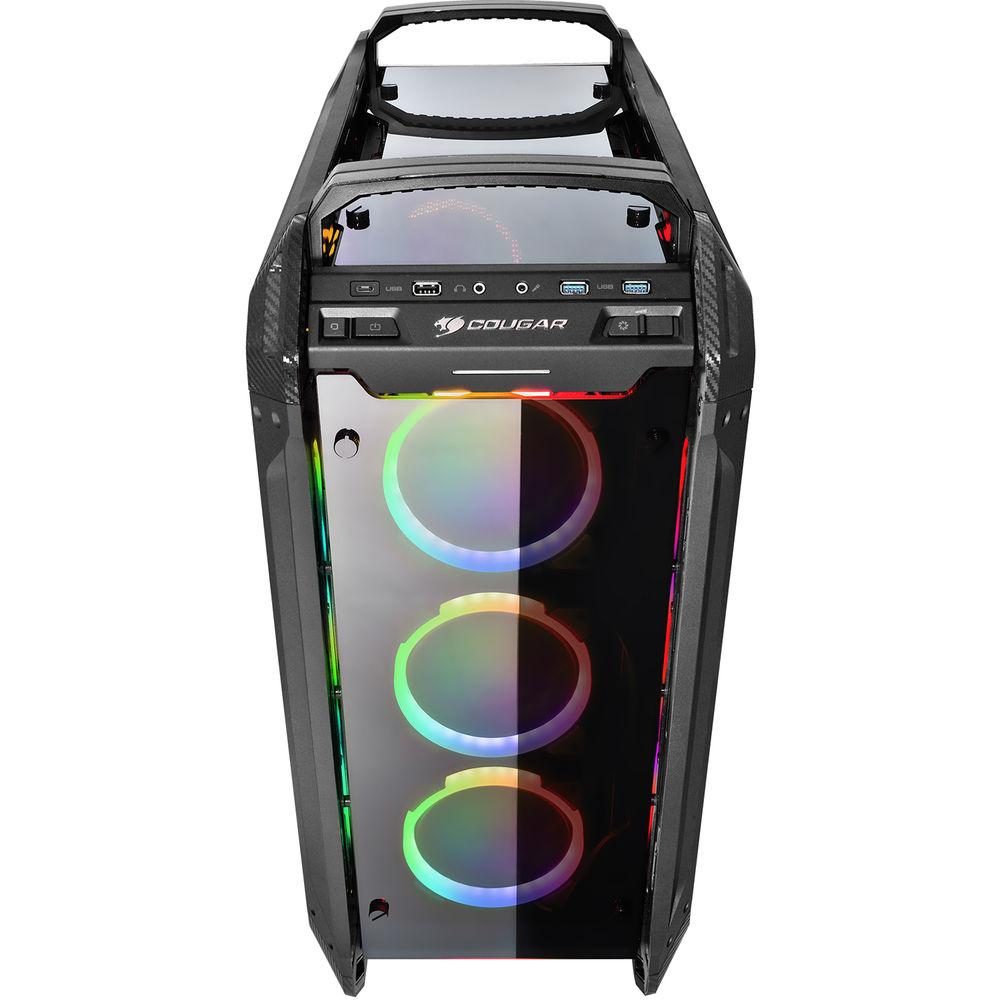

- Fan Speed Control Switch
- Located at the front of the case is a fan speed control switch that you can use to quickly adjust your system's cooling to noise ratio whenever you want.
- Built-In Headphone Hook & Handles
- A built-in headphone hook provides you with convenient access and its handles makes moving your system around much easier.
UPC: 192554000114 In the Box COUGAR Panzer Evo RGB Full-Tower Case Remote Control Limited 1-Year Warranty User Manual PDF 12mb Table of Contents
|
Upload User Manual
Have you got an user manual for the COUGAR Panzer Evo RGB Full-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOUGAR PANZER EVO RGB Specs | | | Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-ATX, SSI-CEB | | External Drive Bays | None | | Internal Drive Bays | 2 x 2.5/3.5"
4 x 2.5" | | Expansion Slots | 8 x Full Height | | Maximum GPU Length | 15.35" / 390 mm | | CPU Cooler Height | 6.69" / 170 mm | | Supported PSU Size | ATX | | | | Fan Mounting (Front) | 3 x 120 mm
Or
3 x 140 mm
| | Fan Mounting (Rear) | 1 x 120 mm
| | Fan Mounting (Side) | None | | Fan Mounting (Top) | 3 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Bottom) | 1 x 120 mm
Or
1 x 140 mm
| | Fans Included (Front) | 3 x 120 mm LED | | Fans Included (Rear) | 1 x 120 mm LED | | Maximum Radiator Size (Front) | 1 x 360 mm | | Maximum Radiator Size (Rear) | 1 x 120 mm | | Maximum Radiator Size (Top) | 1 x 360 mm | | Maximum Radiator Size (Bottom) | 1 x 140 mm | | Fan Mounting (Internal) | None | | Fan Controller Included | Yes | | | | Connections | 1 x USB Type-C (USB 3.1)
2 x USB Type-A (USB 3.0)
1 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Tempered Glass, Steel | | Built-In Lighting | No | | Dimensions (W x H x D) | 10.5 x 24.1 x 21.9" / 266.0 x 612.0 x 556.0 mm | | | | Package Weight | 37.0 lb | | Box Dimensions (LxWxH) | 27.0 x 26.75 x 15.5" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to COUGAR Panzer Evo RGB Full-Tower Case
| Subject: Power supply cable | | Date: 27.01.2022 20:17:25 | Name: Brian Borden | | Hello I was putting my the internal parts together when I ran in to a problem. I have the rgb hub for the fans but did not have a cable for the power supply to this box. Was it suppose to be include or are these sold separately? | | Post reply |
