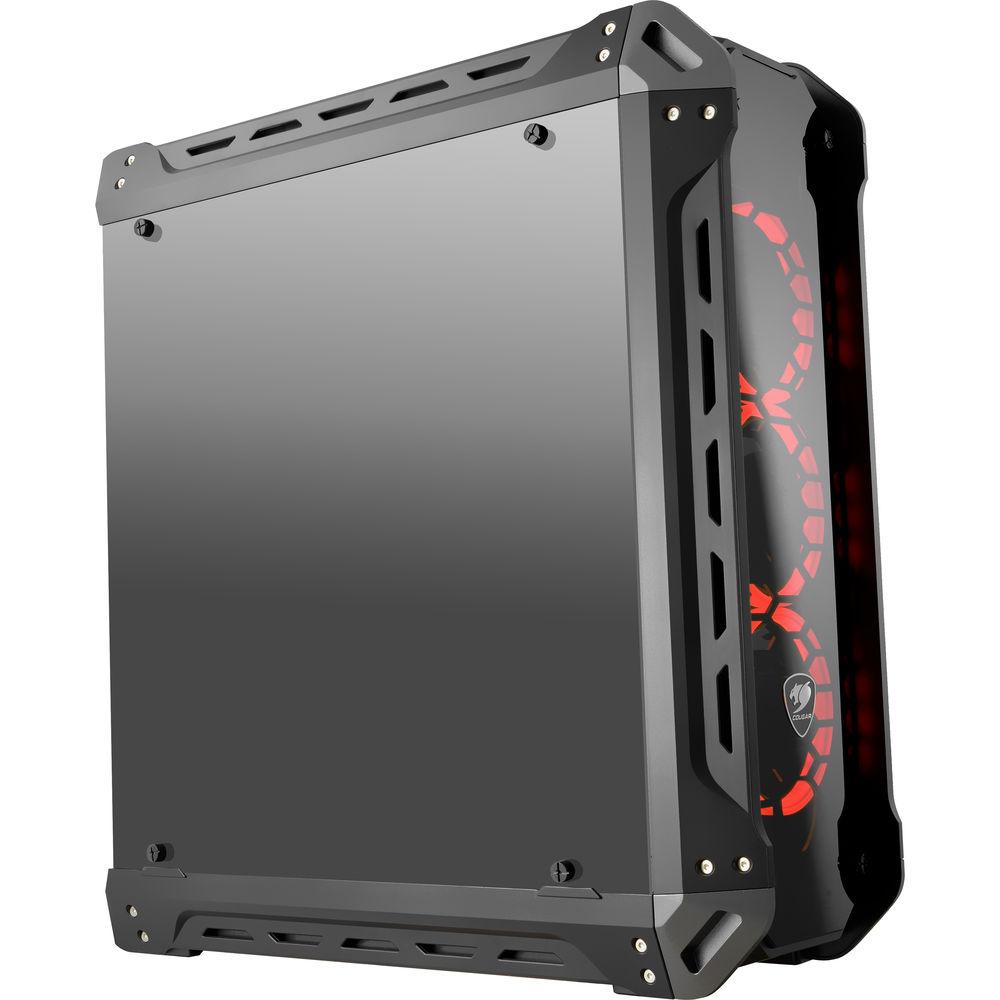

User Manual for COUGAR Panzer-G Mid-Tower Case Click to enlarge the picture
Contents of the user manual for the COUGAR Panzer-G Mid-Tower Case
- Product category: Desktop Computer Cases COUGAR
- Brand: COUGAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COUGAR Desktop Computer Cases
 |
User manual for the COUGAR Panzer-G Mid-Tower Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COUGAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COUGAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COUGAR product will considerably shorten its lifespan!
|

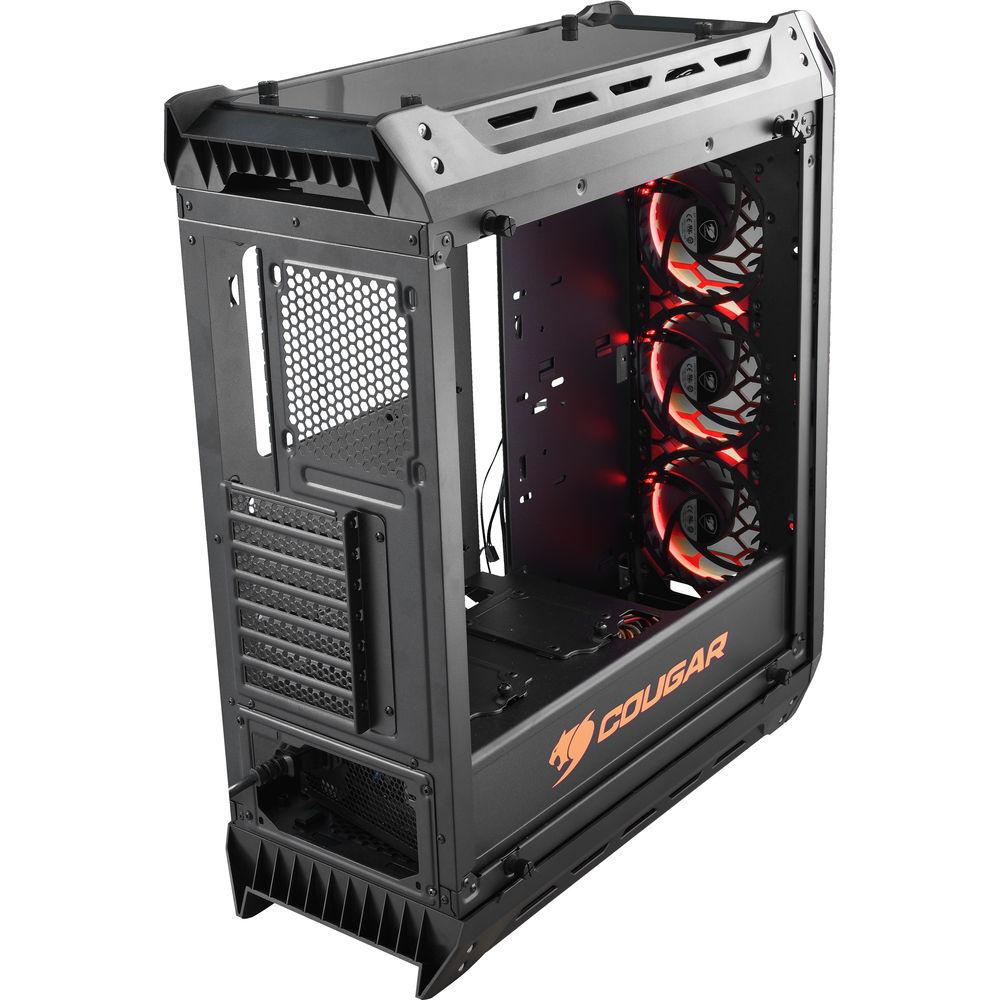

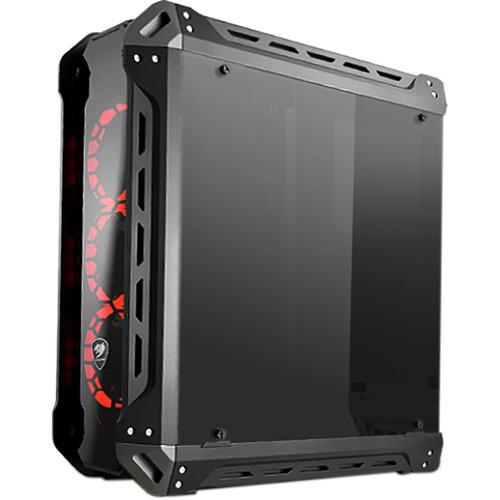

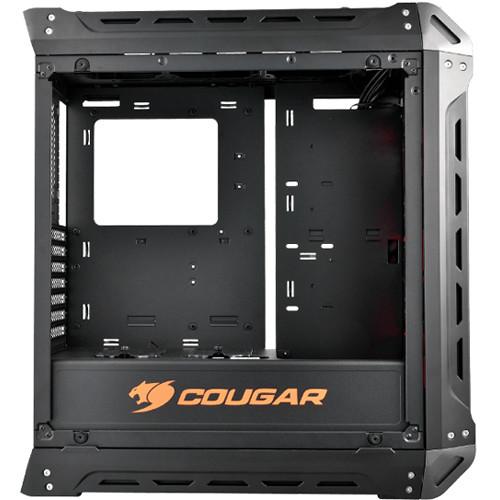

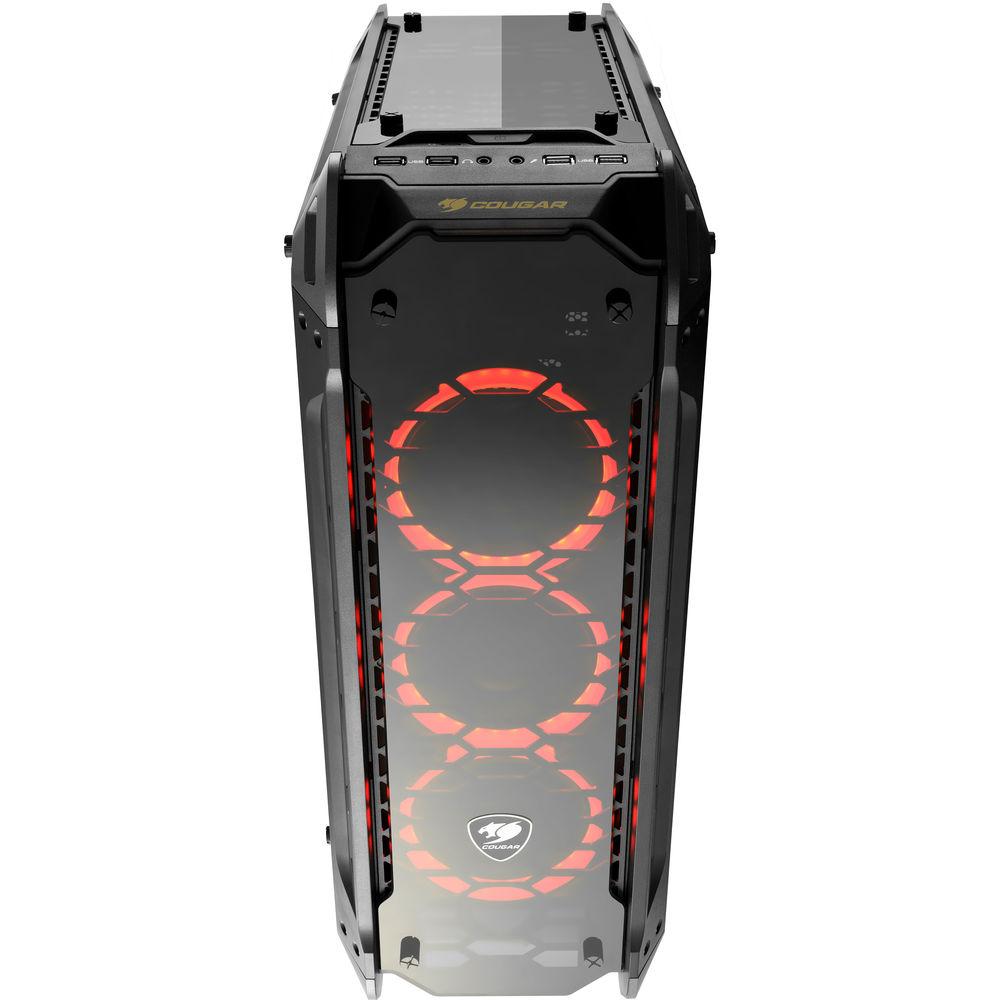

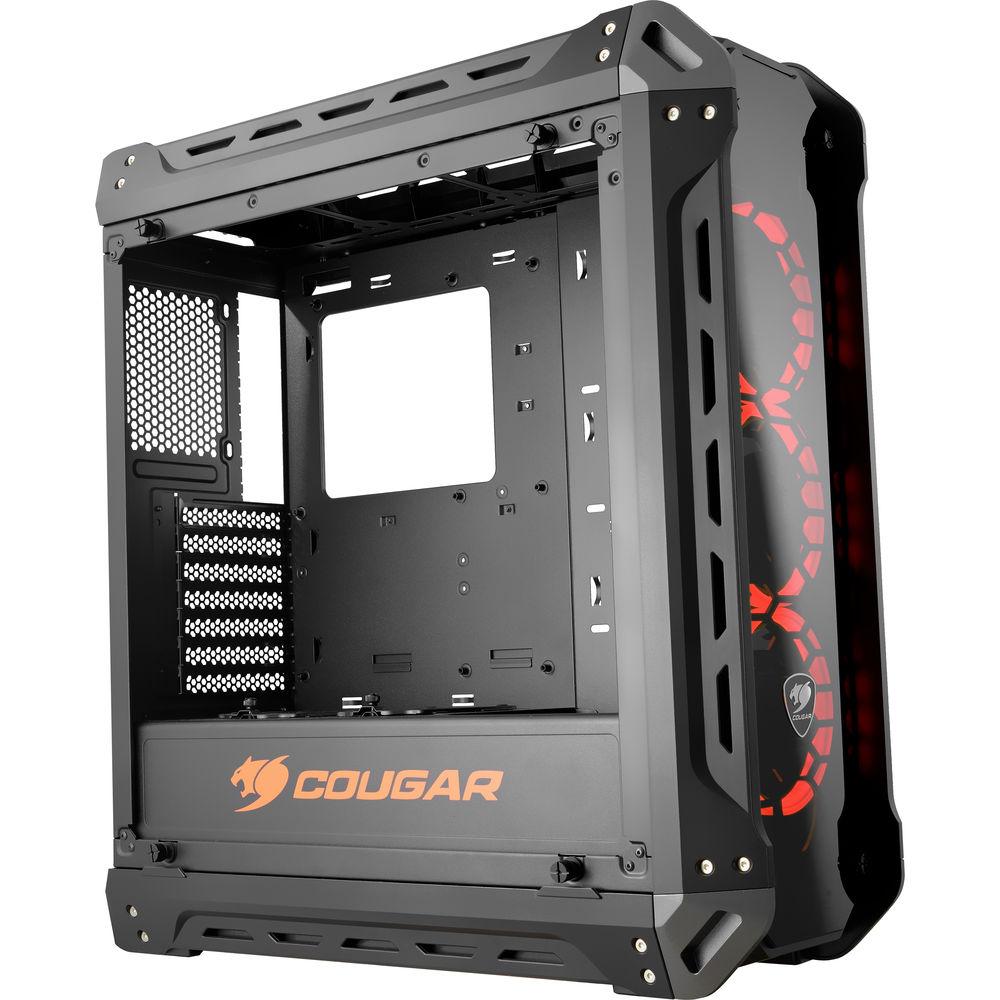

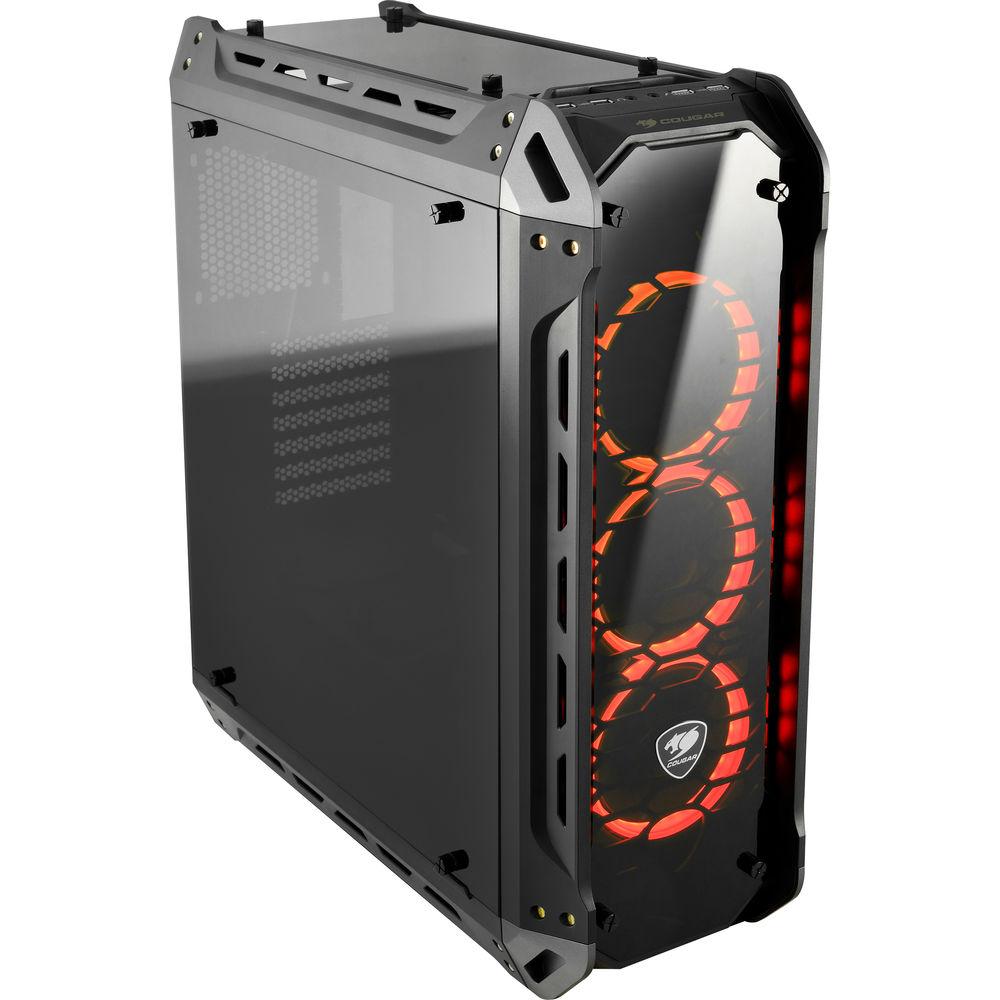

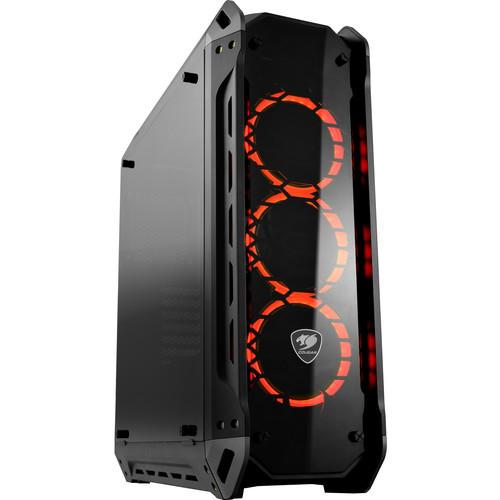

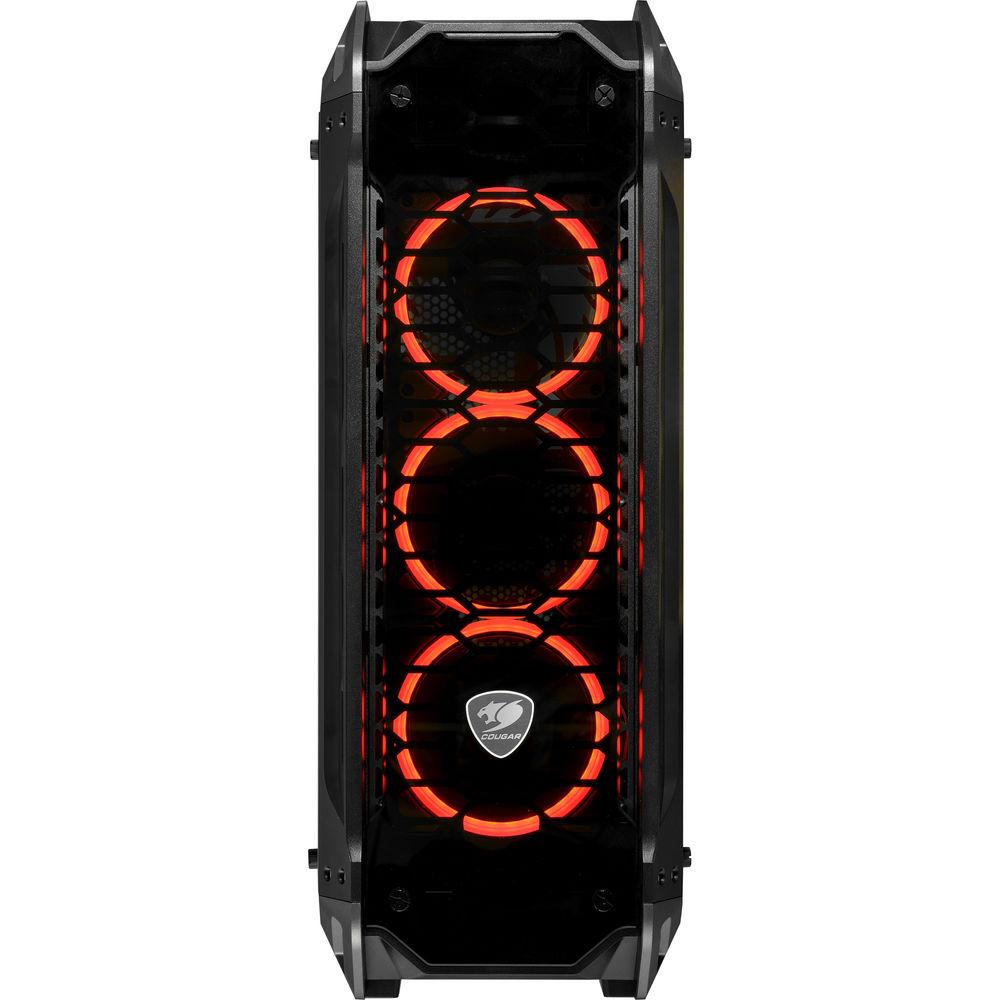

Product description The Panzer-G Mid-Tower Case from Cougar features four tempered glass panels for an unobstructed view of your system's interior, and comes with three 120mm LED-equipped fans for cooling and aesthetics. Inside, you'll be able to fit up to a CEB motherboard, three dual-slot graphics cards, eight 120mm fans, and six 2.5" drives. Moreover, four of the storage drive bays are placed behind the motherboard tray, so they won't interfere with the airflow provided by the front intake fans. If you need additional cooling for your system, you can install a liquid cooling setup with up to two 360mm radiators located at the front and top for lower temperatures. - Design
- The Panzer-G is built with four tempered glass panels, allowing you to see all your components within your build. Moreover, it comes with three 120mm LED fans for added cooling and aesthetics.
- Expansion
- There's plenty of room in the Panzer-G for all your components. It supports up to a CEB motherboard, three double-slot graphics cards, and six 2.5" drives.
- Cooling
- With eight 120mm fan mounting spots and support for liquid cooling, the Panzer-G is capable of efficiently keeping your system at optimal temperature levels. Some spots also support 140mm fans for better cooling.
- Cougar Vortex LED Fans
- Cougar's Vortex LED fans feature a circular lighting pattern and are designed to focus cooling on key components. Furthermore, they have anti-vibration pads to prevent unwanted noise.
UPC: 871520008872 In the Box COUGAR Panzer-G Mid-Tower Case Limited 1-Year Warranty User Manual PDF 12mb Table of Contents
|
Upload User Manual
Have you got an user manual for the COUGAR Panzer-G Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOUGAR PANZER G Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ATX, SSI-CEB | | External Drive Bays | None | | Internal Drive Bays | 2 x 2.5/3.5"
4 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 15.75" / 400 mm | | CPU Cooler Height | 6.30" / 160 mm | | Supported PSU Size | ATX | | | | Fan Mounting (Front) | 3 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Rear) | 1 x 120 mm
| | Fan Mounting (Side) | None | | Fan Mounting (Top) | 3 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Bottom) | 1 x 120 mm
| | Fans Included (Front) | 3 x 120 mm LED | | Maximum Radiator Size (Front) | 1 x 360 mm | | Maximum Radiator Size (Rear) | 1 x 120 mm | | Maximum Radiator Size (Top) | 1 x 360 mm | | Maximum Radiator Size (Bottom) | 1 x 120 mm | | Fan Mounting (Internal) | None | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0)
2 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Tempered Glass, Steel | | Built-In Lighting | No | | Dimensions (W x H x D) | 8.2 x 22.2 x 20.5" / 208.0 x 565.0 x 520.0 mm | | | | Package Weight | 27.4 lb | | Box Dimensions (LxWxH) | 26.4 x 25.0 x 12.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
