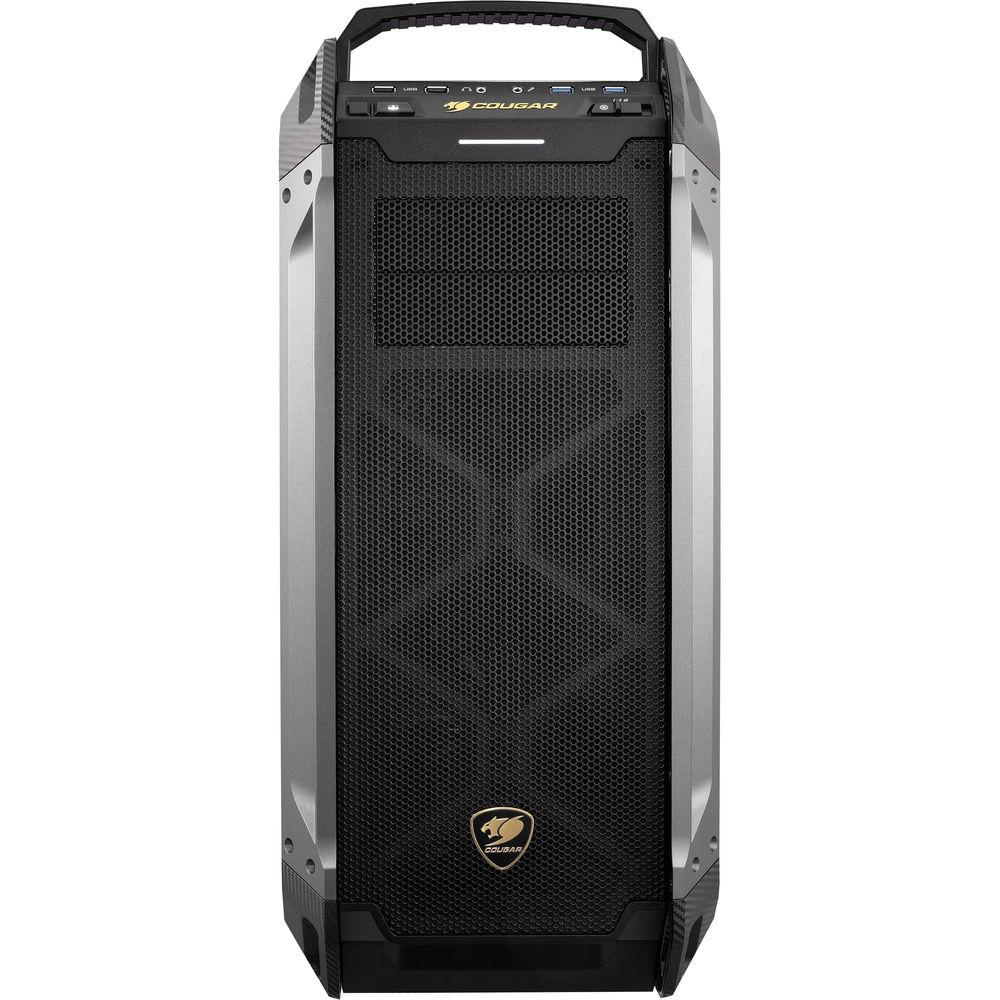

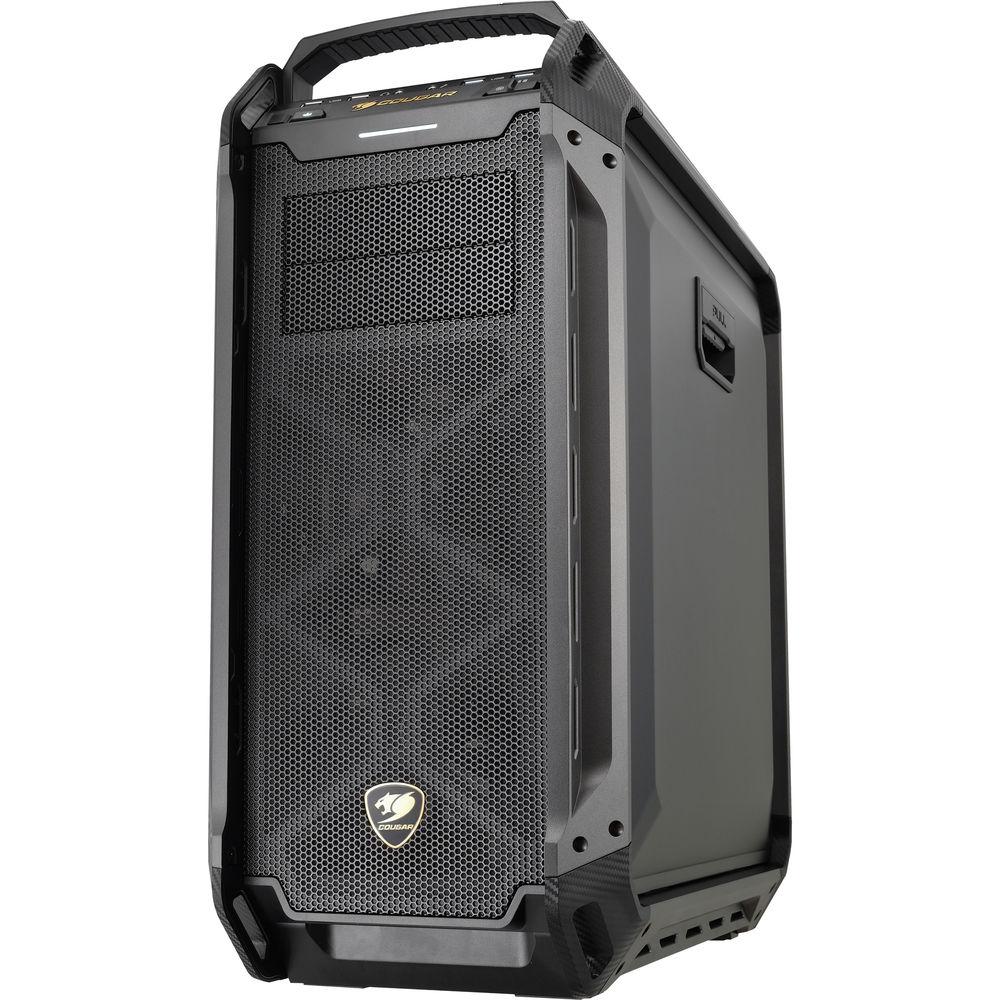

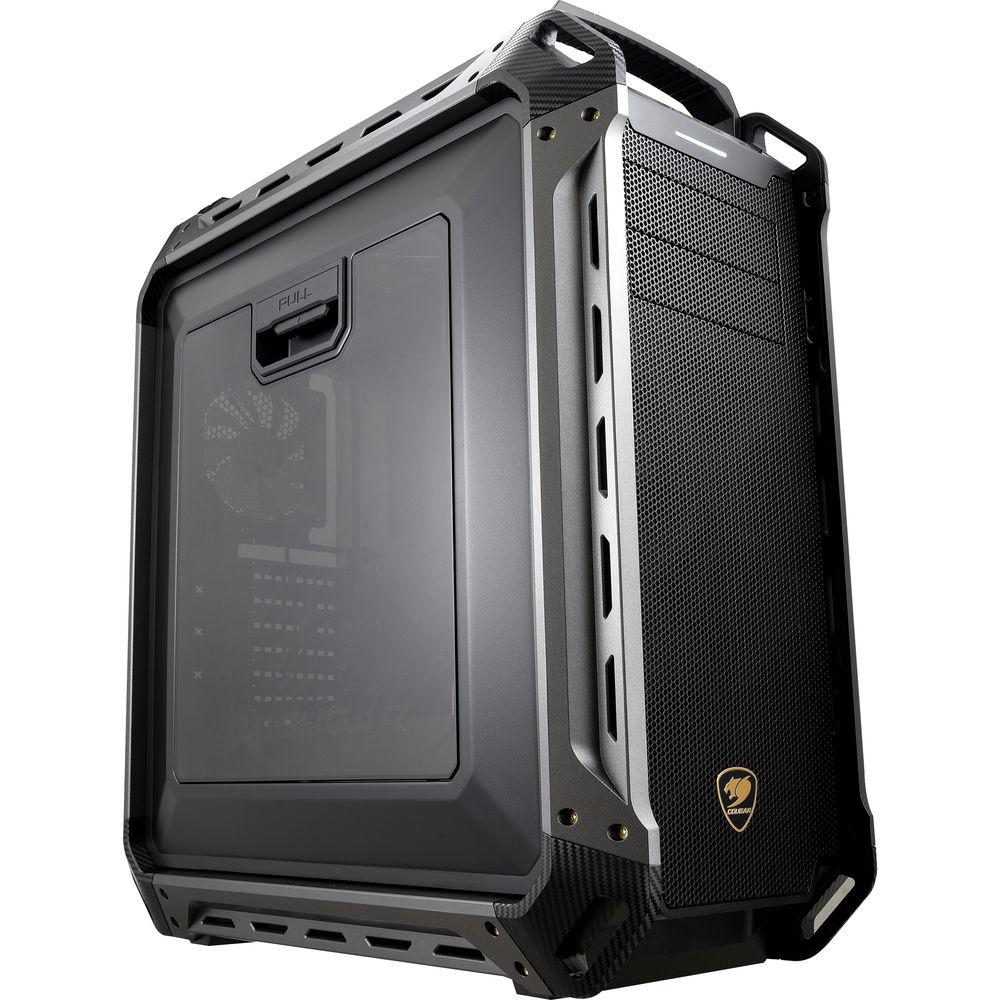

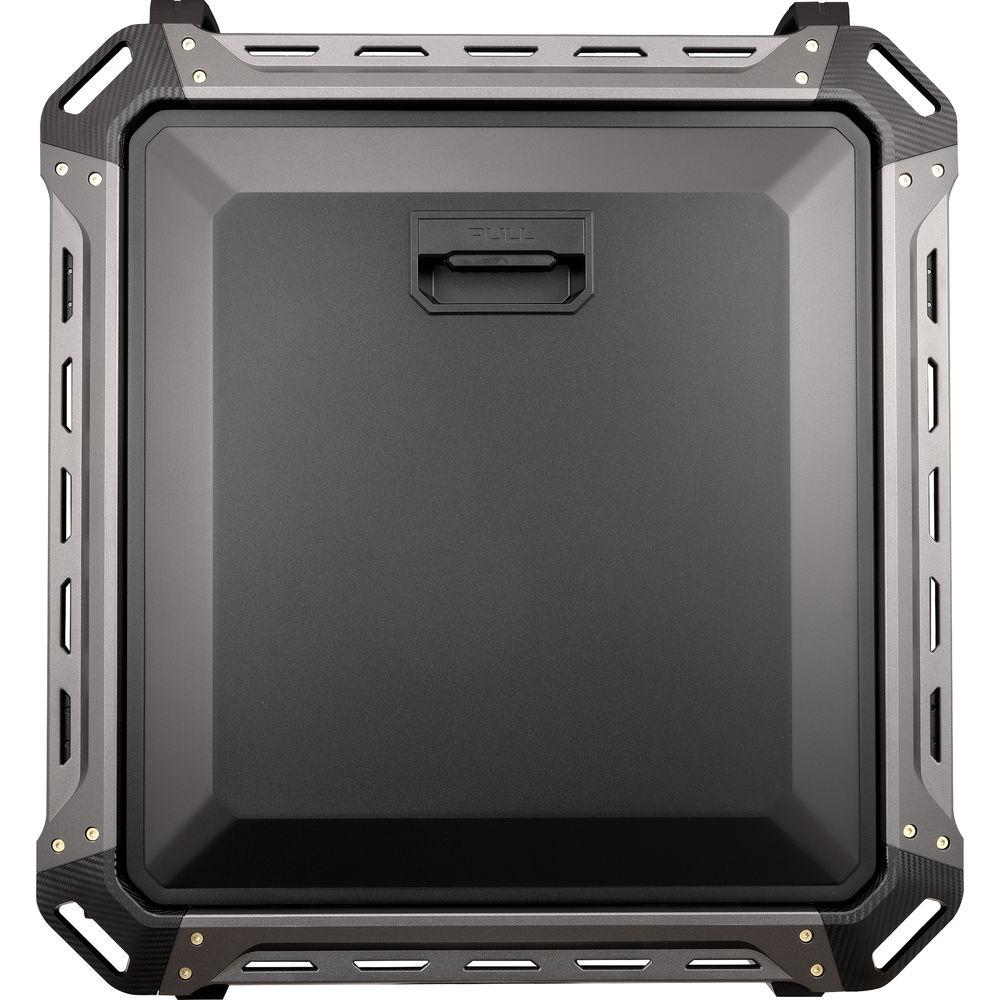

Product description The Panzer Max Full-Tower Case from Cougar is a large case designed for users looking to pack in plenty of hardware and cooling options. It supports up to an E-ATX motherboard, four dual-slot graphics cards, two 5.25" drives, and up to six 2.5" drives by re-purposing the two 3.5" drive bays. For cooling, the Panzer Max supports 120 and 140mm fans, up to a max of eight 120mm fans. Enthusiasts and users who are looking to try water cooling should note that this case can support up to two 360mm radiators placed at the front and top for enhanced cooling. Moreover, it's built with plenty of helpful features such as an airflow guide, a fan controller, a headphone hook, handles, tool-less covers, and space for a keyboard. - Cooling
- The Panzer Max supports up to eight 120mm fans, with some spots also supporting 140mm fans, as well as liquid cooling setups with up to two 360mm radiators for enhanced cooling.
- Airflow Guide
- Located at the front of the case is an airflow guide that redirects some of the air towards the back of the motherboard tray to cool your storage drives.
- Fan Controller
- With a fan controller located at the front of the case, you can quickly and easily adjust the noise-to-cooling balance of your system.
- Headphone Hook
- The built-in headphone hook provides you with a convenient place to hang your headset when it's not in use.
- Keyboard Tray

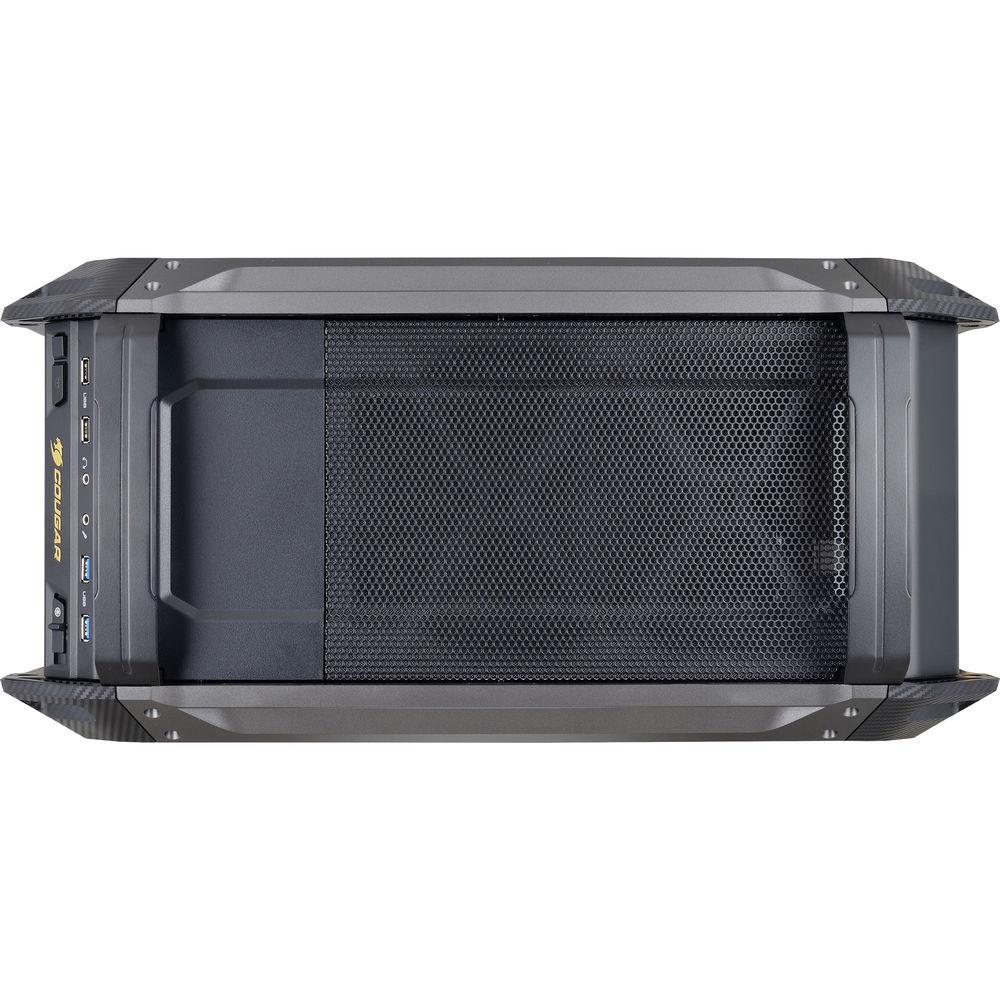

- The top of the Panzer Max is large enough so you can place a full-size keyboard on it, which makes moving your setup around a bit easier.
- Top Handles
- The Panzer Max has two handles at the top that support up to 77 lb / 35 kg, allowing you to transport your system around with ease.
- Tool-Less Covers

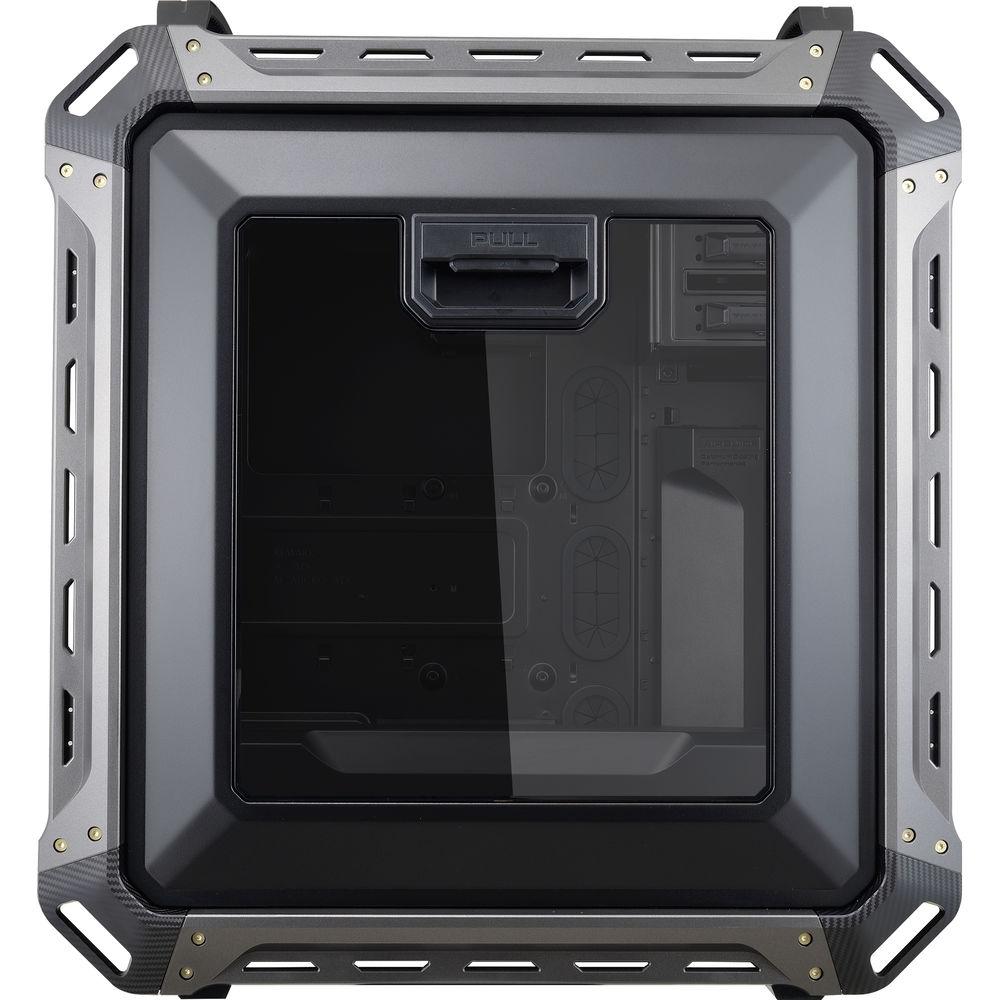

- The panels of the Panzer Max don't use thumbscrews and are easily removed, so you can quickly take them apart to inspect your system.
UPC: 871520008735 In the Box COUGAR Panzer Max Full-Tower Case Limited 1-Year Warranty User Manual PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the COUGAR Panzer Max Full-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOUGAR PANZER MAX Specs | | | Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-ATX, SSI-CEB | | External Drive Bays | 2 x 5.25" | | Internal Drive Bays | 2 x 2.5/3.5"
4 x 2.5" | | Expansion Slots | 8 x Full Height | | Maximum GPU Length | 15.35" / 390 mm | | CPU Cooler Height | 6.69" / 170 mm | | Supported PSU Size | ATX | | | | Fan Mounting (Front) | 3 x 120 mm
Or
3 x 140 mm
| | Fan Mounting (Rear) | 1 x 120 mm
| | Fan Mounting (Side) | None | | Fan Mounting (Top) | 3 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Bottom) | 1 x 120 mm
Or
1 x 140 mm
| | Fans Included (Front) | 2 x 120 mm | | Fans Included (Rear) | 1 x 120 mm | | Maximum Radiator Size (Front) | 1 x 360 mm | | Maximum Radiator Size (Rear) | 1 x 120 mm | | Maximum Radiator Size (Top) | 1 x 360 mm | | Maximum Radiator Size (Bottom) | 1 x 140 mm | | Fan Mounting (Internal) | None | | Fan Controller Included | Yes | | | | Connections | 2 x USB Type-A (USB 3.0)
2 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Steel, Acrylic | | Built-In Lighting | No | | Dimensions (W x H x D) | 10.5 x 24.1 x 21.9" / 266.0 x 612.0 x 556.0 mm | | | | Package Weight | 30.9 lb | | Box Dimensions (LxWxH) | 25.75 x 20.75 x 14.75" |
Rating40% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to COUGAR Panzer Max Full-Tower Case
| Subject: wireing for tower | | Date: 26.07.2022 19:05:24 | Name: luis | need help fast the wiring on this case are all black can't see the difference on the power switch ,, power led .
don't know ... - from + | | Post reply |
