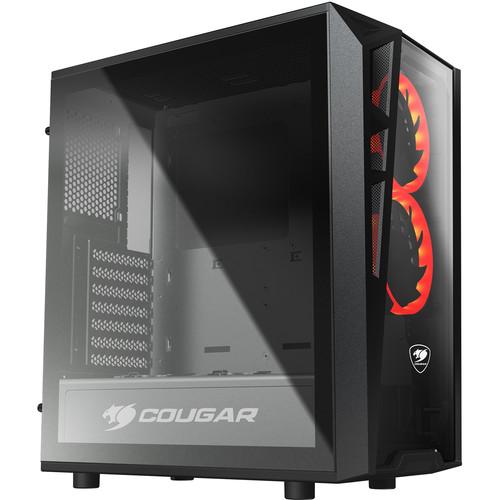

User Manual for COUGAR Turret Mid-Tower Case Click to enlarge the picture
Contents of the user manual for the COUGAR Turret Mid-Tower Case
- Product category: Desktop Computer Cases COUGAR
- Brand: COUGAR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COUGAR Desktop Computer Cases
 |
User manual for the COUGAR Turret Mid-Tower Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COUGAR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COUGAR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COUGAR product will considerably shorten its lifespan!
|

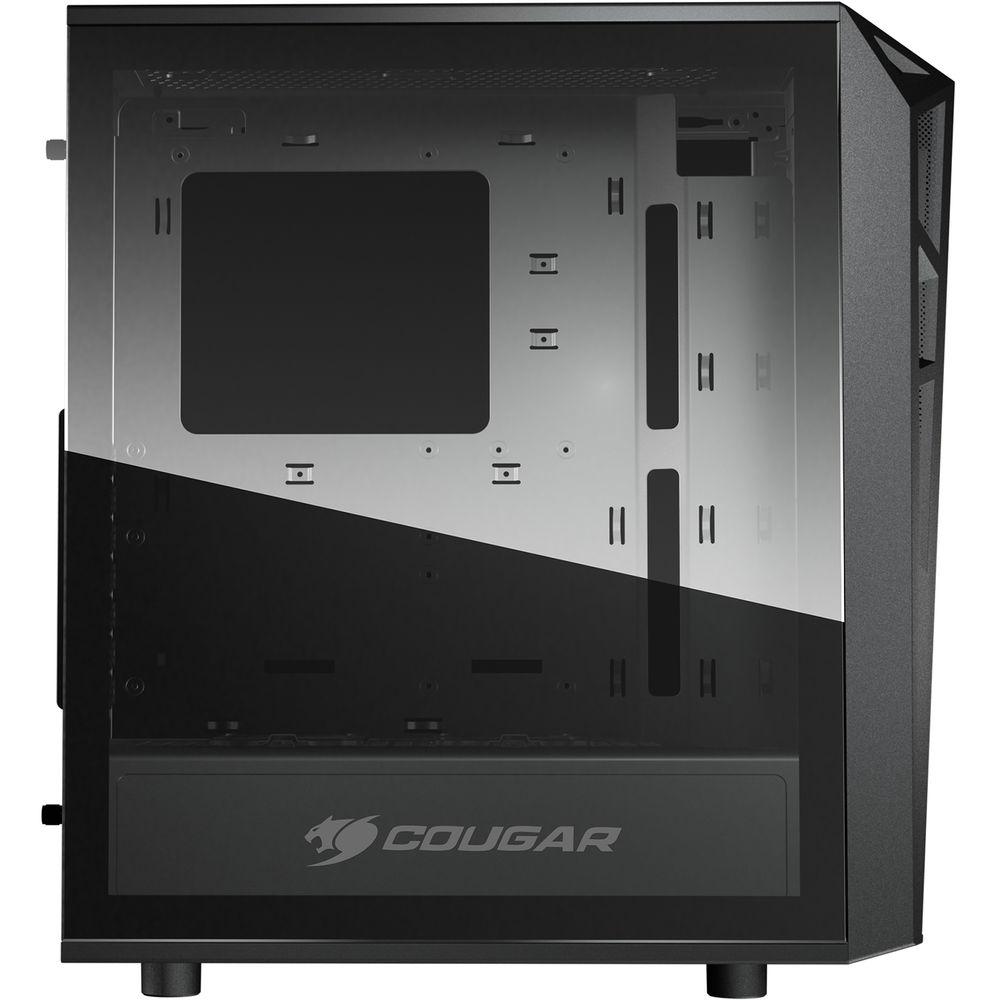

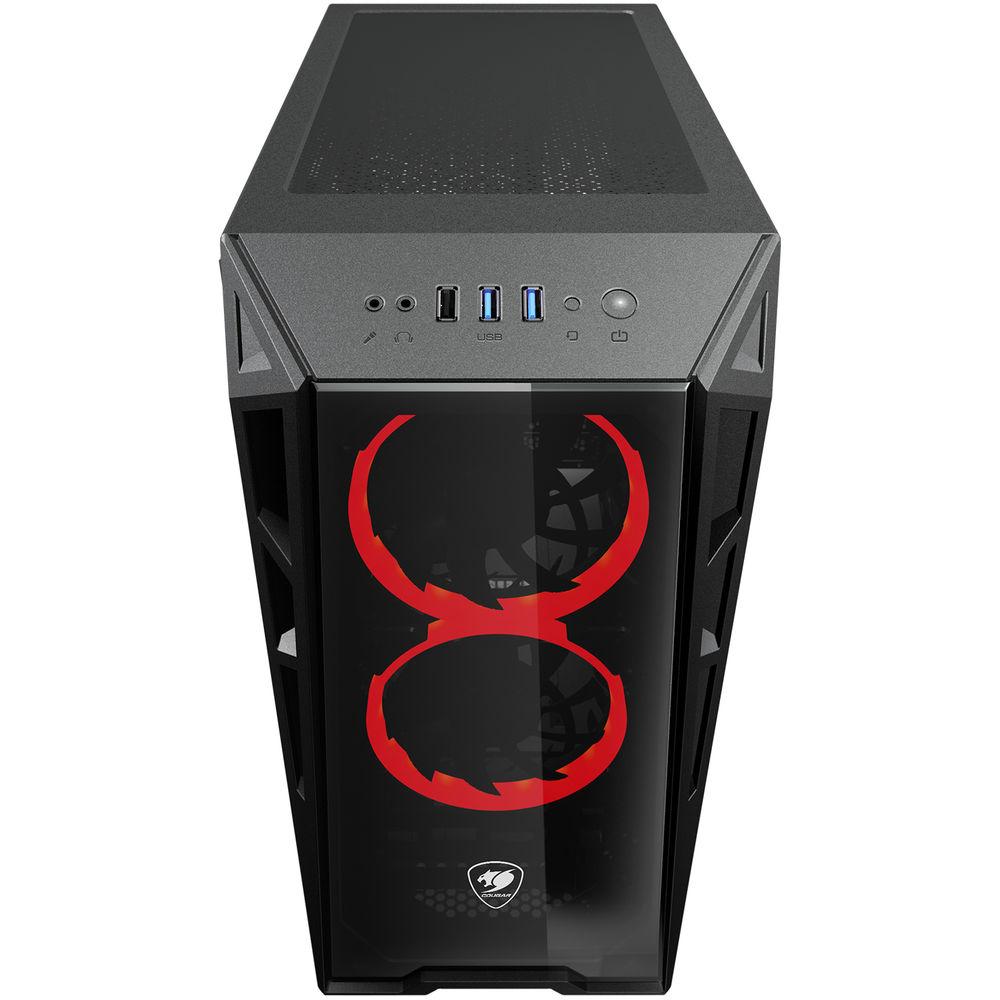

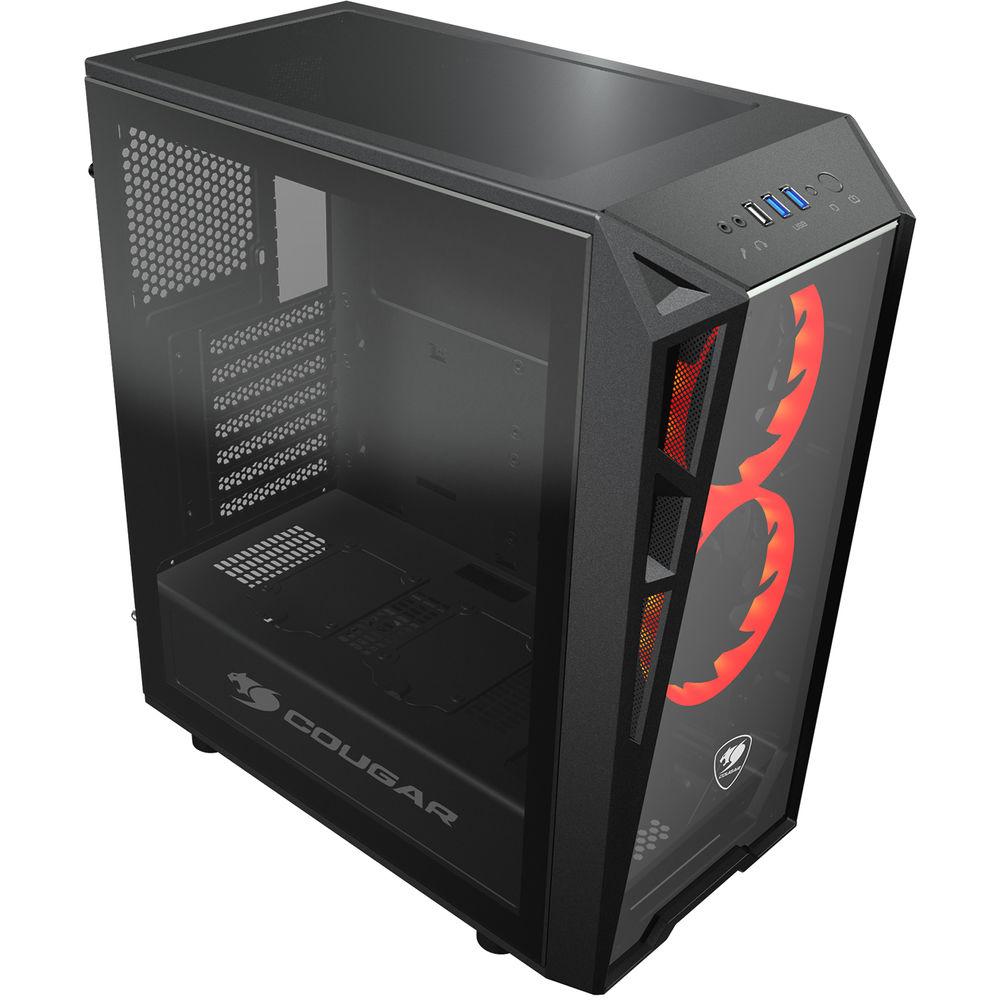

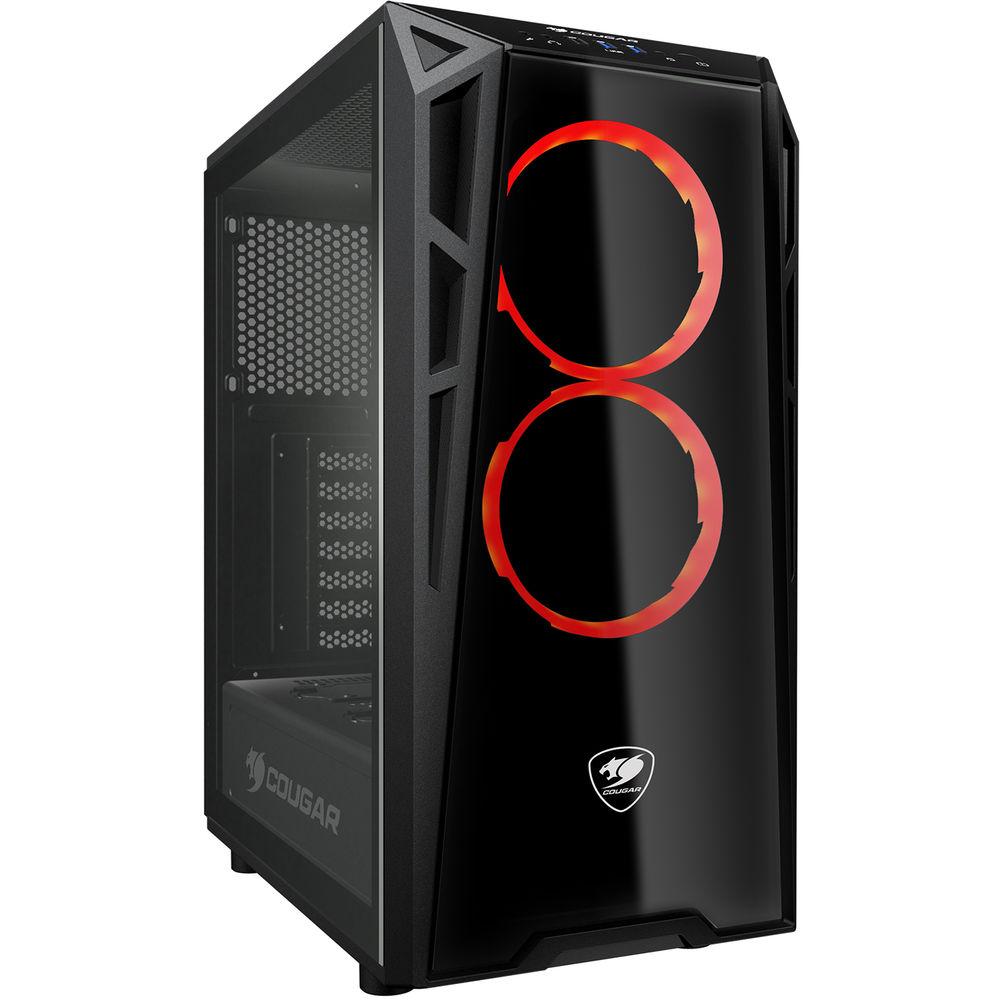

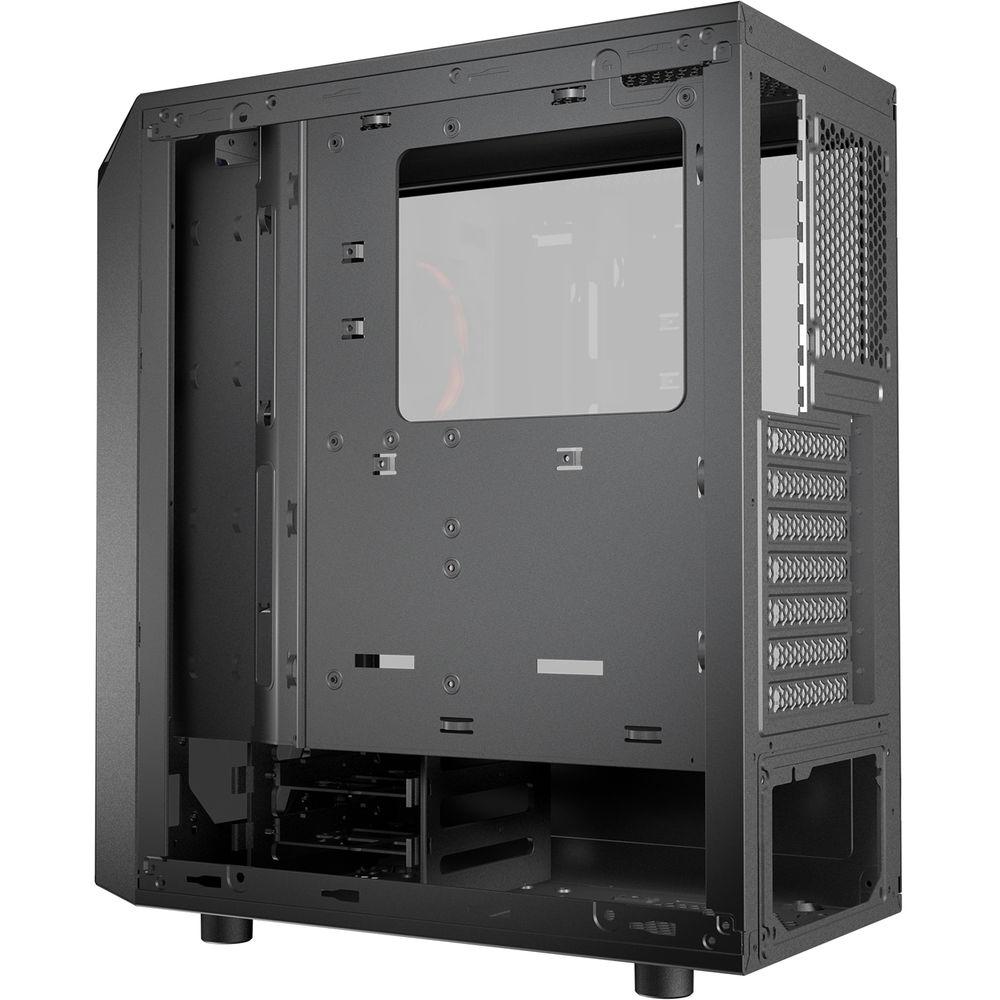

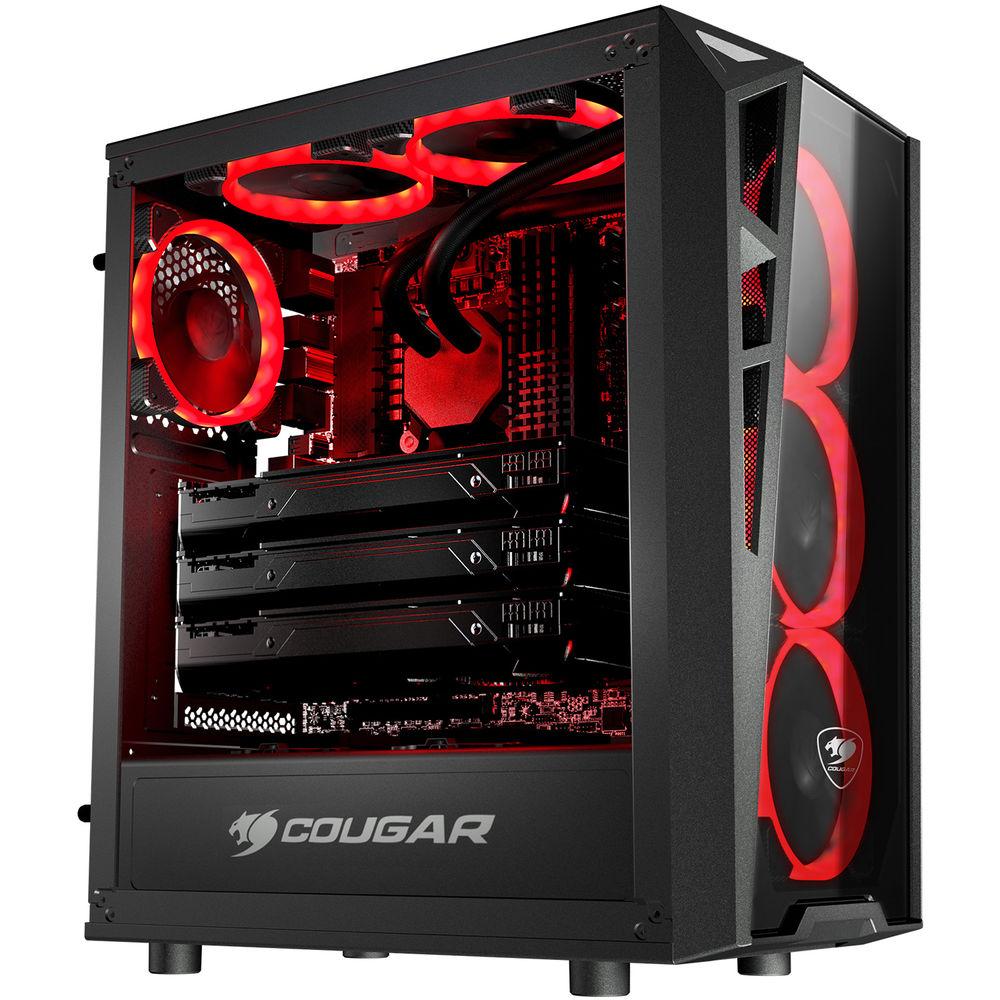

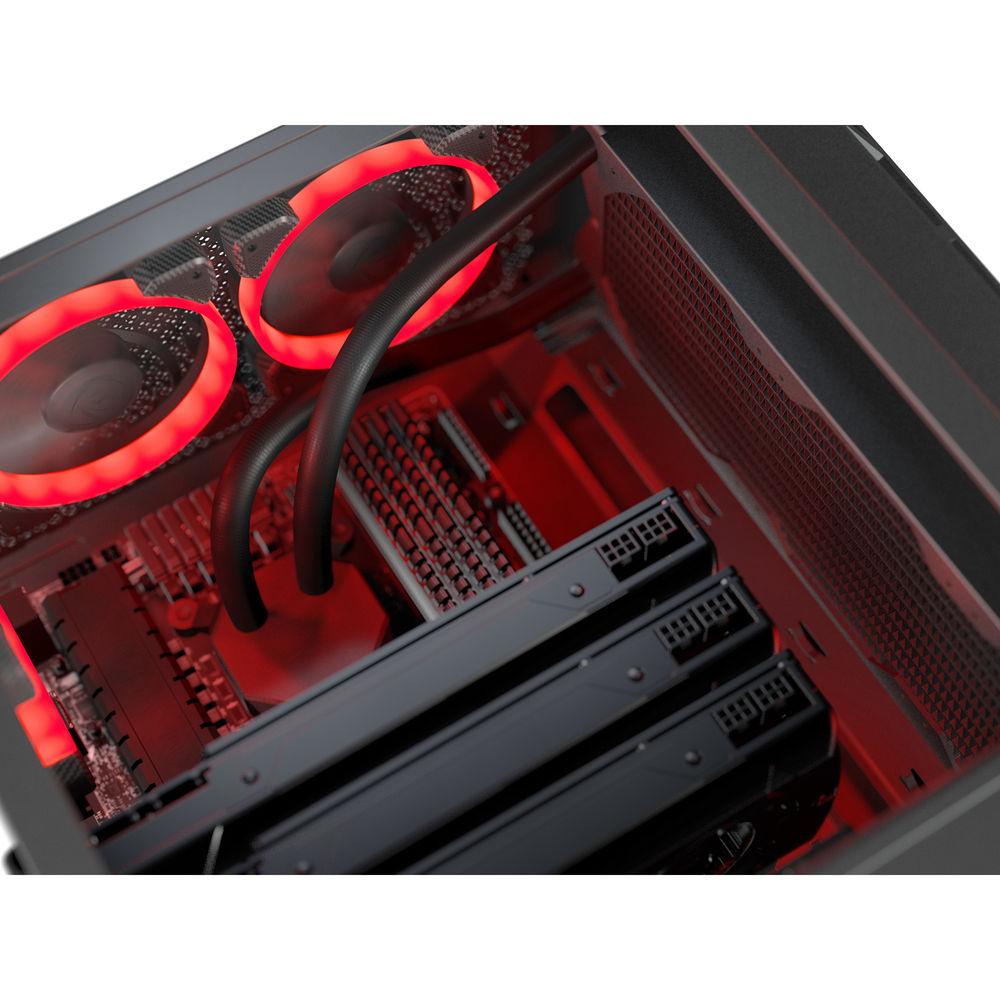

Product description The Turret Mid-Tower Case from Cougar is designed with tempered glass front and side panels, which lets you show off your hardware along with any LED lighting you have installed. Inside there's plenty of room for up to an ATX motherboard, two 3.5" drives, two 2.5" drives, as well as up to seven PCIe cards. To help keep things cool, the Turret is outfitted with plenty of fan mounting slots that can fit a 360mm radiator if you choose to use liquid cooling. UPC: 192554000213 In the Box COUGAR Turret Mid-Tower Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COUGAR Turret Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOUGAR TURRET Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | External Drive Bays | None | | Internal Drive Bays | 2 x 3.5"
2 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 13.78" / 350 mm | | CPU Cooler Height | 6.30" / 160 mm | | Supported PSU Size | ATX | | | | Fan Mounting (Front) | 3 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Rear) | 1 x 120 mm
| | Fan Mounting (Side) | None | | Fan Mounting (Top) | 2 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Bottom) | None | | Fans Included (Front) | 2 x 120 mm | | Fans Included (Rear) | None | | Fans Included (Side) | None | | Fans Included (Top) | None | | Fans Included (Bottom) | None | | Maximum Radiator Size (Front) | 1 x 360 mm | | Maximum Radiator Size (Rear) | 1 x 120 mm | | Maximum Radiator Size (Top) | 1 x 240 mm | | Fan Mounting (Internal) | None | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0)

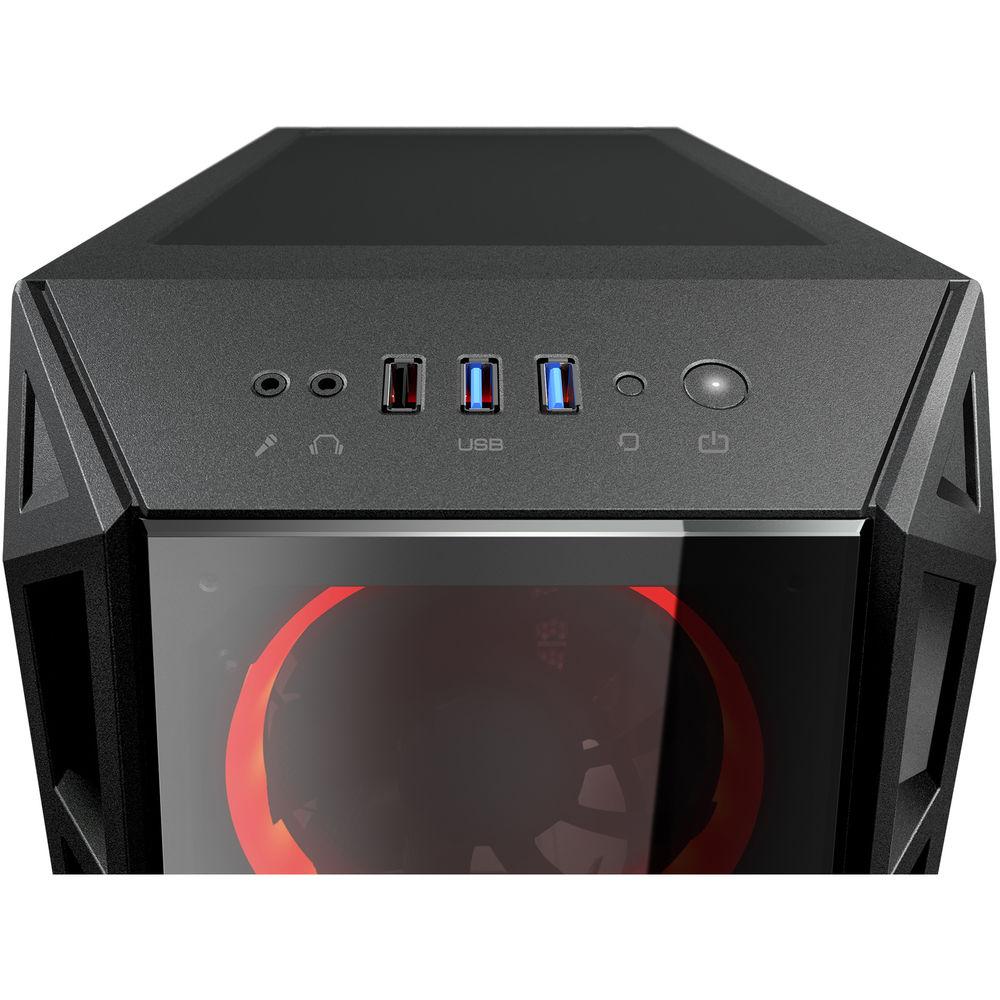

1 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Tempered Glass | | Built-In Lighting | No | | Dimensions (W x H x D) | 8.1 x 18.1 x 16.5" / 206.0 x 461.0 x 420.0 mm | | | | Package Weight | 15.7 lb | | Box Dimensions (LxWxH) | 20.25 x 20.0 x 11.25" |
