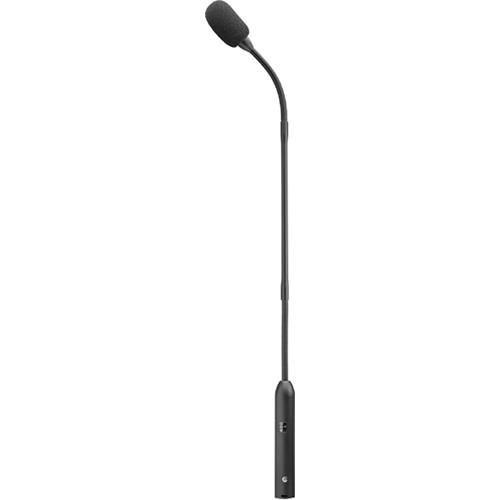

Product description The 18" A3 (Selectable Cardioid/Hypercardioid/Omnidirectional) from Countryman is a podium condenser microphone designed to provide clear voice reproduction for use in meetings, conventions, lectures, and houses of worship. It features dual capsules tuned for clarity, wide frequency response, low noise, and a high maximum SPL of approximately 130 dB.Integrated damping, along with the dual-cartridge design, attenuates thumps, rumble, vibration, and handling noise. The mic’s shielding and circuit design protect it from picking up interference from radio frequencies. The supplied windscreen reduces the level of breaths and plosives.A standard XLR 3-pin male connector allows you to connect it to most mixers and mic preamps. The A3 is powered by 48 VDC phantom power. A protective case is included. - Polar Pattern

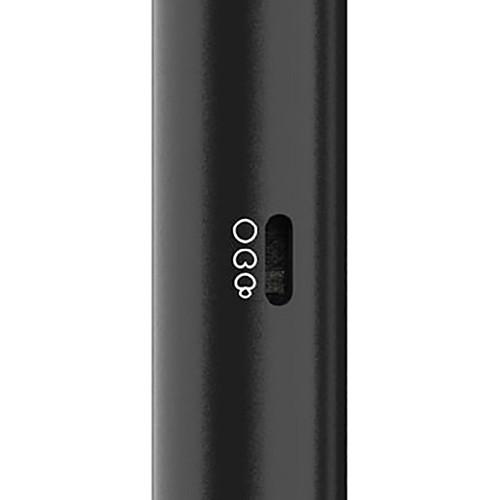

- The selectable cardioid/hypercardioid/omnidirectional polar pattern provides versatility for single- and multi-source situations

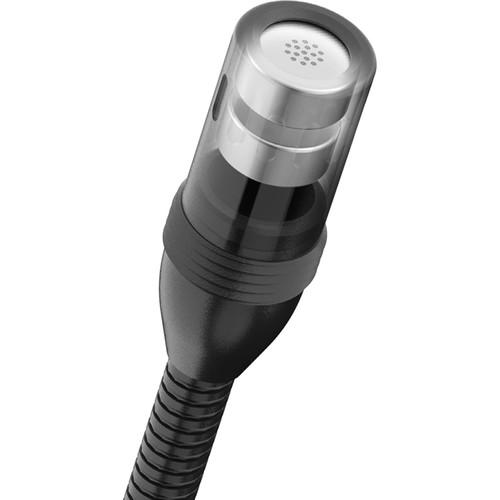

- Dual Capsules
- Each dual-capsule A3 is individually fine-tuned for clarity, low noise, and high overload without distortion
- Wide Frequency Range
- 70 Hz to 16 kHz (directional), 60 Hz to 18 kHz (omnidirectional) frequency response
- Active Plus Vibration Cancellation
- The dual-cartridge design, combined with integrated damping, cancels thumps and handling noise
- RF Immunity
- Rigorous shielding and circuit design protect the mic from radio frequency interference, including wireless devices and cell phones
- Breath and Pop Reduction
- A multistage wind-noise-reduction approach acoustically and electrically tames pops and breath noise

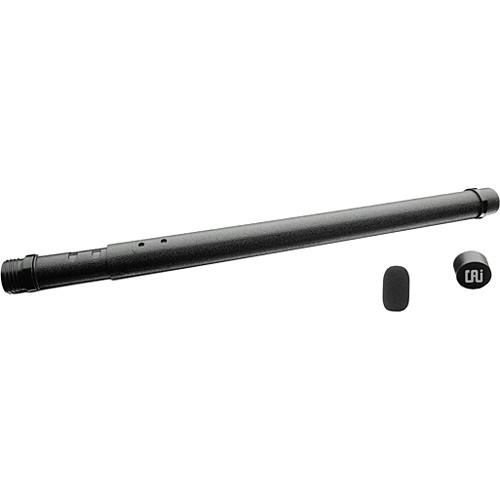

In the Box Countryman A3 Selectable Cardioid/Hypercardioid/Omnidirectional Podium Microphone (18") Case Windscreen Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Countryman A3 Selectable Cardioid Hypercardioid Omnidirectional Podium Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCountryman A3 Specs | Transducer | Condenser | | Polar Pattern | Selectable Cardioid/Hypercardioid/Omnidirectional | | Frequency Response | 70 Hz to 16 kHz (directional), 60 Hz to 18 kHz (omnidirectional) | | Maximum SPL | 130 dB SPL (A-weighted) at 1% THD
133 dB SPL (A-weighted) at 5% THD | | Output Impedance | 200 Ohms | | Sensitivity | -35 dBV/Pa (17.7 mV/Pa) at 1 kHz | | Equivalent Noise Level | 14 dB SPL (A-weighted) | | Current Drain | 6.2 mA | | Power Requirements | 9 to 48 V phantom power | | Output Connector | XLR 3-pin male | | Length | 18" | | Weight | Not specified by manufacturer | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 30.6 x 3.4 x 3.3" |
