Countryman B3 Omnidirectional Lavalier Mic, Low

Search your instruction manual in PDF to download

User Manual for Countryman B3 Omnidirectional Lavalier Mic, Low Sens, with Hardwired 3-Pin XLR Connector

Click to enlarge the picture
Countryman B3 Omnidirectional Lavalier Mic, Low Sens, with Hardwired 3-Pin XLR Connector Contents of the user manual for the Countryman B3 Omnidirectional Lavalier Mic, Low
  • Product category: Lavalier Microphones Countryman
  • Brand: Countryman
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Countryman Lavalier Microphones

User manual for the Countryman B3 Omnidirectional Lavalier Mic, Low contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Countryman product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Countryman user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Countryman product will considerably shorten its lifespan!



Product description

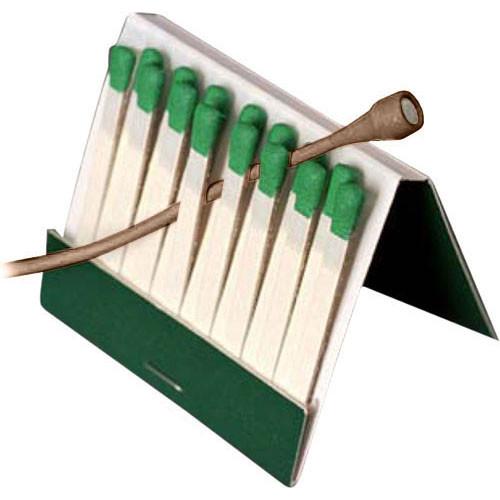

Essential Guide on How to Mic Talent for Video Read More The cocoa B3 Omnidirectional Lavalier Mic, Low Sens, with Hardwired 3-Pin XLR Connector from Countryman is a water-resistant, miniature lavalier microphone for capturing high-quality audio. It can be used in a variety of applications such as a tie-clip lavalier in interviews, a hair-hidden mic for drama, a water-resistant mic for water sports and hurricane reporting, or simply a small mic to hide in a prop flower vase. The capsule is resistant to moisture, which allows for placement in the hair or on bare skin, and its omnidirectional polar pattern minimizes handling noise, wind noise, and plosives (popping). Furthermore, a variety of skin-matching colors are available. The B3's cable terminates to a 3-pin XLR connector for direct connection to a microphone preamplifier or a mixer. Additionally, a carrying case, two cable clips, a windscreen, and three protective caps are also included.
    Unobtrusive
  • Looks great when you want to see it, virtually disappears when you don't. The B3 is easily hidden in hair or on costumes, with five colors to match clothing, hair, and skin tones. Use a felt tip marker to color the white caps for near-perfect concealability. Never suffer the hassle and degraded sound quality of under-clothing miking again.
    Rugged and Reliable
  • The B3 is resistant to makeup, sweat, and moisture when used with the supplied protective caps, and works well in hair or on the body. The protective caps are easily removed for cleaning or replacement, and the aramid-reinforced cable gives it world-class survivability.
    Refined Sound Quality
  • The B3 provides high-quality audio with low distortion at SPL up to 150 dB on 48V phantom power. The aramid cable and thin diaphragm combine to offer low handling noise. The flat frequency response accurately captures voice or instruments, and the small size makes the B3 easy to position for ambient noise and feedback rejection.
    Versatile
  • Changeable protective caps let you shape the frequency response for different situations or to match other microphones. Versions are available for different speaking or singing styles, with high overload capability for recording instruments.
    Sensitivity
  • Low, head miking for theater.
In the Box Countryman B3 Omnidirectional Lavalier Mic, Low Sens, with Hardwired 3-Pin XLR Connector (Cocoa)
  • Windscreen
  • +0 dB Flat Frequency Cap
  • +4 dB Frequency Cap
  • +8 dB Frequency Cap
  • Black Cable Clip
  • White Cable Clip
  • Carrying Case
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Countryman B3 Omnidirectional Lavalier Mic, Low Sens, with Hardwired 3-Pin XLR Connector in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Countryman B3 Specs

    Sensitivity Low
    Frequency Response 20 Hz to 20 kHz
    Equivalent Acoustic Noise 24 dBA
    Polar Pattern Omnidirectional
    Power Requirements 9 to 48 V Phantom power (4 mA @ 48 V)
    Overload Sound Pressure Level 150 dBA SPL (48 V, red band)
    Output Connectors Hardwired 3-pin XLR
    Cable Length 5.0' (1.5 m)
    Dimensions (L x W) 0.23 x 0.18" (5.8 x 4.6 mm)
    Weight 0.012 oz (0.340 g)
    Package Weight 0.5 lb
    Box Dimensions (LxWxH) 10.0 x 10.0 x 2.0"
