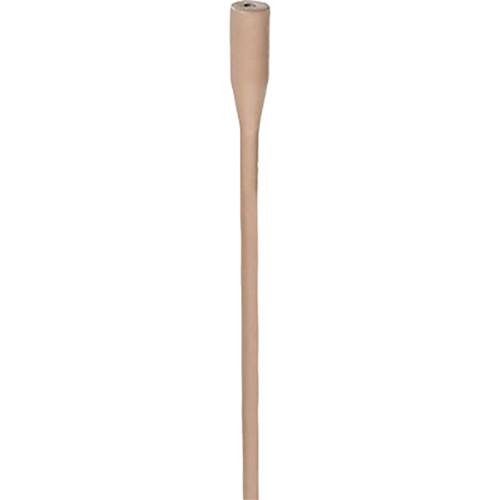

Product description The tan B6 Omnidirectional Lavalier from Countryman is a miniature lavalier microphone measuring only 0.1" in diameter. It features a 3.5mm locking connector and connects to select Zoom recorders with audio on the left channel. The B6 microphone provides high-quality audio with low distortion at SPL up to 120 dB on 48V phantom power. The aramid cable combined with the ultra-thin diaphragm ensure low handling noise. And the tiny size combined with natural sound pickup make the microphone easy to position, for ambient noise and feedback rejection.The included changeable protective caps (+0, +4, and +8 dB) provide moisture resistance, allowing you to adjust the frequency response to suit different applications or to match other microphones. Each of the three omni caps has a different high-frequency response characteristic that controls the amount of crispness or sibilance (response at 15 kHz). This microphone ships with the attached +4 dB protective cap that boosts the perceived amount of presence in your sound, while leaving the lower frequencies unchanged. You can switch to the 0 dB cap in case of problems with high-frequency feedback.With low-handling noise and a rugged construction, the B6 microphone is a suitable choice for theater, broadcast, places of worship, and general lavalier applications. - Compatibility
- Zoom H1, H2, and H2n recorders with audio on left channel
- Can be easily hidden in the hair, on costumes, or can be taped to a performer's face
- W4 (gray band) standard sensitivity is suitable for general speaking, such as presentations or public addresses, where the microphone is positioned on the chest or lapel
- Provides high-quality audio with low distortion at SPL up to 120 dB on 48V phantom power

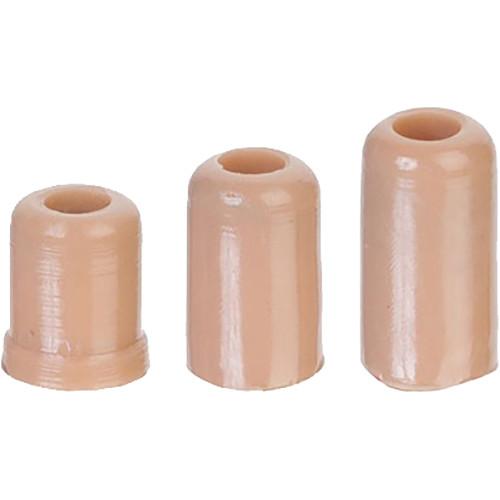

- Comes with three changeable protective caps (+0, +4, and +8 dB)
- Resistant to makeup, sweat, and moisture when used with the supplied protective caps
- Protective caps can be easily removed for cleaning or replacement when clogged with makeup

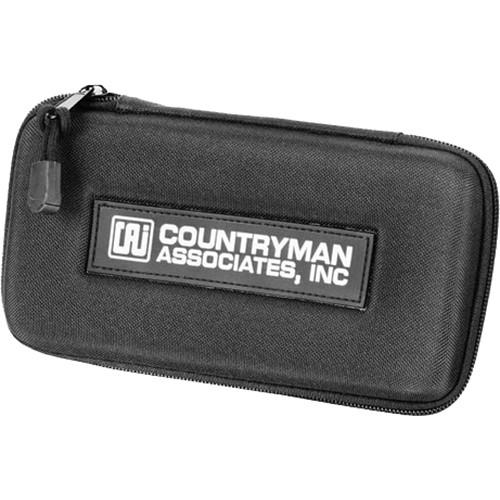

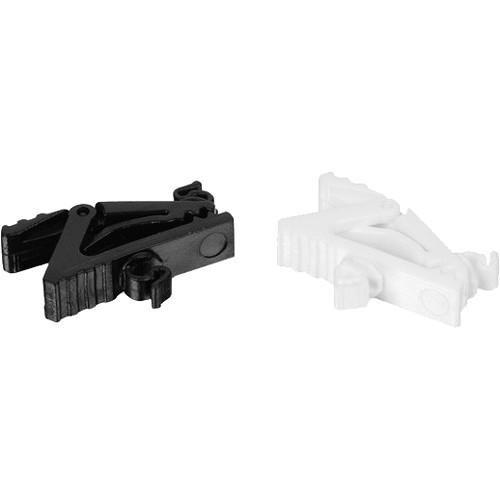

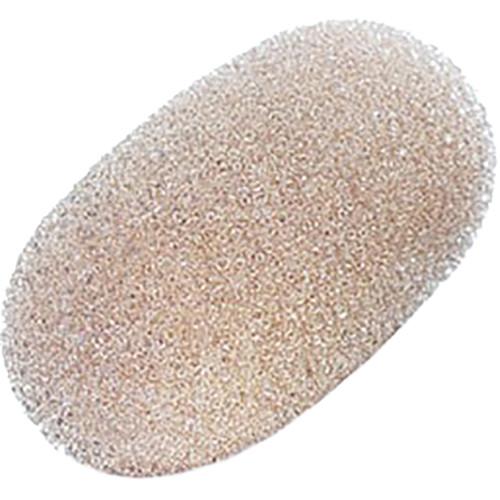

In the Box Countryman B6 Omnidirectional Lavalier for Zoom Recorders with Left-Ch Audio & Standard Gain (Tan) Storage Case Black Cable Clip White Cable Clip Windscreen Flat Frequency Cap (+0 dB) Bright Frequency Cap (+4 dB) Very Bright Frequency Cap (+8 dB) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Countryman B6 Omnidirectional Lavalier for Zoom Recorders with Left-Ch Audio & Standard Gain in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCountryman B6 Specs | Polar Pattern | Omnidirectional | | Frequency Response | 20 Hz to 20 kHz ± 3 dB | | Sensitivity | W4 Standard (Gray Band): 16 mV / Pascal | | Equivalent Acoustic Noise | 24 dBA | | Maximum Input Sound Level | 120 dB | | Power Requirements | Operating Current: 500 µA
Operating Voltage: 1 to 2 V
Power Supply Voltage:
+3 V with 2.7 kOhms load
+5 V with 6.8 kOhms load
+9 V with 15 kOhms load | | Output Connector | 3.5 mm locking connector | | Capsule Diameter | 0.1" (2.54 mm) | | Cable | Type: Aramid-reinforced cable
Length: 5' (1.5 m)
Diameter: 0.05" (1.25 mm) | | Weight | 0.07 oz (2 g) |
