Product description The black B6 Omnidirectional Lavalier Microphone from Countryman is a miniature lavalier microphone measuring only 0.1" in diameter. It features a 3.5mm locking connector and connects to select Tascam recorders with audio on left and right channels. The B6 microphone provides high-quality audio with low distortion at SPL up to 130 dB on 48V phantom power. The aramid cable, combined with the ultra-thin diaphragm, ensures low handling noise. The tiny size, combined with natural sound pickup, makes the microphone easy to position for ambient noise and feedback rejection.

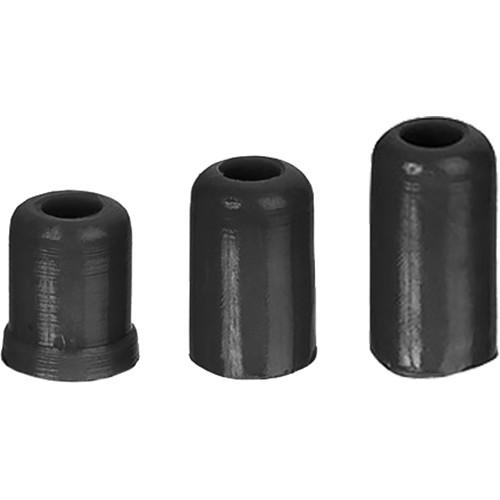

The included changeable protective caps (+0, +4, and +8 dB) provide moisture resistance and allow you to adjust the frequency response to suit different applications or to match other microphones. Each of the three omni caps has a different high-frequency response characteristic that controls the amount of crispness or sibilance (response at 15 kHz). This microphone ships with the +4 dB protective cap attached, which boosts the perceived amount of presence in your sound while leaving the lower frequencies unchanged. You can switch to the 0 dB cap in case of problems when using this microphone with high-frequency feedback. - Compatibility
- Tascam DR-08 and PR-10 recorders with audio on left and right channels
- Can be easily hidden in the hair, on costumes, or can be taped to a performer's face
- Mid (W5, red band) is suitable for use as a head microphone in theater
- Provides high-quality audio with low distortion at SPL up to 130 dB on 48V phantom power
- Comes with three changeable protective caps (+0, +4, and +8 dB)
- Resistant to makeup, sweat, and moisture when used with the supplied protective caps
- Protective caps can be easily removed for cleaning or replacement when clogged with makeup
- Low handling noise and rugged construction

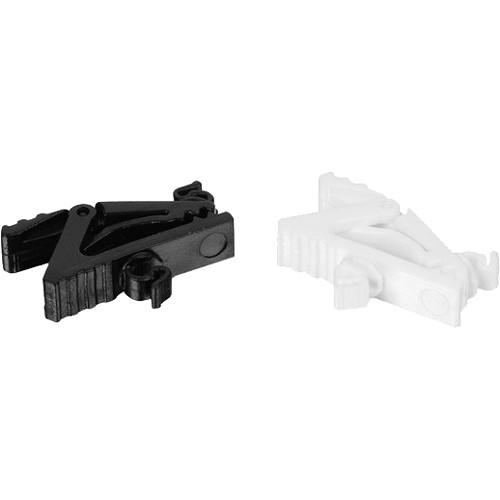

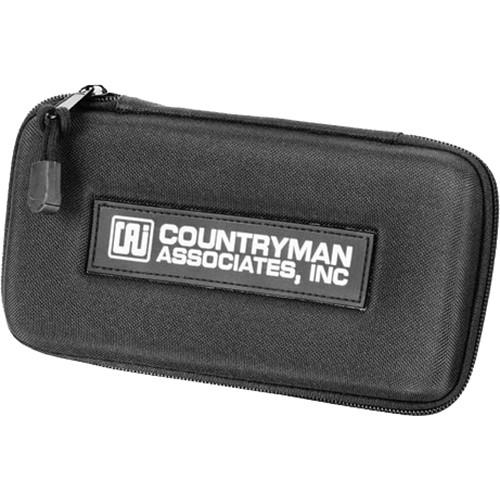

In the Box Countryman B6 Omnidirectional Lavalier Mic for Tascam Recorders & Mid Gain (L/R-Ch, Black) Storage Case Black Cable Clip White Cable Clip Windscreen Flat Frequency Cap (+0 dB) Bright Frequency Cap (+4 dB) Very-Bright Frequency Cap (+8 dB) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Countryman B6 Omnidirectional Lavalier Mic for Tascam Recorders & Mid Gain in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCountryman B6 Specs | Polar Pattern | Omnidirectional | | Frequency Response | 20 Hz to 20 kHz ± 3 dB | | Sensitivity | W5 Low Sensitivity (Red Band): 7 mV / Pascal | | Equivalent Acoustic Noise | 29 dBA | | Maximum Input Sound Level | 130 dB | | Power Requirements | Operating Current: 500 µA
Operating Voltage: 1 to 2 V
Power Supply Voltage:
+3 V with 2.7 kOhms load
+5 V with 6.8 kOhms load
+9 V with 15 kOhms load | | Output Connector | 3.5 mm locking connector | | Capsule Diameter | 0.1" (2.54 mm) | | Cable | Type: Aramid-reinforced cable
Length: 5' (1.5 m)
Diameter: 0.05" (1.25 mm) | | Weight | 0.07 oz (2 g) |
