Countryman B6 Omnidirectional Lavalier Mic, Standard

Search your instruction manual in PDF to download

User Manual for Countryman B6 Omnidirectional Lavalier Mic, Standard Sens, with Hardwired 3-Pin XLR Connector

Click to enlarge the picture
Countryman B6 Omnidirectional Lavalier Mic, Standard Sens, with Hardwired 3-Pin XLR Connector Contents of the user manual for the Countryman B6 Omnidirectional Lavalier Mic, Standard
  • Product category: Lavalier Microphones Countryman
  • Brand: Countryman
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Countryman Lavalier Microphones

Countryman B6 Omnidirectional Lavalier Mic, Standard Sens, with Hardwired 3-Pin XLR Connector Countryman B6 Omnidirectional Lavalier Mic, Standard Sens, with Hardwired 3-Pin XLR Connector
User manual for the Countryman B6 Omnidirectional Lavalier Mic, Standard contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Countryman product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Countryman user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Countryman product will considerably shorten its lifespan!



Product description

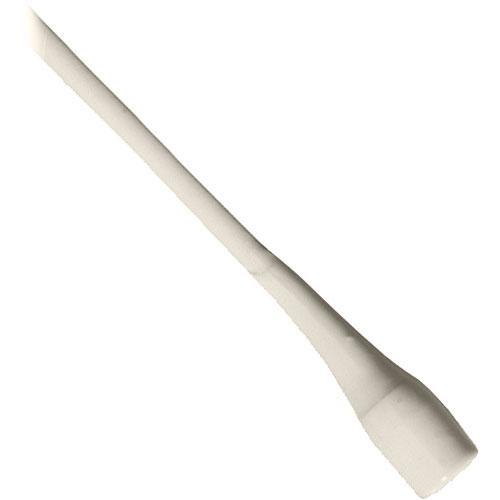

Essential Guide on How to Mic Talent for Video Read More The white B6 Omnidirectional Lavalier Mic, Standard Sens, with Hardwired 3-Pin XLR Connector from Countryman is a very small lav microphone measuring one tenth of an inch in diameter with changeable protective caps, which provide moisture resistance and color options. The mic can be used to capture audio for theater, broadcast, churches, and general lavalier applications. Built with a low handling noise and rugged construction, the B6 lavalier microphone can be easily hidden in hair or on costumes, or taped to a performer's face. The aramid cable and ultra-thin diaphragm deliver a natural sound while its tiny size makes the B6 easy to position for ambient noise and feedback rejection. Additionally, swappable protective caps let you shape the frequency response for different situations or match other microphones. The B6 microphone is resistant to makeup, sweat, and moisture when used with the supplied protective caps. These caps can be quickly removed for cleaning or replacement.
    Unobtrusive
  • Looks great when you want to see it, virtually disappears when you don't. The B6 is easily hidden in hair or on costumes, or taped to a performer's face. Never suffer the hassle and degraded sound quality of under-clothing miking again.
    Rugged and Reliable
  • The B6 is exceptionally resistant to makeup, sweat, and moisture when used with the supplied protective caps, and is well-suited to use in the hair or on the body. The protective caps are easily removed for cleaning or replacement, and the aramid-reinforced cable gives it durability.
    Refined Sound Quality
  • The B6 provides professional-quality audio with low distortion at SPL up to 140 dB on 48V phantom power. The aramid cable and ultra-thin diaphragm combine to deliver very low handling noise. The tiny size and natural sound pickup make the B6 easy to position for ambient noise and feedback rejection.
    Versatile
  • Swappable, protective caps allow you to shape the frequency response for different situations or to match other microphones. The hardwired XLR connector allows you to interface with other preamps, amplifiers, mixers, and other equipment.
    Sensitivity
  • Standard, for most uses.

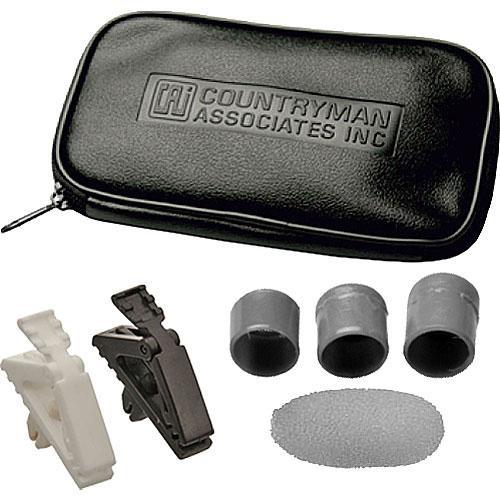

In the Box Countryman B6 Omnidirectional Lavalier Mic, Standard Sens, with Hardwired 3-Pin XLR Connector (White)
  • B6 Windscreen for B6 Lavalier Microphones (White)
  • +0 dB Flat Frequency Cap
  • +4 dB Frequency Cap
  • +8 dB Frequency Cap
  • Black Cable Clip
  • White Cable Clip
  • Carrying Case
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Countryman B6 Omnidirectional Lavalier Mic, Standard Sens, with Hardwired 3-Pin XLR Connector in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Countryman B6 Specs

    Polar Pattern Omnidirectional
    Frequency Response 20 Hz to 20 kHz
    Operating Current 500 uA
    Operating Voltage 1 to 2 V
    Power Supply Voltage +3 V with 2.7 kOhms load
    +5 V with 6.8 kOhms load
    +9 V with 15 kOhms load
    Sensitivity Standard, W4 (gray band): 16.0 mV/Pascal
    Equivalent Acoustic Noise W4: 24 dBA
    Overload Sound Level W4: 120 dB SPL
    Output Connectors Hardwired 3-pin XLR
    Cable Length 5.0' (1.5 m)
    Dimensions (L x W) 0.23 x 0.18" (5.8 x 4.6 mm)
    Weight 0.07 oz (2 g)
    Package Weight 0.6 lb
    Box Dimensions (LxWxH) 9.3 x 5.2 x 1.5"
