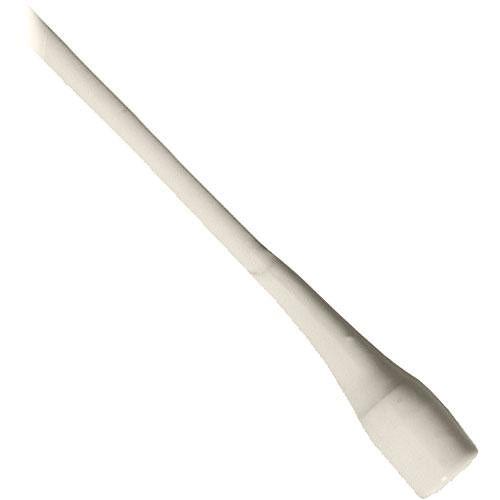

Product description The white B6 Omnidirectional Lavalier Microphone from Countryman connects with plug-in power and audio on left and right channel via a 3.5mm locking connector. It is a small microphone measuring only 0.1” in diameter.
The changeable protective caps (+0, +4, and +8 dB) provide moisture resistance and allow you to adjust the frequency response to suit different applications or to match other microphones. Each of the 3 omni caps has a different high-frequency response characteristic that controls the amount of crispness or sibilance (response at 15 kHz). With low handling noise and a rugged construction, the B6 Microphone is a suitable choice for theater, broadcast, places of worship, and general lavalier applications.
The omnidirectional mic ships with the +4 dB protective cap attached. This will boost the perceived amount of presence in your sound, while leaving the lower frequencies unchanged.
Note: The B6 lavalier should always be used with a protective cap in place to keep sweat, makeup, and other foreign material out of the microphone. If you experience problems with high-frequency feedback, you should switch to the 0 dB cap. - Nearly Invisible and Unobtrusive

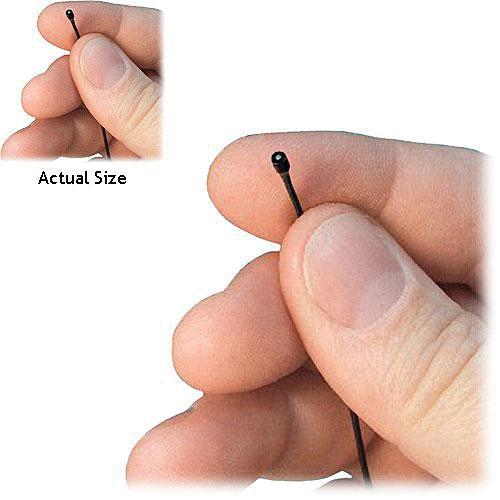

- With a diameter of only 0.1" (2.5 mm), the size of a No. 2 pencil lead, the mic capsule virtually disappears when worn. The B6 is easily hidden in the hair, on costumes, or can be taped to a performer's face. The B6 color matches clothing, hair, and skin tones. You can use a felt tip marker to color the white caps for near-perfect concealment.
- Good Sound Quality
- It provides high-quality audio with low distortion at SPL up to 140 dB on 48V Phantom Power. The aramid cable combined with the ultra-thin diaphragm ensures low handling noise. The tiny size combined with natural sound pickup make the B6 easy to position for ambient noise and feedback rejection.
- Sensitivity
- The most sensitive (W4, gray band) is for general speaking, such as presentations or public addresses, where the mic is positioned on the chest or lapel.
- Rugged and Reliable
- The B6 is resistant to makeup, sweat, and moisture when used with the supplied protective caps and is well-suited to use in the hair or on the body. The protective caps can be easily removed for cleaning or replacement when clogged with makeup. The aramid-reinforced cable and rugged alloy construction ensure that the cable provides appreciable tensile and flex strength.
- True Color
- The color of the mic is precision-matched to theater makeup shades to blend with a wide range of skin tones and clothing.
- Water Resistance
- The mic is water-sealed so you can use it in the hair or against the skin under hot theater lights without sweat-outs.
- Versatile
- Changeable protective caps let you shape the frequency response for different situations or to match other microphones. For different speaking or singing styles, additional caps with up to 140 dB SPL capabilities can be purchased separately.

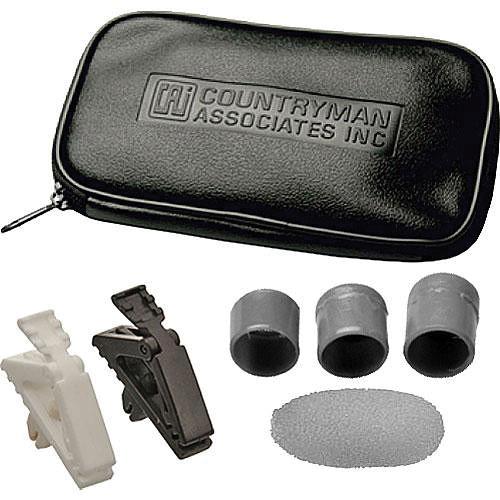

In the Box Countryman B6 Omnidirectional Lavalier Microphone (White) Carrying Case Black & White Cable Clips 3 x Protective Cap (+0, +4, and +8 dB) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Countryman B6 Omnidirectional Lavalier Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCountryman B6W4FF05WD3 Specs | Compatible with | Zoom H2 and H4 Recorders (with plug-in power), audio on left and right channel | | Frequency Response | 20 Hz to 20 kHz | | Operating Current Consumption | 500 uA | | Operating Voltage | 1 to 2 V | | Power Supply Voltage | 3 V with 2.7 kΩ load
5 V with 6.8 kΩ load
9 V with 15 kΩ load | | Sensitivity | W4 Standard (Gray Band): 16 mV / Pascal | | Acoustic Noise | 24 dBA | | Sound Level | 120 dB SPL (overload) | | Connector | 3.5 mm locking | | Diameter | 0.1" (2.5 mm) | | Weight | 0.07 oz (2.00 g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 9.1 x 5.1 x 1.5" |
