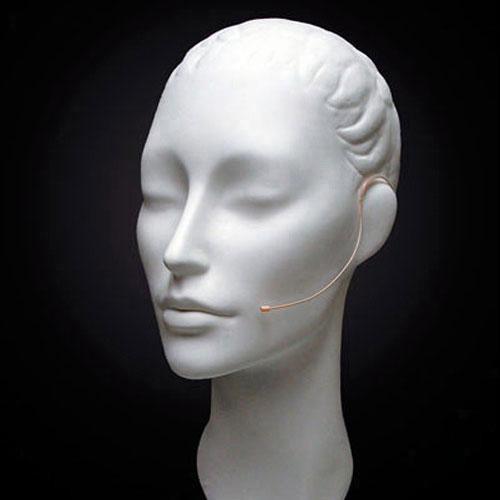

User Manual for Countryman E6 Ear Set Head-worn Microphone with 3-pin XLR Click to enlarge the picture
Contents of the user manual for the Countryman E6 Ear Set Head-worn Microphone
- Product category: Headset & Earset Microphones Countryman
- Brand: Countryman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Countryman Headset & Earset Microphones
 |
User manual for the Countryman E6 Ear Set Head-worn Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Countryman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Countryman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Countryman product will considerably shorten its lifespan!
|

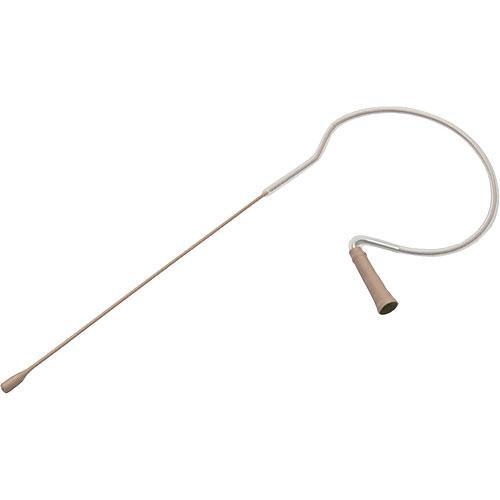

Product description The Countryman Isomax E6 headset microphone is an industry favorite for presentation, performances and broadcast speech and vocal capturing. The E6 provides a small lightweight design with a sensitivity and frequency response suitable for use in performance, theatrical, lecture, presentation and house of worship environments. The microphone features a form fitting band that is worn behind the head, allowing easy concealment in clothing and hair, with no need for size adjustment. The microphone element features a wide frequency response and high SPL rating for low distortion and high gain. The result delivers the signal reproduction of a world class condenser recording microphone, while minimizing distortion due to signal overload. The Isomax E6 is also available with a vast selection of connectors, allowing complete compatibility with various wireless transmitters. - Hardwired 3-pin XLR Connection
- The Countryman E6 is available in various connectors to suite various wireless transmitters and preamplifiers. This version features a standard 3-pin XLR connection for use with standard microphone preamplifiers.
- Unobtrusive Design
- The Isomax E6 features a small, cardioid microphone element and light weight headband with no need for size adjustment. The headband wraps around the back of the head for easy concealment in hair and clothing.
- Omnidirectional Polar Pattern
- Although the Isomax series impressively rejects residual noise, the omnidirectional polar pattern provides an even frequency response at the direct and off-axis sections of the capsule.

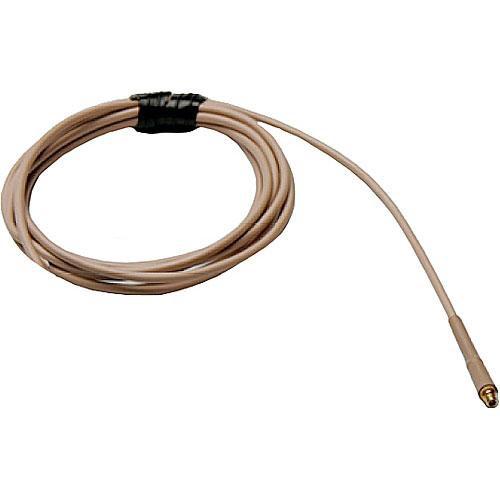

- Easy Cable Replacement
- The cable is easily removed from the boom and replaced, avoiding the need to replace the entire microphone if cable damage occurs.

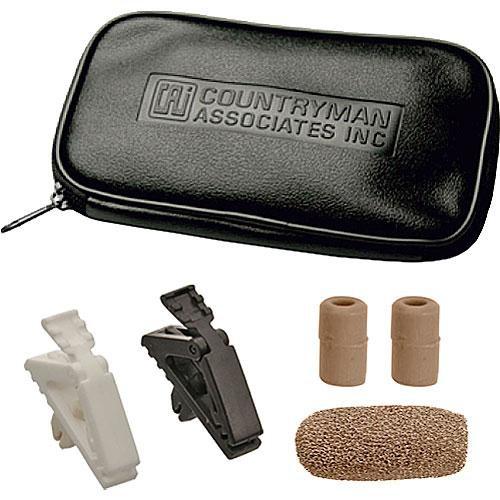

In the Box Countryman E6 Ear Set Head-worn Microphone with 3-pin XLR Carrying Case Cable Clip Wind Screen 3 x Protective Frequency Contour Caps 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Countryman E6 Ear Set Head-worn Microphone with 3-pin XLR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCountryman E6OP5L1 Specs | Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 30Hz to 20kHz +/- 3dB | | Dynamic Range (Typical) | not specified by manufacturer | | Signal-to-Noise Ratio | Equivalent Acoustic Noise: 24dB SPL A-Weighted | | Maximum Input Sound Level | 125dB SPL | | Power Requirements | Operating Current: 500uA
Operating Voltage: 1 to 2 VoltsPower Supply Voltage:
+3 V with 2.7k Ohm Load+5 V with 5.6k Ohm Load
+9 V with 15k Ohm Load | | Output Impedance | 2k ohms | | Output Connectors | Hardwired 3-pin XLR | | Dimensions | not specified by manufacturer | | Weight | 0.07 oz (2 grams) | | | | Package Weight | 0.38 lb | | Box Dimensions (LxWxH) | 7.8 x 5.0 x 1.1" |
