User Manual for Countryman E6 Flex Earset Microphone Click to enlarge the picture
Contents of the user manual for the Countryman E6 Flex Earset Microphone
- Product category: Microphones for Wireless Countryman
- Brand: Countryman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Countryman Microphones for Wireless
|
User manual for the Countryman E6 Flex Earset Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Countryman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Countryman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Countryman product will considerably shorten its lifespan!
|

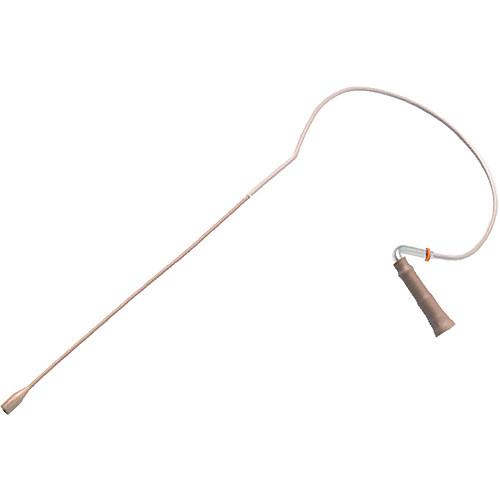

Product description The Countryman E6 Flex Microphone combines the springy, form-fitting ear grips of the E6, with the flexible and durable boom of the E6i earset microphone. The E6 Flex provides virtually invisible operation in stage performances, trade shows, houses-of-worship, auctions, lectures and much more.The E6 Flex includes hypercardioid and cardioid caps which effectively minimize off-axis feedback and noise from nearby monitor speakers, instruments and noisy sources. Flexible microphone positioning is maintained and the included windscreen minimizes the wind noise often associated with cardioid microphones.A wide variety of colors and connections are available for use with various wireless transmitters. This version is tan and the cable terminates to a Screw-on TA4F connector for Mipro wireless transmitters. - Miniature Unobtrusive Design
- A miniature capsule is mounted to a low-profile, flexible frame. This lightweight, unobtrusive design is available in various colors that virtually render the entire microphone invisible against the skin.
- Removable Cable
- The included removable, quick-swap cable detaches from the actual headset, making it completely replaceable in the event of a short or break. The replaceable cable design makes upgrading wireless microphone systems easy, as they are available in a wide selection of connections to accommodate various wireless transmitters. The Duramax 2mm diameter cable provides extra strength, flexibility and durability.
- Sensitivity Optimized for General Speaking
- This E6 Flex's sensitivity response is optimized to accurately capture general speech without noise and distortion.
- Fit and Flexibility
- The fit of the classic E6 meets the flexibility of the E6i. The front boom is like an E6i, the ear section is like the classic E6, the result is the best fitting easiest to use earset available.
- Lightest and Most Concealable
- Countryman Earsets are the smallest, lightest, and least visible head-worn microphones. The E6 Flex comes in four skin tones to disappear against the face.
- Adjustable Pattern
- Changeable protective caps let you switch between cardioid and hypercardioid patterns in seconds.
- Exceptional Sound Quality
- Frequency response is better than 30Hz to 15kHz with smooth off-axis response and >100dB dynamic range. Countryman Earsets sound like world-class, full size performance mics but the performer has complete freedom.
- Rugged and Reliable
- The E6i is exceptionally resistant to makeup, sweat and moisture when used with the supplied protective caps. The skin-colored, almost unbreakable boom resists water, sweat, and makeup and can be bent and re-bent many times to fit different performers. The front boom of the E6 Flex is slightly firmer than our E6i, so it's easily shaped right on the performer's face and smoothes out for a professional look.
- Most Sensitivities
- The E6 Flex comes in three sensitivities for different speaking or singing styles, with up to 140 dB SPL capability.
- Snap-On Cables
- With other microphones a worn cable requires purchasing a completely new mic. An E6 replacement cable easily replaces it in less than a minute. Quick-connect miniature 1 mm or 2 mm super-rugged cables are available in four colors for almost any wireless transmitter or phantom mic input providing 3 - 48V.

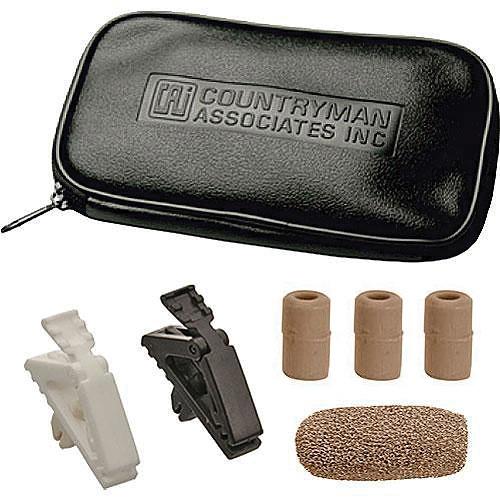

In the Box Countryman E6 Flex Earset Microphone (Tan) Storage Case Windscreen Cardioid Cap Hypercardioid Cap Black Cable Clip White Cable Clip 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Countryman E6 Flex Earset Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCountryman E6 Flex Specs Transducer | Condenser | Polar Pattern | Cardioid & Hypercardioid Caps Included | Frequency Response | 30Hz to 15kHz | Dynamic Range (Typical) | Not Specified by Manufacturer | Signal-to-Noise Ratio | Equivalent Acoustic Noise: 24dBA SPL | Maximum Input Sound Level | 125dB SPL | Power Requirements | Operating Current: 500uA Operating Voltage: 1 to 2V Power Supply Voltage: +3V with 2.7k ohm Load+5V with 6.8k ohm Load +9V with 15k ohm Load | Output Impedance | 2k Ohms | Output Connectors | Screw-on TA4F Connector for Mipro Transmitters | Dimensions | Not Specified by Manufacturer | Weight | 0.07 oz (2g) | | Package Weight | 0.5 lb | Box Dimensions (LxWxH) | 10.0 x 10.0 x 2.0" |
