Countryman E6 Flex Omnidirectional Earset Microphone

Search your instruction manual in PDF to download

User Manual for Countryman E6 Flex Omnidirectional Earset Microphone

Click to enlarge the picture
Countryman E6 Flex Omnidirectional Earset Microphone Contents of the user manual for the Countryman E6 Flex Omnidirectional Earset Microphone
  • Product category: Microphones for Wireless Countryman
  • Brand: Countryman
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Countryman Microphones for Wireless

Countryman E6 Flex Omnidirectional Earset Microphone Countryman E6 Flex Omnidirectional Earset Microphone Countryman E6 Flex Omnidirectional Earset Microphone
User manual for the Countryman E6 Flex Omnidirectional Earset Microphone contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Countryman product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Countryman user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Countryman product will considerably shorten its lifespan!



Product description

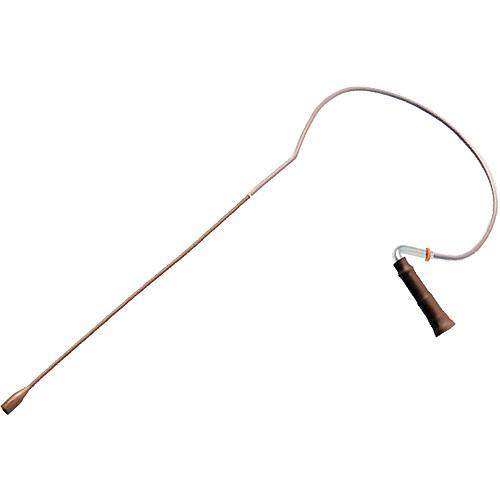

The Countryman E6 Flex Omnidirectional Microphone combines the springy, form-fitting ear grips of the E6, with the flexible and durable boom of the E6i earset microphone. The E6 Flex provides virtually invisible operation in stage performances, trade shows, houses-of-worship, auctions, lectures and much more.The omnidirectional pattern is the most versatile and features a wide pick up area while minimizing extraneous noise. Flexible microphone positioning is maintained and the included windscreen minimizes wind noise.A wide variety of colors and connections are available for use with various wireless transmitters. This version is cocoa and the cable terminates to a Switchcraft TA4F connector for Electrovoice wireless transmitters.
    Miniature Unobtrusive Design
  • A miniature cardioid capsule is mounted to a low-profile, flexible frame. This lightweight, unobtrusive design is available in various colors that virtually render the entire microphone invisible against the skin.
    Removable Cable
  • The included removable, quick-swap cable detaches from the actual headset, making it completely replaceable in the event of a short or break. The replaceable cable design makes upgrading wireless microphone systems easy, as they are available in a wide selection of connections to accommodate various wireless transmitters.
    Omnidirectional Polar Pattern
  • The omnidirectional polar pattern is the most versatile pattern for accurately capturing any source. A generous pick up area is forgiving during imperfect microphone placement. The pattern also minimizes extraneous noise. The flexible boom provides a stiff fit that maintains its shape for single user applications. The E6 Flex is also available in a cardioid version for maximum off-axis noise rejection in environments with high feedback and noise.
    Sensitivity Optimized for General Speaking
  • This E6 Flex's sensitivity response is optimized to accurately capture general speech without noise and distortion.
    Fit and Flexibility
  • The fit of the classic E6 meets the flexibility of the E6i. The front boom is like an E6i, the ear section is like the classic E6, the result is the best fitting easiest to use earset available.
    Lightest and Most Concealable
  • Countryman Earsets are the smallest, lightest, and least visible head-worn microphones. The E6 Flex comes in four skin tones to disappear against the face.
    Adjustable Pattern
  • Changeable protective caps let you switch between cardioid and hypercardioid patterns in seconds.
    Exceptional Sound Quality
  • Frequency response is better than 30Hz to 15kHz with smooth off-axis response and >100dB dynamic range. Countryman Earsets sound like world-class, full size performance mics but the performer has complete freedom.
    Rugged and Reliable
  • The E6i is exceptionally resistant to makeup, sweat and moisture when used with the supplied protective caps. The skin-colored, almost unbreakable boom resists water, sweat, and makeup and can be bent and re-bent many times to fit different performers. The front boom of the E6 Flex is slightly firmer than our E6i, so it's easily shaped right on the performer's face and smoothes out for a professional look.
    Most Sensitivities
  • The E6 Flex comes in three sensitivities for different speaking or singing styles, with up to 140 dB SPL capability.
    Snap-On Cables

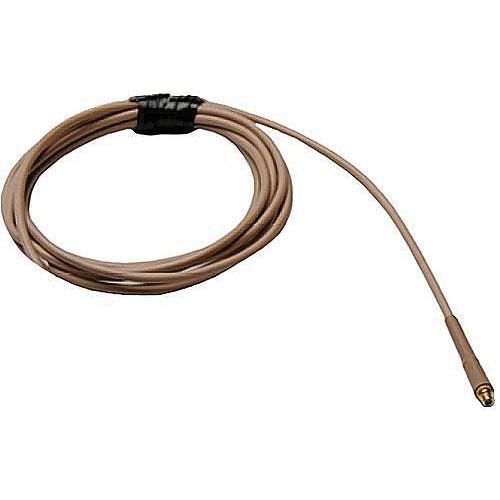

  • With other microphones a worn cable requires purchasing a completely new mic. An E6 replacement cable easily replaces it in less than a minute. Quick-connect miniature 1 mm or 2 mm super-rugged cables are available in four colors for almost any wireless transmitter or phantom mic input providing 3 - 48V.

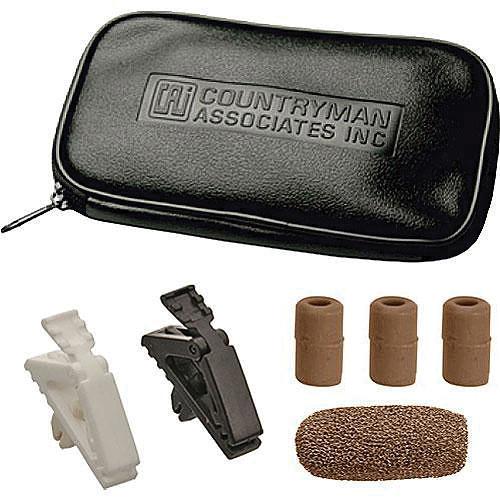

In the Box Countryman E6 Flex Omnidirectional Earset Microphone (Cocoa)
  • Storage Case
  • Windscreen
  • Black Cable Clip
  • White Cable Clip
  • 3 x Protective Caps
  • 1 Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Countryman E6 Flex Omnidirectional Earset Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Countryman E6 Flex Specs

    Transducer Condenser
    Polar Pattern Omnidirectional
    Frequency Response 20Hz to 20kHz
    Dynamic Range (Typical) Not Specified by Manufacturer
    Signal-to-Noise Ratio Equivalent Acoustic Noise: 24dBA SPL
    Maximum Input Sound Level 120dB SPL
    Power Requirements Operating Current: 500uA
    Operating Voltage: 1 to 2V
    Power Supply Voltage:
    +3V with 2.7k ohm Load
    +5V with 6.8k ohm Load
    +9V with 15k ohm Load
    Output Impedance 2k Ohms
    Output Connectors Switchcraft TA4F Connector for Electrovoice Transmitters
    Dimensions Not Specified by Manufacturer
    Weight 0.07 oz (2g)
    Package Weight 0.5 lb
    Box Dimensions (LxWxH) 10.0 x 10.0 x 2.0"
