User Manual for Countryman E6i Omnidirectional Earset Head-worn Microphone Click to enlarge the picture
Contents of the user manual for the Countryman E6i Omnidirectional Earset Head-worn Microphone
- Product category: Microphones for Wireless Countryman
- Brand: Countryman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Countryman Microphones for Wireless
 |
User manual for the Countryman E6i Omnidirectional Earset Head-worn Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Countryman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Countryman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Countryman product will considerably shorten its lifespan!
|

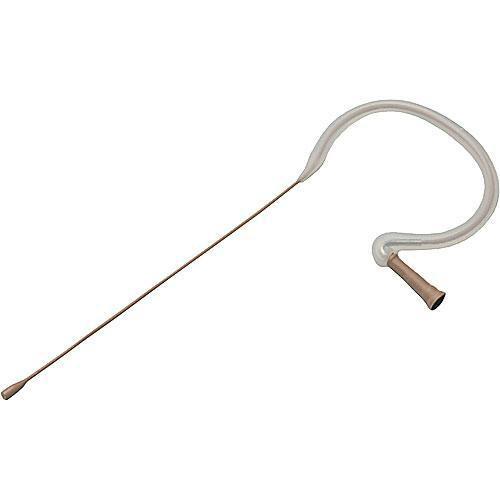

Product description The Countryman E6i Omnidirectional Microphone is a miniature earset microphone for virtually invisible operation in stage performances, trade shows, houses-of-worship, auctions, lectures and much more.The omnidirectional version is most common in applications where feedback issues are not very likely. The microphone can be worn without a windscreen as the omnidirectional capsule provides excellent wind noise rejection.The E6i is set apart from the original E6 with its softer flexible boom and silicon ear-pads. The flexible boom provides ease of boom adjustability to accommodate multi-user applications.A wide variety of colors and connections are available for use with various wireless transmitters. This version is beige and features a Switchcraft 851 connector for Lectrosonics transmitters. - Miniature Unobtrusive Design
- A miniature omnidirectional capsule is mounted to a low-profile, flexible frame with silicon ear pads. This lightweight, unobtrusive design is available in various colors that virtually render the entire microphone invisible against the skin. For more information on which color earset suits you best, refer to the Countryman support page.
- Removable Cable
- The included 1mm Diameter Cable detaches from the actual headset, making it completely replaceable in the event of a short or break. The replaceable cable design makes upgrading wireless microphone systems easy, as they are available in a wide selection of connections to accommodate various wireless transmitters.
- Omnidirectional Polar Pattern
- The omnidirectional polar pattern is most effective in minimizing wind noise, plosives (popping) and handling noise. The flexible boom provides a custom fit for multiple users and close microphone positioning while minimizing off-axis noise. The E6i is also available in a cardioid version for maximum off-axis noise rejection in environments with high feedback and noise.
- Sensitivity Optimized for Strong Vocals
- This E6i's sensitivity response is optimized to accurately capture strong vocals without noise and distortion. The high headroom is well suited for singers and performers in stage and broadcast applications.

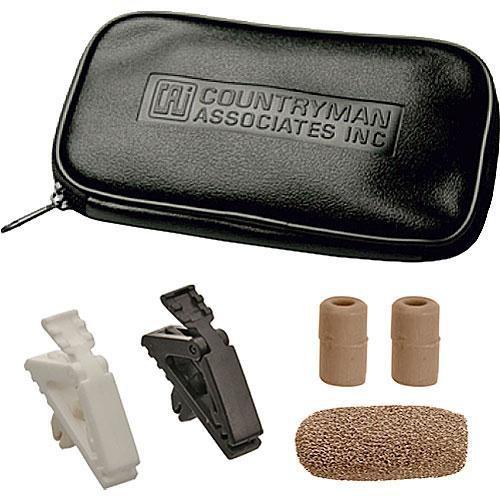

In the Box Countryman E6i Omnidirectional Earset Head-worn Microphone (Beige) Storage Case Windscreen Flat Cap Bright Cap Very Bright Cap Black Cable Clip White Cable Clip 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Countryman E6i Omnidirectional Earset Head-worn Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCountryman E6i Specs | Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 30Hz to 20kHz +/- 3dB | | Dynamic Range (Typical) | Not Specified by Manufacturer | | Signal-to-Noise Ratio | Equivalent Acoustic Noise: 39dBA SPL | | Maximum Input Sound Level | 140dB SPL | | Power Requirements | Operating Current: 500uA
Operating Voltage: 1 to 2V
Power Supply Voltage:
+3V with 2.7k ohm Load+5V with 6.8k ohm Load
+9V with 15k ohm Load | | Output Impedance | 2k ohms | | Output Connectors | Switchcraft 851 Connector for Lectrosonics Transmitters | | Dimensions | Not Specified by Manufacturer | | Weight | 0.07 oz (2g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 10.0 x 10.0 x 2.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
