Countryman E6i Omnidirectional Earset Headworn Microphone

Search your instruction manual in PDF to download

User Manual for Countryman E6i Omnidirectional Earset Headworn Microphone

Click to enlarge the picture
Countryman E6i Omnidirectional Earset Headworn Microphone Contents of the user manual for the Countryman E6i Omnidirectional Earset Headworn Microphone
  • Product category: Microphones for Wireless Countryman
  • Brand: Countryman
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Countryman Microphones for Wireless

User manual for the Countryman E6i Omnidirectional Earset Headworn Microphone contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Countryman product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Countryman user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Countryman product will considerably shorten its lifespan!



Product description

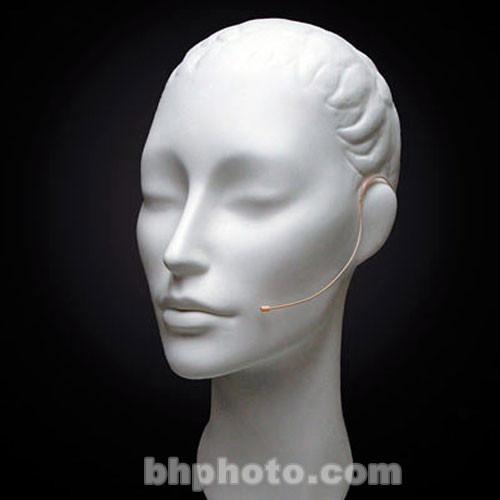

The Countryman E6i Omnidirectional Microphone is a miniature earset microphone for virtually invisible operation in stage performances, trade shows, houses-of-worship, auctions, lectures and much more.The omnidirectional version is most common in applications where feedback issues are not very likely. The microphone can be worn without a windscreen as the omnidirectional capsule provides excellent wind noise rejection.The E6i is set apart from the original E6 with its softer flexible boom and silicon ear-pads. The flexible boom provides ease of boom adjustability to accommodate multi-user applications.A wide variety of colors and connections are available for use with various wireless transmitters. This version is tan and features a Switchcraft TA4-Female connector for Sabine transmitters.
    Miniature Unobtrusive Design
  • A miniature omnidirectional capsule is mounted to a low-profile, flexible frame with silicon ear pads. This lightweight, unobtrusive design is available in various colors that virtually render the entire microphone invisible against the skin.
    Removable Cable
  • The included 1mm Diameter Cable detaches from the actual headset, making it completely replaceable in the event of a short or break. The replaceable cable design makes upgrading wireless microphone systems easy, as they are available in a wide selection of connections to accommodate various wireless transmitters.
    Omnidirectional Polar Pattern
  • The omnidirectional polar pattern is most effective in minimizing wind noise, plosives (popping) and handling noise. The flexible boom provides a custom fit for multiple users and close microphone positioning while minimizing off-axis noise. The E6i is also available in a cardioid version for maximum off-axis noise rejection in environments with high feedback and noise.
    Sensitivity Optimized for General Speech
  • This E6i sensitivity response is optimized to accurately capture general speech without noise and distortion.
In the Box Countryman E6i Omnidirectional Earset Headworn Microphone (Tan)
  • Storage Case
  • Windscreen
  • Flat Cap
  • Bright Cap
  • Very Bright Cap
  • Black Cable Clip
  • White Cable Clip
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Countryman E6i Omnidirectional Earset Headworn Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Countryman E6i Specs

    Transducer Condenser
    Polar Pattern Omnidirectional
    Frequency Response 30 Hz to 20 kHz +/-3 dB
    Dynamic Range (Typical) Not Specified by Manufacturer
    Signal-to-Noise Ratio Equivalent Acoustic Noise: 24 dBA SPL
    Maximum Input Sound Level 120 dB SPL
    Power Requirements Operating Current: 500 uA
    Operating Voltage: 1 to 2 V
    Power Supply Voltage:
    +3 V with 2.7 kOhms Load
    +5 V with 6.8 kOhms Load
    +9 V with 15 kOhms Load
    Output Impedance 2 kOhms
    Output Connectors Switchcraft TA4-Female Connector for Sabine Transmitters
    Dimensions Not Specified by Manufacturer
    Weight 0.07 oz (2 g)
    Package Weight 0.5 lb
    Box Dimensions (LxWxH) 10.0 x 10.0 x 2.0"
