User Manual for Countryman E6i Omnidirectional Earset Headworn Microphone Click to enlarge the picture
Contents of the user manual for the Countryman E6i Omnidirectional Earset Headworn Microphone
- Product category: Microphones for Wireless Countryman
- Brand: Countryman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Countryman Microphones for Wireless
 |
User manual for the Countryman E6i Omnidirectional Earset Headworn Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Countryman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Countryman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Countryman product will considerably shorten its lifespan!
|
Product description The cocoa E6i (TA4F) from Countryman is a miniature, omnidirectional, earset condenser microphone designed for accurate voice reproduction (speaking and singing) and near-invisible appearance in theater, concerts, lectures, houses or worship, and more. It features a water- and wind-resistant capsule that delivers a 20 Hz to 20 kHz frequency response. The omnidirectional polar pattern picks up sound from all directions and should be used when feedback is not common.The 5’ detachable cable has a diameter of 2mm, and features a TA4F connector for compatibility with Toa transmitters. The E6i offers a flexible boom for versatile placement. The three protective caps yield different high-end frequency presence. The supplied windscreen protects the condenser element, and reduces plosives and wind noise. Cable clips and a carrying case are included. - Miniature Unobtrusive Design

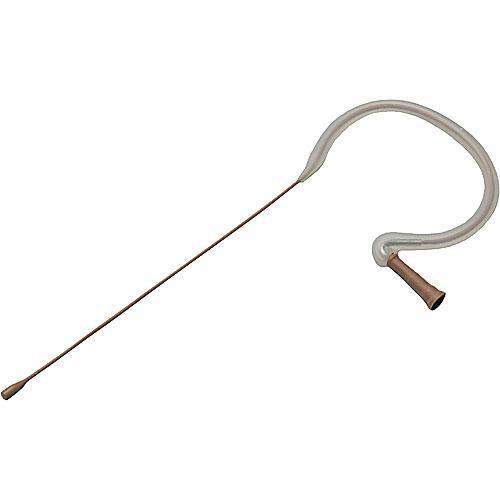

- A miniature omnidirectional capsule is mounted to a low-profile, flexible frame with silicon ear section. This lightweight, unobtrusive design is available in various colors that virtually render the entire microphone invisible against the skin. For more information on which color earset suits you best, refer to the Countryman support page.rqacysudxquybwdvfxrrbfyywfuvqetxvtfcc
- Removable Cable

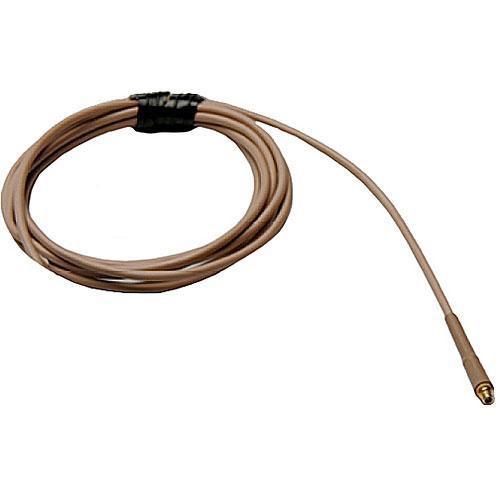

- The included 2mm diameter cable detaches from the actual headset, making it completely replaceable in the event of a short or break. The replaceable cable design makes upgrading wireless microphone systems easy, as they are available in a wide selection of connections to accommodate various wireless transmitters. The Duramax 2mm diameter cable provides extra strength, flexibility and durability.
- Omnidirectional Polar Pattern
- The omnidirectional polar pattern is most effective in minimizing wind noise, plosives (popping) and handling noise. The flexible boom provides a custom fit for multiple users and close microphone positioning while minimizing off-axis noise. The E6i is also available in a cardioid version for maximum off-axis noise rejection in environments with high feedback and noise.
- Sensitivity Optimized for Speaking and Vocals
- This E6i sensitivity response is optimized to accurately capture both speech and vocal performances without noise and distortion.

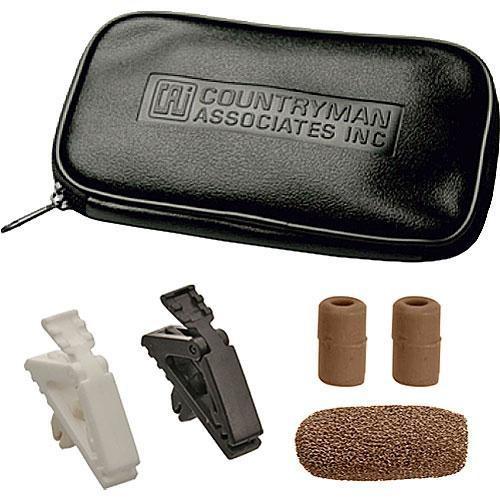

In the Box Countryman E6i Omnidirectional Earset Headworn Microphone (TA4F Connector, Cocoa) Storage Case Windscreen Flat Cap Bright Cap Very Bright Cap Black Cable Clip White Cable Clip Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Countryman E6i Omnidirectional Earset Headworn Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCountryman E6i Specs | Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 20 Hz to 20 kHz | | Equivalent Acoustic Noise | 29 dBA SPL | | Maximum Input Sound Level | 130 dB SPL | | Operating Current | 500 uA | | Operating Voltage | 1 to 2 V | | Power Supply Voltage | +3 V with 2.7 kOhms load
+5 V with 6.8 kOhms load
+9 V with 15 kOhms load | | Output Connectors | TA4F connector for Toa transmitters | | Cable Length | 5' / 1.5 m | | Dimensions | Not specified by manufacturer | | Weight | 0.07 oz (2 g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 10.0 x 10.0 x 2.0" |
