User Manual for Countryman E6s Omnidirectional Earset Microphone for Mipro Transmitters Click to enlarge the picture
Contents of the user manual for the Countryman E6s Omnidirectional Earset Microphone for
- Product category: Microphones for Wireless Countryman
- Brand: Countryman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Countryman Microphones for Wireless
User manual for the Countryman E6s Omnidirectional Earset Microphone for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Countryman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Countryman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Countryman product will considerably shorten its lifespan!

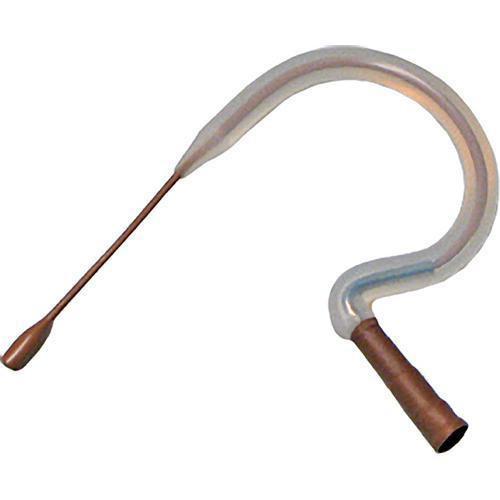

Product description The Countryman E6s Omnidirectional Microphone is a miniature earset microphone for virtually invisible operation. The compact size and placement just in front of the ear make this microphone particularly well-suited for intimate theater and broadcast applications, or any use where low mic visibility is a key factor.
The omnidirectional pickup pattern provides a generous and forgiving pickup area around the perimeter of the capsule, while the stainless steel construction stands up to daily use, makeup, and sweat. The mic also comes with 3 different interchangeable caps that let you choose between a flat, bright, or very bright frequency response.
This version of the E6s is cocoa and comes with a 2mm diameter Duramax cable. It terminates to a Screw-on 4-pin Mini connector for use with Mipro wireless transmitters.
- Miniature Design
- The miniature design is ideal for use in applications where visibility is a key factor, such as intimate theater settings and broadcasting
- Rugged and Reliable
- The stainless steel construction allows the mic to stand up to daily use, makeup, and sweat. When used with the included caps, the mic is virtually waterproof
- Removable Cable
- The included 2mm diameter Duramax cable detaches easily from the headset, making it completely replaceable in the event of a short or break. The replaceable cable design makes upgrading wireless microphone systems easy, as they are available with a wide selection of connectors to accommodate various wireless transmitters
- Omnidirectional Polar Pattern
- The omnidirectional polar pattern is effective in minimizing handling noise from fabric and wind
- Interchangeable Frequency Response Caps
- The mic comes with 3 interchangeable caps that provide you with a flat, bright, or very bright frequency response
In the Box Countryman E6s Omnidirectional Earset Microphone for Mipro Transmitters (Mid Gain, Cocoa) Storage Case Windscreen Flat Frequency Cap Bright Frequency Boost Cap Very Bright Frequency Boost Cap 2mm Diameter Duramax Cable Black Cable Clip White Cable Clip 1-Year Limited Warranty Table of Contents
- Sensitivity Optimized for Loud Speaking and Vocals
- The mic has a medium sensitivity that is ideal for loud speaking and vocal applications
Upload User Manual
Have you got an user manual for the Countryman E6s Omnidirectional Earset Microphone for Mipro Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Countryman E6s Specs
| Transducer || Condenser |
| Polar Pattern || Omnidirectional |
| Frequency Response || 20Hz to 20kHz |
| Dynamic Range (Typical) || Not Specified by Manufacturer |
| EIN || 24dBA SPL |
| Maximum Input Sound Level || 130dB SPL |
| Power Requirements || Operating Current: 500uA |
Operating Voltage: 1 to 2V
Power Supply Voltage:
+3V with 2.7 kOhms Load
+5V with 6.8 kOhms Load
+9V with 15 kOhms Load
| Output Impedance || Not Specified by Manufacturer |
| Output Connectors || Screw-on 4-pin Mini Connector for Mipro Transmitters |
| Dimensions || Not Specified by Manufacturer |
| Weight || 0.07 oz (2g) |
| Package Weight || 0.5 lb |
| Box Dimensions (LxWxH) || 10.0 x 10.0 x 2.0" |
