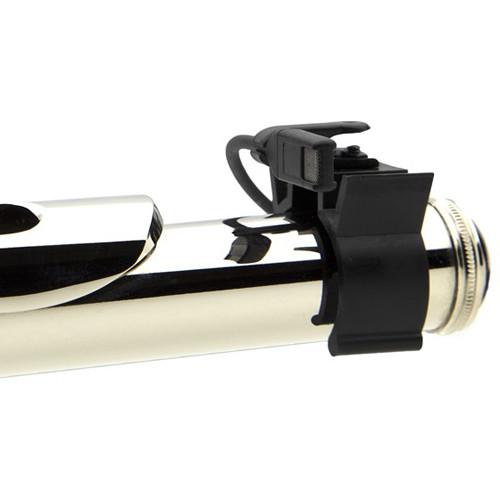

Product description The I2 Flute Microphone Kit from Countryman features a miniature condenser microphone designed for placement on a flute when used in live sound applications. Its 3.5mm locking connector is wired for use with Sennheiser Evolution Series (G2 and G3) ew 100, ew 300, ew 500, SK AVK, SK D1, SK 1093, and SK 20 wireless transmitters. The omnidirectional polar pattern picks up the direct sound and resonance around the mic, while the 20 Hz to 20 kHz frequency response provides accurate and detailed sound, from low breaths to high trills. The high maximum SPL of 150 dB handles loud performances, even when close-miking the instrument. The mic’s circuitry outputs a high-gain signal with low noise, and is calibrated to meet the demands of wireless audio transmission. The I2's minuscule body will not get in the talent’s way or be an eyesore on camera. The included flute mount reduces vibration noise for clear audio, and provides a quick and stable setup. The kit also includes a windscreen and carrying case. -
- Wireless condenser microphone works with Sennheiser Evolution Series (G2 and G3) ew 100, ew 300, ew 500, SK AVK, SK D1, SK 1093, and SK 20 transmitters
- Omnidirectional polar pattern picks up direct sound and resonance around the mic
- Optimized for flute and includes flute mount
- Low noise and high-gain output
- 150 dB maximum SPL handles loud sound sources, even when close-miked
- 20 Hz to 20 kHz frequency response provides accurate and detailed sound
- Minuscule design fits easily in small spaces
In the Box Countryman I2 Flute Microphone Kit for Sennheiser Transmitters (Omnidirectional, High Gain, 3.5mm Locking Connector) I2 Flute Mount Windscreen Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Countryman I2 Flute Microphone Kit for Sennheiser Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCountryman i2 Specs | Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 20 Hz to 20 kHz | | Maximum Input Sound Level | 150 dB SPL at 1% THD | | Equivalent Noise Level | 25 dB SPL (A-weighted) | | Sensitivity | 1.4 mV/Pascal | | Output Impedance | 600 Ohms ±2% | | Compatibility | Compatible with Sennheiser Evolution Series (G2 and G3) ew 100, ew 300, ew 500, SK AVK, SK D1, SK 1093, and SK 20 transmitters | | Connector | 3.5 mm locking connector | | Cable Length | 5' / 1.5 m | | Dimensions (W × H × D) | 0.3 x 0.4 x 0.1" / 7.0 x 10.5 x 3.5 mm (mic) | | Weight | 1 lb / 0.5 kg (mic)
8 oz / 226.8 g (mount) |
