User Manual for Countryman Isomax 2 All Purpose Microphone Click to enlarge the picture
Contents of the user manual for the Countryman Isomax 2 All Purpose Microphone
- Product category: Microphones for Wireless Countryman
- Brand: Countryman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Countryman Microphones for Wireless
 |
User manual for the Countryman Isomax 2 All Purpose Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Countryman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Countryman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Countryman product will considerably shorten its lifespan!
|
Product description The Countryman Isomax 2 All Purpose Microphone is a miniature and versatile favorite that is well suited for capturing instruments, choir groups, stage performances, ambient audio and much more. The Isomax 2 delivers excellent gain before feedback for maximum performance and minimal noise on stage and in noisy environments.As an instrument microphone, the Isomax 2 captures brass, strings, percussion and wind instruments with pristine results. For capturing ambiance and group vocals, the microphone rejects off-axis noise and feedback with exceptional results.A wide variety of connections are available for use with various wireless transmitters. This version features a Toa 1/8" (3.5mm) Mini connector for Toa wireless transmitters. - Versatile Design
- The Isomax 2 All Purpose Microphone is designed to effectively capture instruments and vocals in both recording and sound reinforcement.
- Hypercardioid Polar Pattern
- The Hypercardioid polar pattern is versatile and ideal for capturing vocals and instruments without off-axis noise and distortion. The directional pattern is unaffected by frequency variations and provides a high rejection.
- Pristine Audio Quality
- A wide frequency response and low signal-to-noise ratio result in clean audio reproduction.
- High Sound Pressure Handling
- The Isomax 2 features an impressive 150dB SPL handling for maximum gain before distortion. This is ideal while close capturing instruments with high transient response.

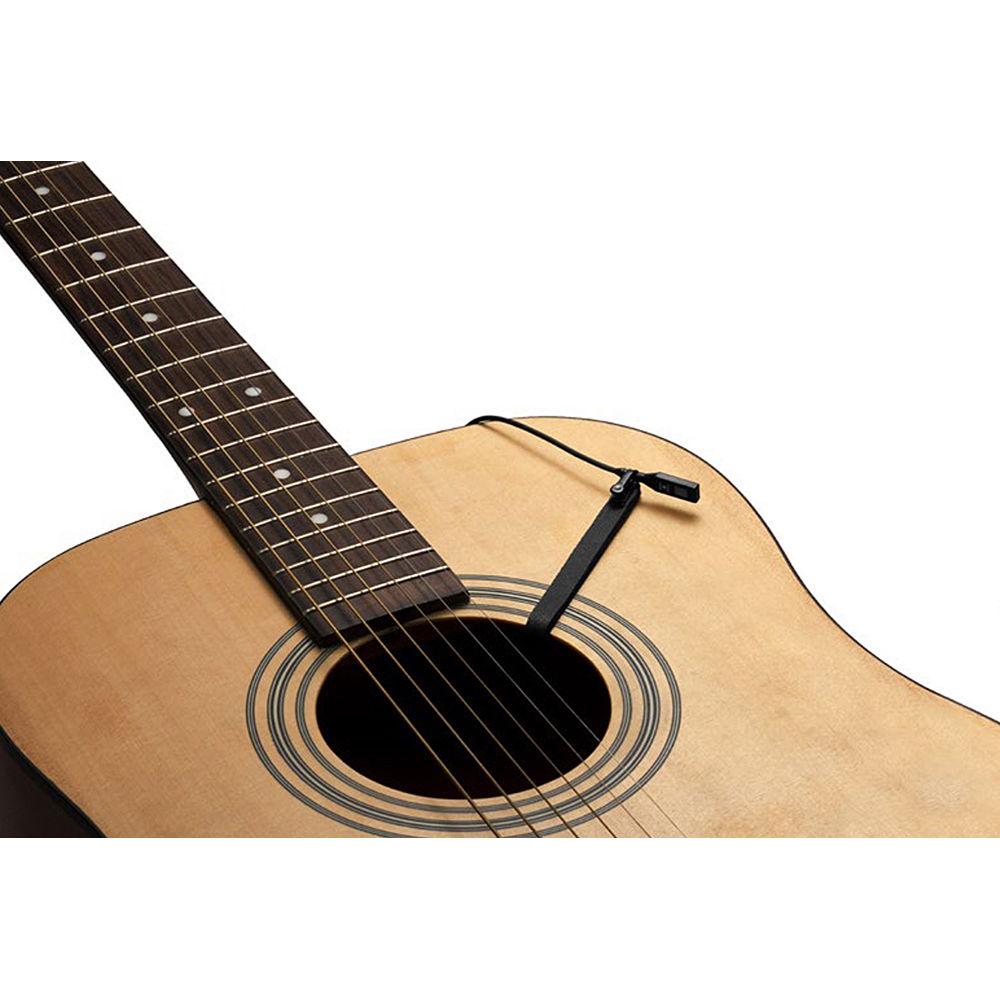

Applications - Inside or outside musical instruments, placed on or hung over stages and hidden in sets for theater, motion pictures and TV
- Audience mics, stage mics
- Available in cardioid, hypercardioid, and omni directional patterns
Performance - Text book perfect polar patterns for excellent stereo separation and rejection of unwanted sounds.
- Very low distortion at the high sound levels encountered inside instruments with super flat frequency response for an uncolored, very clean sound.
- Directional pattern is frequency-independent - doesn't become omni at low frequencies
- Excellent gain before feedback
Style - Sleek, small, lightweight mic doesn't distract instrumentalist or house
- Easy to hang without scaffolding

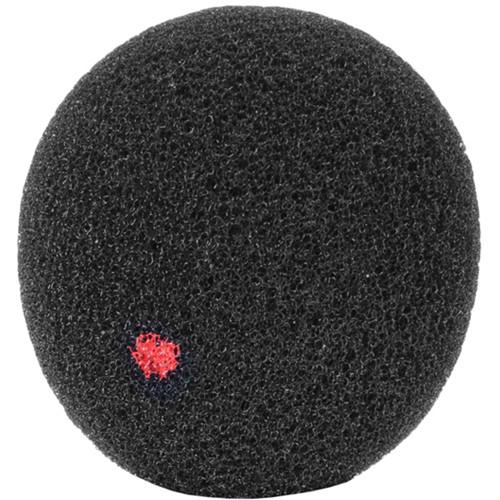

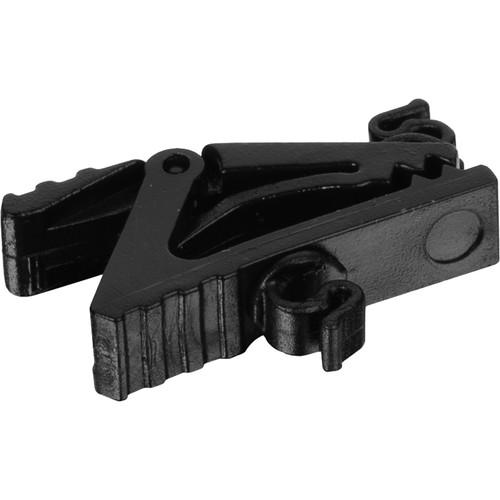

In the Box Countryman Isomax 2 All Purpose Microphone Carry Case Windscreen Basic Clip Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Countryman Isomax 2 All Purpose Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCountryman Isomax 2 Specs | Transducer | Condenser | | Polar Pattern | Hypercardioid | | Frequency Response | 50 Hz to 20 kHz | | Signal-to-Noise Ratio | 29 dB SPL A-weighted | | Maximum Input Sound Level | 150 dB SPL @ 1% THD | | Power Requirements | 6 to 50 V @ 4 mA. Voltages below 24 V will result in reduced SPL | | Output Impedance | 600 Ohms balanced +/- 2% balanced, transformerless | | Output Connectors | Toa 1/8" (3.5mm) Mini Connector for Toa Bodypack Transmitters | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 0.31 x 0.63 x 0.15" (8 x 16 x 4 mm) | | Weight | Not Specified by Manufacturer | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 10.0 x 10.0 x 2.0" |
