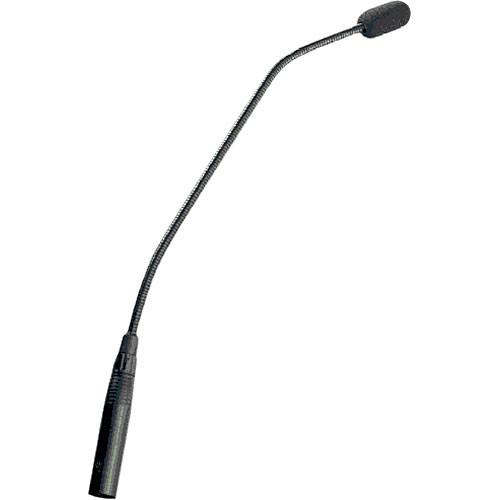

User Manual for Countryman Isomax 4RF Cardioid Gooseneck Microphone Click to enlarge the picture
Contents of the user manual for the Countryman Isomax 4RF Cardioid Gooseneck Microphone
- Product category: Gooseneck Microphones Countryman
- Brand: Countryman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Countryman Gooseneck Microphones
|
User manual for the Countryman Isomax 4RF Cardioid Gooseneck Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Countryman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Countryman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Countryman product will considerably shorten its lifespan!
|
Product description The Countryman Isomax 4RF Gooseneck Microphone improves on a standard that can be found in many boardrooms, schools, courtrooms, meeting halls, etc.The gooseneck microphone is designed to capture vocals with great clarity and detail while effectively rejecting nearby radio frequency (RF) interference from cell phones, computers and other electrical sources. Active Vibration Isolation uses a separate element to sense noise caused by vibration and shock and eliminates the noise on output.The microphone itself delivers exceptional quality with a flat 70Hz to 18kHz frequency response and exceptional wind and breath noise reduction. The Isomax 4RF features a standard 3-pin XLR base and is an ideal choice for lectures, depositions, courtroom proceedings, and much more. - Rigid Gooseneck
- The rigid design does not offer flexible ends, rather the entire neck can be positioned (bent) for fixed placement.
- Excellent RF Rejection
- The Isomax 4RF effectively rejects nearby radio frequency (RF) interference from cell phones, computers and other electrical sources.
- Exceptional Sound Quality
- The microphone itself delivers exceptional quality with a flat 70Hz to 18kHz frequency response and exceptional wind and breath noise reduction.
- Active Vibration Isolation
- Active Vibration Isolation uses separate element to sense noise caused by vibration and shock and eliminates the noise on output.
In the Box Countryman Isomax 4RF Cardioid Gooseneck Microphone Windscreen Storage Tube Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Countryman Isomax 4RF Cardioid Gooseneck Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCountryman Isomax 4RF Specs | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Response | 70Hz to 18kHz | | Dynamic Range (Typical) | Not Specified by Manufacturer | | Signal-to-Noise Ratio | 39dBA SPL | | Maximum Input Sound Level | 120dB SPL @ 1% THD | | Power Requirements | Phantom, 6 to 50V @ 2mA | | Output Impedance | 270 Ohms balanced +/- 2% balanced, transformerless | | Output Connectors | 3-pin XLR Connector | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | Tube Length: 24" (60.96cm) Long | | Weight | Not Specified by Manufacturer | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 10.0 x 10.0 x 2.0" |
