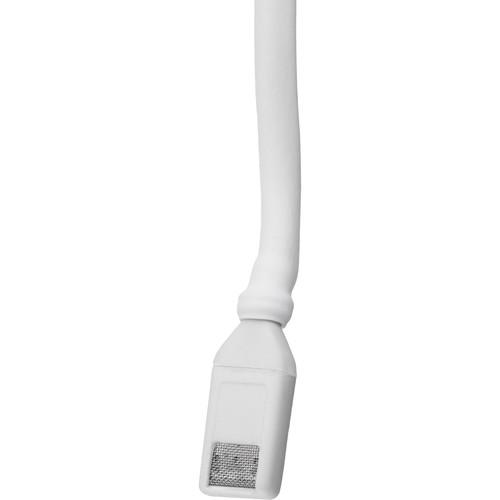

User Manual for Countryman Isomax II H - Miniature Choir and Hanging Sound Reinforcement Microphone Click to enlarge the picture
Contents of the user manual for the Countryman Isomax II H - Miniature
- Product category: Hanging Microphones Countryman
- Brand: Countryman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Countryman Hanging Microphones
|
User manual for the Countryman Isomax II H - Miniature contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Countryman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Countryman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Countryman product will considerably shorten its lifespan!
|
Product description The Countryman Isomax II H hanging microphones are designed for fixed installation over stages, orchestras, choirs, etc. The microphone features an adjustable steel hanger for flexible, long-term positioning in any direction. The Isomax II H also includes 50-feet (15.24m) of specially constructed cable for reliable, noise-free signal and stable microphone positioning.The design incorporates Countryman's dedication to high audio standards with features that included a low-mass miniature capsule and back-plate polarization. The result yields a high transient response without distortion and a uniform frequency response at the direct and off-axis sections of the polar pattern. Fewer Isomax II H microphones are needed to achieve maximum pickup and a full, rich sound.The Countryman Isomax II H is a professional miniature overhead microphone that is well suited in theaters, houses-of-worship, sound stages, orchestra pits and much more. - Uniform Response
- The capsule's design results in a frequency independent, directional polar pattern. A rich, full sound is achieved with fewer microphones.
- Unobtrusive Design
- The miniature Isomax II H features a miniature unobtrusive design. The microphone may be installed overhead while remaining out of view.
- Flexible Overhead Positioning
- The included wire hanger and 50-foot cable provide flexible yet stable long-term positioning over stages, choirs, orchestras, etc.
In the Box Countryman Isomax II H - Miniature Choir and Hanging Sound Reinforcement Microphone (White) (Omnidirectional) Wire Hanger 50-Foot (15.24m) XLR Cable Table of Contents
|
Upload User Manual
Have you got an user manual for the Countryman Isomax II H - Miniature Choir and Hanging Sound Reinforcement Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCountryman Isomax II H Specs | Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 40Hz to 18kHz (figure 1) | | Dynamic Range (Typical) | 101dB | | Signal-to-Noise Ratio | 65dB referred to 94dB SPL | | Maximum Input Sound Level | 130dB @ 1% THD 1kHz | | Power Requirements | Phantom 9V @ 1mA to 55V @ 8 mA | | Output Impedance | 350 ohms | | Output Connectors | 3-pin XLR | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | Not Specified By Manufacturer | | Weight | Not Specified By Manufacturer | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 5.8 x 5.4 x 3.3" |
