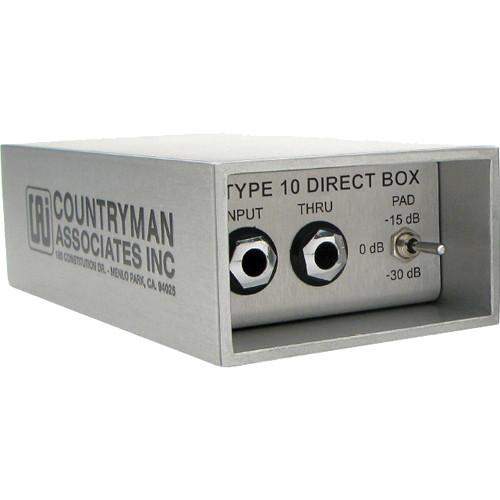

User Manual for Countryman Type 10 Direct Box - Active DI Click to enlarge the picture
Contents of the user manual for the Countryman Type 10 Direct Box -
- Product category: Direct Boxes Countryman
- Brand: Countryman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Countryman Direct Boxes
|
User manual for the Countryman Type 10 Direct Box - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Countryman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Countryman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Countryman product will considerably shorten its lifespan!
|
Product description The Type 10 Direct Box from Countryman is an active DI that tackles the difficult tradeoffs present when dealing with direct injection sources - ultra-low distortion can only be attained by increasing input noise, while true ground isolation means high phase deviation or signal attenuation. Using an analog circuit that tunes itself, the Type 10 maintains exceptionally low THD and IMD specifications across the entire audio band, and for a wide range of input voltages, rendering the source sound with extremely high fidelity. The result is a clean, precise sound. The Type 10 is armored inside and out, with a molded core wrapped in an extra thick architectural aluminum housing. The switches and connectors are fully recessed. The electronics can shrug off static spikes and will survive with the input connected directly to 110V or 220V line voltage. - Rock solid isolation designed to drive any board across hundreds of feet of cable whether or not phantom power is available
- Internal electronics are molded into a solid epoxy block and protected against electrical damage
- The outer casing is a single piece featuring extra thick walls
- Handles sizzling hot outputs from active keyboards using the -15dB pad with virtually immeasurable distortion
- Ground lift switch eliminates noise and buzz caused by faulty electrical wiring
- Access the battery using the edge of a coin
- Check the battery voltage and monitor the quality of the phantom power with the flip of a switch
In the Box Countryman Type 10 Direct Box - Active DI Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Countryman Type 10 Direct Box - Active DI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCountryman DT10 Specs | Type | Active | | Input Connections | 1 x 1/4" TS phone | | Output Connectors | 1 x XLR
1 x 1/4" TS phone Thru | | Input Level | 6Vpp (0dB pad)
33Vpp (-15dB pad)
190Vpp (-30dB pad) | | Controls | Ground Lift switch
3-way Pad switch | | Frequency Response | 10Hz to 50kHz (+/-1.0dB) | | Noise | 1.8µVrms (-115dBVrms) | | Power | 48V phantom (1.5mA)
9V battery (4.8mA, 130 hours on a typical alkaline) | | Dimensions (WxDxH) | 3 x 6 x 1.75 (77 x 152 x 45mm) | | Weight | 1.3 lbs (0.6kg) | | Specialties | Check the battery voltage and monitor the quality of the phantom power with the flip of a switch | | | | Package Weight | 1.455 lb | | Box Dimensions (LxWxH) | 7.05 x 3.4 x 2.25" |
