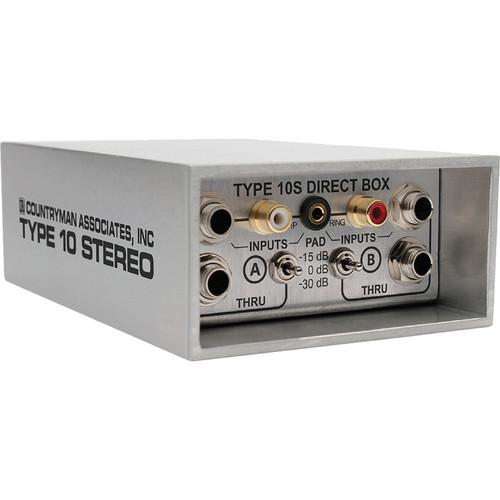

Product description The Countryman Type 10S Stereo Direct Box can be used to connect the output of any high impedance instrument, such as a keyboard or guitar, to a balanced XLR microphone input, allowing you to send signal to a mixer or mic preamp from your high impedance instrument. It features a 1/4" and RCA input per channel, as well as a gold-plated stereo 1/8" input. The unit also has two 1/4" throughputs, allowing you to run a high impedance signal to an amplifier. The two balanced XLR outputs allow you to run your signal to any standard mic level input.
The Type 10S is designed with a flat frequency response from 10Hz to 50kHz with a linear phase response within two degrees for its range. This provides an accurate transient response, resulting in a transfer of your signal that is faithful to the source. The Type 10S features an active circuit, powered by 48 volt phantom power or an internal nine-volt battery. The active circuit allows your signal to pass through the direct box without being padded, as with passive boxes, and results in lowered noise and interference.
The unit features two channel independent ground lifts, which can reduce hum and electrical interference. The Type 10S also has a 0dB, 15dB, or 30dB selectable pad per channel, as well as a phantom and battery power test switch. - Over 105dB of cross talk rejection prevents signal mixing between the two channels
- Connectors and switches are recessed into a single-piece extruded case with extra thick walls. Internal electronics are molded in epoxy to protect against electrical damage
In the Box Countryman Type 10S Stereo Direct Box Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Countryman Type 10S Stereo Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCountryman Type 10S Specs | Input Connections | 2x metal threaded nose 1/4" (6.35 mm)
2x gold plated RCA
1x gold plated stereo 1/8" (3.18 mm) | | Throughput | 2x 1/4" (6.35 mm) | | Output Connectors | 2x XLR | | Frequency Response | 10 Hz to 50 kHz (+/- 1 dB) | | Deviation from Linear Phase | 2° (30 Hz)
0° (100 Hz to 20 kHz) | | Input Level | 5 Vpp (0 dB pad @ 1% THD)
28 Vpp (-15 dB pad @ 1% THD)
158 Vpp (-30 dB pad @ 1% THD) | | Input Protection | 220 Vrms and 20 kV discharges | | Transformer Isolation Voltage | >500 V from instrument ground to either XLR output pin 1 | | Input Resistance | 10 MΩ (0 dB pad)
10 kΩ (-15, -30 dB pad)
20 kΩ (RCA and 1/8" inputs) | | Input Capacitance | 240 pF (equal to 3 ft of low-capacitance guitar cable) | | Output Polarity | Pin 2 positive | | Pad | 0 dB, -15 dB, -30 dB | | RF Low-Pass Filtering | Input: 1.5 MHz
Output: 60 kHz | | Cross-Talk Rejection | >105 dB (20 Hz to 20 kHz) | | Controls | 2x Ground lift switch
2x Pad selector switch
1x Power test switch | | Noise | 1.8 μVrms (-115 dBVrms with shorted input, bandwidth = 22 Hz to 20 kHz) | | Distortion | 1 Vpp in, RL = 1.2 kΩ through 200' of XLR cable:
THD:
< 0.001% at 1 kHz
< 0.005% from 30 Hz to 20 kHz
IMD:
< 0.002% (10 kHz/60 Hz, 4:1) | | Power Requirement | 48 V Phantom @ 1.5 mA or 9 V Battery @ 4.8 mA (130 hours on a typical alkaline) | | Dimensions (WxDxH) | 2.00 x 4.00 x 6.25" (5.1 x 10.2 x 15.9 cm) | | Weight | 31.2 oz (884.5 g) | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 7.4 x 4.4 x 2.5" |
