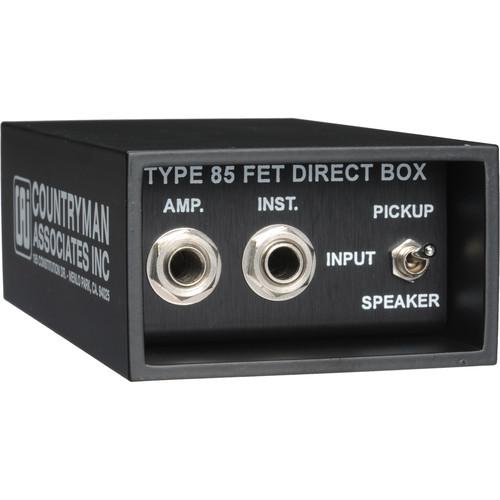

User Manual for Countryman TYPE 85 Direct Box Click to enlarge the picture
Contents of the user manual for the Countryman TYPE 85 Direct Box
- Product category: Direct Boxes Countryman
- Brand: Countryman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Countryman Direct Boxes
|
User manual for the Countryman TYPE 85 Direct Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Countryman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Countryman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Countryman product will considerably shorten its lifespan!
|
Product description The Countryman Type 85 is a compact direct box that connects instruments with high impedance pickups, such as piezo pickups to a balanced XLR type microphone input. The Type 85 utilizes high quality components and class A circuitry to ensure pristine audio fidelity and lowest possible noise floor. A ground lift switch further minimizes noise and hum caused by faulty electrical lines. The Type 85 operates via +48 Volt external phantom power or 9 Volt alkaline battery. - Pristine Audio Fidelity
- The Type 85 uses high quality discrete components into a single ended class A circuit resulting in smooth, pristine audio fidelity with low noise floor.
- Durable Construction
- Internal electronics are molded into a solid epoxy block and protected against electrical damage. The outer casing is a single piece featuring extra thick walls.
- Ground Lift Switch
- A ground lift switch eliminates noise and buzz caused by faulty electrical wiring.
- Voltage Gain Selector
- Pickup mode and Speaker mode switch allows -10dB and -46dB operation.
In the Box Countryman TYPE 85 Direct Box Life Time Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Countryman TYPE 85 Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCountryman Type 85 Specs | Number of Channels | 1 | | Inputs | Amp: 1/4" Phone
Inst: 1/4" Phone | | Output | Balanced XLR 3-pin Male mic level | | Phantom Power | External: +48V Phantom Power
Internal: 9-Volt Battery | | Multi Function | Pickup mode: -10dB
Speaker mode: -46dB | | Gain Range | not specified by manufacturer | | Maximum Level | Max Input Level: Pickup mode - 5 Volts P-P | | Frequency Response | 20Hz to 20kHz +/- 1dB | | Noise | .63uV RMS (-122dBu) BW=20kHz | | Dimensions | 1.75 x 3 x 5" (45 x 77 x 127mm) (HxWxD) | | Weight | 18.5 oz (.52 kg) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 6.6 x 3.4 x 2.2" |
