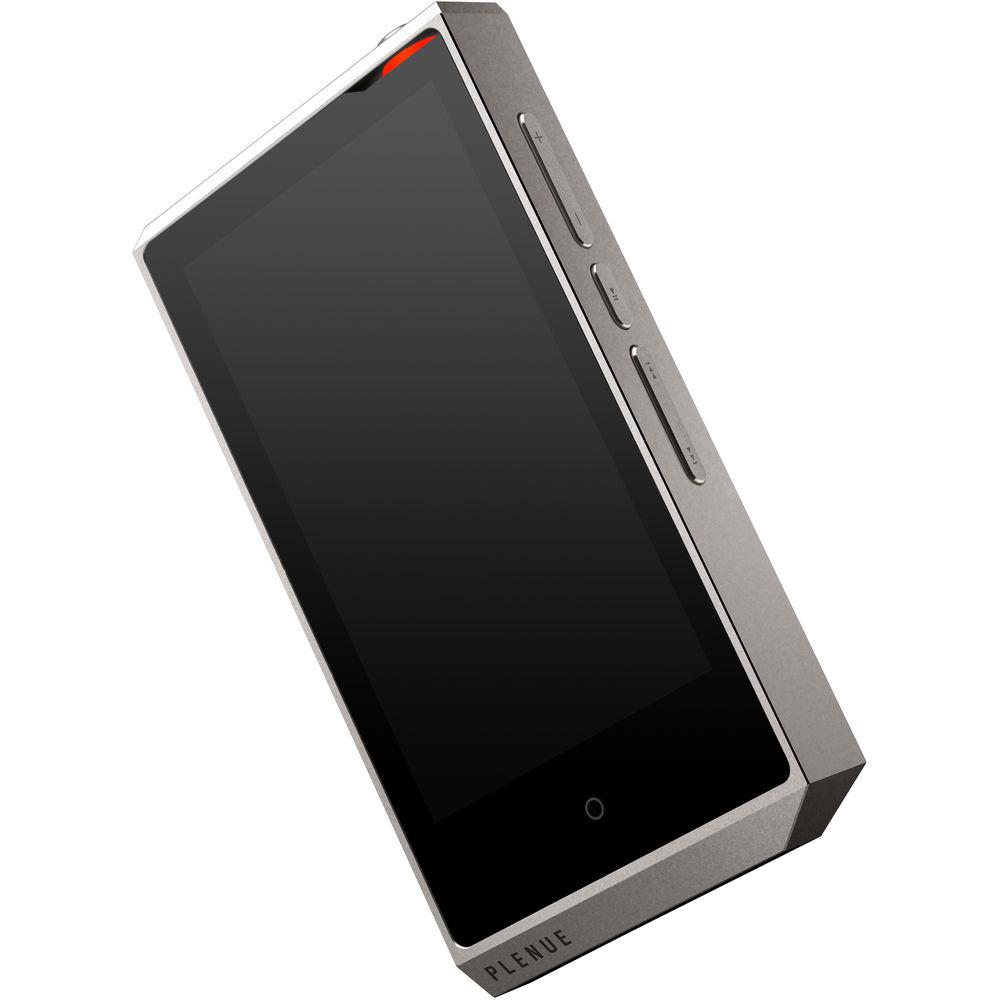

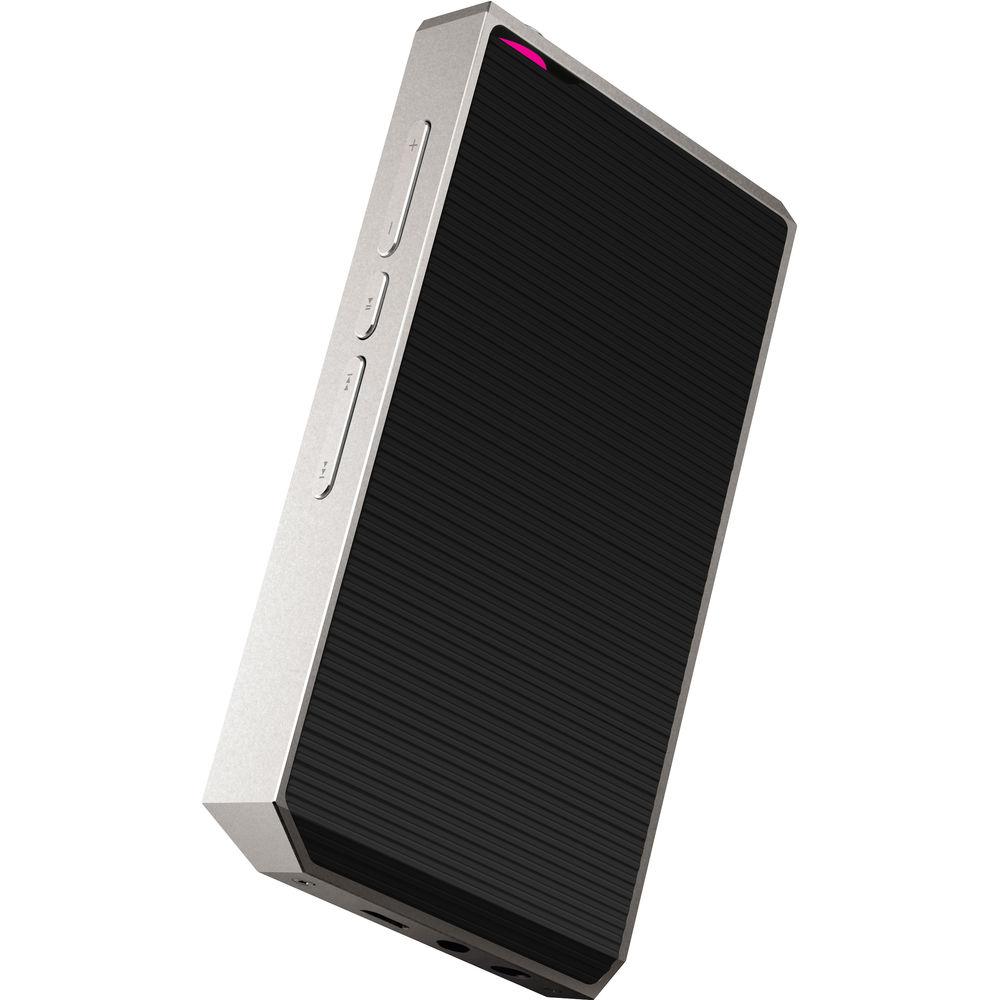

Product description The robust and angular body of the Cowon Plenue R 128GB Portable High-Resolution Audio Player is constructed from CNC-machined, high-strength anodized aluminum, and houses sophisticated audio reproduction technology. At its core is the Texas Instruments PCM5242 DAC and SoundPlus amplifier, which are engineered to reproduce 24-bit/192 kHz, DSD, and DXD audio sources, and drive them through your favorite high-end headphones with high impedance, without the need of a separate amp. It sports a 3.5mm headphone and optical output, as well as a 2.5mm balanced headphone connector. The balanced output eliminates transmission noise by adding "out of phase" signals to reproduce clearer and crisper original sound.
The Plenue R provides an ample 128GB of storage for your high-resolution audio files, and even gives you the ability to expand that with an (optional) microSD card (up to 256GB). Controlling audio settings and playback can be done on the built-in 3.7" AMOLED touch display, or you can utilize physical side buttons that operate power, volume, playback, and search. When playing your audio files, the color-changing LED indicator lets you know the type you're listening to at a glance, such as normal audio, HD, or DSD/DXD sound.
There's not much your Plenue R can't play. When adding files, you will enjoy support for DXD, DSD, FLAC, AIFF, OGG, MP3, and much more. The built-in rechargeable 3000mAh LiPo battery provides up to 17 hours of playback, and you can choose to playback files wirelessly with Bluetooth technology. The Plenue R supports the Qualcomm aptX audio codec, which provides high compression efficiency so you can still have a superb audio experience whether you're tethered or not. - JetEffect 7 Sound Control
- Take full control of your audio experience with a 10-band EQ filter, BBE+, and more. You can set up to 16 different presets or experience any of the 50 different reference presets.
10 Band EQ Filter: Advanced settings to adjust the frequency and width of each band
BBE+: High-definition effects to sharpen sound (phase correction)
Mach3Bass: Bass booster to enhance super low-end bass
3D Surround: Three-dimensional sound for an enhanced sense of space
MP Enhance: Compensates lost sound segments
Chorus Mode: 8 different sound effects that enrich your audio (Chorus 1/2/3, Unison 1/2, and Flange 1/2/3)
Reverb Mode: 9 different sound effects for enhanced realism (Chamber, Room, Club, Hall, Auditorium, Cathedral, Stadium, Canyon, and Long) - Four Premium DAC Filters
- Normal, low latency, high attenuation, and asymmetric FIR DAC filters are provided to let you fine tune your audio and implement transient signal responses.
- Customizable GUI
- High-resolution album art, matrix browser, six sophisticated player skins, and three level meter skins all combine to provide different visual looks to your display. In addition, A variety of GUIs can be created through a UCI environment that lets you customize different interface layouts.
- TCXO (Temperature Compensated Crystal Oscillator)
- TCXO is designed to minimize the difference in sampling rates due to the change in temperature, providing phase jitter of 1.0ps.
- Codec Support
- The Plenue R supports the following audio codes: AIFF, FLAC, APE, WAV, MP3, WA, TTA, DXD (352.8/384 kHz), and DSD128 (5.64 MHz)
- 140-Level Volume Control
- Listen to your high-resolution audio at the precise volume level that you desire, thanks to Plenue R's 140 different volume level adjustments. You can hold down the volume button to change settings quickly, or dial in the perfect setting in 0.5dB increments.
- Additional Features
- Optical output (S/PDIF) audio output
USB DAC function that lets you use the Plenue R as an external DAC on your PC
Cortex A9 1.2 GHz dual core CPU
Embedded Linux system
Support for 5 lyric formats, such as LRC, LDB, Lyrics3, and ID3 Tag lyrics
Gapless and Remove Silence functions to minimize the wait between tracks
Multi-Favorite allows you to save tracks into different playlists
Search function lets you use an on-screen keyboard to find the track you want
2-Channel Level Meter in digital and analog that moves dynamically with your music UPC: 826487522428 In the Box COWON Plenue R 128GB Portable High-Resolution Audio Player Micro-USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COWON Plenue R 128GB Portable High-Resolution Audio Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOWON Plenue R Specs | | | DAC | 1 x Texas Instruments PCM5242 24-Bit | | Amplifier | 1 x SoundPlus | | Audio Resolution | DSD128: 5.64 MHz / 1-Bit
PCM: 384 kHz / 32-Bit | | Impedance | 0.8 Ohms (Unbalanced)
1.6 Ohms (Balanced) | | Volume Control | Digital (140 Steps) | | THD + N | 0.001% (Unbalanced)
0.001% at 48 kHz (Balanced) | | Maximum Output Voltage | 1.4 Vrms
1.6 Vrms | | Signal to Noise Ratio | 123 dB | | Clock Jitter | 1.0 ps | | Custom Equalizer | Yes | | | | CPU | 1.2 GHz ARM A9 Dual-Core | | Operating System | Proprietary | | Internal Storage Capacity | 128 GB | | Maximum Storage Capacity | 384 GB | | Flash Media Slot | 1 x microSDXC | | Display | 3.7" OLED (480 x 800 Resolution) | | Operation Method | Physical Buttons, Touchscreen | | FM Tuner | No | | Video Recording | No | | Video Playback | No | | Formats Supported | Audio: DXD, DSD (DFF, DSF), FLAC, WAV, AIFF, ALAC, APE, MP3, WMA, OGG, WV, TTA, DCF | | | | Wireless | Bluetooth 3.0 | | Bluetooth Codecs | aptX | | Connections | 1 x 1/8" (3.5 mm) Stereo Headphone, Optical (3.5 mm)
1 x 2.5 mm Balanced Headphone
1 x Micro-USB 2.0 | | Built-In Mic | No | | | | Battery | 1x Built-In Rechargeable Lithium-Polymer Battery 3000 mAh
Providing up to 17 Hours per Charge for Audio Playback | | Charging Time | Full Charge: 3 Hours | | | | System Requirements | Operating System
Windows ME, 2000, XP, Vista, 7, 8, 10
Mac OS X 10.x
Hardware
USB 2.0 Port Supports Linux v2.4 or higher | | Water Resistance | None | | Dimensions (W x H x D) | 2.4 x 4.4 x 0.5" / 61.5 x 112.9 x 13.9 mm | | Weight | 5.43 oz / 154 g | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 6.0 x 4.0 x 1.8" |
