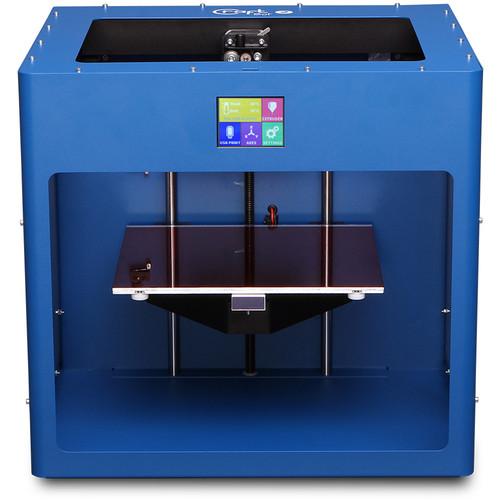

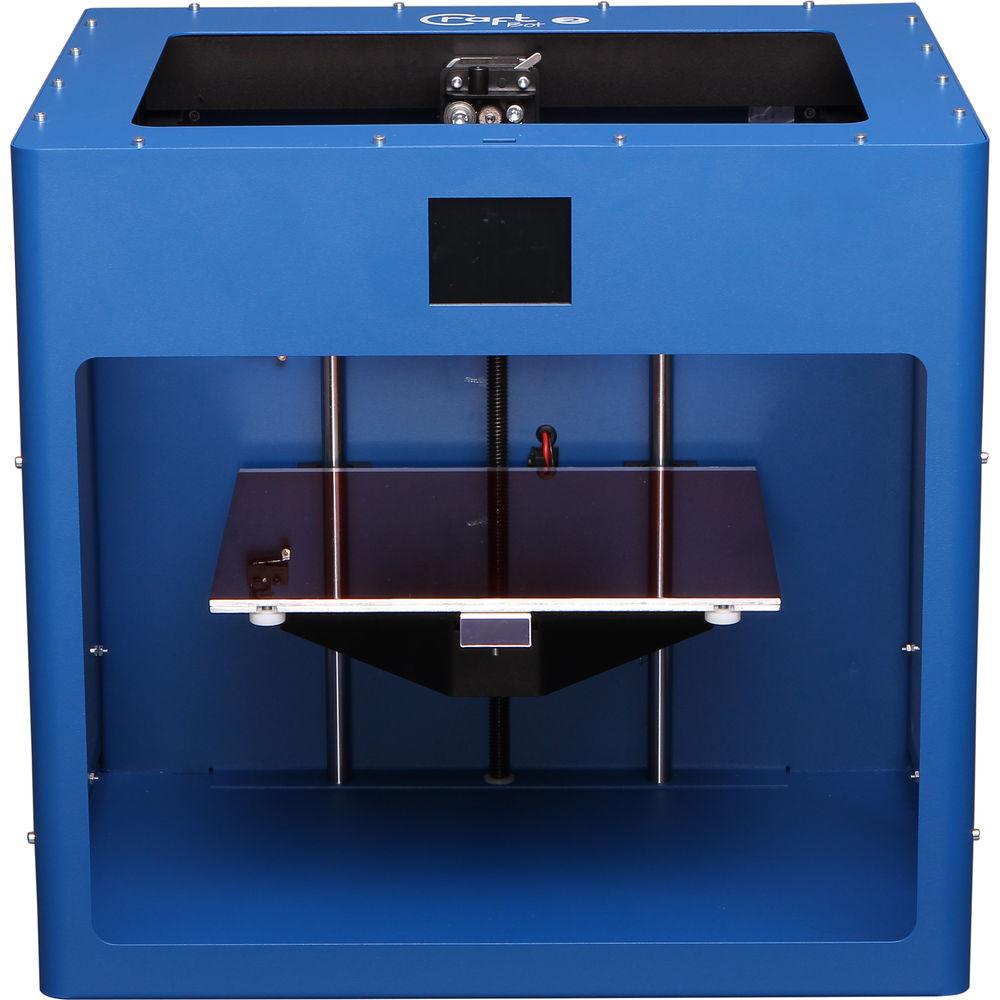

Product description Designed with the aim to further enhance connectivity and freedom of use, the gentian blue CraftBot 2 3D Printer from CraftUnique improves upon their CraftBot PLUS, with an improved cable structure and wireless connectivity. This user-friendly, plug-and-play 3D printer features Fused Filament Fabrication (FFF) printing technology; a build volume of 9.8 x 7.9 x 7.9"; a layer resolution of 100 to 300 microns; a print speed of 50 to 200mm/s; and the ability to utilize 1.75mm filaments. It is equipped with a single extruder nozzle, an open print chamber with a heated print bed, and a color LCD touchscreen. Users may print their compatible .obj, .stl, and .cwprj files via wired USB connectivity, USB flash drives, or Wi-Fi using the included CraftWare printing software. The CraftBot 2 is compatible with Windows 7 and above. General Features - Wireless Connectivity
- Thanks to the Wi-Fi connectivity, the 3D printing process can be controlled and managed wirelessly. With the help of the CraftBot 2 application, users can start and stop the printing process, control the heat settings, the fans, and the light.
- Printing Accuracy
- Thanks to its 100 micron / 0.1mm layer resolution, the CraftBot 2 provides a very high printing quality.
- Printing Size
- Small from the outside, but huge inside, the CraftBot 2 has an impressive build volume of 9.8 x 7.9 x 7.9".
- Color LCD Touchscreen
- The CraftBot 2 has an intuitive, well-organized navigation menu that provides constant information on the printing process.
- Constant Control
- Users can alter printing parameters any time by using the touchscreen - even during the printing process.
- Heatable & Removable Build Platform
- Heating helps prevent warping and sticking, while the removable build platform is easier to clean.
- USB Connectivity
- Connect and control printing directly by connecting your CraftBot 2 3D printer to your Windows system using a USB cable.
- Direct USB Drive Information Loading
- The easiest way to upload your sliced 3D model to CraftBot's memory is using a USB memory stick. In the box, you will find a USB drive with samples so you can immediately test your device.
- CraftWare
- CraftWare is 3D printing software with a user-friendly graphical interface. Its advanced slicing algorithm helps ensure faster conversions and better results.
In the Box CraftBot 2 3D Printer (Gentian Blue) USB Drive with Printing Samples Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CraftBot 2 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCraftBot PR.999.001 Specs | | | Build Volume | 9.8 x 7.87 x 7.9" / 25.0 x 20 x 20.0 cm | | Number of Extruders | 1 | | Layer Resolution | XY Axis: 100 to 300 micron / 0.1 to 0.3 mm (3 Settings) | | Supported Extruder Nozzle Diameter | 400 micron / 0.4 mm | | Extruder Nozzle Temperature | 356 to 500°F / 180 to 260°C | | Positioning Precision | XY Axis: 4 micron / 0.004 mm
Z Axis: 2 micron / 0.002 mm | | Print Speed | 50 to 200 mm/s | | Filament Compatibility | 1.75 mm Diameter | | | | Build Area Type | Open | | Build Plate Features | Heated | | Build Plate Temperature | 122 to 230°F / 50 to 110°C | | 3D Scanner | No | | Monitoring Camera | No | | | | Wi-Fi | Yes | | Media Card Slots | None | | | | Supported Operating Systems | Windows 7 or Later | | Supported 3D File Types | .obj, .stl | | | | Operating Temperature | 59 to 89°F / 15 to 32°C | | Storage Temperature | 32 to 89°F / 0 to 32°C | | Dimensions (W x H x D) | 15.75 x 18.11 x 17.72" / 40 x 46 x 45 cm | | Weight | 30.9 lb / 14 kg | | Warranty Length | Limited 1-Year Warranty | | | | Package Weight | 41.0 lb | | Box Dimensions (LxWxH) | 20.0 x 19.5 x 18.0" |
