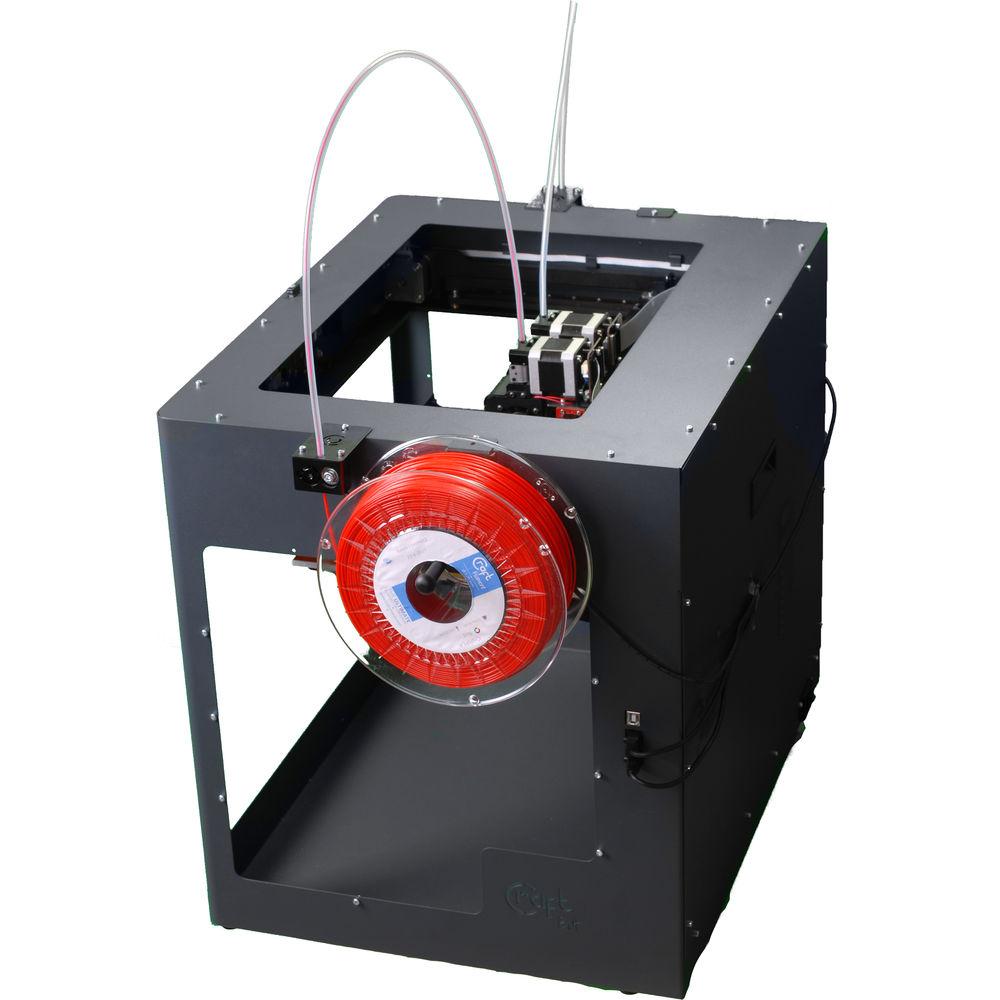

User Manual for CraftBot CraftBot3 3D Printer Click to enlarge the picture
Contents of the user manual for the CraftBot CraftBot3 3D Printer
- Product category: 3D Printers CraftBot
- Brand: CraftBot
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CraftBot 3D Printers
 |
User manual for the CraftBot CraftBot3 3D Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CraftBot product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CraftBot user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CraftBot product will considerably shorten its lifespan!
|

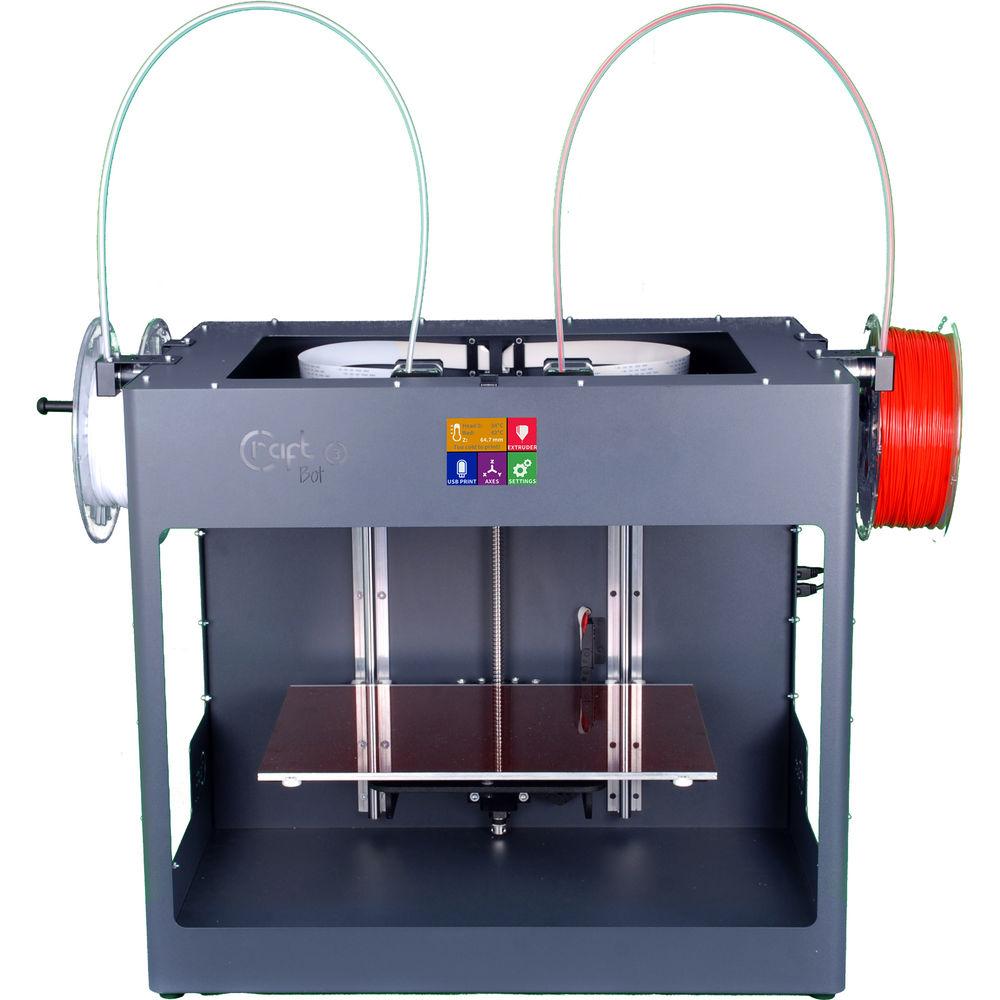

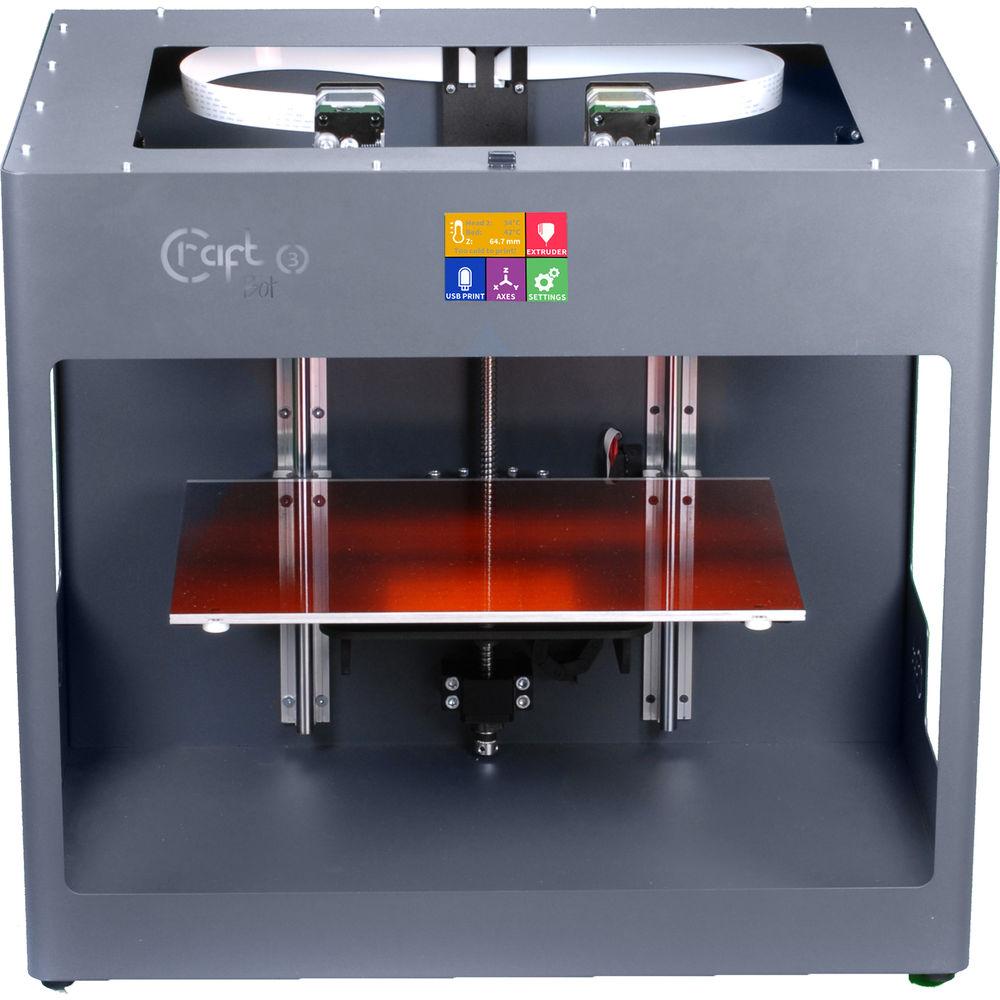

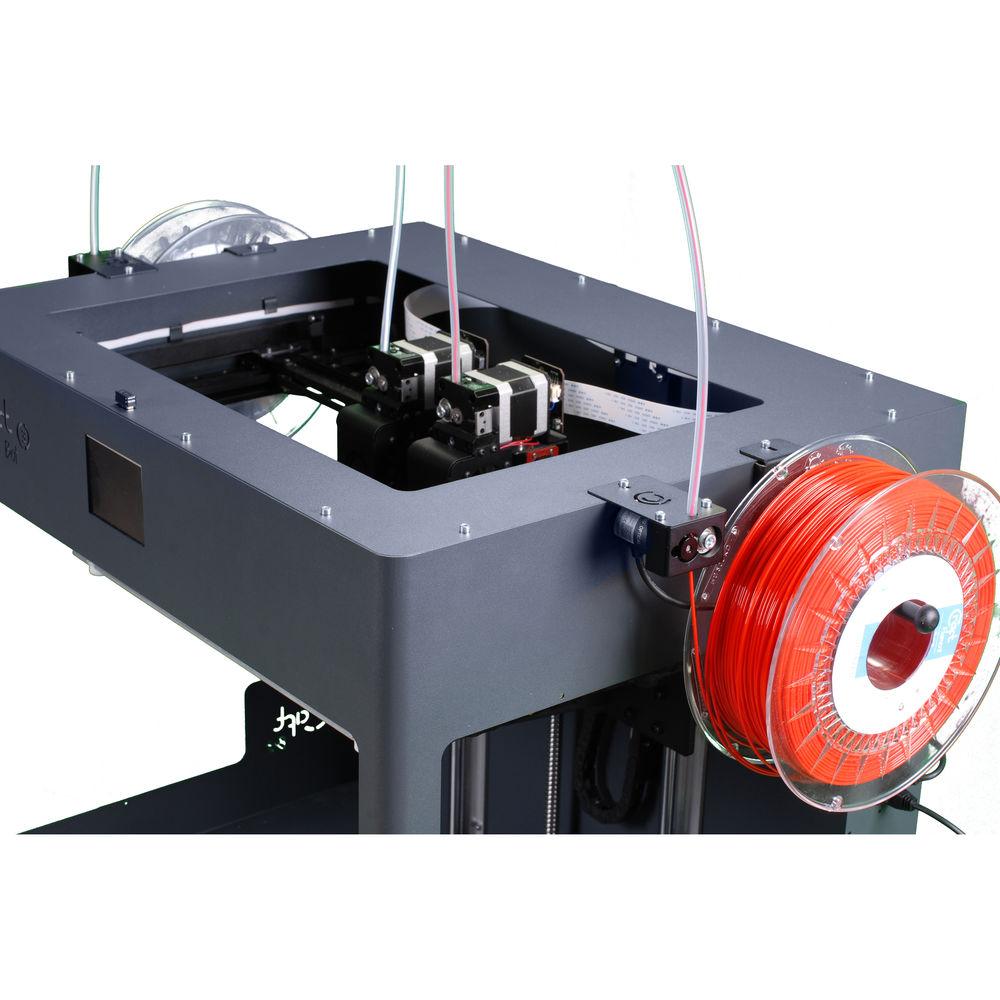

Product description The CraftBot3 3D Printer from CraftUnique has been built with a filament monitoring system (FMS), which helps avoid wasted time and money by supervising filament consumption, starting immediate troubleshooting when a filament jam is detected, and messaging you in case you need to intervene. The printer also features two separate print heads, making it possible to print two objects at a time or print support PVA while printing a single object. This makes printing object supports more user-friendly, as the supports can be dissolved in water after printing is finished.
The CraftBot3 features fused filament fabrication (FFF) printing technology with a build height of 9.8" and total printing area of 14.7 x 9.8", a dual printer head print area of 10.6 x 9.8", and a single printer head print area of 12.7 x 9.8". Layer resolution is 50 microns and print speed 50 to 200mm/s. Filament size is 1.75mm. The printer is also equipped with a heated and removable print bed, a nozzle that can print at temperatures as high as 572°F, and LED status indicators. You can print your compatible .obj, .stl, and .cwprj files via 802.11b/g/n Wi-Fi connectivity. The CraftBot3 is compatible with Windows 7 and above, Mac OS X, Linux, iOS, and Android. General Features - Filament Monitoring System

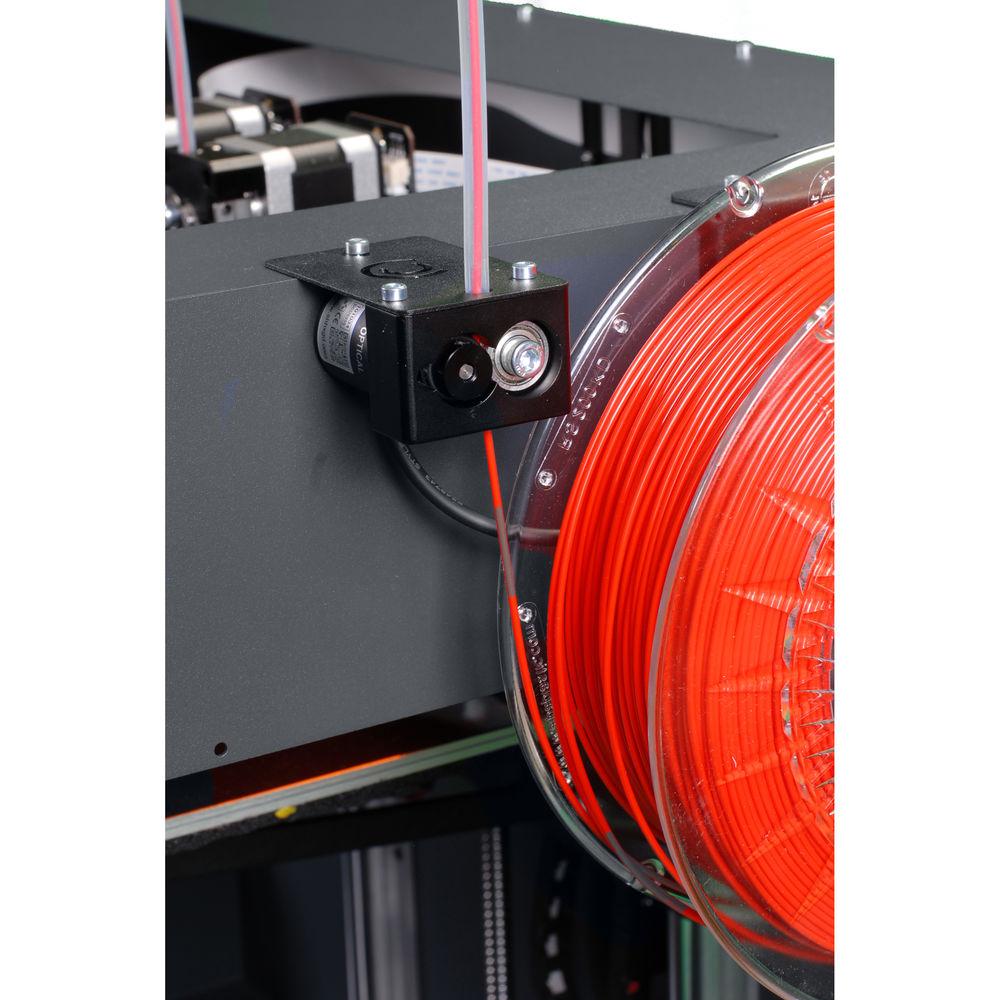

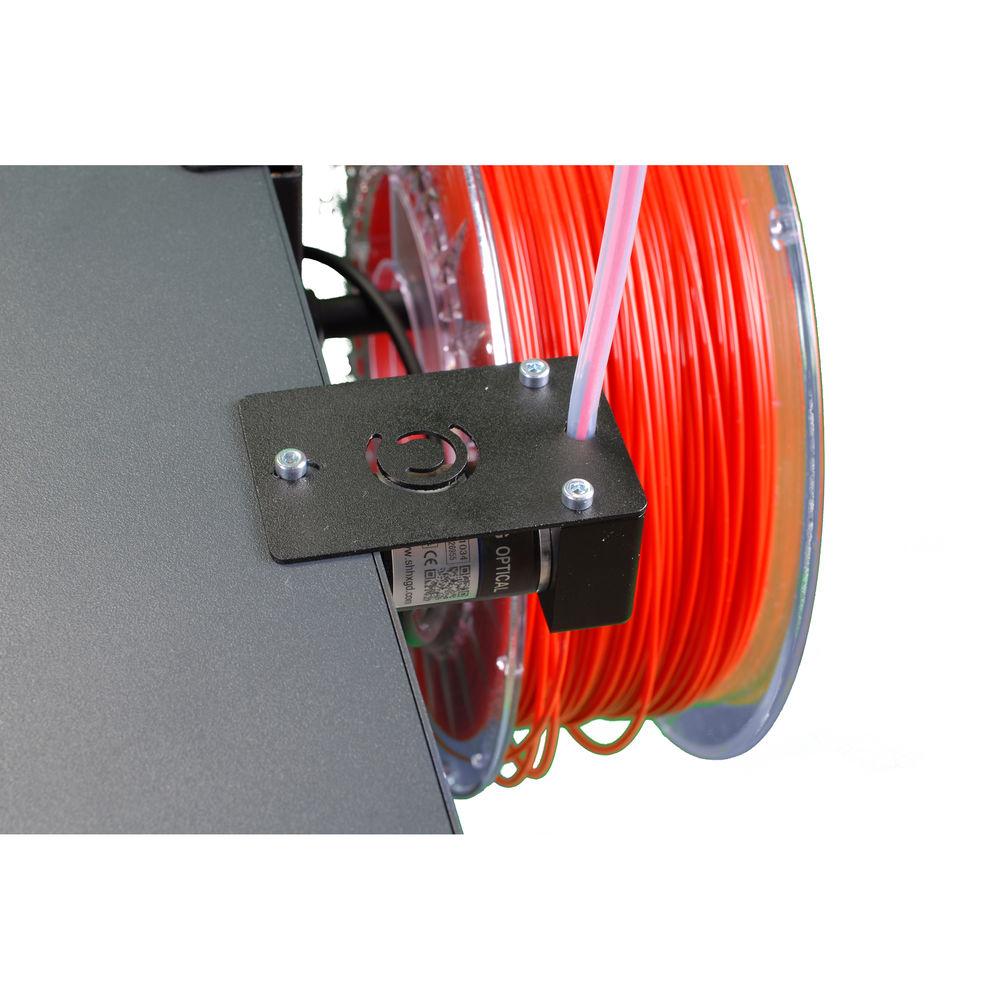

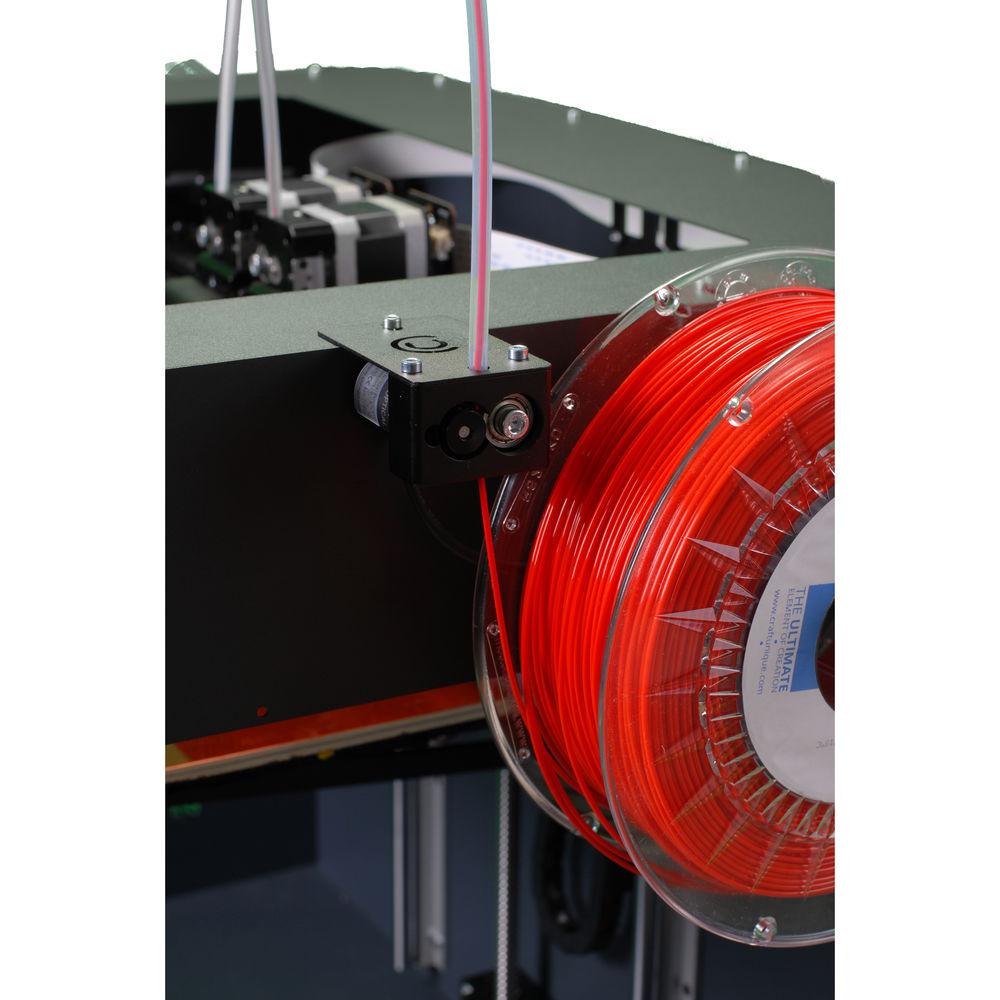

- The filament monitoring system (FMS) of the CraftBot3 supervises filament consumption, starts immediate troubleshooting when a filament jam is detected, and messages you in case there's a need for intervention.

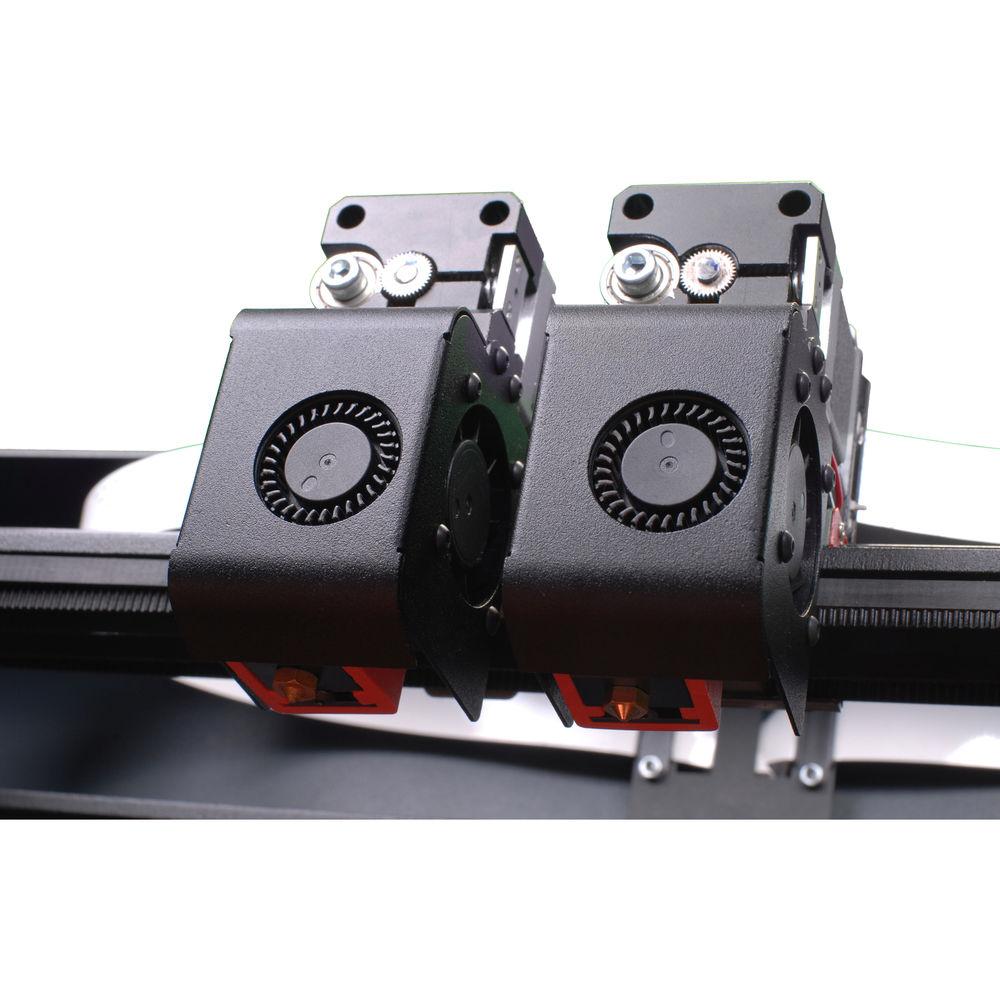

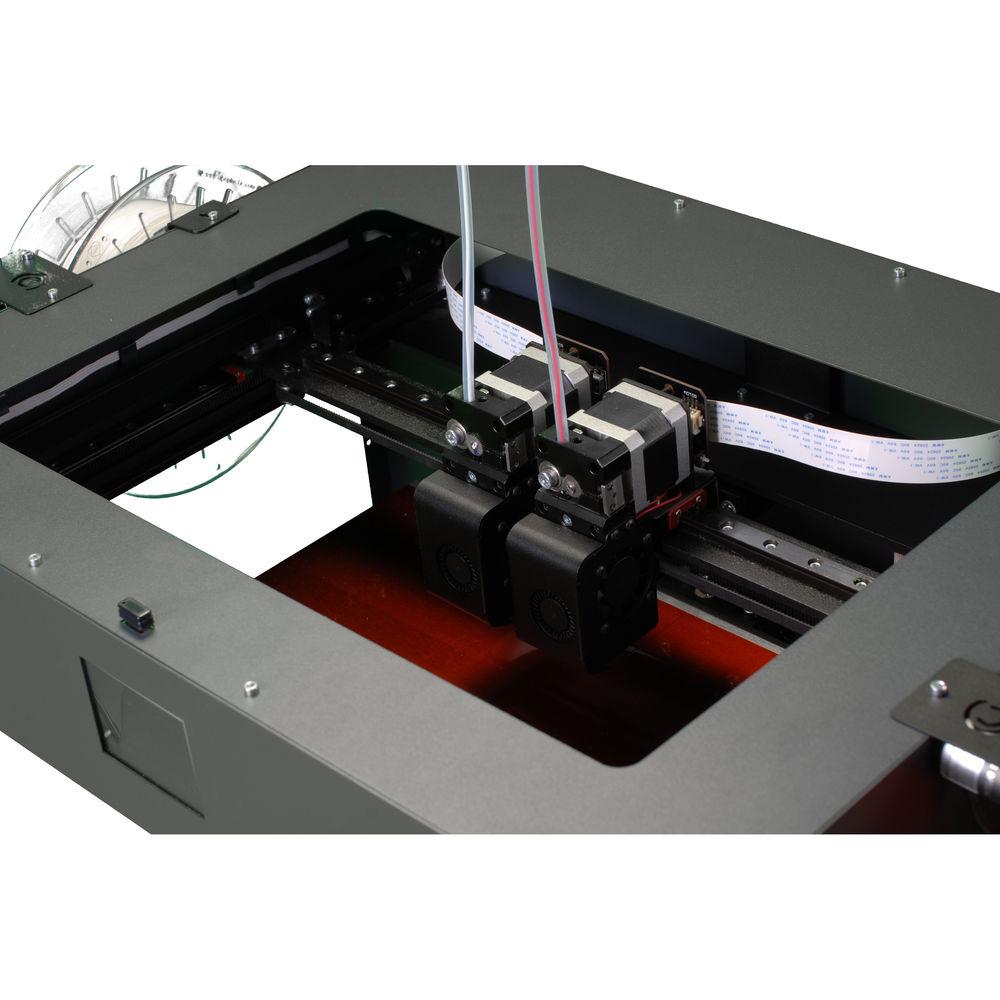

- Dual-Extrusion Print Head
- The two separated printer heads make it possible to print two objects at a time; they also support PVA printing with a single object, which makes printing object supports an easy task, as you can simply dissolve the support in water after printing is finished.
- Motor Control for Quiet Printing
- Thanks to the motor control, 3D printing is quiet.
- Full Metal Hotend
- The CraftBot3 can print at temperatures as high as 572°F, making it especially well suited for use with more specialized filaments.
- LED Status Indicators
- Different-colored LED status indicators signal the current status of printing, which can be customized for an improved experience.
- High-Accuracy Ball Screws
- The CraftBot3 is equipped with high-accuracy ball screws that help to improve the quality of prints.
- Optimized Object-Cooling Technology
- Modified object-cooling technology makes quality printing of even the smallest objects more user-friendly.
- XY Unit
- The removable horizontal platform makes servicing the printer faster and more efficient.
- Heatable & Removable Built Platform
- Heating helps to prevent warping and sticking, while the removable build platform is easy to clean.
- Print Pause and Resume
- You can pause or resume printing and change the filament at almost any time. Even blackouts are less of an issue.
- Wi-Fi Connectivity
- With apps available for iOS and Android devices, you can upload 3D projects to your CraftBot3, start and stop the printing process, and control the heat settings.
- Built-In Counter
- This logs the time of operation and filament usage.
- Printing Accuracy
- The CraftBot3 is capable of 50-micron/layer resolution with a 0.25mm nozzle.
In the Box CraftBot CraftBot3 3D Printer Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CraftBot CraftBot3 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCraftBot CraftBot 3 Specs | | | Build Volume | 10.6 x 9.84 x 9.8" / 27.0 x 25 x 25.0 cm (2 Extruders)
12.7 x 9.84 x 9.8" / 32.2 x 25 x 25.0 cm (1 Extruder) | | Number of Extruders | 2 | | Layer Resolution | Z Axis: 50 micron / 0.05 mm | | Supported Extruder Nozzle Diameter | 250 micron / 0.25 mm
800 micron / 0.8 mm | | Extruder Nozzle Temperature | 572°F / 300°C | | Positioning Precision | XY Axis: 4 micron / 0.004 mm
Z Axis: 2 micron / 0.002 mm | | Print Speed | 50 to 200 mm/s | | Filament Compatibility | 1.75 mm Diameter:
ABS, HIPS, Nylon, PET, PLA, PVA | | | | Build Plate Features | Heated | | | | Wi-Fi | Wi-Fi 4 (802.11n) | | Media Card Slots | None | | | | Supported Operating Systems | Android (Version Unspecified)
Linux (Version Unspecified)
Windows 7 or Later
iOS (Version Unspecified)
macOS X (Version Unspecified) | | Supported 3D File Types | .cwprj, .obj, .stl | | | | Operating Temperature | 59 to 89°F / 15 to 32°C | | Storage Temperature | 32 to 89°F / 0 to 32°C | | Dimensions (W x H x D) | 21.81 x 19.21 x 16.97" / 55.4 x 48.8 x 43.1 cm | | Weight | 52.9 lb / 24 kg | | Warranty Length | Limited 1-Year Warranty | | | | Package Weight | 79.65 lb | | Box Dimensions (LxWxH) | 27.0 x 27.0 x 25.0" |
