User Manual for CraftBot PLUS 3D Printer Click to enlarge the picture
Contents of the user manual for the CraftBot PLUS 3D Printer
- Product category: 3D Printers Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others 3D Printers
 |
User manual for the CraftBot PLUS 3D Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|

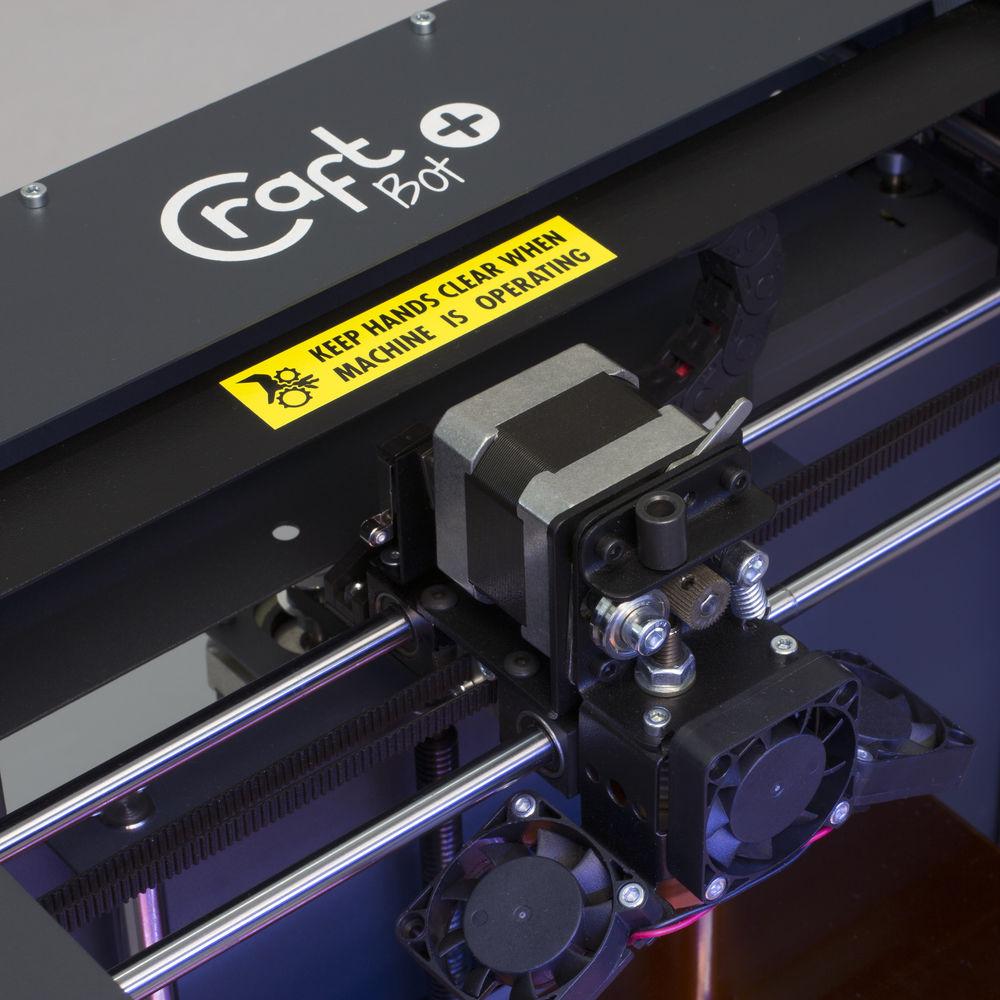

Product description Designed as a user-friendly, plug-and-play tool for beginners and experienced users, the anthracite gray CraftBot PLUS 3D Printer from CraftUnique features Fused Filament Fabrication (FFF) printing technology; a build volume of 9.8 x 7.9 x 7.9"; a layer resolution of 100 to 300 microns; a print speed of 50 to 200mm/s; and the ability to utilize 1.75mm filaments. It is equipped with a single extruder nozzle, an open print chamber with a heated print bed, and a color LCD touchscreen. Users may print their compatible .obj, .stl, and .cwprj files via wired USB connectivity and USB flash drives using the included CraftWare printing software. The CraftBot PLUS is compatible with Windows 7 and above. General Features - Printing Accuracy
- Thanks to its 100 micron / 0.1mm layer resolution, the CraftBot PLUS provides a very high printing quality.
- Printing Size
- Small from the outside, but huge inside, the CraftBot PLUS has an impressive build volume of 9.8 x 7.9 x 7.9".

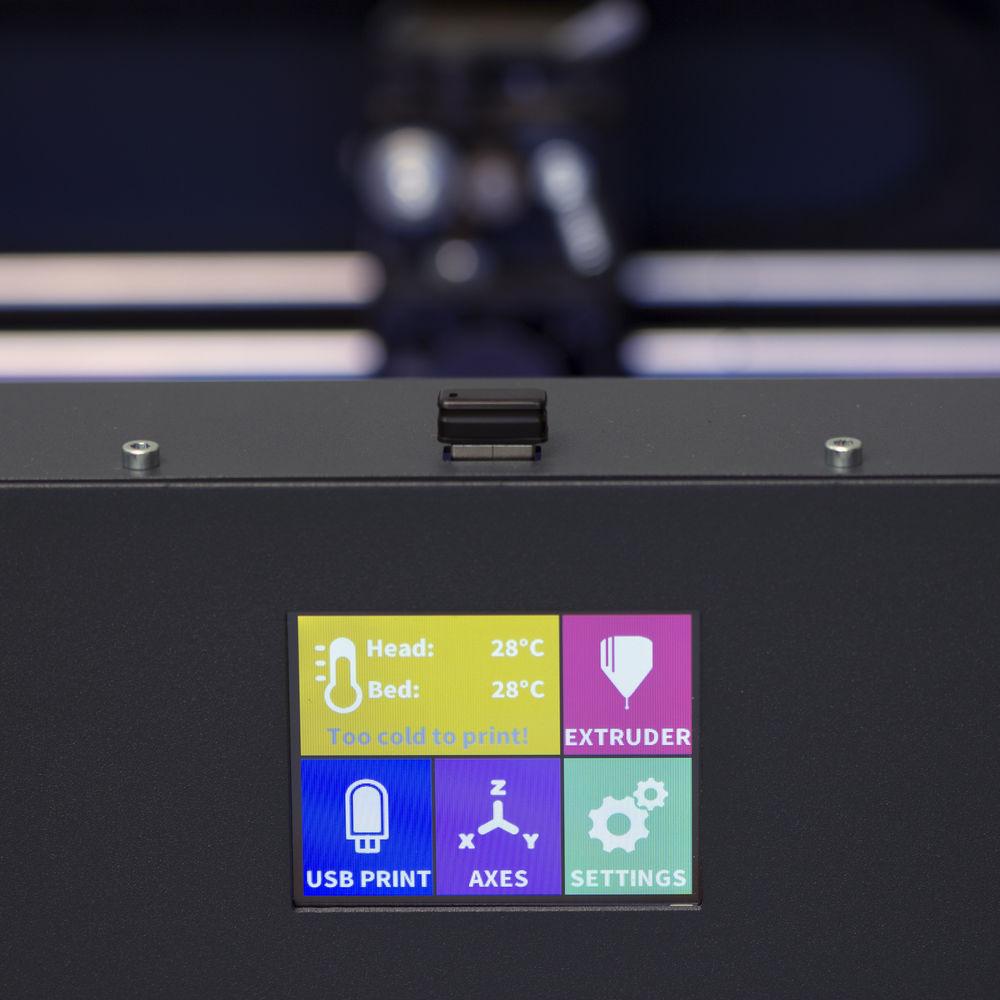

- Color LCD Touchscreen
- The CraftBot PLUS has an intuitive, well-organized navigation menu that provides constant information on the printing process.
- Constant Control
- Users can alter printing parameters any time by using the touchscreen - even during the printing process.
- Heatable & Removable Build Platform
- Heating helps prevent warping and sticking, while the removable build platform is easier to clean.
- USB Connectivity
- Connect and control printing directly by connecting your CraftBot PLUS 3D printer to your Windows system using a USB cable.
- Direct USB Drive Information Loading
- The easiest way to upload your sliced 3D model to CraftBot's memory is using a USB memory stick. In the box, you will find a USB drive with samples so you can immediately test your device.
- CraftWare
- CraftWare is 3D printing software with a user-friendly graphical interface. Its advanced slicing algorithm helps ensure faster conversions and better results.
In the Box CraftBot PLUS 3D Printer (Anthracite Gray) USB Drive with Printing Samples Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CraftBot PLUS 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCraftBot PR.999.009 Specs | | | Build Volume | 9.8 x 7.87 x 7.9" / 25.0 x 20 x 20.0 cm | | Number of Extruders | 1 | | Layer Resolution | XY Axis: 100 to 300 micron / 0.1 to 0.3 mm (3 Settings) | | Supported Extruder Nozzle Diameter | 400 micron / 0.4 mm | | Extruder Nozzle Temperature | 356 to 500°F / 180 to 260°C | | Positioning Precision | XY Axis: 4 micron / 0.004 mm
Z Axis: 2 micron / 0.002 mm | | Print Speed | 50 to 200 mm/s | | Filament Compatibility | 1.75 mm Diameter | | | | Build Area Type | Open | | Build Plate Features | Heated | | Build Plate Temperature | 122 to 212°F / 50 to 100°C | | 3D Scanner | No | | Monitoring Camera | No | | | | Wi-Fi | None | | Media Card Slots | None | | | | Supported Operating Systems | Windows 7 or Later | | Supported 3D File Types | .obj, .stl | | | | Operating Temperature | 59 to 89°F / 15 to 32°C | | Storage Temperature | 32 to 89°F / 0 to 32°C | | Dimensions (W x H x D) | 15.75 x 18.11 x 17.72" / 40 x 46 x 45 cm | | Weight | 30.9 lb / 14 kg | | Warranty Length | Limited 1-Year Warranty | | | | Package Weight | 41.0 lb | | Box Dimensions (LxWxH) | 20.0 x 19.0 x 17.5" |
