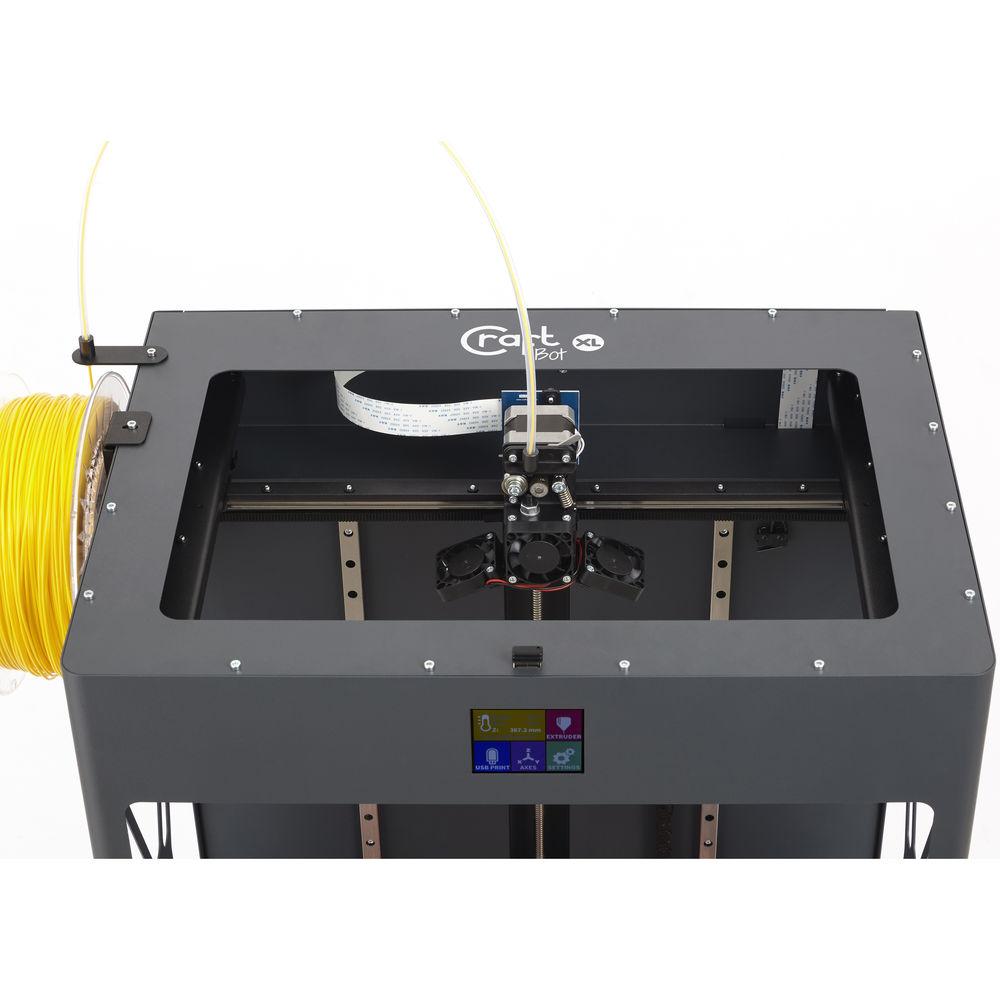

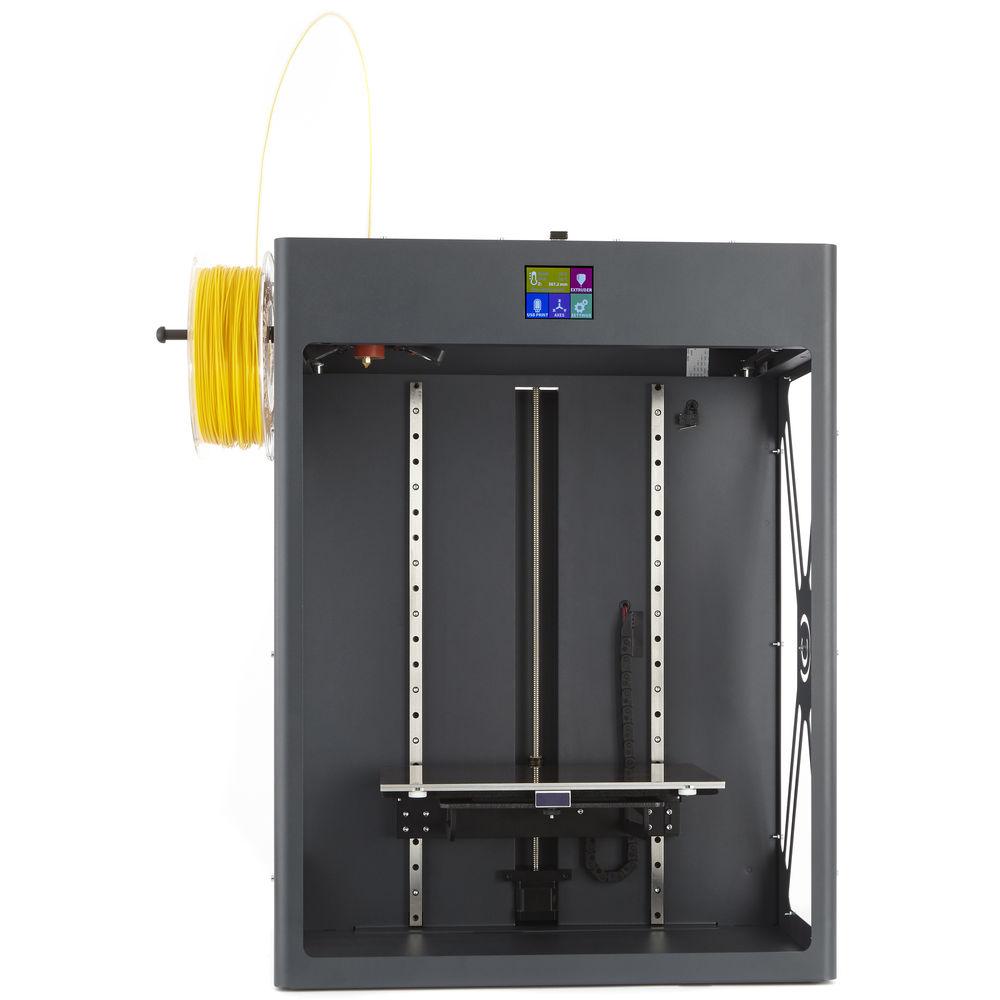

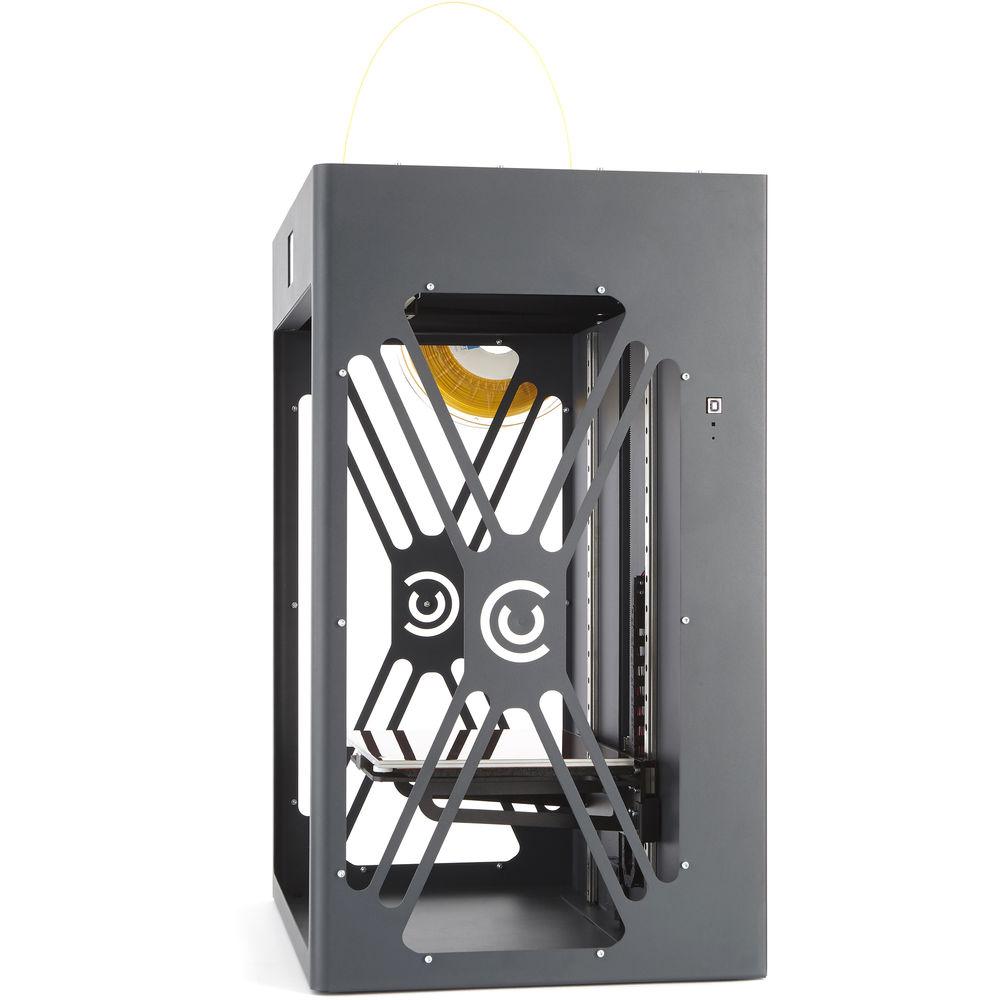

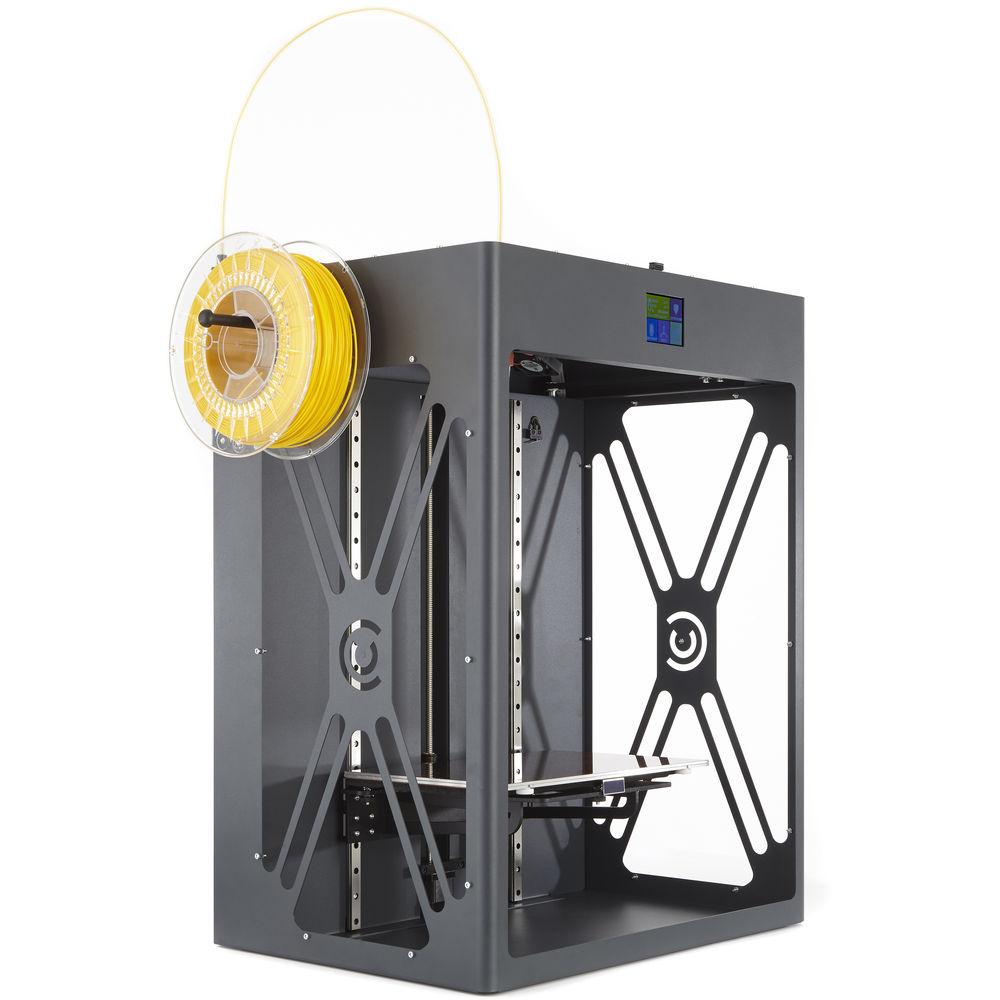

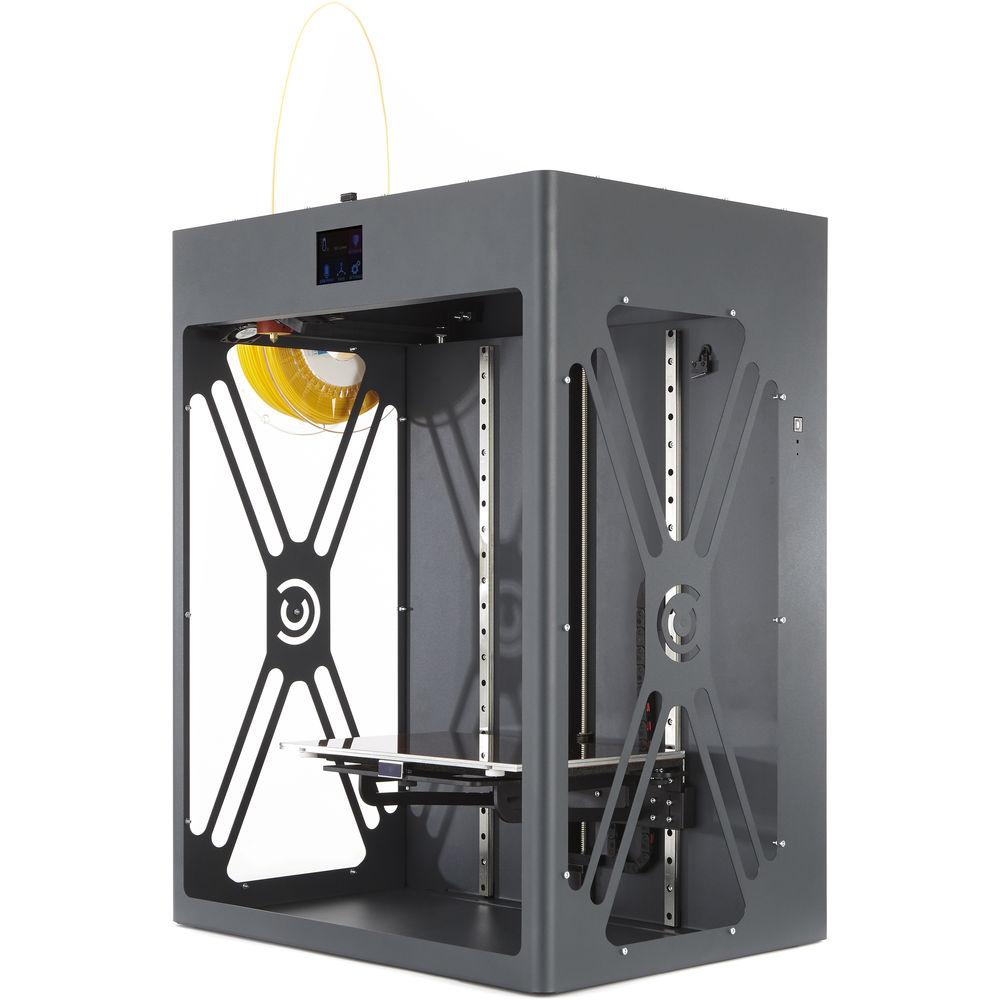

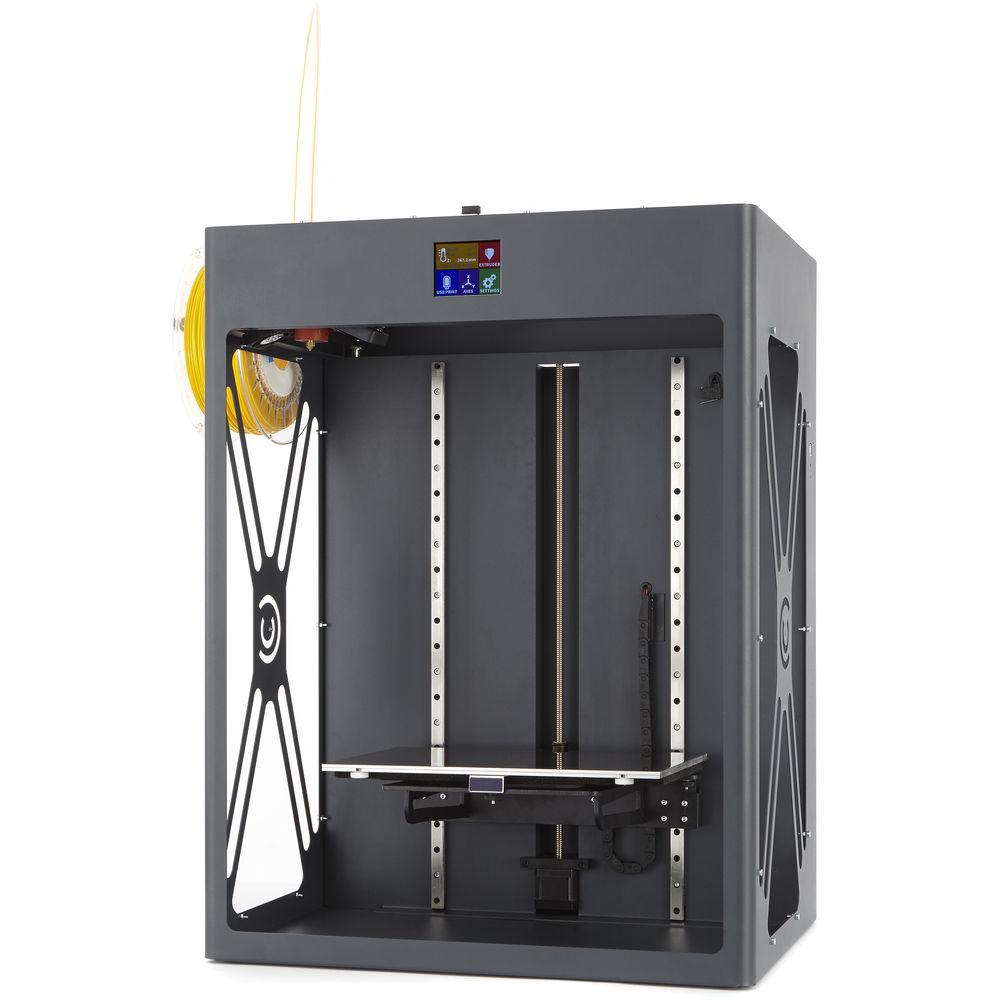

Product description Designed and built as a tool for engineers and makers who can benefit from large build volumes, the anthracite gray CraftBot XL 3D Printer from CraftUnique features an enlarged build plate, increased heating capacity, and improved bearings for a more silent and precise operation. This 3D printer features Fused Filament Fabrication (FFF) printing technology; a build volume of 11.8 x 7.9 x 17.3"; a layer resolution of 50 microns when using a 0.25mm nozzle; a print speed of 50 to 200mm/s; and the ability to utilize 1.75mm filaments. It is equipped with a single extruder nozzle, an open print chamber with a heated print bed, and a color LCD touchscreen. Users may print their compatible .obj, .stl, and .cwprj files via wired USB connectivity, USB flash drives, or 802.11b/g/n Wi-Fi using the included CraftWare printing software. The CraftBot XL is compatible with Windows 7 and above, Mac OS X, and Linux. General Features - Build with Fewer Joins
- The CraftBot XL has a large printing area that enables users to print the same object using fewer parts, resulting in fewer joins.
- Printing Accuracy
- The CraftBot XL is capable of a 50-micron layer resolution when printing with a 0.25mm nozzle, providing excellent print quality.
- Nozzle Kit
- The package includes 0.25, 0.4, 0.6 and 0.8mm MK8 copper nozzles and a wrench.
- Improved Bearings
- Linear rails and upgraded bearings enable quieter operation and greater precision.
- Color LCD Touchscreen
- CraftBot has an intuitive, well-organized navigation menu giving constant information on the printing process.
- Wi-Fi Connectivity
- With apps available for iOS and Android devices, users can upload 3D projects to their CraftBot XL, start and stop the printing process, control the heat settings, the fans, and the light.
- Pause & Resume Printing
- You can change colors or finish printing when filament runs out or after a blackout.
- CraftWare
- This included 3D printer software has a user-friendly graphical interface. Its advanced slicing algorithm helps ensure faster conversions and improved results.
- Heatable Platform
- A heatable platform enables the CraftBot XL to print with virtually all compatible 1.75mm filaments.
- Constant Control
- Users can alter printing parameters by using the touchscreen - even during the printing process.
- USB Connectivity
- Connect and control printing directly by connecting your CraftBot XL 3D printer to your system via a USB cable.
- USB Direct Drive Information Loading
- The easiest way to upload your sliced 3D model to CraftBot's memory is using a USB memory stick. In the box, you will find a USB drive with samples so you can immediately test your device.
In the Box CraftBot XL 3D Printer (Anthracite Gray) 4 x MK8 Copper Nozzles Wrench USB Drive with Printing Samples Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CraftBot XL 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCraftBot PR.999.014 Specs | | | Build Volume | 11.8 x 7.87 x 17.3" / 30.0 x 20 x 44.0 cm | | Number of Extruders | 1 | | Layer Resolution | XY Axis: 50 micron / 0.05 mm | | Supported Extruder Nozzle Diameter | 250 micron / 0.25 mm | | Extruder Nozzle Temperature | 356 to 500°F / 180 to 260°C | | Positioning Precision | XY Axis: 4 micron / 0.004 mm
Z Axis: 2 micron / 0.002 mm | | Print Speed | 50 to 200 mm/s | | Filament Compatibility | 1.75 mm Diameter | | | | Build Area Type | Open | | Build Plate Features | Heated | | Build Plate Temperature | 122 to 230°F / 50 to 110°C | | Filament Spool Storage | External | | 3D Scanner | No | | Monitoring Camera | No | | | | Wi-Fi | Wi-Fi 4 (802.11n) | | Media Card Slots | None | | | | Supported Operating Systems | Android (Version Unspecified)
Linux (Version Unspecified)
Windows 7 or Later
iOS (Version Unspecified)
macOS X (Version Unspecified) | | Supported 3D File Types | .obj, .stl | | | | Operating Temperature | 59 to 89°F / 15 to 32°C | | Storage Temperature | 32 to 89°F / 0 to 32°C | | Dimensions (W x H x D) | 19.21 x 14.17 x 25.2" / 48.8 x 36 x 64 cm | | Weight | 46.5 lb / 21.1 kg | | Warranty Length | Limited 1-Year Warranty | | | | Package Weight | 63.1 lb | | Box Dimensions (LxWxH) | 32.0 x 24.0 x 20.0" |
