User Manual for Creative Labs E-MU XM7 Bookshelf Speakers Click to enlarge the picture
Contents of the user manual for the Creative Labs E-MU XM7 Bookshelf Speakers
- Product category: Bookshelf Speakers Creative Labs
- Brand: Creative Labs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Creative Labs Bookshelf Speakers
 |
User manual for the Creative Labs E-MU XM7 Bookshelf Speakers contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Creative Labs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Creative Labs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Creative Labs product will considerably shorten its lifespan!
|
Product description The pair of black Creative Labs E-MU XM7 Bookshelf Speakers reproduce detailed sounds by connecting to your Sound Blaster X7 system or any audio system featuring left and right terminal posts. Each 2-way speaker comes with a 5" woofer and a 1" tweeter, and provide a power handling of up to 60W coming from your stereo system. Included along with the passive speakers are 8.2' speaker cables that connect to the gold-plated binding posts on the speakers and to your audio system's terminal posts. - E-MU XM7 Features

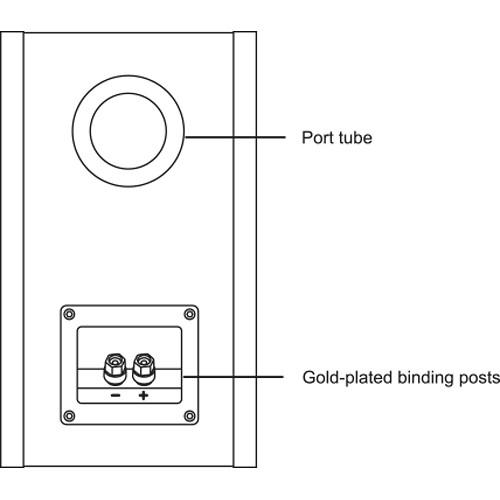

- For tight bass response, the E-MU XM7 bookshelf speakers come equipped with a 5" diaphragm woofer that operates with an oversized magnet structure and shielding. To enable audio clarity and accuracy, each speaker comes with 1" silk dome tweeters. There's also a rear port tube for increasing the efficiency of the sound system at low-end frequencies. Additionally, a pair of gold-plated binding posts tightly fastens the sound system's amplified outputs.
UPC: 054651188211 In the Box Creative Labs E-MU XM7 Bookshelf Speakers (Pair, Black) 2 x Soft Grilles 2 x 8.2' (2.5 m) Speaker Cables Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Creative Labs E-MU XM7 Bookshelf Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

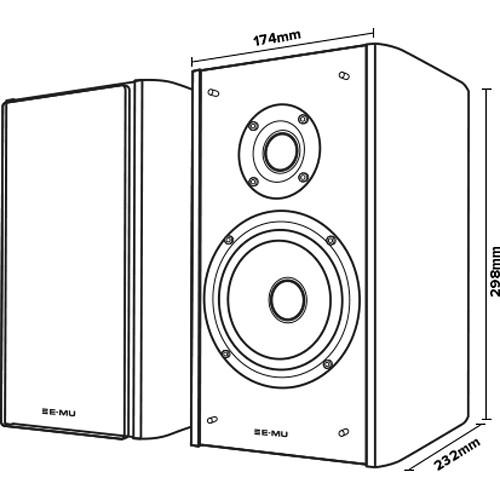

Technical parametersCreative Labs E-MU XM7 Specs | Connector Type | Gold-plated left and right binding posts | | System Configuration | 2-way passive design | | Maximum Input Power | 60 W | | Nominal Impedance | 6 ohms | | Woofer Diameter | 5" / 12.7 cm (magnetic structure and shielding) | | Tweeter Diameter | 1" / 2.5 cm (silk dome) | | Dimensions (H x W x D) | 9.1 x 6.9 x 11.7" / 23.1 x 17.5 x 29.7 cm | | Weight | 9.7 lb / 4.4 kg (each) | | | | Package Weight | 22.25 lb | | Box Dimensions (LxWxH) | 18.2 x 14.9 x 12.0" |
