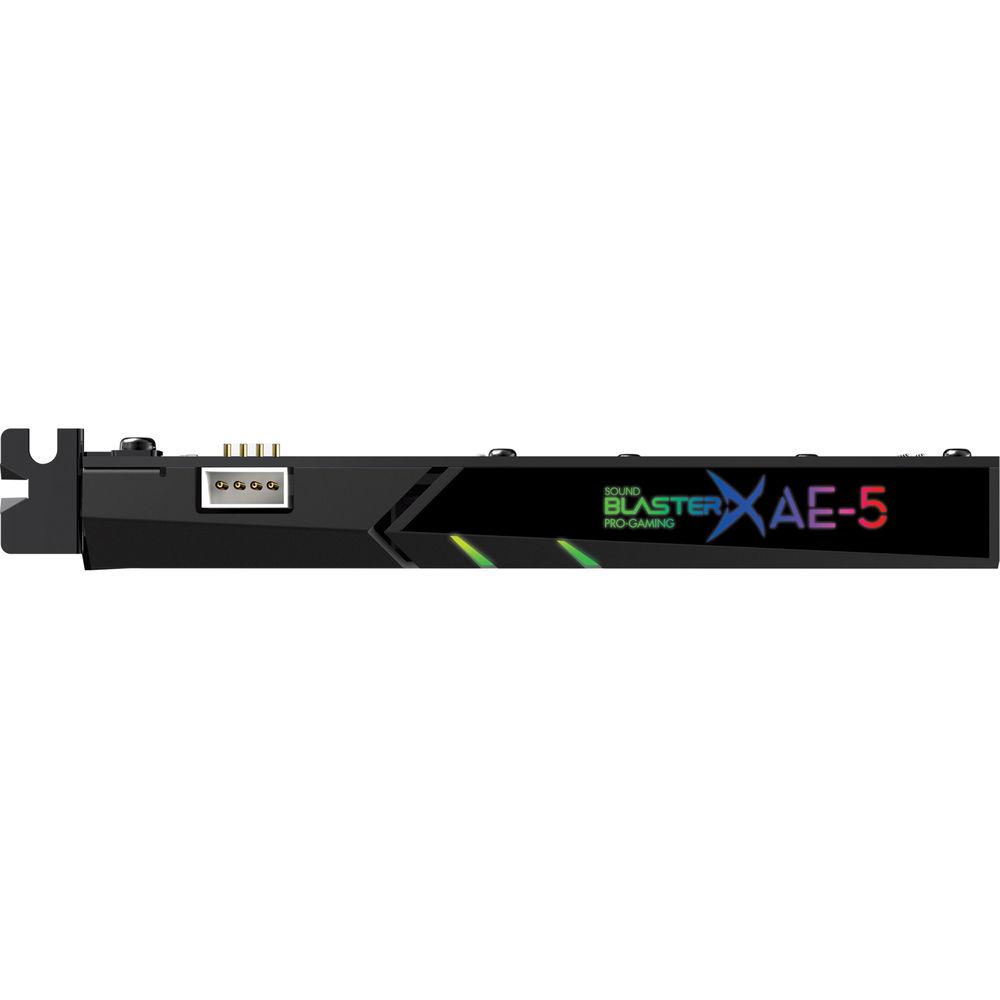

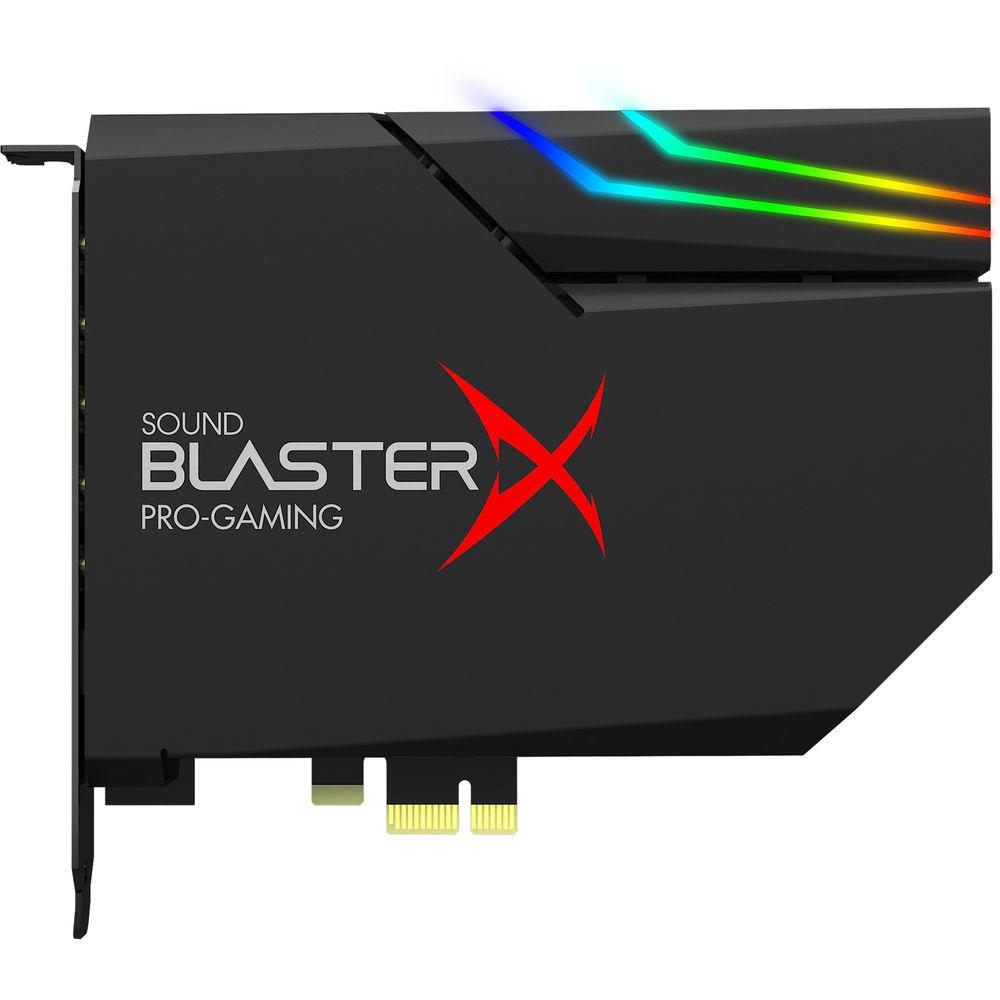

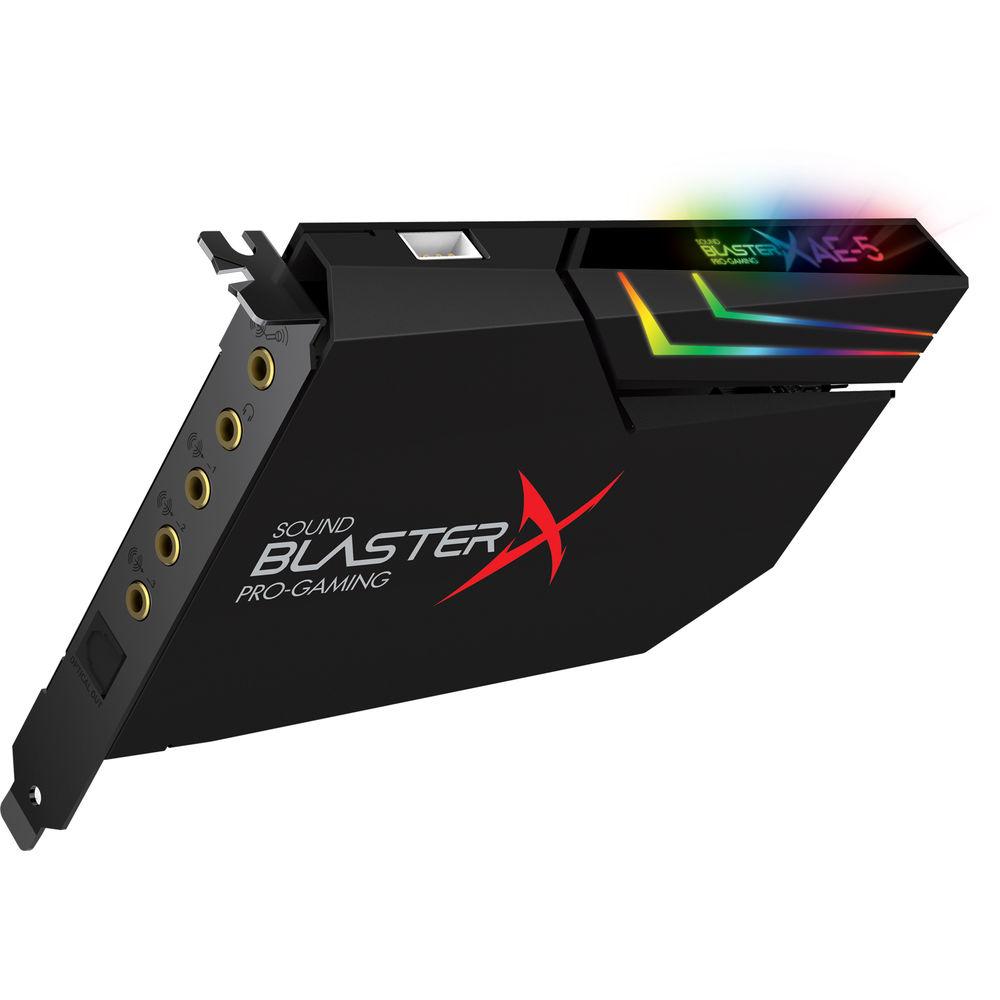

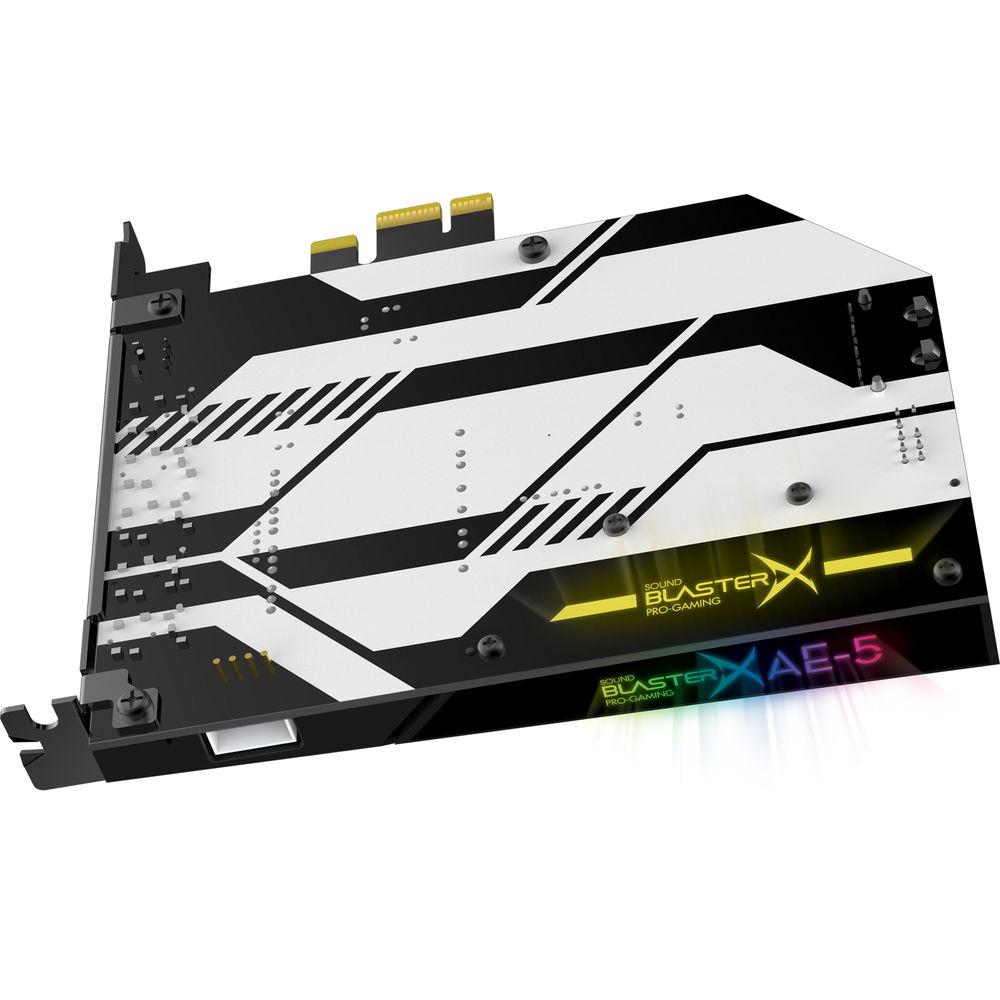

User Manual for Creative Labs Sound BlasterX AE-5 Sound Card and DAC with RGB Aurora Lighting Click to enlarge the picture
Contents of the user manual for the Creative Labs Sound BlasterX AE-5 Sound
- Product category: Sound Cards Creative Labs
- Brand: Creative Labs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Creative Labs Sound Cards
 |
User manual for the Creative Labs Sound BlasterX AE-5 Sound contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Creative Labs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Creative Labs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Creative Labs product will considerably shorten its lifespan!
|
Product description With support for 5.1-channel discrete surround and 7.1-channel virtual surround, the Sound BlasterX AE-5 Sound Card and DAC with RGB Aurora Lighting from Creative Labs takes advantage of Xamp, a discrete headphone amplifier that utilizes bi-amplification technology. With Xamp, each audio channel is individually amplified, allowing lossless audio to be delivered to each earcup, where a 1-ohm output impedance drives headphones with an impedance from 16-600 ohms. Additionally, the AE-5 is a SABRE32 Ultra Class DAC, which delivers 32-bit / 384 kHz audio playback with a dynamic range of up to 122 dB. Thanks to the Aurora Reactive Lighting System, the AE-5's customizable RGB LEDs and included RGB LED strip can be programmed to display up to 16.8 million colors in different patterns using the free downloadable Sound Blaster Connect software for Windows. Audio processing technologies are rounded out by the BlasterX Acoustic Engine and Scout 2.0 helps those looking for an edge in FPS gaming. General Features Audio - Xamp Discrete Headphone Amplification
- The Sound BlasterX AE-5 features Xamp, Creative Labs' custom-designed discrete headphone amplifier. Each audio channel is individually amplified, allowing the AE-5 to deliver clear audio fidelity in a lossless model to each earcup. The low 1-ohm output impedance is able to drive 16-600 ohm headphones.
- SABRE32 Ultra Class DAC
- The Sound BlasterX AE-5 is a SABRE32 Ultra Class PCIe DAC which is well-suited for high-resolution audio for games, music, and movies. It delivers up to 32-bit / 384 kHz playback with a 122 dB dynamic range (DNR), low distortion, and jitter. It also supports 5.1-channel discrete surround and 7.1-channel virtual sound.
RGB Lighting - Aurora Reactive Lighting System
- Enjoy a symphony of lights and sound with the Aurora Reactive Lighting System. The AE-5 has customizable RGB LEDs on its body, and also features an included RGB LED strip. Program up to 16.8 million colors in different patterns with the free downloadable Sound Blaster Connect software for PC.
Sound Enhancement - BlasterX Acoustic Engine
- The BlasterX Acoustic Engine is a suite of fully customizable audio processing technologies that deliver levels of audio immersion and precision for those looking for a competitive advantage. These sound technologies create levels of audio realism, including 3D surround effects for your speakers and headsets.
- Scout 2.0
- Expand your horizon with a gaming companion that enables you to visualize and see where enemies are on the radar through your mobile device for any First-Person Shooter (FPS) game.
- Pure Edition
- The Sound BlasterX AE-5 is also available in a white edition. Apart from its white casing, the Pure Edition comes with four LED strips, which is three more than the standard version.
UPC: 054651191686 In the Box Creative Labs Sound BlasterX AE-5 Sound Card and DAC with RGB Aurora Lighting 1 x LED Strip (10 LEDs, 11.8" / 30.0cm) 1 x Extension Cable Limited 1-Year Warranty More from Manufacturer tawvbedw Table of Contents
|
Upload User Manual
Have you got an user manual for the Creative Labs Sound BlasterX AE-5 Sound Card and DAC with RGB Aurora Lighting in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCreative Labs Sound BlasterX AE-5 Specs | | | Platform | PCIe | | Power | PCIe bus power, +5 V for Aurora lighting (requires 4-pin molex peripheral connector from PC power supply) | | Audio Technology | BlasterX Acoustic Engine | | Dynamic Range | 122 dB | | Connectivity Options (Main) | 1 x TOSLINK Optical-out
1 x 1/8" (3.5 mm) Mic/Line Input
1 x 1/8" (3.5 mm) Headphone/Headset Output
1 x 1/8" (3.5 mm) Front Output
1 x 1/8" (3.5 mm) Rear Output
1 x 1/8" (3.5 mm) Center/Sub Output | | Connectivity Options (Accessory) | 1 x Front Panel Header
1 x RGB LED Header (supports 5 V RGB strips) | | Headphone Amp | Supported Headphone Impedance: 16 - 600 Ohms | | Audio Technologies | CrystalVoice, Scout Mode | | | | Processor | Intel Core i3 or AMD equivalent processor | | Motherboard | Intel, AMD, or 100% compatible motherboard | | Operating System | Windows 10, 8.1, 8, and 7 (32/64-bit) | | Memory | 1 GB RAM | | Hard Disk Space | >600 MB of free hard disk space | | Connectivity | Available PCIe slot | | | | Dimensions | 5.7 x 0.8 x 5.0" / 145 x 20 x 128 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 9.7 x 8.2 x 2.5" |
