Product description

General Features

Audio

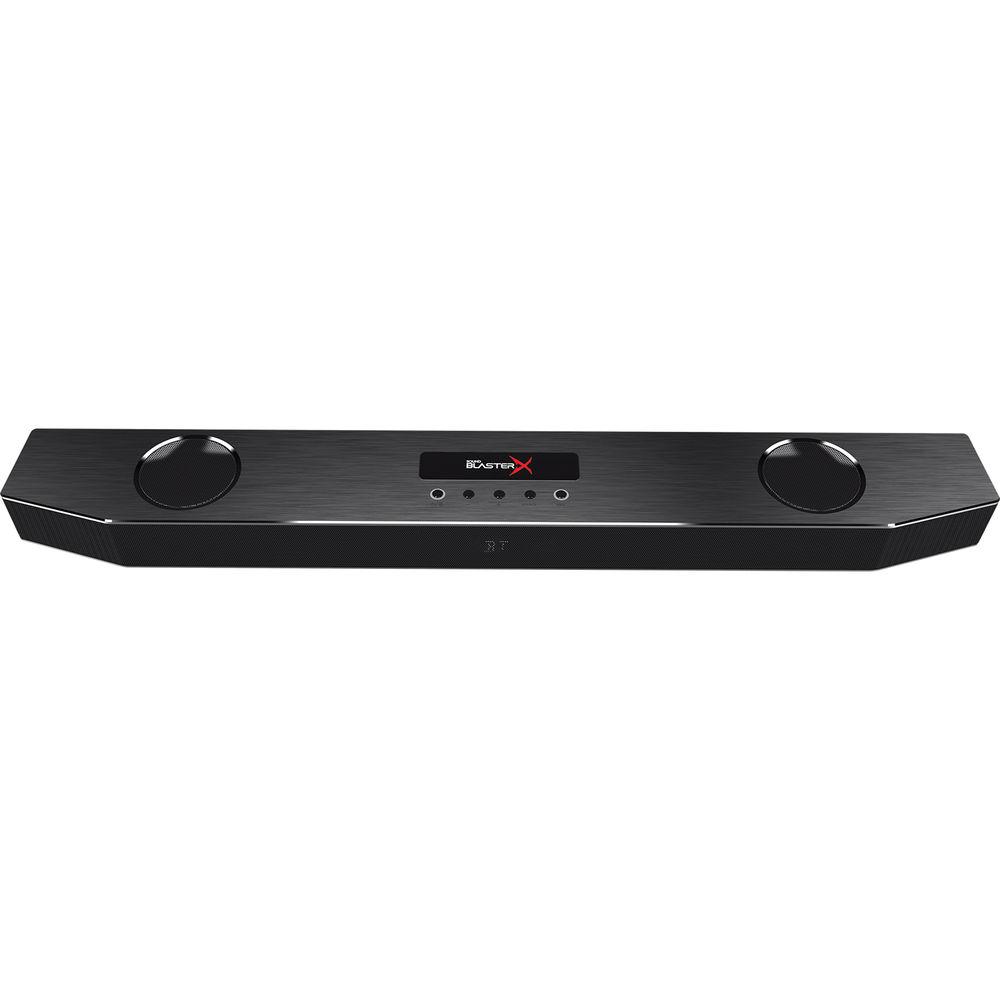

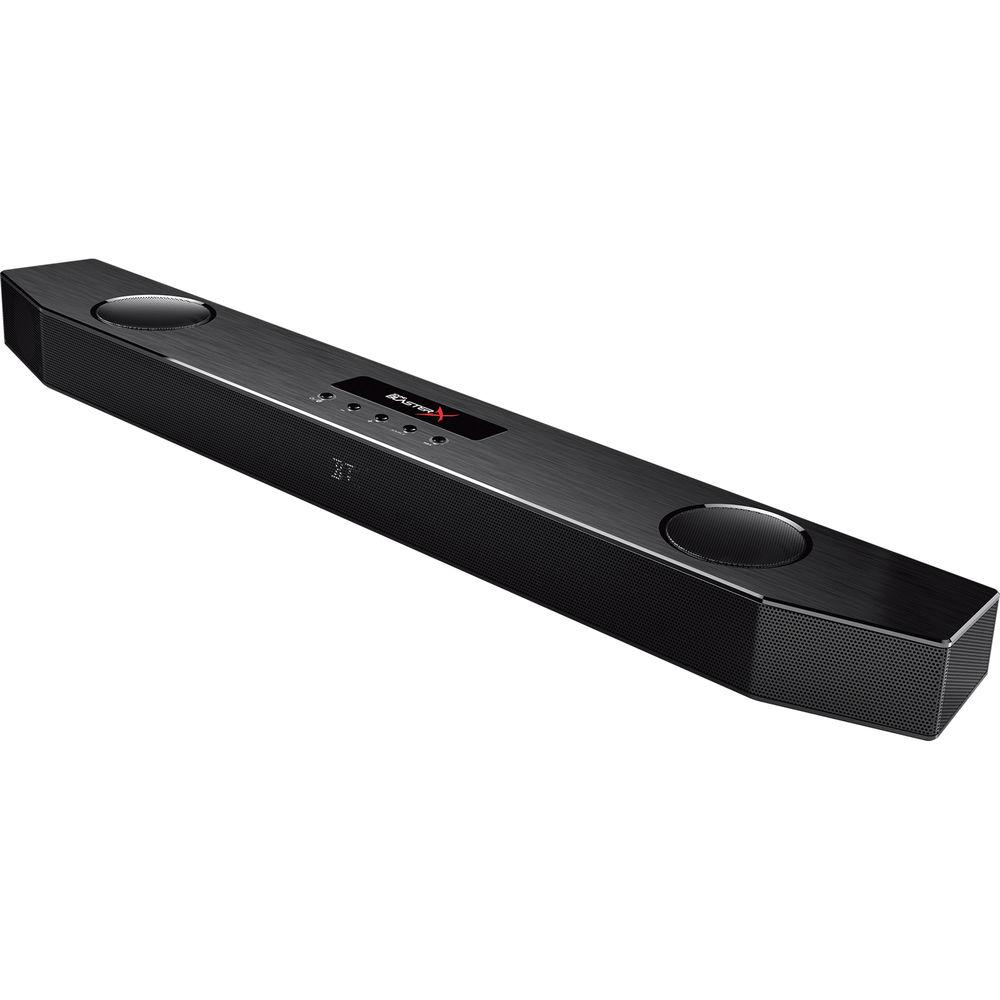

Sleek & Powerful Under Monitor Audio System (UMAS)
• The Katana can be tucked right under your monitors and TV. With a slim profile shorter than 2.4", the Katana is well suited for most setups, especially multi-monitor PC and/or console gaming rigs. The chassis is crafted and reinforced with a sturdy, brushed aluminum panel. This construction helps to minimize harmful vibrations that can reduce clarity.

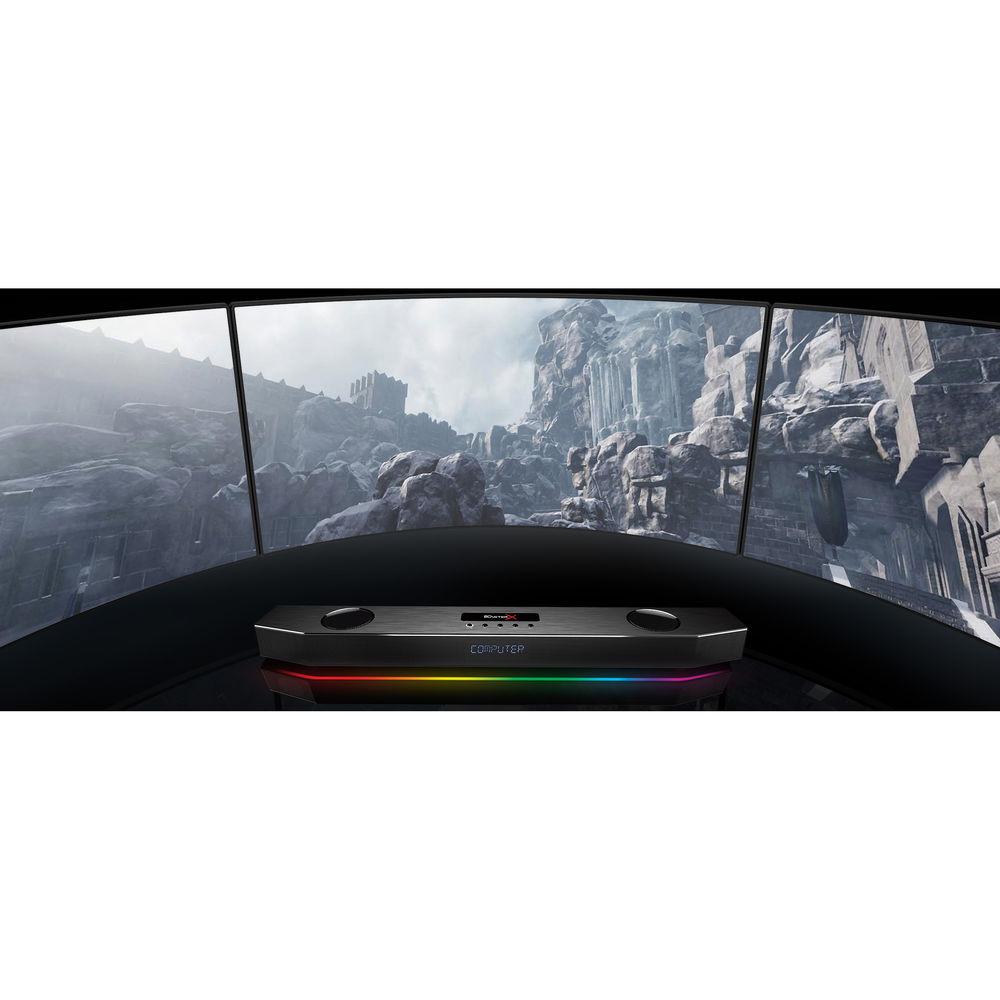

Aurora Reactive Lighting System: Light Up Your Setup
• The Katana incorporates the Aurora Reactive lighting system, where its base is lined with 49 programmable LED lights from edge to edge. The Aurora Reactive lighting system comes in 16.8 million colors for you to customize your ambient lighting effects and create your own unique profile that elevates your gaming and movie experience.

Audio

5-Driver Design: Well-Tuned Acoustics
• The Katana houses a 5-driver design, consisting of two upfiring mid-bass drivers and two high-excursion tweeters in the soundbar, and one long-throw driver in its subwoofer. Each driver is individually chambered and powered by a DSP-controlled amplifier to delivery high-fidelity audio.

2.5" Upfiring Mid-Bass Drivers
• The 2.5" mid-bass drivers housed in a tuned, ported enclosure pump out clean, transparent midrange and dynamic mid-bass. Directing the audio upwards also provides for a wider soundstage that doesn't require the listener to be situated in the audio's sweet spot.

1.3" High-Excursion Tweeters
• The high-frequency drivers feature inverted alloy dome diaphragms and wide polymer surrounds for low-resonant frequency and extended low-frequency response. These high-excursion tweeters allow for crossover to the mid-bass at a much lower frequency than conventional tweeters, resulting in more seamless driver integration and clarity.

5.25" Subwoofer Driver
• The long-throw subwoofer features a stiff paper cone and low-loss surround for clean, detailed, and powerful bass. The driver is housed in a CARB-compliant MDF cabinet with a flared port tube for laminar air flow and increased output.

Tri-Amplified Design
• The Katana utilizes a tri-amplified design with a total output of 75W (RMS) / 150W (peak) to deliver room-filling audio, with clear, high-definition, well-balanced audio, and deep bass. With the tri-amplified design, the amplifiers are controlled by Creative Labs' proprietary multi-core digital signal processor (DSP), with two dedicated to driving mids, another two dedicated to deliver the high frequencies, and one dedicated to churn out the bass.

24-Bit Audio
• In addition to powering the tri-amplified design, the Katana features Creative Labs' proprietary multi-core DSP that is capable of producing 24-bit, high-resolution audio for lossless, clear, and room-filling sound. It is also a certified Dolby Digital decoder, providing realistic virtual 5.1 surround sound.

Immersive 3D PC Gaming Audio
• The Katana doubles as a sound card which supports virtual 7.1-channel audio input signals within Microsoft Windows via USB to deliver realistic gaming effects and audio cues with high levels of accuracy and positioning.

Connectivity

Comprehensive Connectivity Options
• Multiple setup configurations are now achievable with the Katana, which comes equipped with comprehensive connectivity connections, allowing it to be versatile and compatible with many multimedia devices.

Optical Input
• When connected via optical-in, the Dolby Digital-certified Katana delivers realistic virtual 5.1 surround sound for gaming and movies.

USB Audio: 7.1 Virtual Surround PC Gaming
• Heighten your PC gaming experience with virtual 7.1 audio when you connect to the Katana via USB. You can also enjoy 24-bit / 96 kHz high-resolution audio via USB with Windows and Mac systems.

USB Audio for Sony's PS4, PS4 Pro, and PS4 Slim
• Enjoy a cinematic audio performance on the Sony PS4, PS4 Pro, and PS4 Slim via USB. Beyond a powerful audio performance, in-game communication is also enhanced with a full suite of noise-reduction and voice-morphing technologies made possible by the Katana's built-in advanced Sound Blaster processor.

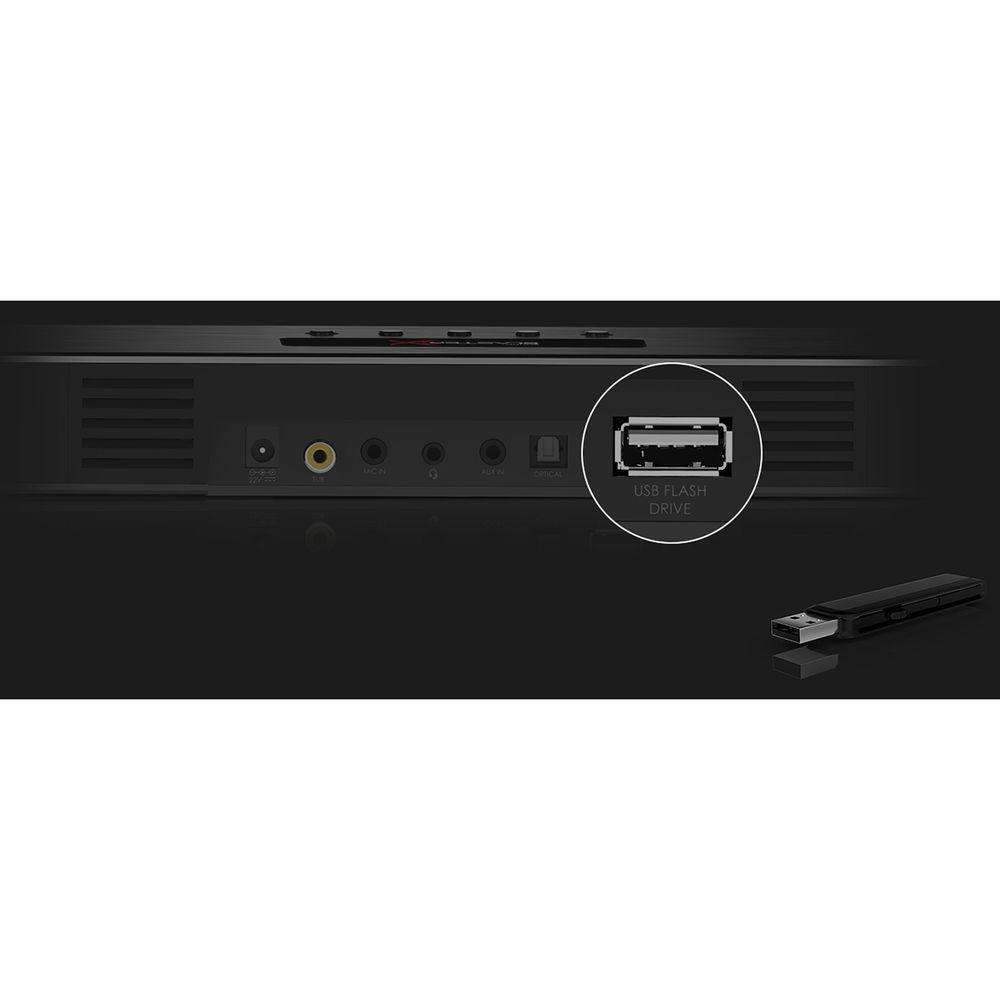

USB Flash Drive: Integrated Audio Player
• Play your music collection directly from the Katana via your USB flash drive with support for MP3 and WMA files up to 320 kbps and FLAC files up to 1.3 Mbps. The Katana is compatible with USB thumb drives up to 128GB, formatted in FAT16, FAT32, and exFAT. WMA Pro and lossless audio is not supported. You may also refer to your playlist from Sound Blaster Connect, which is available on Windows only.

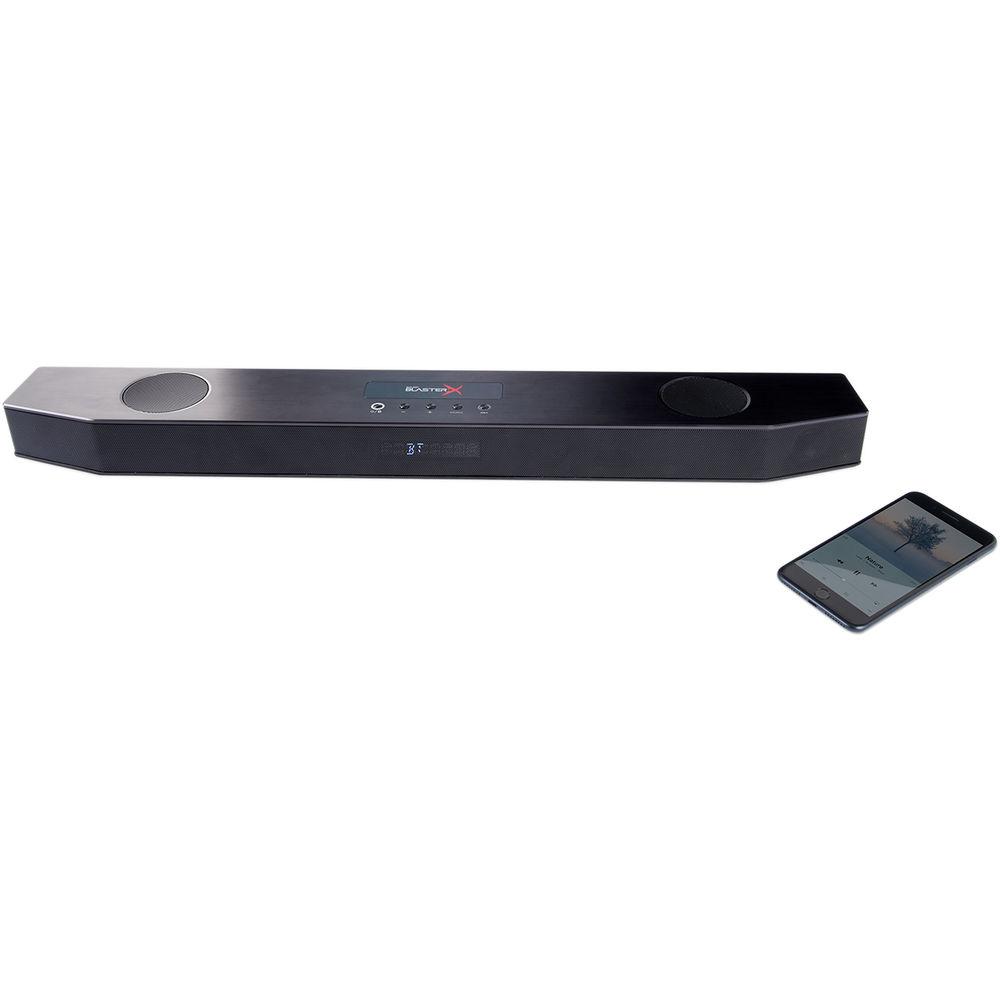

Bluetooth Wireless
• The Katana supports Bluetooth 4.2, which gives you a connecting range of up to 33' so you can enjoy the convenience of wireless audio.

Late Night Games
• You don't have to wake up the entire house to be a late night gamer. With the headphone jack and microphone inputs, the Katana works with most headphones and headsets, so you can put your best game forward, even when everyone else is in their deep slumber.

Included Accessories

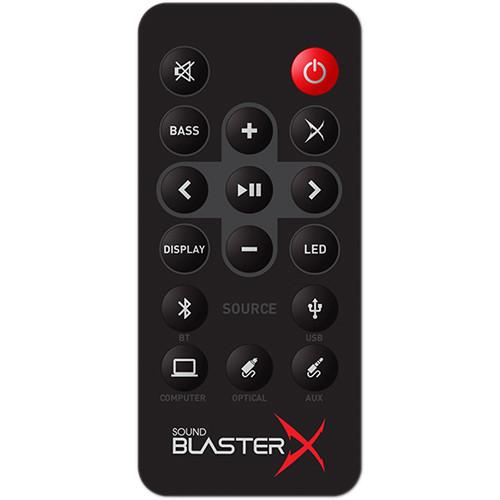

IR Remote Control
• The Katana comes with an IR remote control, so you can have access to all the controls at your fingertips.
