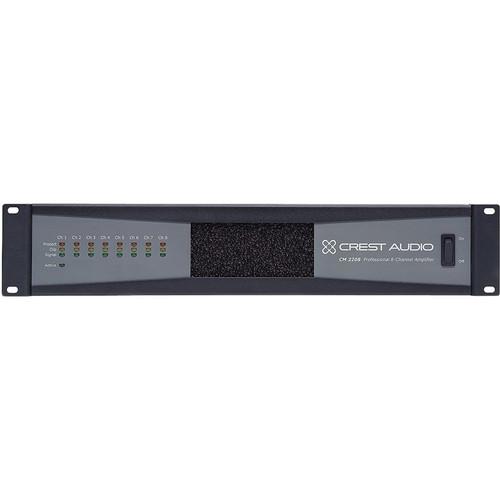

User Manual for Crest Audio CM 2208 8-Channel Professional Installation Amplifier Click to enlarge the picture
Contents of the user manual for the Crest Audio CM 2208 8-Channel Professional
- Product category: 70-Volt Amplifiers Crest Audio
- Brand: Crest Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Crest Audio 70-Volt Amplifiers
|
User manual for the Crest Audio CM 2208 8-Channel Professional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Crest Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Crest Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Crest Audio product will considerably shorten its lifespan!
|
Product description The Crest Audio CM 2208 8-Channel Professional Installation Amplifier from Peavey features an amplification architecture providing a host of user benefits. These include simplified operation and use in multiple applications, as well as unsurpassed sonic quality and flexible power.This equipment incorporates 8-channel (CM 2208-AB/DV) units (channels are independent). A host of applications benefit from the use of multiple channel amplification, including bars, clubs, and restaurants, video conferencing systems, hotels, industrial installations, and more. One amplifier for multiple applications provides expansion opportunities and flexibility.The internal components of the CM 2208 are selected for premium quality and proven durability. Each modular subassembly is pre-tested, and the assembled CM amplifier receives a rigorous “hot room” burn-in before thorough final checkout on precision test equipment. - Input and output mating connectors are included
UPC: 875866006240 In the Box Crest Audio CM 2208 8-Channel Professional Installation Amplifier Input Mating Connectors Output Mating Connectors Limited 5-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Crest Audio CM 2208 8-Channel Professional Installation Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCrest Audio CM 2208 Specs | Rated Power | Bridge mode 8 Ω: 320 W
Bridge mode 140 V: 460 W
1 x 4 Ω: 160 W
1 x 8 Ω: 240 W
70.7 V (24 Ω): 230 W
8 x 4 Ω: 150 W
8 x 8 Ω: 210 W
8 x 70.7 V: 170 W | | Minimum Load Impedance | 4 Ω | | Frequency Response | HPF Off:
5 Hz to 20 kHz; -1 dB at 1 W (8 Ω load) | | THD | <0.02% @ rated power, 1 kHz (70.7 V) | | CMRR | Input: >-60 dB @ 1 kHz | | Crosstalk | >-60 dB @ 1 kHz at rated power @ 8 Ω | | Humidity | And Noise: >-97 dB, below rated output, 22 Hz to 22 kHz | | Damping Factor | 8 Ω: >200:1 @ 20 Hz to 1 kHz | | Input Sensitivity | 0.775 V (0 dBu setting) | | Voltage Gain | x40 or 0 dBu (x90) | | Input Impedance | 20 KΩ balanced, 10 KΩ unbalanced | | Current Draw | At 1/8 power: 4.0 A
At 1/3 power: 8.0 A
When idle: <2 A | | Thermal Output | At 1/8 power: 724 BTU/hr
At 1/3 power: 947 BTU/hr | | Class | D | | Cooling | Variable speed, front panel mounted, front-to-side airflow | | Controls | 8-channel input signal attenuators, 8-channel HPF select switches, 8-channel gain select switches | | Indicators | 8 clip, 8 signal, 8 protect, 1 power | | Protection | Over-temperature, DC, turn On/Off transients, subsonic, short-circuit, over-current | | Connectors Input | 8 x 3-position Euro-style detachable terminal blocks | | Connectors Output | 8 x 2-position Euro-style detachable terminal blocks | | Construction | 16-gauge steel-reinforced with 12-gauge rack ears | | RMS Power Output | 220 W RMS per channel (70 V) | | Output | Low-Z (8 Ω) or 70 V | | Input Connectors | Balanced 3-pin Phoenix | | Output Connectors | 2-pin Phoenix | | Protection Circuits | ACL, IGM, and Autoramp | | Rack Space Height | 2U | | Front Panel Indicators | Per channel: signal, clip, & protect | | Power Requirements | 120 VAC 60 Hz (AB), 230 VAC 50 Hz (DV) | | Testing Types | 120 VAC 60 Hz (AB) line input voltage maintained
230 VAC 50 Hz (DV) line input voltage maintained | | Dimensions | 3.50 x 19.00 x 17.05" (8.84 x 48.26 x 43.31 cm) | | Weight | 36.5 lb (16.5 kg) | | | | Package Weight | 45.5 lb | | Box Dimensions (LxWxH) | 23.0 x 21.5 x 7.0" |
