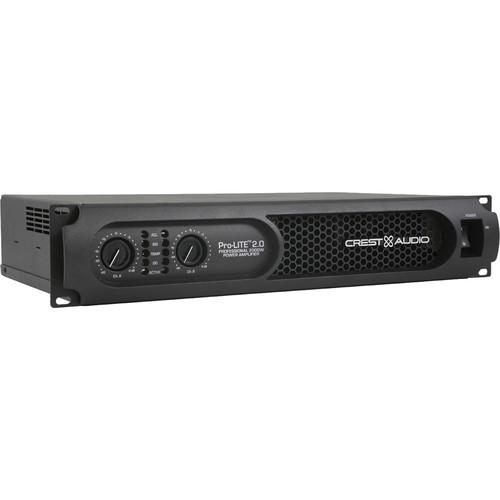

User Manual for Crest Audio Pro-LITE 2.0 Professional Power Amplifier Click to enlarge the picture
Contents of the user manual for the Crest Audio Pro-LITE 2.0 Professional Power
- Product category: Power Amplifiers Crest Audio
- Brand: Crest Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Crest Audio Power Amplifiers
 |
User manual for the Crest Audio Pro-LITE 2.0 Professional Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Crest Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Crest Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Crest Audio product will considerably shorten its lifespan!
|
Product description The 2 RU Pro-LITE 2.0 Professional Power Amplifier from Crest Audio is designed with a resonant switch-mode power supply and a high-speed Class-D topology. The amplifier can be operated in parallel, stereo, or bridged mode. It features two channels with independent, fourth-order 100 Hz crossovers and a power rating of 540W per channel at 4 Ohms stereo, and up to 2000W bridged at 4 Ohms. The robust power supply is designed to allow the amplifier to deliver a consistent, stable performance with low frequencies. The Pro-LITE amplifier is built with heavy-duty circuit boards, and extra-large capacitors and inductors designed to optimize 2-Ohm operation. The on-board protection suite includes Crest Audio's proprietary ACL (Automatic Clip Limiting) circuitry, which prevents the amplifier from sending potentially damaging clipped signals to the loudspeakers. It also features DC, Temp, Signal, and Active safeguards, all referenced on the front panel with LED indicators. - 2-channel independent crossovers
- ACL (Automatic Clip Limiting) protection
- Pro-LITE Class-D topology
- Combination XLR 1/4" inputs
- 4-pole twist lock output connectors
UPC: 875866010346 In the Box Crest Audio Pro-LITE 2.0 Professional Power Amplifier (600W, 2 RU) Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Crest Audio Pro-LITE 2.0 Professional Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCrest Audio 3600880 Specs | Power Rating | 8 Ohms Bridged: 1160 W
4 Ohms Bridged: 2000 W
2 Ohms Stereo: 980 W (2 x 2 Ohms)
4 Ohms Stereo: 540 W (2 x 4 Ohms)
8 Ohms Stereo: 300 W (2 x 8 Ohms)
2 Ohms Stereo: 1050 W (1 x 2 Ohms)
4 Ohms Stereo: 600 W (1 x 4 Ohms)
8 Ohms Stereo: 290 W (1 x 8 Ohms) | | Damping Factor | >-170:1 @ 20 Hz to 1 kHz @ 8 Ohms | | Input Sensitivity | 4 Ohms Rated Power, 1 kHz: 0.775 V ±3%
2 Ohms Rated Power, 1 kHz: 0.35 V ±3% | | Input Impedance | Balanced: 15 kOhms
Unbalanced: 7.5 kOhms | | Minimum Load Impedance | 2 Ohms | | Maximum RMS Voltage Swing | 56 V | | Voltage Gain | x 60, +35 dB | | Frequency Response | 10 Hz to 30 kHz ±3 dB @ 1 W, 8 Ohms
20 Hz to 20 kHz 2 channels x 2 Ohms: <0.25% @ 800 W 20 Hz to 4 kHz, decreasing to 760 W @ 20 kHz, both channels driven
20 Hz to 20 kHz 2 channels x 4 Ohms: <0.15% @ 540 W 20 Hz to 20 kHz, both channels driven
20 Hz to 20 kHz 2 channels x 8 Ohms: <0.15% @ 300 W 20 Hz to 20 kHz, both channels driven | | Input CMRR | <-69 dB @ 1 kHz | | Crossover | 100 Hz switchable 2nd order high pass and 3rd low-pass per channel | | Crosstalk | >-70 dB @ 1 kHz @ 250 W power @ 8 Ohms | | Hum and Noise | >-100 dB, "A" weighted referenced to rated power @ 4 Ohms | | Slew Rate | >12 V μs | | Connectors | Rear Panel:

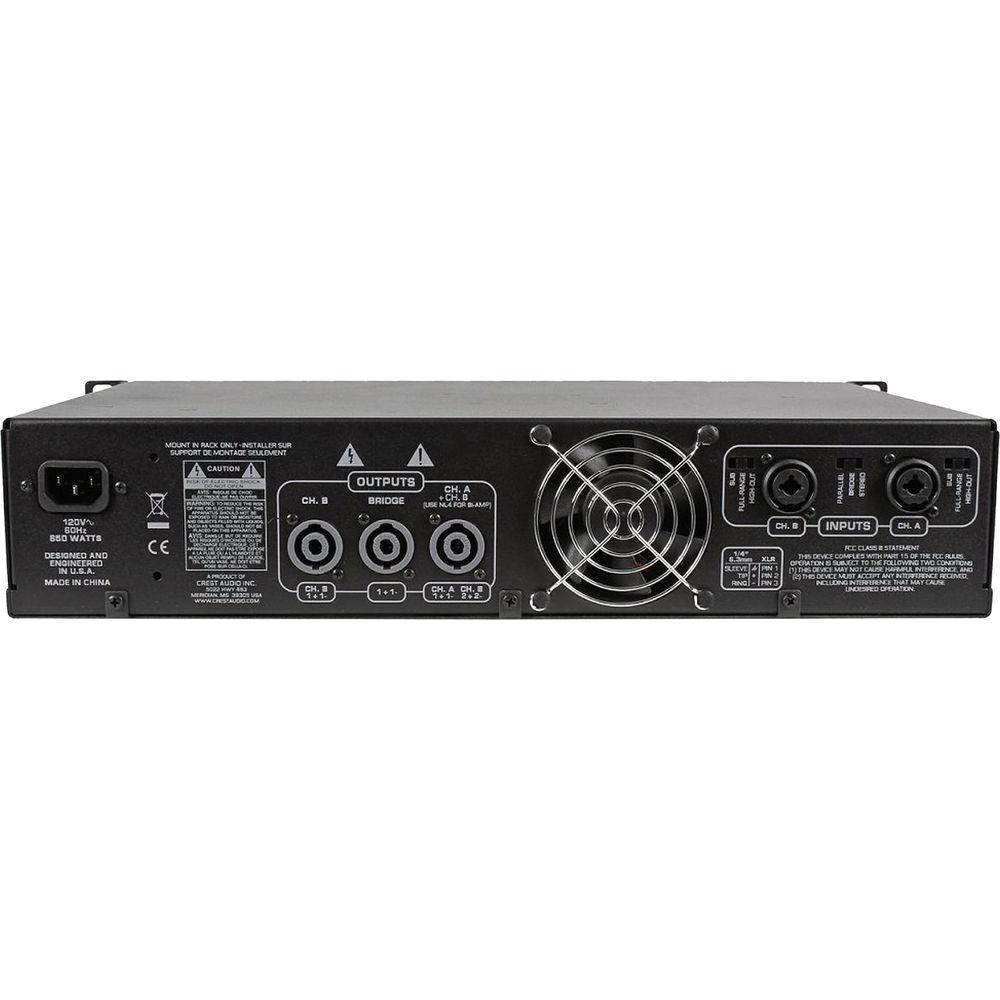

1 x 3-pin IEC, AC power input
1 x combo XLR-1/4", channel A input
1 x combo XLR-1/4", channel B input
1 x 4-pole twist lock, channel A output
1 x 4-pole twist lock, channel B output

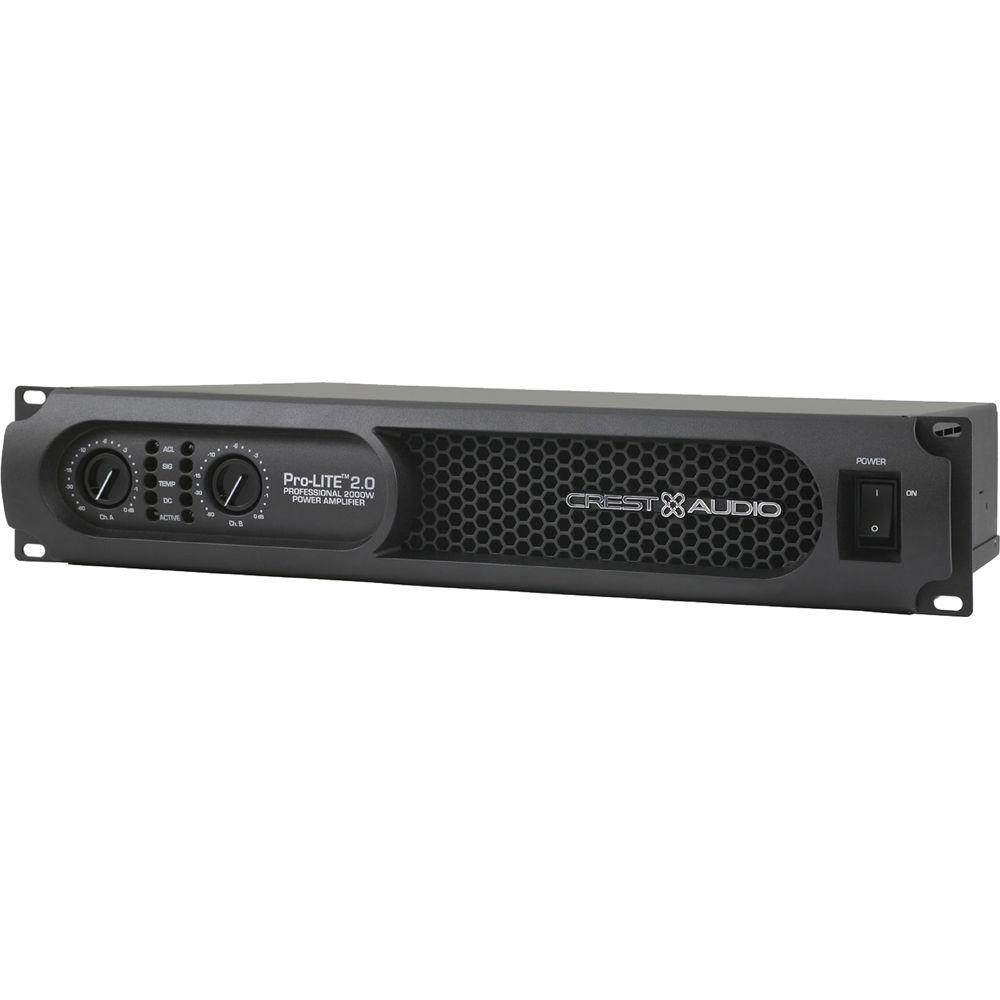

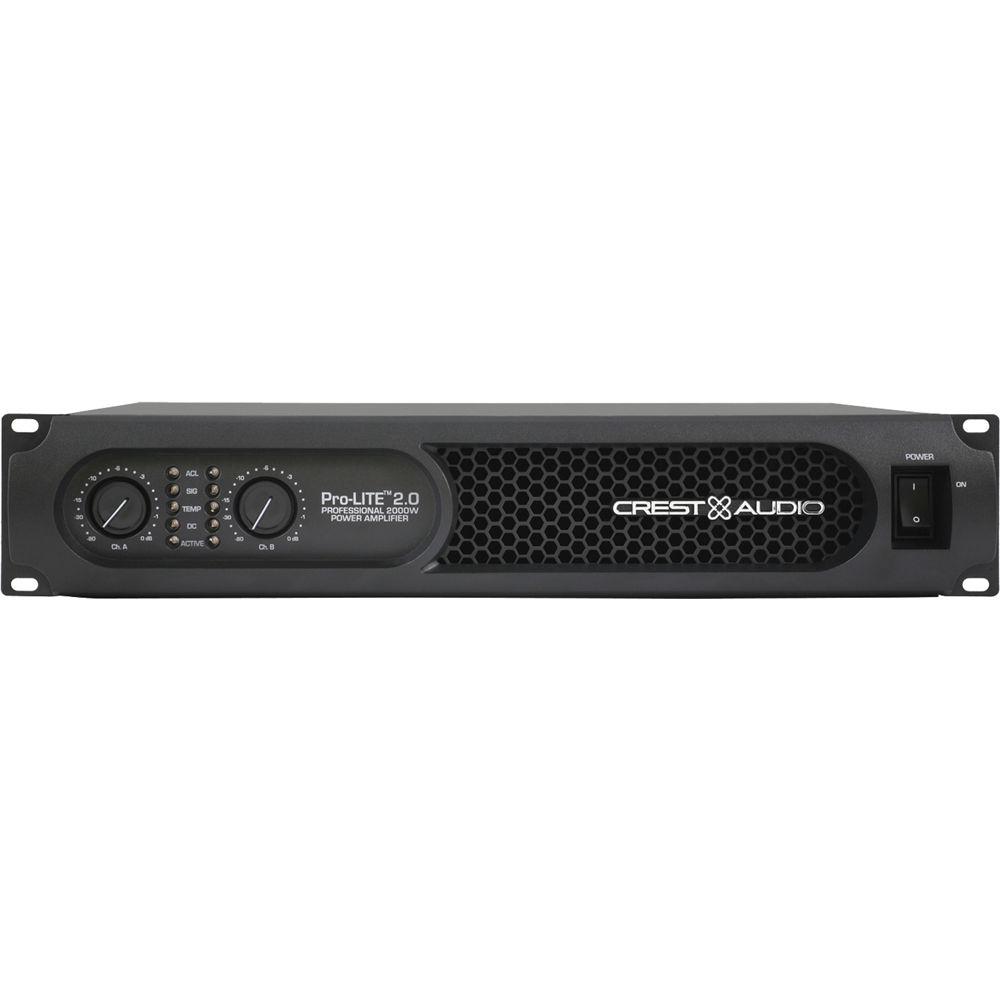

1 x 4-pole twist lock, bridge output | | Controls | Front Panel:
1 x Channel A rotary knob
1 x Channel B rotary knob
1 x AC Power On/Off switch
Rear Panel:
2 x Crossover mode switch (high pass / full range / subwoofer)

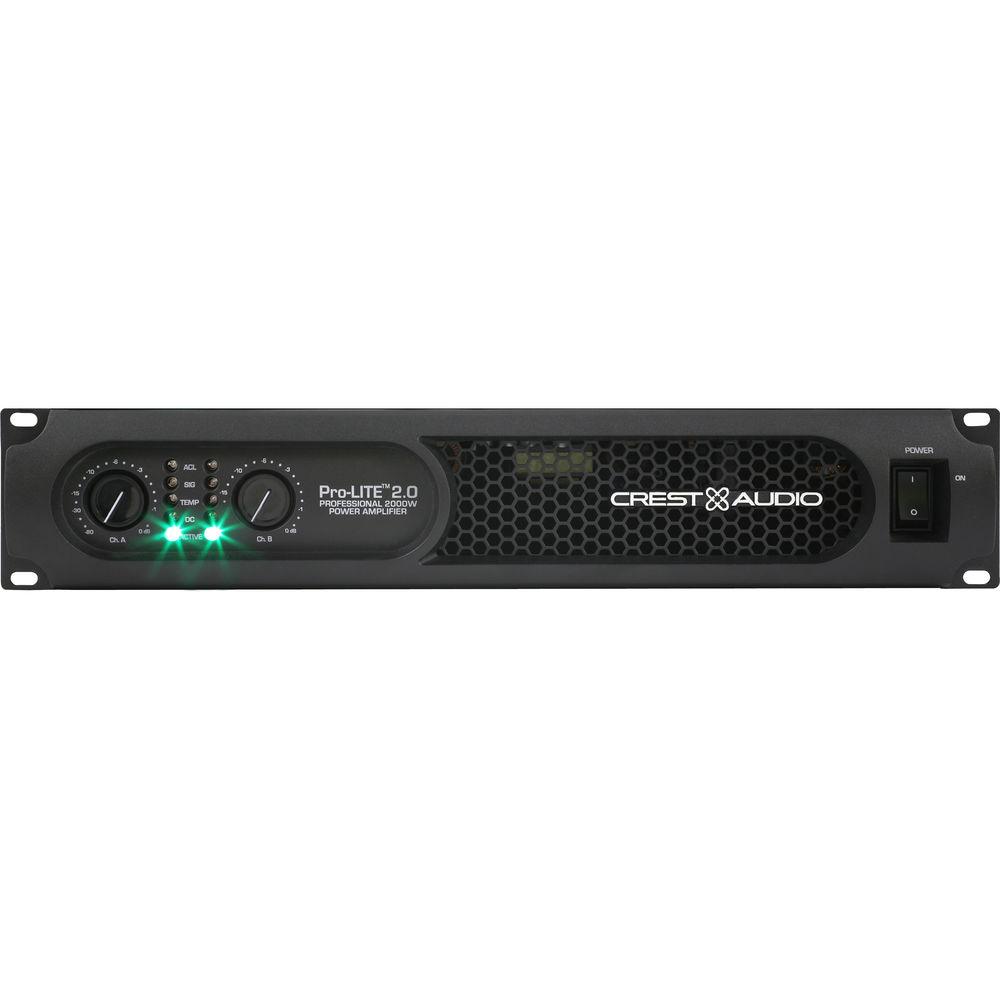

1 x Channel mode switch (parallel / bridge / stereo) | | LED Indicators | Front Panel:
2 x Active
2 x DC
2 x Temperature
2 x Channel Signal
2 x ACL (Automatic Clip Limiting) | | Cooling | Temperature dependent variable speed 80 mm DC fan | | Power Consumption | Idle: 90 VAC, 40 W | | Power Requirements | Current Draw @ 1/8:
540 VA (315 W) @ 2 Ohms
370 VA (185 W) @ 4 Ohms
240 VA (115 W) @ 8 Ohms
Current Draw @ 1/3:
1250 VA (760 W) @ 2 Ohms
750 VA (425 W) @ 4 Ohms
460 VA (240 W) @ 8 Ohms | | Dimensions (H x W x L) | 3.5 x 19.0 x 10.5" (8.9 x 48.3 x 26.7 cm)
Handle: 0.6" (1.5 cm) | | Weight | 10.9 lb (4.9 kg) without power cord | | | | Package Weight | 14.4 lb | | Box Dimensions (LxWxH) | 21.0 x 12.5 x 5.0" |
