User Manual for Crosley Radio C10A Turntable Click to enlarge the picture
Contents of the user manual for the Crosley Radio C10A Turntable
- Product category: Turntables Crosley Radio
- Brand: Crosley Radio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Crosley Radio Turntables
 |
User manual for the Crosley Radio C10A Turntable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Crosley Radio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Crosley Radio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Crosley Radio product will considerably shorten its lifespan!
|

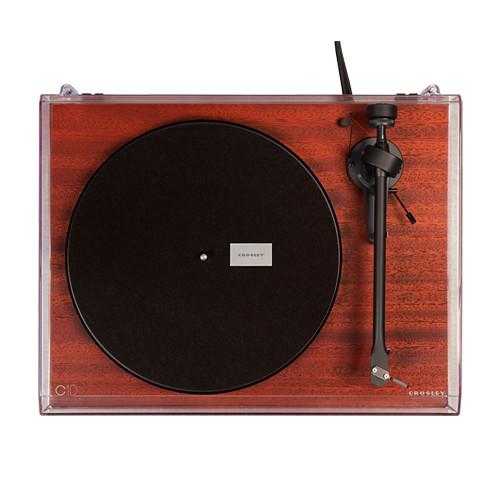

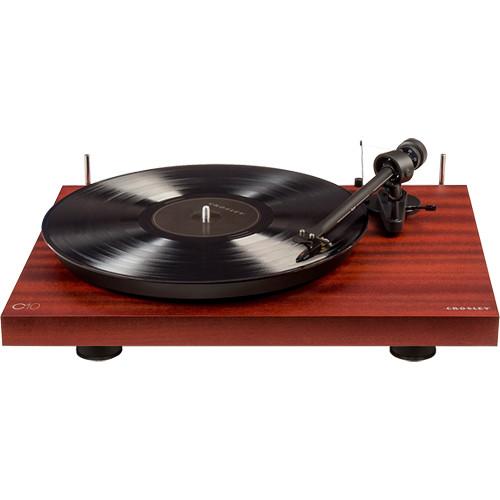

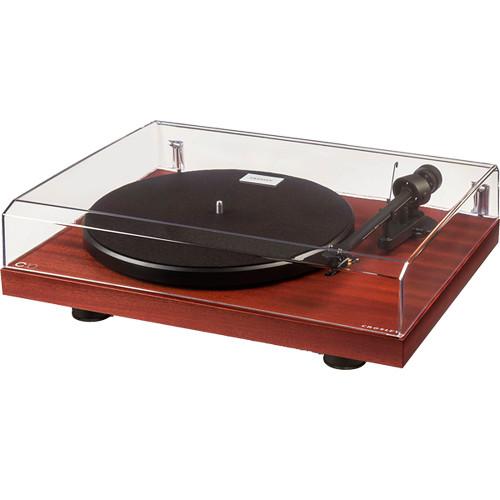

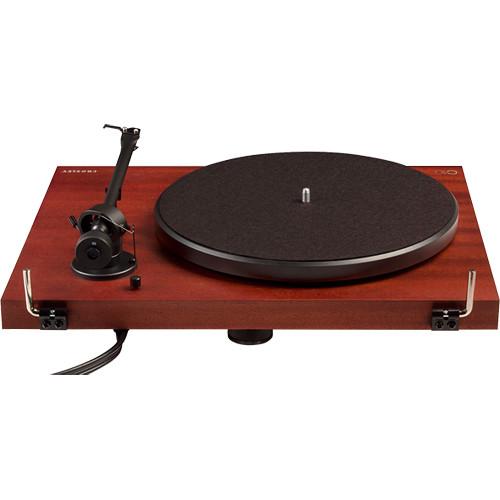

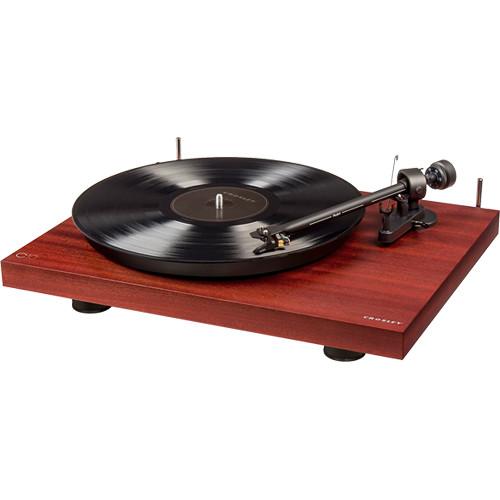

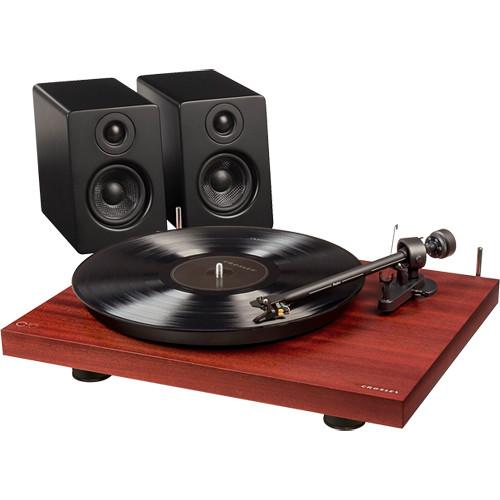

Product description Enjoy your favorite vinyl records through the system of your choice with the mahogany Crosley C10A Turntable. It features a belt-driven design with a stereo RCA pre-out via a built-in cable to connect to your preamp or compatible home system. The turntable has a two-speed design and will play records at 33 1/3 and 45 rpm. Its aluminum tonearm has an adjustable counterweight system for proper balance. - Design Detail
- The Crosley C10 is equipped with a low-vibration synchronous motor and shock absorbent feet to give any genre of music a smooth ride. The Pro-ject aluminum tonearm is balanced with adjustable counterweights, anti-skate adjustment, and armed with a pre-mounted Ortofon OM5e cartridge.
- Find Balance
- While the C10A already comes armed with a pre-adjusted Ortofon OM5e cartridge, the tonearm rests on sapphire bearings and also sports counterweights to adjust for your choice of phono cartridge.
- Be a Matchmaker
- Pair the C10 with the phono preamp of your choice to completely customize your listening experience.
- Knock on Wood
- The plinth is constructed with audio-grade MDF encased in genuine polished birch veneer.
- Above the Belt
- The turntable is belt-driven, so it can play at 33 and 45 rpm with the flip of a switch. The platter itself turns on a stainless steel bearing running in a bronze bushing with a Teflon bottom. The feet on the bottom of the plinth are shock-resistant to keep vibration as minimal as possible.
UPC: 710244205139 In the Box Crosley Radio C10A Turntable (Mahogany) Drive Belt and Belt Hook Tonearm Counterweight Anti-Skating Weight Lid Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Crosley Radio C10A Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCrosley Radio C10A-MA Specs | | | Speeds | 33 1/3 and 45 rpm
Variance: ±0.8% | | Tone Arm | Aluminum tonearm with sapphire bearings | | Effective Tone-Arm Length | 8.6" (21.8 cm) | | Overhang | 0.73" (1.9 cm) | | Wow and Flutter | ±0.12% | | Signal to Noise | -65 dB | | Downforce Range | 10 to 30 mN | | | | Frequency Response | 20 Hz to 20 kHz | | Channel Balance | <2 dB | | Channel Separation | >22 dB | | Output Voltage | 4 mV | | Load Resistance | Recommended: 47 kOhms | | Connection | To Amplifier: MM input | | Tracking Force | Recommended: 17.5 mN | | Weight | 0.18 oz (5.1 g) | | | | Connectors | 1 x Stereo RCA pair (male) | | Power Supply | 16 VAC, 500 mA | | Power Consumption | 2 W | | Dimensions (W x H x D) | With Lid Closed: 16.34 x 4.65 x 12.6" (41.5 x 11.8 x 32 cm)
With Lid Open: 16.34 x 14.37 x 16" (41.5 x 36.5 x 40.6 cm) | | Weight | 12.13 lb (5.5 kg) | | | | Package Weight | 16.0 lb | | Box Dimensions (LxWxH) | 19.0 x 15.8 x 9.3" |
