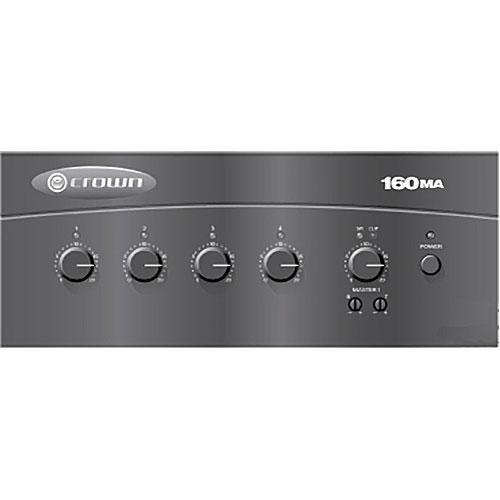

User Manual for Crown Audio 160MA 4 x 1 60W Commercial Mixer Amplifier Click to enlarge the picture
Contents of the user manual for the Crown Audio 160MA 4 x 1
- Product category: Mixer/Amplifiers Crown Audio
- Brand: Crown Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Crown Audio Mixer/Amplifiers
|
User manual for the Crown Audio 160MA 4 x 1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Crown Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Crown Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Crown Audio product will considerably shorten its lifespan!
|
Product description The 160MA from Crown Audio is a professional-quality mixer/amplifier designed for commercial applications, such as paging, background music, and music-on-hold systems. It has 4 inputs, each with a volume control, and a 60W amplifier output. Signals can be input via the balanced Phoenix or stereo RCA inputs. Output can be via 8 Ohm or 70/100V constant voltage outputs. A telephone output is also provided.
The mixer/amplifier features priority muting, which can be achieved by VOX or an external switch. The master output has a front-panel level control knob, as well as individual bass and treble controls. All of these terrific features are packed into a compact housing with a weight under 10 pounds. - Professional 4-input, 1-output mixer/amplifier
- Individual volume controls for each input
- Stereo RCA and Phoenix inputs
- Phoenix preamp and telephone outputs, as well as screw terminal speaker outputs
- Priority muting via VOX or external switch
- Individual bass and treble controls on the master output
- Built-in protection circuitry for overheating, overload, and DC fault
UPC: 871015002729 In the Box Crown Audio 160MA 4 x 1 60W Commercial Mixer/Amplifier Power Cord 3 x Phoenix Connectors Screw Terminal Cover 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Crown Audio 160MA 4 x 1 60W Commercial Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCrown Audio 160MA Specs | Power Output | 60W | | Frequency Response | 19Hz - 34kHz (+0, -3dB) | | Distortion | < 0.5% @ Rated Power | | Sensitivity | Input 1: Mic 3mV, Line 800mV
Input 2: 400mV
Input 3: 400mV
400mV | | Signal to Noise Ratio | Mic: > 58dB
Line: > 60dB
Telephone: 60dB
Other Inputs: > 78dB | | Connectors | 1 x Phoenix Input
3 x Stereo RCA Inputs
1 x Phoenix Preamp Output
1 x Phoenix Telephone MOH Output
1 x Screw Terminal Barrier Strip Output (8 Ohm, 70/100V)
1 x AC Power Input | | Indicators | LEDs for Power, Signal, and Clip | | Dimensions (WxHxD) | 9.5 x 3.5 x 12.2" (241 x 89 x 310mm) | | Weight | 9.5 lbs (4.3kg) | | | | Package Weight | 12.15 lb | | Box Dimensions (LxWxH) | 15.7 x 11.2 x 7.0" |
