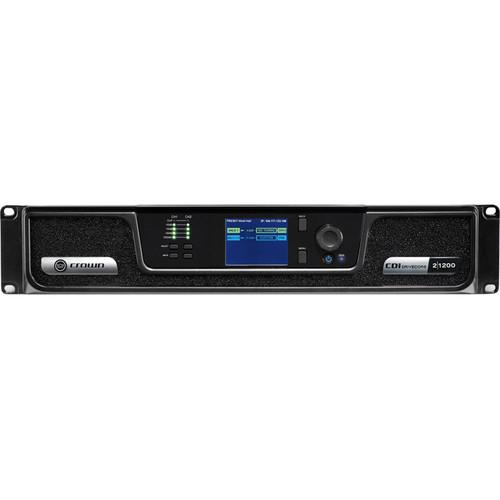

User Manual for Crown Audio CDi 21200 2-Channel Analog Input Amplifier Click to enlarge the picture
Contents of the user manual for the Crown Audio CDi 21200 2-Channel Analog
- Product category: Power Amplifiers Crown Audio
- Brand: Crown Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Crown Audio Power Amplifiers
|
User manual for the Crown Audio CDi 21200 2-Channel Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Crown Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Crown Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Crown Audio product will considerably shorten its lifespan!
|
Product description Provided by third party: The CDi DriveCore series is an evolution in amplification, providing an impressive mix of high-performance, rich feature set, and competitive cost. Using technology derived from the flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 2|1200 offers streamlined functionality to work in almost any large sized installation, such as cinema, houses of worship, hotels, cruise lines, and more. Designed for ease-of-use in a variety of applications, the 2|1200 is a 2-channel amp, that offers network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100 Vrms speaker loads without requiring a transformer. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.
- Key Features
-
- DriveCore technology
- DSP
- Direct drive 70/100 Vrms output
- Front-panel interface
- GPIO/aux port
- Pre-loaded speaker tunings
- DriveCore technology
- Crown's proprietary DriveCore technology eliminates hundreds of components within each amplifier, reducing the variability of component values, increasing reliability, resulting in incredible audio fidelity from an efficient design.
- DSP
- On-board digital signal processor in each amplifier allows for custom configuration.
- Direct drive 70/100 Vrms output
- Each output channel is capable of providing either 70 V or 100 V for high-impedance applications.
- Front-panel interface
- Completely configure the amplifier using an intuitive front-panel interface.
- GPIO/aux port
- Recall presets, mute channels, monitor faults, power on/off the amplifier, and more through a combined GPIO/aux port.
- Pre-loaded speaker tunings
- Enable quicker and easier setup and installation.
Table of Contents
|
Upload User Manual
Have you got an user manual for the Crown Audio CDi 21200 2-Channel Analog Input Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCrown Audio Drivecore 21200 Specs | | | Product Type | Power amplifier | | | | Functions | Amplifier | | Audio D/A Converter | 32bit / 96kHz | | Equalizer | Yes | | Digital Sound Processor (DSP) | Yes | | Audio Specifications | Amplifier - Response Bandwidth - 20 - 20000 Hz - SNR - 104 dB - THD - 0.35% | | Input Channel Qty | 2 channels | | Output Channel Qty | 2 channels | | Amplifier Output Details | 850 Watt - 2 Ohm - at 1 kHz - THD 0.5% - 2 channels
1200 Watt - 4 Ohm - at 1 kHz - THD 0.5% - 2 channels
1200 Watt - 8 Ohm - at 1 kHz - THD 0.5% - 2 channels
600 Watt - 16 Ohm - at 1 kHz - THD 0.5% - 2 channels
1200 Watt - at 1 kHz - THD 0.5% - 2 channels (70V)
1200 Watt - at 1 kHz - THD 0.5% - 2 channels (100V)
1200 Watt - 4 Ohm - at 1 kHz - THD 0.5% - 1 channels (bridged)
2400 Watt - 8 Ohm - at 1 kHz - THD 0.5% - 1 channels (bridged)
2400 Watt - 16 Ohm - at 1 kHz - THD 0.5% - 1 channels (bridged)
2400 Watt - at 1 kHz - THD 0.5% - 1 channels (140V bridged)
2400 Watt - at 1 kHz - THD 0.5% - 1 channels (200V bridged) | | Features | Thermal protection, short circuit protection, DC protection, over voltage protection, bridged output capability, rack mountable, 70V/100V or 2/4/8/16 Ohm operation, DriveCore Technology, under voltage protection | | | | Equalizer Type | Parametric | | Equalizer Band Qty | 8 bands | | | | Display Type | LCD display - color | | | | Connectors | 2 x balanced audio input (terminal block) - rear
2 x speakers output (screw-type) - rear
LAN (RJ-45) - rear
GPIO (terminal block) - rear | | | | Voltage Required | AC 120/230 V (50/60 Hz) | | | | Service & Support | Limited warranty - parts and labor - 3 years | | | | Width | 19 in | | Depth | 15.9 in | | Height | 3.5 in | | Weight | 17.2 lbs |
