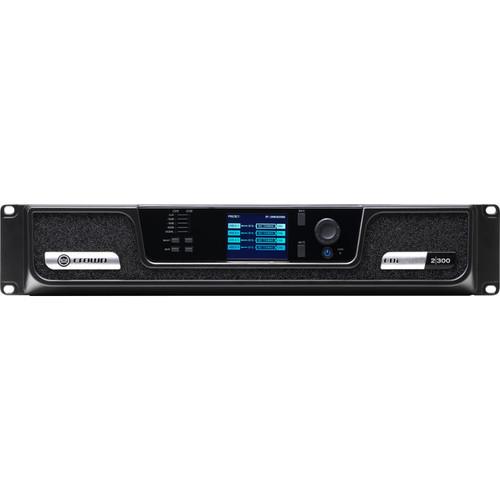

User Manual for Crown Audio CDi 2300 2-Channel Analog Input Amplifier Click to enlarge the picture
Contents of the user manual for the Crown Audio CDi 2300 2-Channel Analog
- Product category: Power Amplifiers Crown Audio
- Brand: Crown Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Crown Audio Power Amplifiers
|
User manual for the Crown Audio CDi 2300 2-Channel Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Crown Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Crown Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Crown Audio product will considerably shorten its lifespan!
|
Product description Provided by third party: The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance, rich feature set, and competitive cost. Using technology derived from the flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore offers streamlined functionality to work in almost any small/medium installation, cinema, retail store, and more.
- Key Features
-
- DriveCore technology
- Network control and monitoring
- Direct drive 70/100 Vrms output
- Front-panel interface
- GPIO/AUX port
- DriveCore technology
- Crown's proprietary DriveCore technology eliminates hundreds of components within each amplifier, reducing the variability of component values, increasing reliability, resulting in incredible audio fidelity from an efficient design.
- Network control and monitoring
- Through Harman's HiQnet Audio Architect software, the CDi DriveCore can be controlled, configured, and monitored through standard TCP/IQ network.
- Direct drive 70/100 Vrms output
- Each output channel is capable of provide either 70 V or 100 V for high impedance applications.
- Front-panel interface
- Completely configure the amplifier using an intuitive front-panel interface.
- GPIO/AUX port
- Recall presets, mute channels, monitor faults, power on/off the amplifier, and more through a combined GPIO/AUX Port.
UPC: 691991006418 Table of Contents
|
Upload User Manual
Have you got an user manual for the Crown Audio CDi 2300 2-Channel Analog Input Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCrown Audio NCDI2X300-U-US Specs | | | Product Type | Power amplifier | | | | Audio Channels | Stereo | | Functions | Amplifier | | Equalizer | Yes | | Digital Sound Processor (DSP) | Yes | | Input Channel Qty | 2 channels | | Amplifier Output Details | 150 Watt - 2 Ohm - 2 channels
300 Watt - 4 Ohm - 2 channels
300 Watt - 8 Ohm - 2 channels
150 Watt - 16 Ohm - 2 channels
300 Watt - 2 channels (70V)
300 Watt - 2 channels (100V)
300 Watt
600 Watt - 2 channels (bridged)
600 Watt - 2 channels (bridged)
600 Watt - 2 channels (140V bridged)
600 Watt - 2 channels (200V bridged) | | Features | Clip LED, bridged output capability, rack mountable, 70V/100V or 2/4/8/16 Ohm operation, DriveCore Technology | | | | Equalizer Type | Parametric | | Equalizer Band Qty | 8 bands | | | | Connectors | 2 x balanced audio input (terminal block) - rear
2 x speakers output (screw-type) - rear
LAN (RJ-45) - rear
GPIO - rear | | | | Voltage Required | AC 120/230 V (50/60 Hz) | | | | Package Weight | 20.2 lb | | Box Dimensions (LxWxH) | 22.0 x 19.0 x 7.9" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 50 owners. Add your rating and experience with the product.
