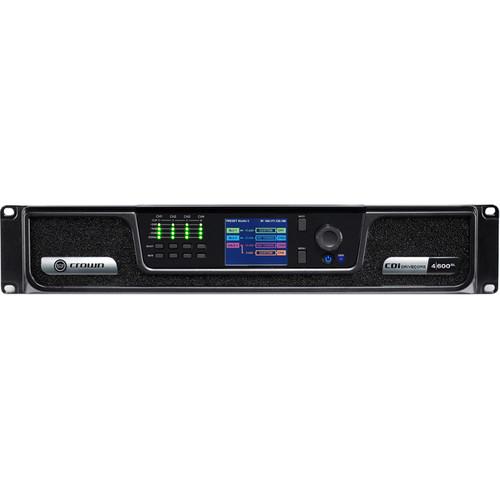

User Manual for Crown Audio CDi 4600 DriveCore 4-Channel Amplifier with Analog & BLU Link Input Click to enlarge the picture
Contents of the user manual for the Crown Audio CDi 4600 DriveCore 4-Channel
- Product category: Power Amplifiers Crown Audio
- Brand: Crown Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Crown Audio Power Amplifiers
|
User manual for the Crown Audio CDi 4600 DriveCore 4-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Crown Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Crown Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Crown Audio product will considerably shorten its lifespan!
|
Product description Provided by third party: The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost. Using technology derived from the flagship Installed Sound amplifier, the CDi DriveCore 4|600BL offers streamlined functionality to work in almost any medium sized installation such as cinema, houses of worship, bars, lounges, and more. Designed for ease-of-use in a variety of applications, the 4|600BL is a 4-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer.
Table of Contents
|
Upload User Manual
Have you got an user manual for the Crown Audio CDi 4600 DriveCore 4-Channel Amplifier with Analog & BLU Link Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCrown Audio Drivecore 4600BL Specs | | | Product Type | Power amplifier | | | | Functions | Amplifier | | Audio D/A Converter | 32bit / 96kHz | | Equalizer | Yes | | Digital Sound Processor (DSP) | Yes | | Audio Specifications | Amplifier - Response Bandwidth - 20 - 20000 Hz - SNR - 104 dB - THD - 0.35% | | Input Channel Qty | 4 channels | | Output Channel Qty | 4 channels | | Amplifier Output Details | 300 Watt - 2 Ohm - at 1 kHz - THD 0.5% - 4 channels
600 Watt - 4 Ohm - at 1 kHz - THD 0.5% - 4 channels
600 Watt - 8 Ohm - at 1 kHz - THD 0.5% - 4 channels
300 Watt - 16 Ohm - at 1 kHz - THD 0.5% - 4 channels
600 Watt - at 1 kHz - THD 0.5% - 4 channels (70V)
600 Watt - at 1 kHz - THD 0.5% - 4 channels (100V)
600 Watt - 4 Ohm - at 1 kHz - THD 0.5% - 2 channels (bridged)
1200 Watt - 8 Ohm - at 1 kHz - THD 0.5% - 2 channels (bridged)
1200 Watt - 16 Ohm - at 1 kHz - THD 0.5% - 2 channels (bridged)
1200 Watt - at 1 kHz - THD 0.5% - 2 channels (140V bridged)
1200 Watt - at 1 kHz - THD 0.5% - 2 channels (200V bridged) | | Features | Thermal protection, short circuit protection, DC protection, over voltage protection, bridged output capability, rack mountable, 70V/100V or 2/4/8/16 Ohm operation, DriveCore Technology, under voltage protection | | | | Equalizer Type | Parametric | | Equalizer Band Qty | 8 bands | | | | Display Type | LCD display - color | | | | Connectors | 4 x balanced audio input (terminal block) - rear
4 x speakers output (screw-type) - rear
LAN (RJ-45) - rear
GPIO (terminal block) - rear
BLU Link input (RJ-45) - rear
BLU Link output (RJ-45) - rear | | | | Voltage Required | AC 120/230 V (50/60 Hz) | | | | Width | 19 in | | Depth | 13.6 in | | Height | 3.5 in | | Weight | 16.29 lbs |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 12 owners. Add your rating and experience with the product.
