User Manual for Crown Audio CT875 8-Channel Rackmount Power Amplifier Click to enlarge the picture
Contents of the user manual for the Crown Audio CT875 8-Channel Rackmount Power
- Product category: Power Amplifiers Crown Audio
- Brand: Crown Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Crown Audio Power Amplifiers
 |
User manual for the Crown Audio CT875 8-Channel Rackmount Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Crown Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Crown Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Crown Audio product will considerably shorten its lifespan!
|

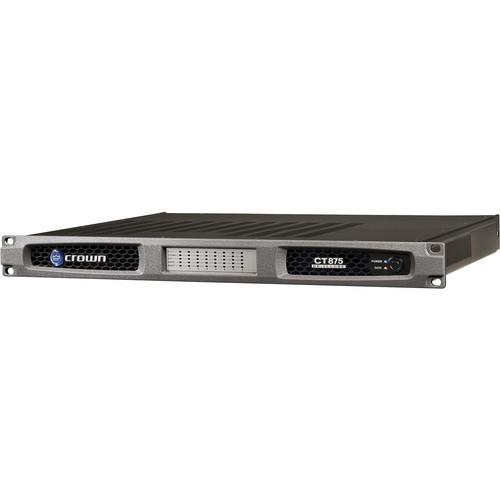

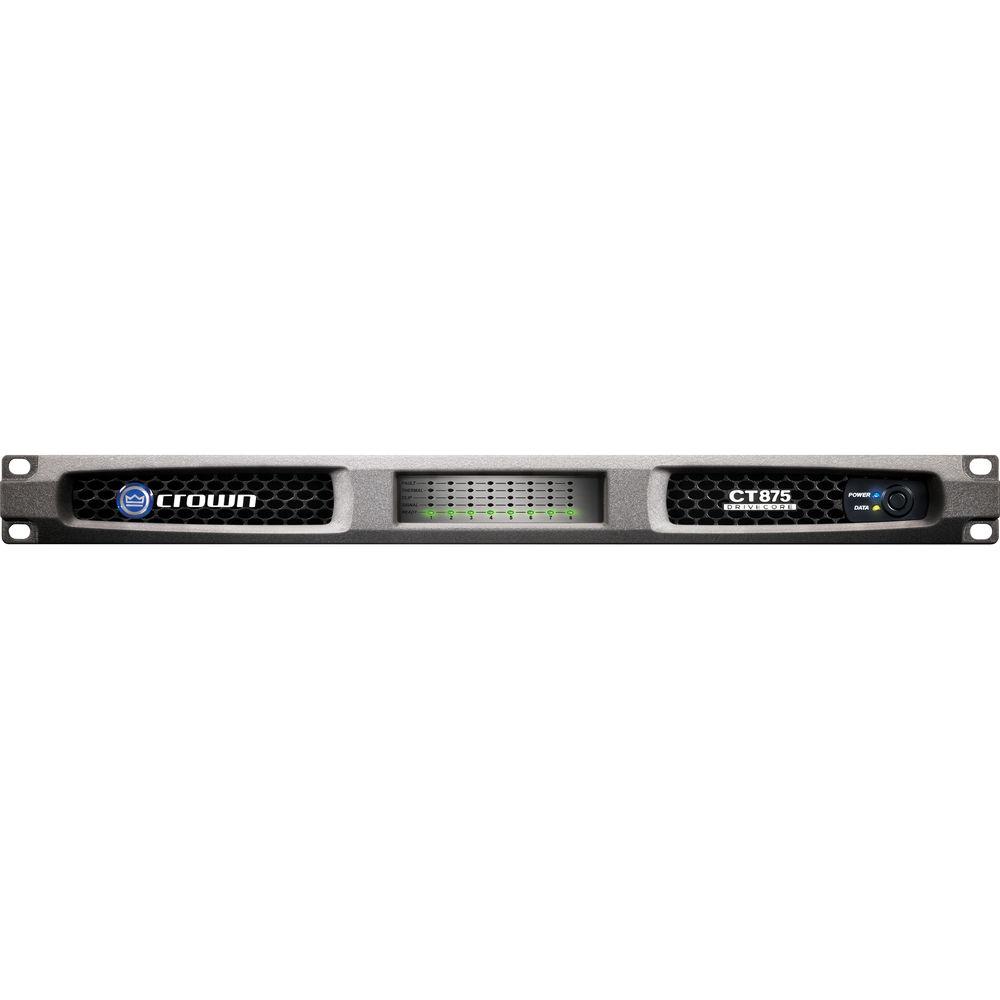

Product description The CT875, part of the ComTech DriveCore series from Crown Audio, is an 8-channel power amplifier that offers professional audio quality in a slim design. The amplifier has a 1RU chassis, allowing you to install it in any standard equipment rack. It provides 75W per channel into 8 ohms for strong, clear audio with low distortion. DriveCore technology provides excellent efficiency of over 90% for a fantastic performance to power ratio. It does not require a cooling fan, providing silent operation.
The amplifier offers flexible input routing, allowing you to send an input signal to any of the 4 outputs. Integrated Life-Safety features and patented feedback and protection circuitry protect the amplifier from damage to ensure a lifetime of reliable operation. A universal power supply lets you use the amplifier internationally, ideal for touring applications. - Slim 1RU chassis can be installed in any standard equipment rack
- Delivers 75W per channel into 8 ohms for strong, clear audio with low distortion
- DriveCore technology provides excellent efficiency of over 90% for a fantastic performance to power ratio
- No cooling fan required, providing silent operation
- Flexible input routing allows you to send an input signal to any of the 4 outputs
- Integrated Life-Safety features and patented feedback and protection circuitry protect the amplifier from damage to ensure a lifetime of reliable operation
- A universal power supply lets you use the amplifier internationally, ideal for touring applications
UPC: 871015004754 In the Box Crown Audio CT875 8-Channel Rackmount Power Amplifier (75W/Channel @ 8 Ohms) Power Cord 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Crown Audio CT875 8-Channel Rackmount Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

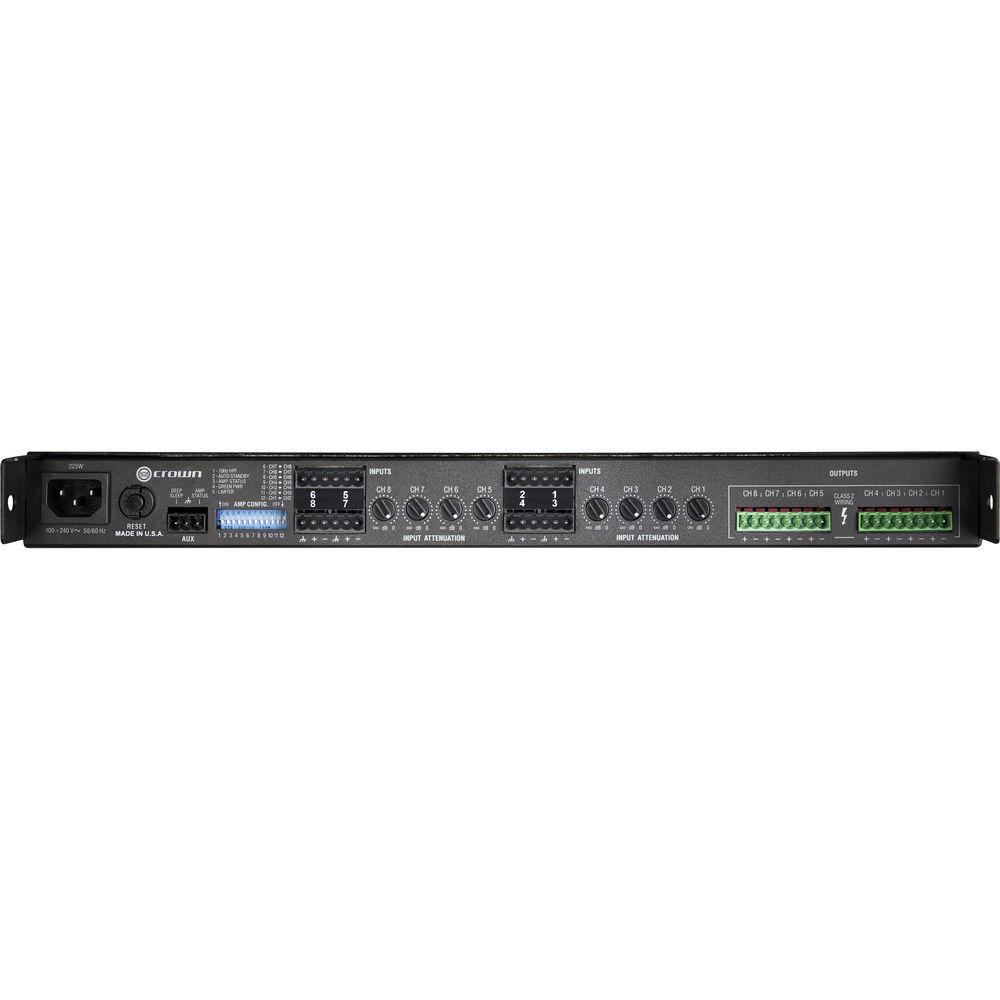

Technical parametersCrown Audio CT875 Specs | Power Rating | 75W/Channel @ 8 Ohms | | Channels | 8 | | Damping Factor | Not Specified by Manufacturer | | Input Sensitivity | 1.4V | | Frequency Response | 20Hz - 20kHz ±0.5dB | | Signal-to-Noise Ratio | 110dB | | Total Harmonic Distortion (THD) | < 0.05% | | Intermodulation Distortion (SMPTE) | < 0.05% | | Crosstalk | > 70dB | | Common Mode Rejection Ratio | > 55dB, > 70dB Typical | | Connectors | 8 x 3-Pin Phoenix Inputs
8 x 2-Pin Phoenix Outputs
1 x Power Input | | Controls | 8 x Input Attenuator Knobs
1 x Set of Amp Control DIP-Switches
1 x Power Switch | | Indicators | 1 x Power LED
8 x Signal LEDs
8 x Clip LEDs
8 x Thermal LEDs
8 x Fault LEDs | | Cooling | Convection | | Power Consumption | Not Specified by Manufacturer | | Power Requirements | Universal Power Supply | | Dimensions (HxWxD) | 1.75 x 19 x 14.25" (44 x 483 x 362mm) | | Weight | 10 lbs (4.54kg) | | | | Package Weight | 11.85 lb | | Box Dimensions (LxWxH) | 21.7 x 20.8 x 5.3" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
